LED VALUE CLASSIC B

Choose your product version

2.5 W/2700 K E14

25 3.3 W/2700 K E14

40 4.9 W/2700 K B22d

40 4.9 W/2700 K E14

40 4.9 W/2700 K E14

4.7 W/2700 K E14

4.7 W/2700 K E14

40 4.9 W/2700 K E27

4.7 W/2700 K E27

4.9 W/6500 K B22d

40 4.9 W/6500 K E14

4.7 W/6500 K E14

5 W/3000 K E14 GEN2

5 W/3000 K E14 GEN2

5 W/6500 K E14 GEN2

5 W/6500 K E14 GEN2

60 7 W/2700 K E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux
LED VALUE CLAS B 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 220 ° No
LED VALUE CLAS B 25 3.3 W/2700 K E14 E14 3.3 W 220…240 V 15000 h 250 lm 25 W 220 ° No
LED VALUE CLAS B 40 4.9 W/2700 K B22d B22d 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 40 4.9 W/2700 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS B 40 4.9 W/2700 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 4.7 W/2700 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS B 4.7 W/2700 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 220 ° No
LED VALUE CLAS B 40 4.9 W/2700 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 4.7 W/2700 K E27 E27 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS B 4.9 W/6500 K B22d B22d 4.9 W 220…240 V 15000 h 470 lm 180 ° No
LED VALUE CLAS B 40 4.9 W/6500 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 4.7 W/6500 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 220 ° No
LED VALUE CLAS B 5 W/3000 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No
LED VALUE CLAS B 5 W/3000 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 280 ° No
LED VALUE CLAS B 5 W/6500 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 280 ° No
LED VALUE CLAS B 5 W/6500 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No
LED VALUE CLAS B 60 7 W/2700 K E14 E14 7 W 220…240 V 15000 h 806 lm 60 W 200 ° No


LED VALUE CLAS B 4.9 W/6500 K B22d

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 220…240 V
Nominal current 42 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz

Photometrical data

Luminous flux 470 lm
Luminous efficacy 95 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865

Dimensions & Weight

Overall length 100.00 mm
Diameter 37.00 mm
Product weight 15.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Additional product data

Base (standard designation) B22d

Certificates & Standards

Type of protection IP20
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LVCLB404,9W/865

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 100.00 mm
Height 37.00 mm
Width 37.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time
Areas of application
  • General illumination
  • Domestic applications
  • Chandeliers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075673564 Folding box
1		 51 mm x 51 mm x 123 mm 32.00 g 0.32 dm³
4058075673571 Shipping box
10		 266 mm x 109 mm x 137 mm 443.00 g 3.97 dm³
4099854256745 Shipping box
10		 266 mm x 109 mm x 137 mm 403.00 g 3.97 dm³

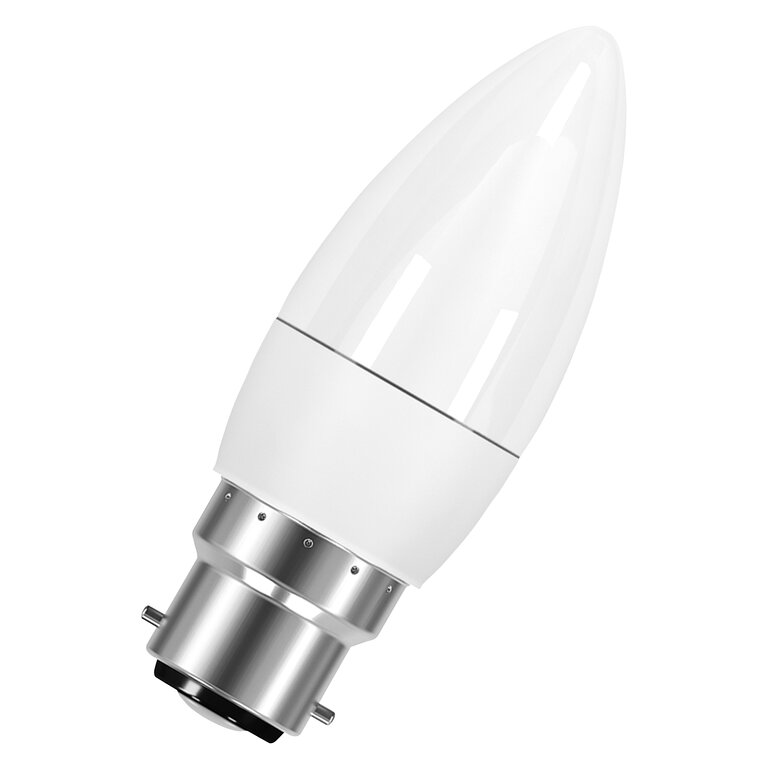

Product image: white background, diagonal
CLAS B 40 FR 5.5 W B22 D JPG (1.23 MB)

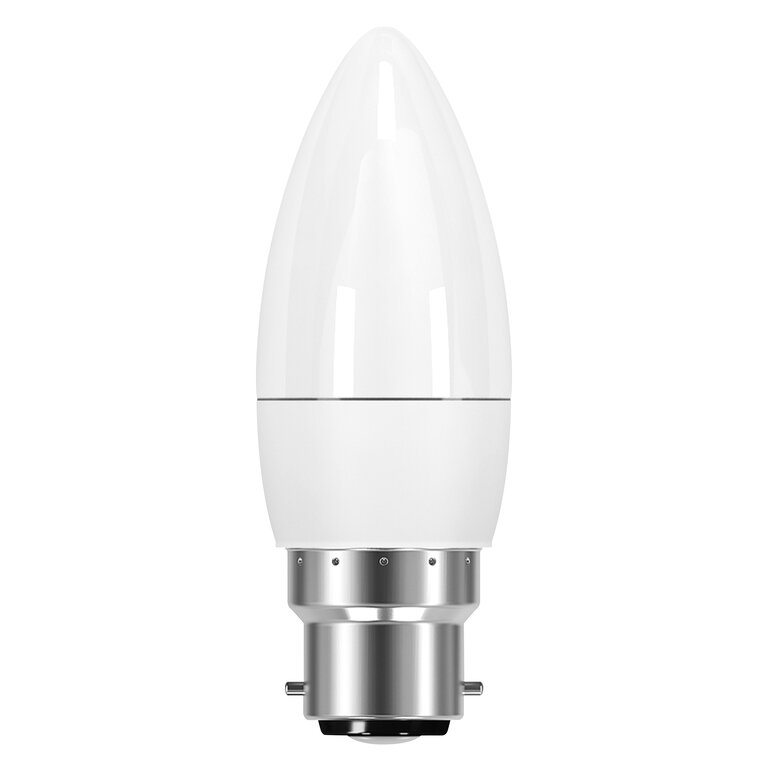

Product image: white background, upright
CLAS B 40 FR 5.5 W B22 D JPG (1.15 MB)
Product line drawing, front, no dimensions
CLAS B 40 FR 5.5 W B22 D SVG (6.29 KB)
