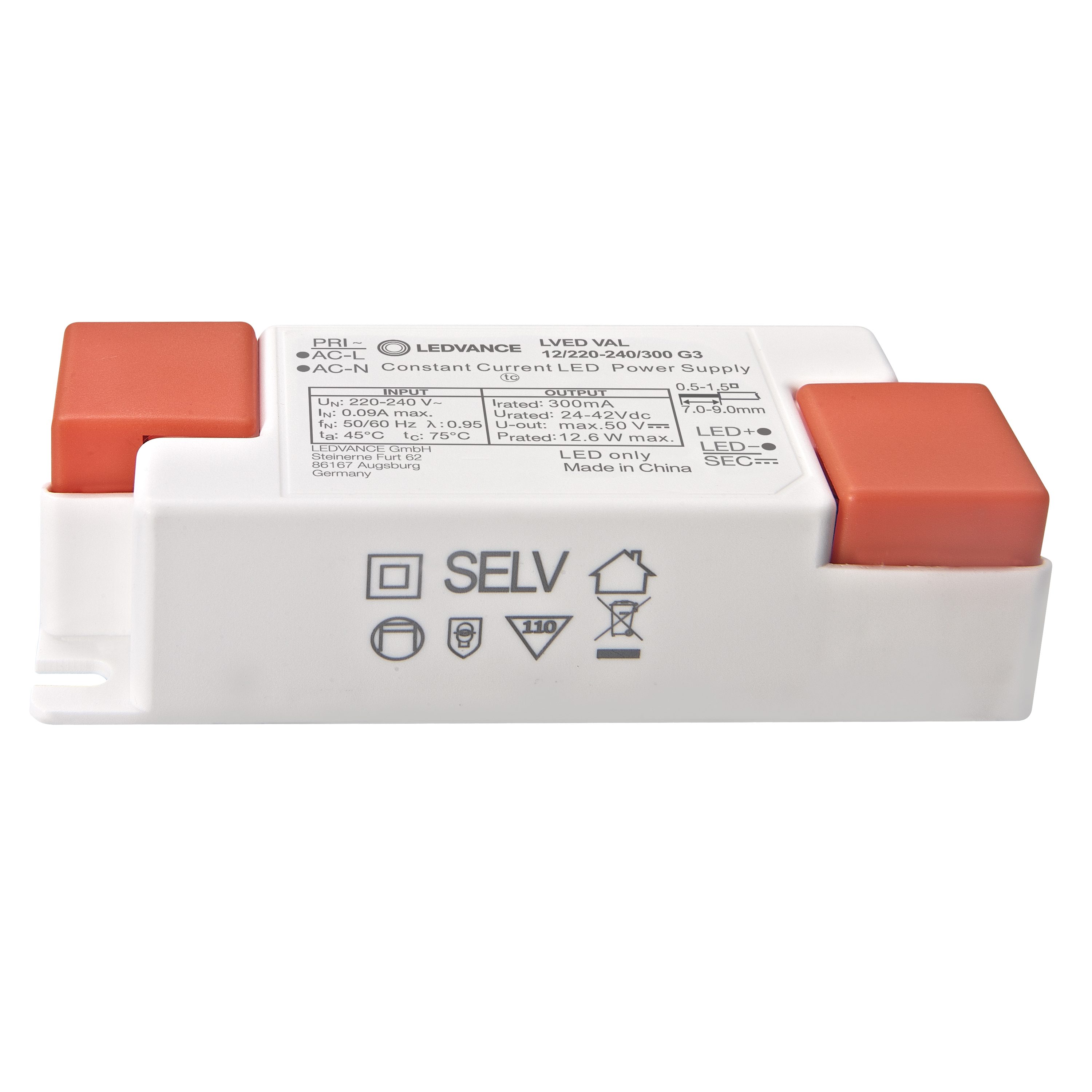

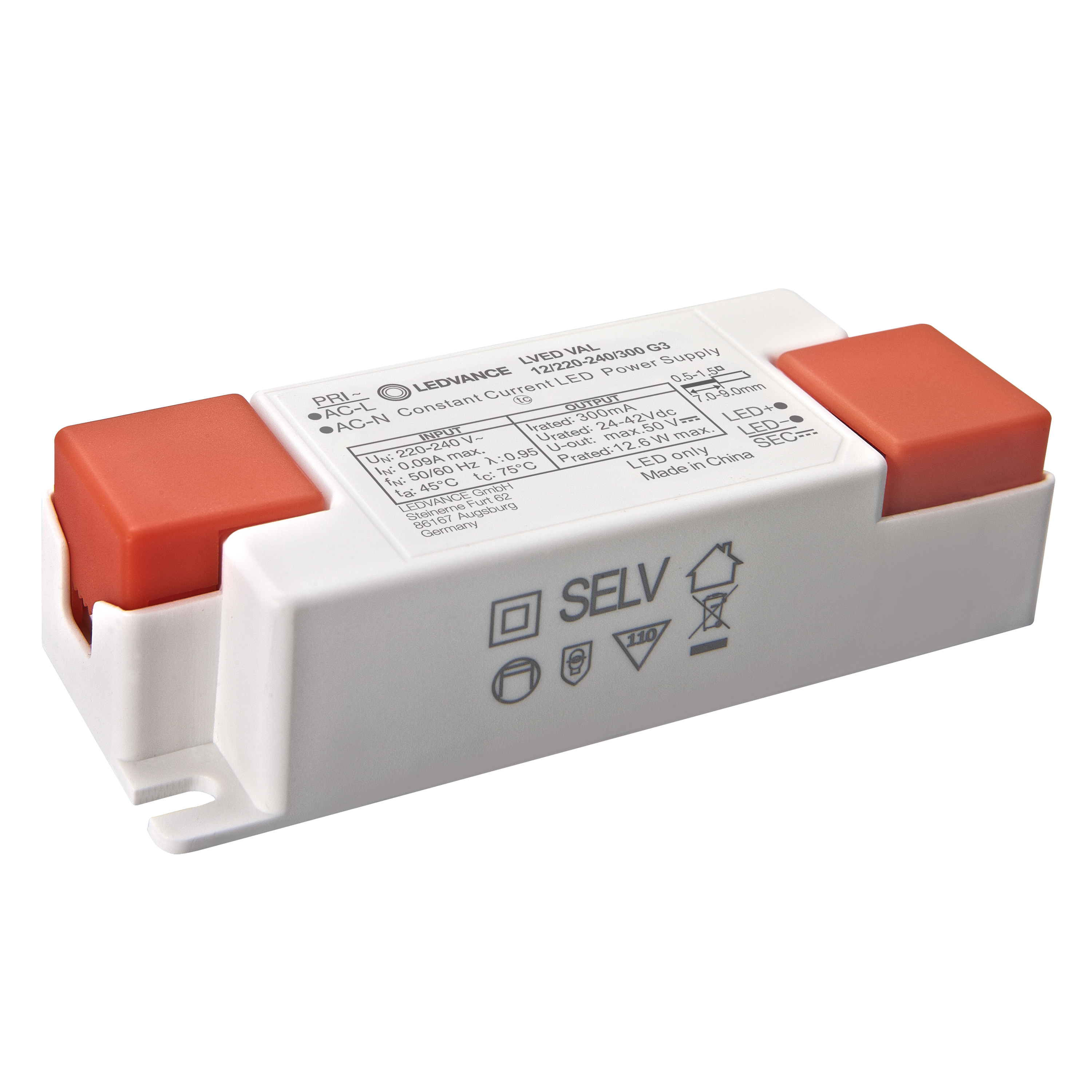

LVED VAL 12/220-240/300
Product benefits
- Long lifetime to reduce the maintenance cost
- High Power factor
- Low ripple current with flicker free
- Various currents-wattages for wide application setting, more flexibility
- SELV system
- Compact housing
| Nominal wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 24-42 V |
| Input voltage range | 220…240 V |
| Nominal output current | 300 mA |
| Mains frequency | 50/60 Hz |
| Power factor λ | 0.95 1) |
| Galvanic isolation | SELV |
1) At full load
| Length | 100.00 mm |
| Width | 38.00 mm |
| Height | 25.00 mm |
| Product weight | 49.00 g |
| Product color | White/Orange |
| Body material | Plastic |
| Ambient temperature range | -20…+45 °C |
| Dimmable | No |
| Approval marks – approval | CB |
| Protection class | II |
| Type of protection | IP20 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075798816 | Unpacked 1 |
|||
| 4058075798823 | Shipping box 60 |
331 mm x 185 mm x 228 mm | 4800.00 g | 13.96 dm³ |
