LED VALUE HW 60 27 W/6500 K E27

Product benefits
  • Energy savings of up to 50 % compared to conventional compact fluorescent lamps
  • Accessory cover works as a reflector and increase the illuminance up to 100 %
  • Wide beam angle: 200°
  • Long lifetime of up to 20,000 h
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 27 W
Construction wattage 27.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 330 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.90

Photometrical data

Luminous flux 3105 lm
Luminous efficacy 115 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 180 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 158.00 mm
Diameter 100.00 mm
Maximum diameter 100 mm
Product weight 108.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 75 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, EMC, ROHS
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LV HW 27W/865 1

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 158.00 mm
Height 100.00 mm
Width 100.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 50 % compared to conventional compact fluorescent lamps
  • Accessory cover works as a reflector and increase the illuminance up to 100 %
  • Wide beam angle: 200°
  • Long lifetime of up to 20,000 h
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
Areas of application
  • Suitable for indoor applications.
  • Warehouses
  • Workshops
  • Stadiums
  • Car parks
Product features
  • Luminous efficacy: up to 100 lm/W
  • Color rendering index Ra: ≥ 80
  • Power factor: 0.9
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854174049 Folding box
1		 102 mm x 102 mm x 165 mm 165.00 g 1.72 dm³
4099854174056 Shipping box
10		 532 mm x 227 mm x 194 mm 2134.00 g 23.43 dm³

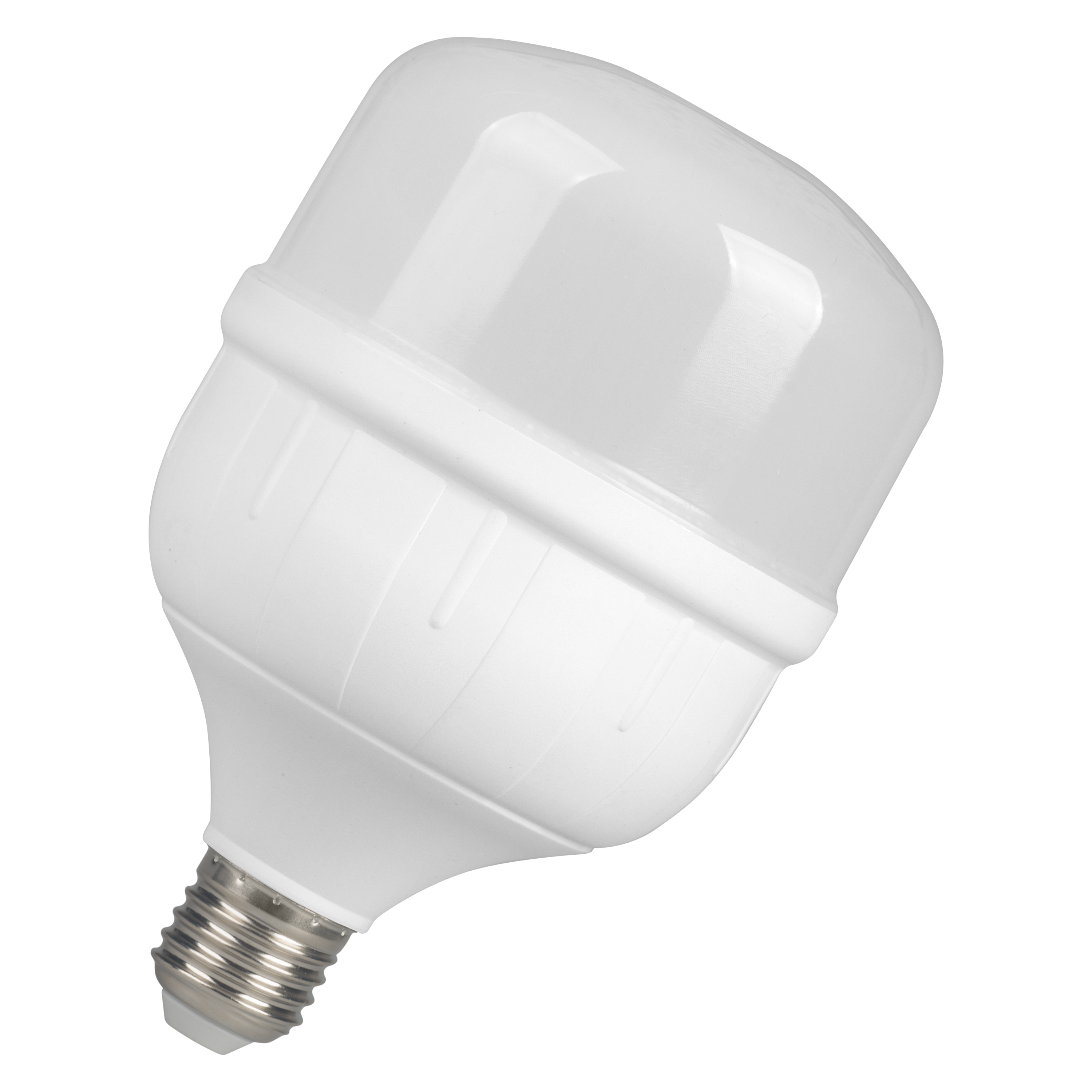

Product image: white background, diagonal
LV HW 30W E27 JPG (1.76 MB)

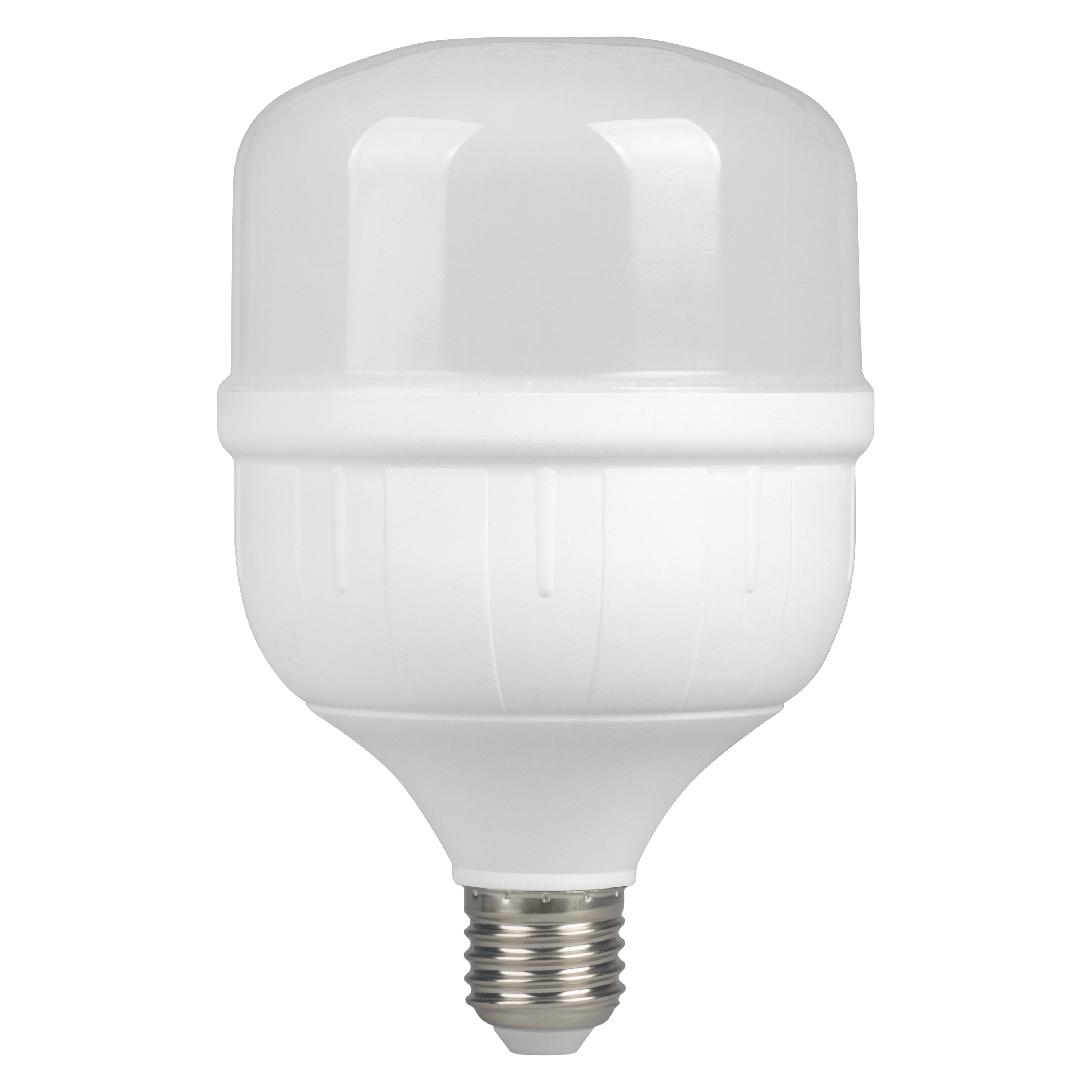

Product image: white background, upright
