| Nominal wattage | 133 W / 117 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 590/519 mA |
| Inrush current | 34.6 A |
| Inrush current time Th50 | 552 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 4 |
| Max. number of luminaires per miniature circuit breaker C10 | 4 |
| Max. number of luminaires per miniature circuit breaker C16 | 7 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Surge capability (L-N) | 4 kV |
| Surge capability (L/N-Ground) | 6 kV |
| Operating mode | Integrated LED driver |
| Luminous flux | 20000 lm / 17500 lm |
| Luminous efficacy | 150 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 5 sdcm |
| Stroboscope effect metric (SVM) | ≤0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 100 ° x 100 ° |
| Length | 294.00 mm |
| Height | 376.00 mm |
| Width | 58.00 mm |
| Product weight | 3476.00 g |

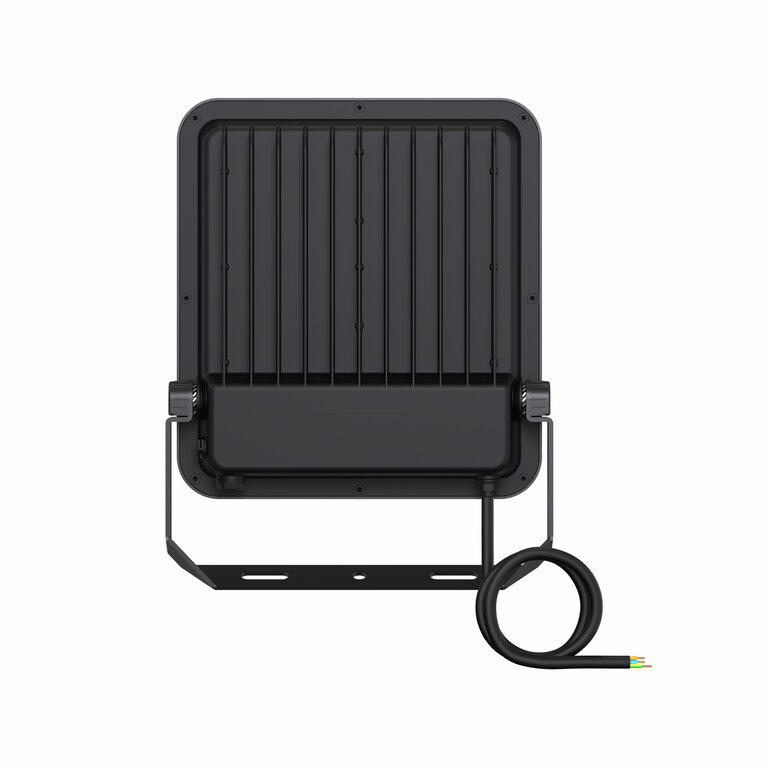

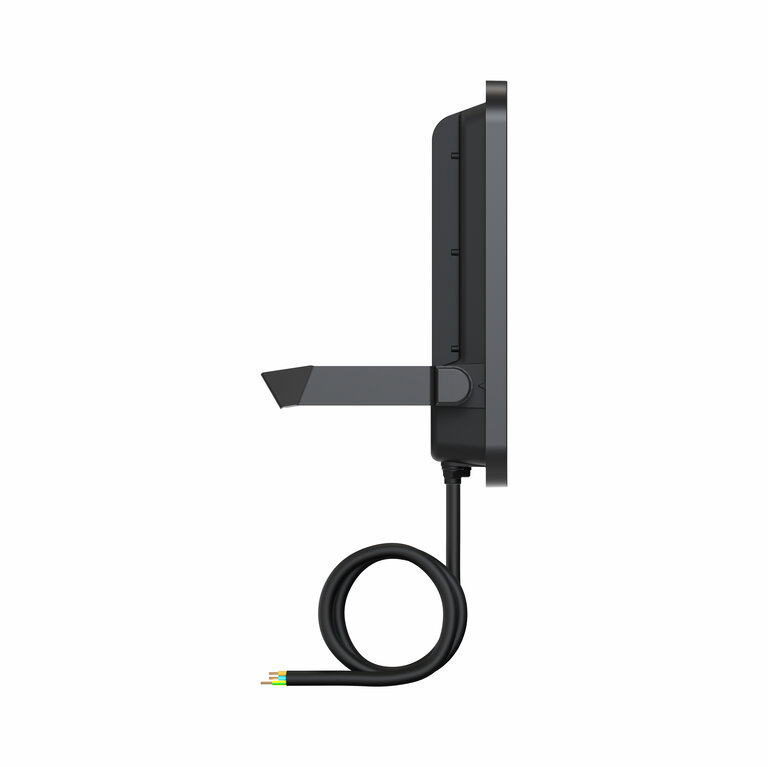

| Cable length | 1000 mm |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |

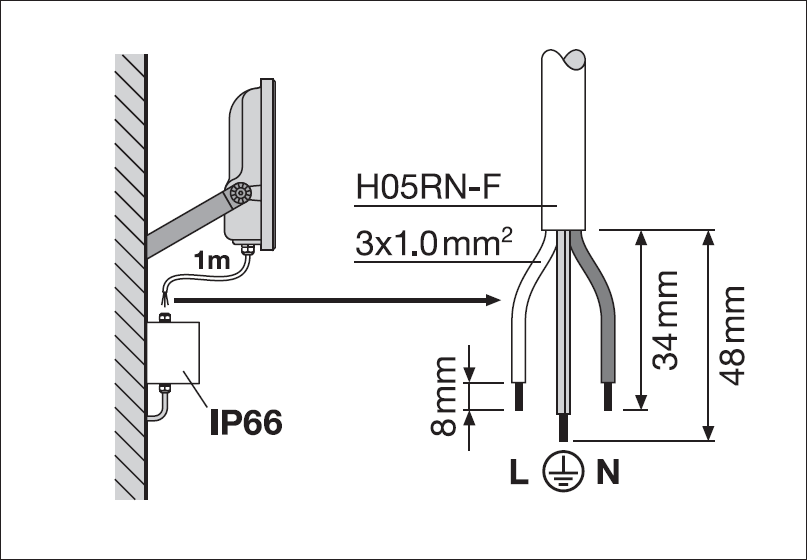

| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Corrosion resistance class acc. to EN 12944 | C4 |
| Dimmable | No |

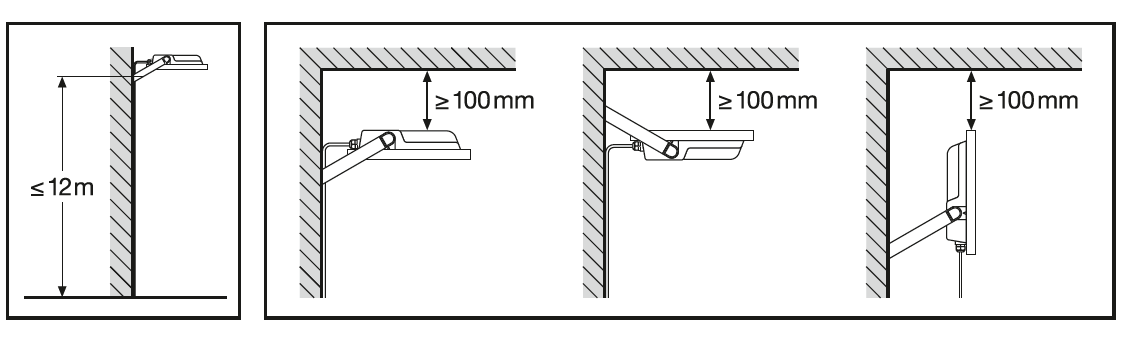

| Mounting type | Surface |
| Mounting location | Wall, Pole, Floor, Ceiling |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 75000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 630 mA |
| ECG - Output ripple current | < 20 % |

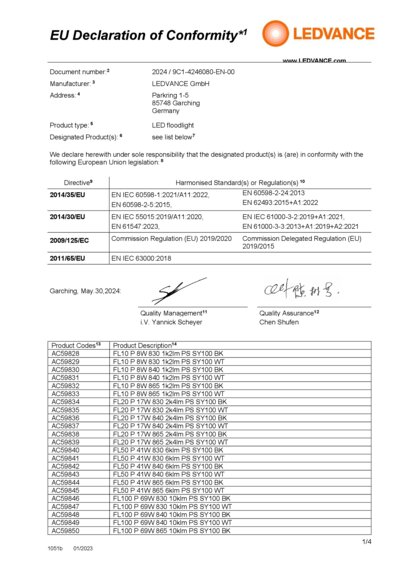

| Standards | CE, CB, ENEC, EAC, UKCA, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |

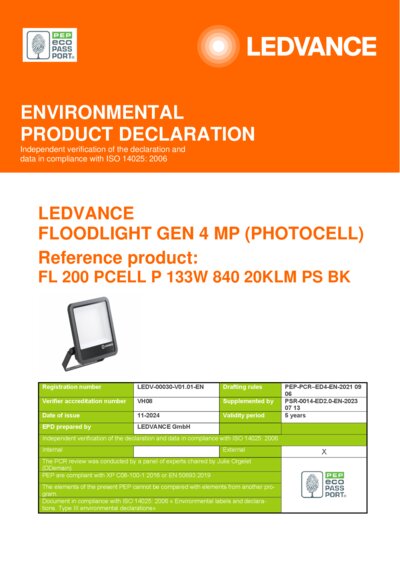

| EPD | LEDV-00030-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |

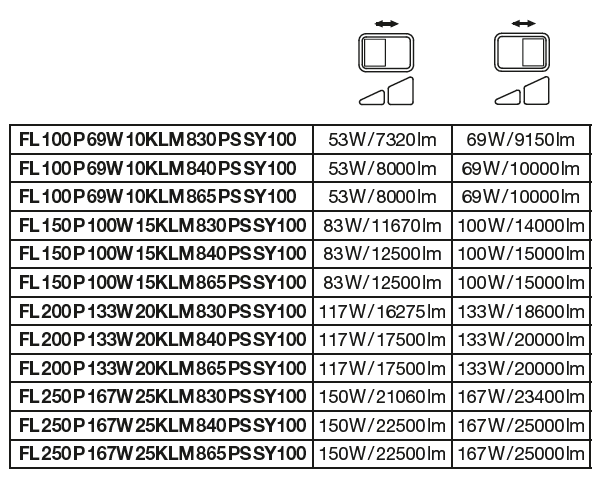

| Added function | MULTI SELECT |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854306464 | Folding box 1 |
75 mm x 324 mm x 417 mm | 3776.00 g | 10.13 dm³ |
| 4099854306471 | Shipping box 2 |
340 mm x 167 mm x 444 mm | 8048.00 g | 25.21 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4099854306464 | 7770330 | 4529948 | 3218828 | 941603690 |
