HQL LED 5400 lm 46 W/2700 K E27

Product benefits
  • Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 46 W
Construction wattage 46.00 W
Nominal voltage 220…240 V
Operating mode AC, Conventional control gear (CCG)
Claimed equiv. conventional lamp power 125 W
Nominal current 210 mA
Type of current AC
Inrush current 3.6 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 23
Max. lamp number on MCB B10 A - CCG without compensation 23
Max. lamp number on MCB B10 A - CCG with compensation 28
Max. lamp number on MCB B16 A 36
Max. lamp number on MCB B16 A - CCG without compensation 36
Max. lamp number on MCB B16 A - CCG with compensation 43
Total harmonic distortion 20 %
Power factor λ 0.90

Photometrical data

Luminous flux 5400 lm
Nominal useful luminous flux 90° 5400 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 360 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 195.00 mm
Diameter 80,0 mm
Maximum diameter 80 mm
Product weight 670.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 89 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 46.00 kWh/1000h
Type of protection IP65
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference HQLLED5400 46W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 195.00 mm
Height 80,0 mm
Width 80,0 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
Areas of application
  • Streets
  • Area lighting
  • Pedestrian zones
  • Parks
  • Outdoor applications only in suitable luminaires
Product features
  • Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
  • Replacement for other HID: Suitable for operation with line voltage without control gear
  • Power factor: 0.9
  • Type of protection: IP65
  • High surge protection: up to 6 kV (L-N)
Safety advice
  • The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. If possible, please install the safety rope included in the package containing the lamp for the types 90 W lamps.
  • Not suitable for operation with ignitors.
  • Operation on the capacitor can lead to a reduction of the power factor of the system.
  • When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
  • Use in tight luminaires and luminaires with tight reflectors not recommended.
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075124868 Folding box
1		 87 mm x 87 mm x 231 mm 743.00 g 1.75 dm³
4058075124875 Shipping box
6		 270 mm x 185 mm x 256 mm 4746.00 g 12.79 dm³
User instruction / safety instructions

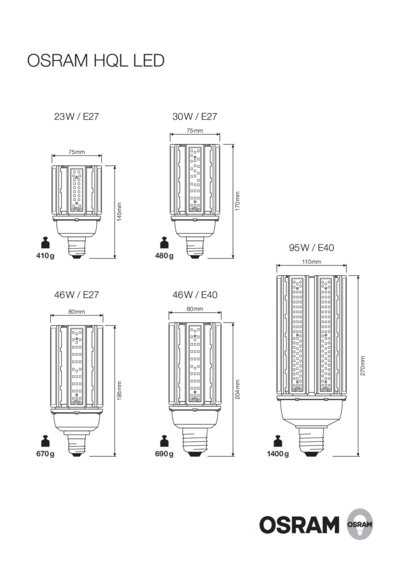

HQL LED PRO PDF (3.08 MB)
Declarations of conformity

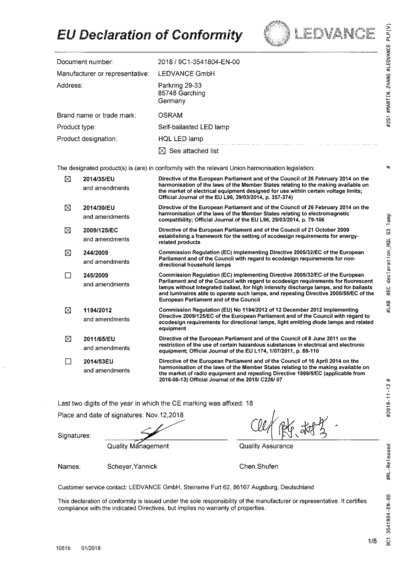

CE Declaration of Conf ormity HQL PDF (607.32 KB)
PRODUCT DATASHEET

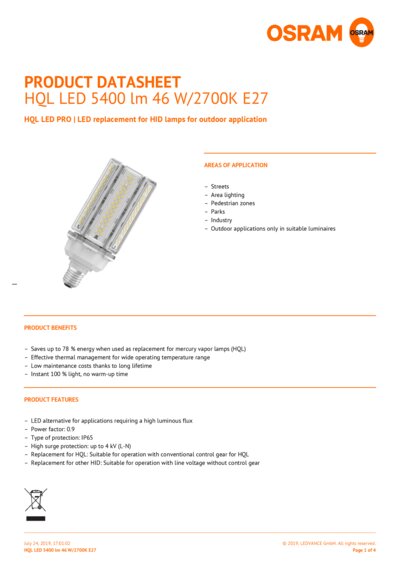

HQL LED 5400 lm 46 W 2 700K E27 DATASHEET PDF (384.79 KB)

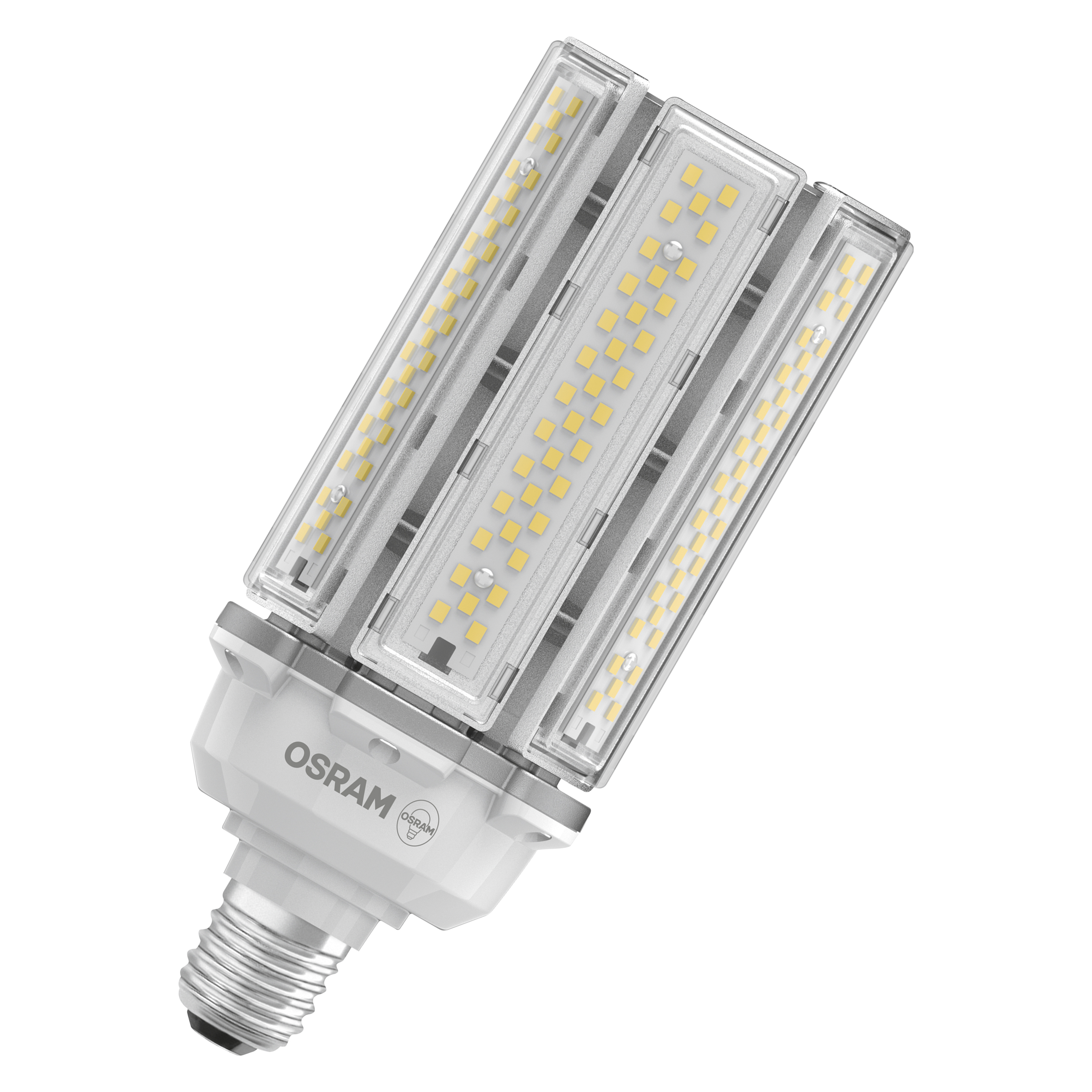

Product image: white background, diagonal with OSRAM logo
HQL LED 6000 46W E27 JPG (1.97 MB)
Product image: white background, diagonal
HQL LED 6000 46W E27 JPG (2.01 MB)

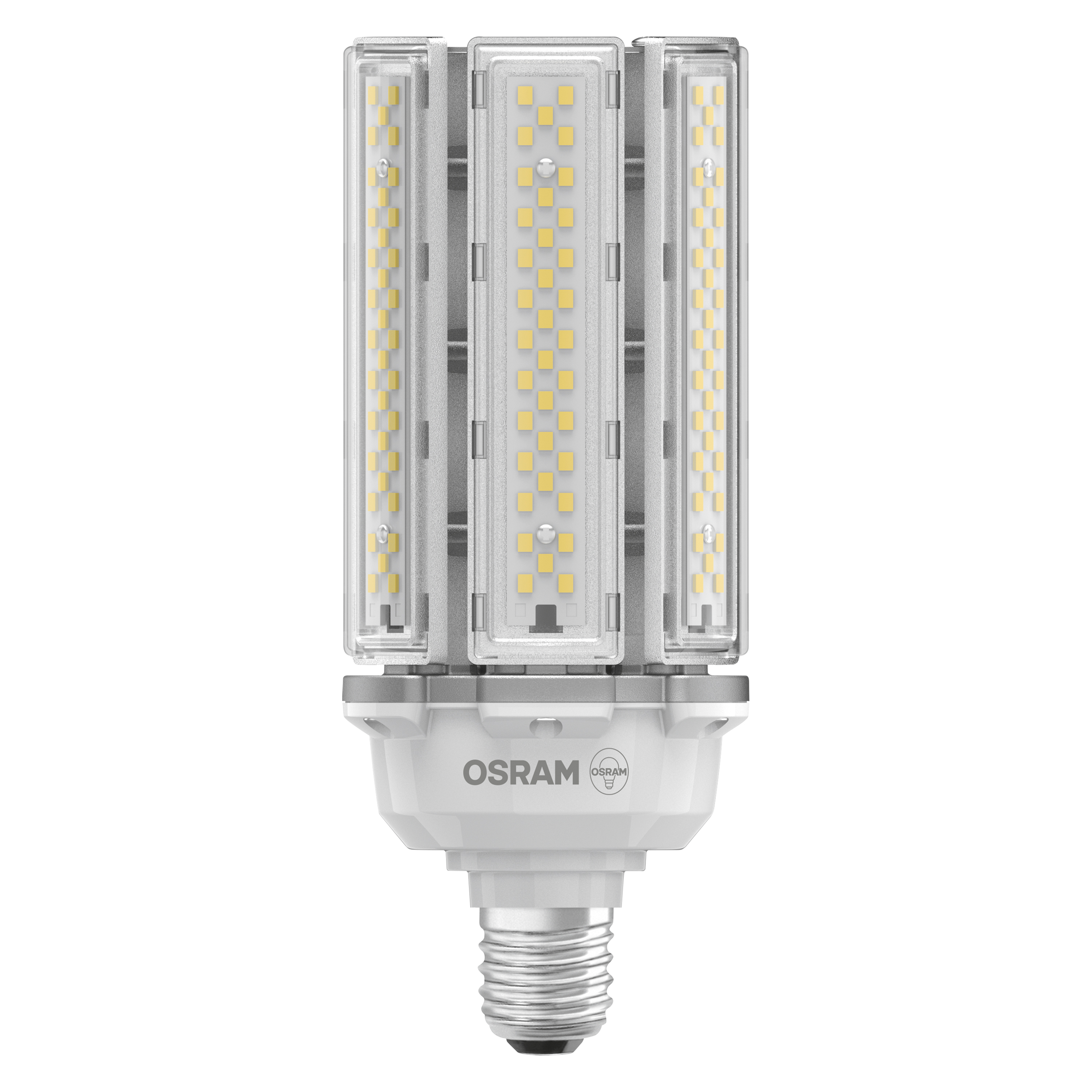

Product image: white background, upright, OSRAM logo
HQL LED 6000 46W E27 JPG (1.84 MB)

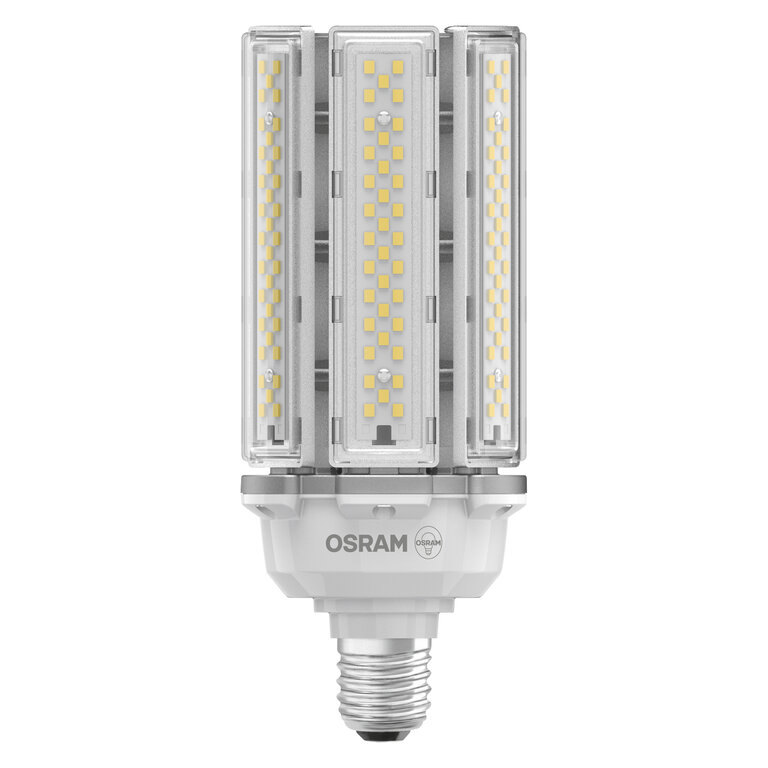

Product image: white background, upright
