LED VALUE CLAS A 10 W/2700 K E27

Product benefits
  • No "Blue Light" Hazard (according to IEC62778)
  • Photobiological safety according to IEC 62778, risk group RG0
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 75 W
Nominal current 96 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 1055 lm
Luminous efficacy 105 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time ≤ 0.5 s

Dimensions & Weight

Overall length 113.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 25.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, EMC, SAA, ROHS
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LVCLA75 10W/827

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) E27
Length 113.00 mm
Height 60.00 mm
Width 60.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No "Blue Light" Hazard (according to IEC62778)
  • Photobiological safety according to IEC 62778, risk group RG0
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Color rendering index Ra: ≥ 80
  • Not dimmable
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854310065 Folding box
1		 62 mm x 62 mm x 122 mm 35.00 g 0.47 dm³
4099854310072 Shipping box
10		 318 mm x 132 mm x 135 mm 472.00 g 5.67 dm³

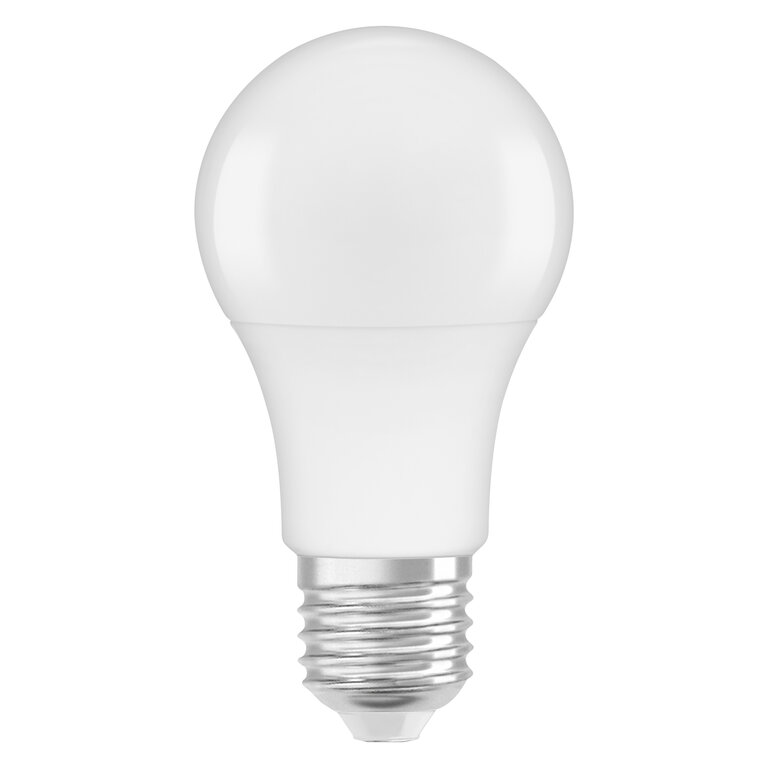

Product image: white background, diagonal
LED CLASSIC A60 E27 JPG (1.1 MB)
Product image: white background, upright
LED CLASSIC A60 E27 JPG (1.01 MB)
Product line drawing with letters
LED CLASSIC A60 E27 SVG (7.56 KB)
