HAL CL A 46 W 230 V E27

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 46 W
Construction wattage 46.00 W
Nominal voltage 230 V
Claimed equiv. conventional lamp power 60 W
Power factor λ 1.00

Photometrical data

Luminous flux 700 lm
Luminous efficacy 15 lm/W
Lumen main.fact.at end of nom.life time 0.80
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027

Light technical data

Warm-up time (60 %) 0.00 s
Starting time 0.0 s

Dimensions & Weight

Overall length 97.00 mm
Light center length (LCL) 73,0 mm
Diameter 55.00 mm
Maximum diameter 56 mm
Product weight 25.2 g

Lifespan

Number of switching cycles 50000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Bulb

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class D
Energy consumption 46.00 kWh/1000h

Country-specific categorizations

ILCOS HSGSA/C/UB-46-230-E27-73
Order reference 64543 A ECO SST

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 94.00 mm
Height 55.00 mm
Width 55.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
Areas of application
  • General illumination
  • Mood lighting
  • Entrance lighting
  • Restaurants, hotels and similar prestigious applications
Product features
  • 100 % dimmable
  • Perfect color rendering (Ra: 100)
  • Average life: 2,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321212078 Folding box
1		 96 mm x 56 mm x 56 mm 34.20 g 0.30 dm³
4058075092297 Bundle
10
4052899372931 Bundle
3
4052899216754 Bundle
5		 280 mm x 56 mm x 97 mm 171.00 g 1.52 dm³
4008321408648 Bundle
5		 108 mm x 100 mm x 236 mm 169.50 g 2.55 dm³
4008321212085 Shipping box
20		 286 mm x 105 mm x 234 mm 1030.00 g 7.03 dm³
Product image: white background, diagonal
323670_HALOGEN ENERGY SAVER CLASSIC A TIF (68.76 MB)
Product line drawing with letters
330208_Halogen Classic A E27 SVG (13.8 KB)

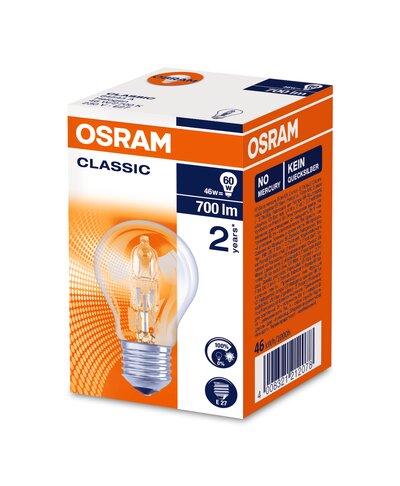

Packaging image, spacial
603616_HAL CLASSIC A 6 4543 46W 230V CL E27 S id TIF (6.94 MB)
Spectral power distribution
349634_HAL_HV_AK JPG (168.82 KB)
EAN SEG number STK number
4008321212078 8327133 4730080
