SPC.T CL 25 W 230 V E14

Product benefits
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 25 W
Construction wattage 25.00 W
Nominal voltage 230 V

Photometrical data

Luminous flux 140 lm
Luminous efficacy 5 lm/W
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 55.00 mm
Length with base excl. base pins/connection 57.00 mm
Light center length (LCL) 45,0 mm
Diameter 26,0 mm
Product weight 7.6 g

Lifespan

Lifespan L70/B50 at 25 °C 1000 h

Additional product data

Base (standard designation) E14
Mercury-free Yes

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 25.00 kWh/1000h

Country-specific categorizations

ILCOS IBT/C-25-230-E14-26
Order reference SPC.T26/57 CL 2

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 55.00 mm
Height 26,0 mm
Width 26,0 mm
Chromaticity coordinate x 0.487
Chromaticity coordinate y 0.416
Beam angle correspondence SPHERE_360
Displacement factor 1.00
EPREL ID 714463
Model number AC35307,AC35307

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Areas of application
  • Baking ovens
  • Domestic baking ovens
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300309637 Folding box
1		 27 mm x 27 mm x 61 mm 9.60 g 0.04 dm³
4050300819822 Bundle
10		 135 mm x 54 mm x 61 mm 96.00 g 0.44 dm³
4050300976716 Shipping box
100		 285 mm x 150 mm x 140 mm 1010.00 g 5.99 dm³
Declarations of conformity
OVEN 15W 25W E14 PDF (208.82 KB)
Product datasheet -> old version of product
SPC.TCL25W230VE14en PDF (383.02 KB)

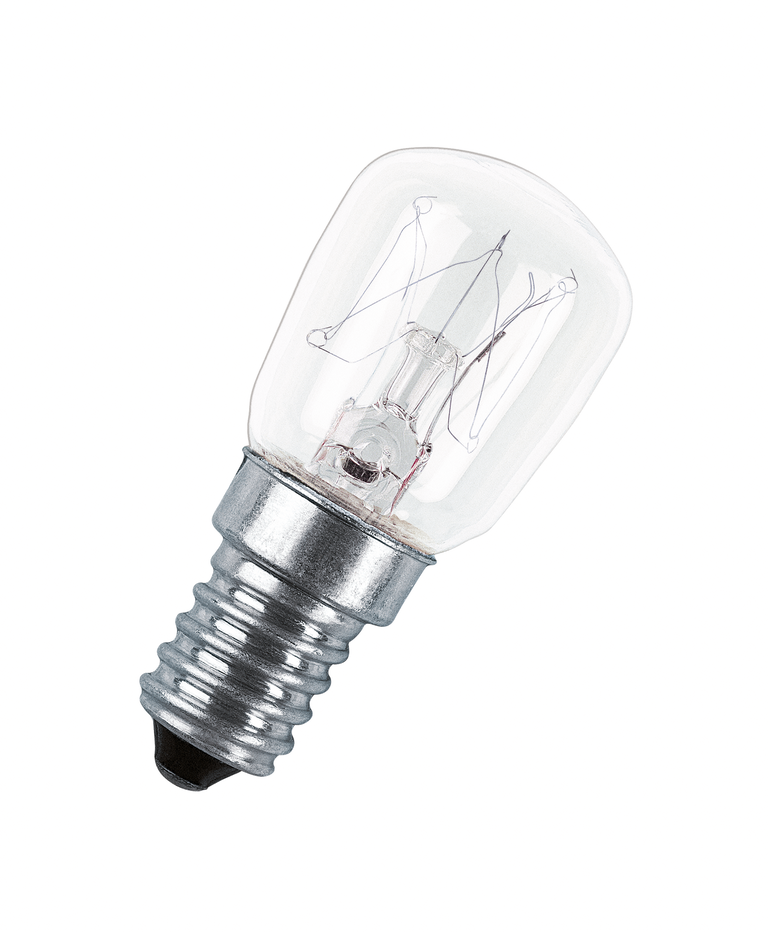

Product image: white background, diagonal
324400_SPECIAL T BULB PEAR SHAPE TIF (5.63 MB)
Product line drawing with letters
92_SPECIAL PYGMY T SVG (10.09 KB)
Product line drawing, front, no dimensions
325306_SPECIAL PYGMY T SVG (6.96 KB)

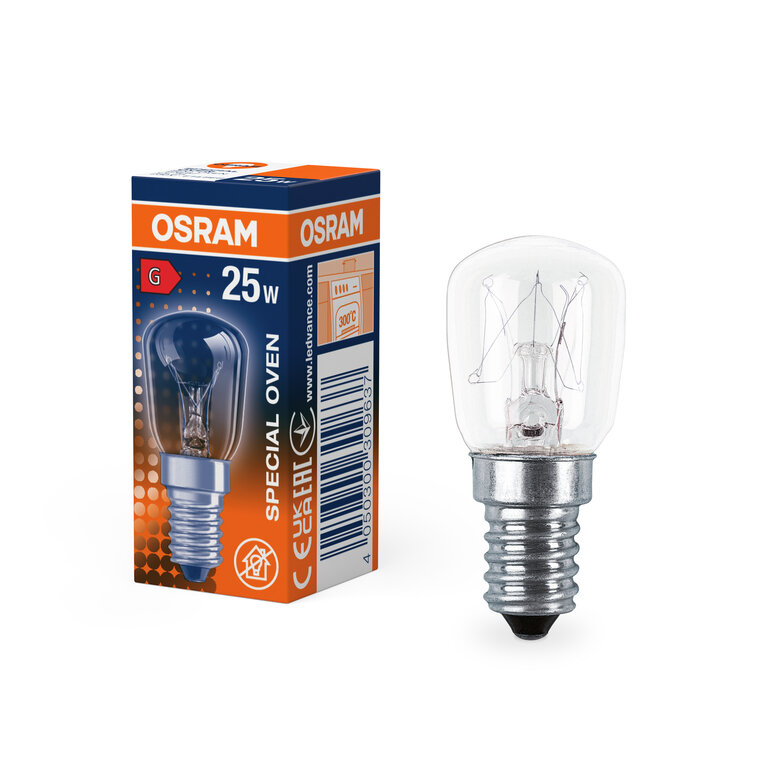

Combo Shot = Product Beauty Shot + Packaging Image
SPC T26-57 CL 25W 230V E14 JPG (1.36 MB)

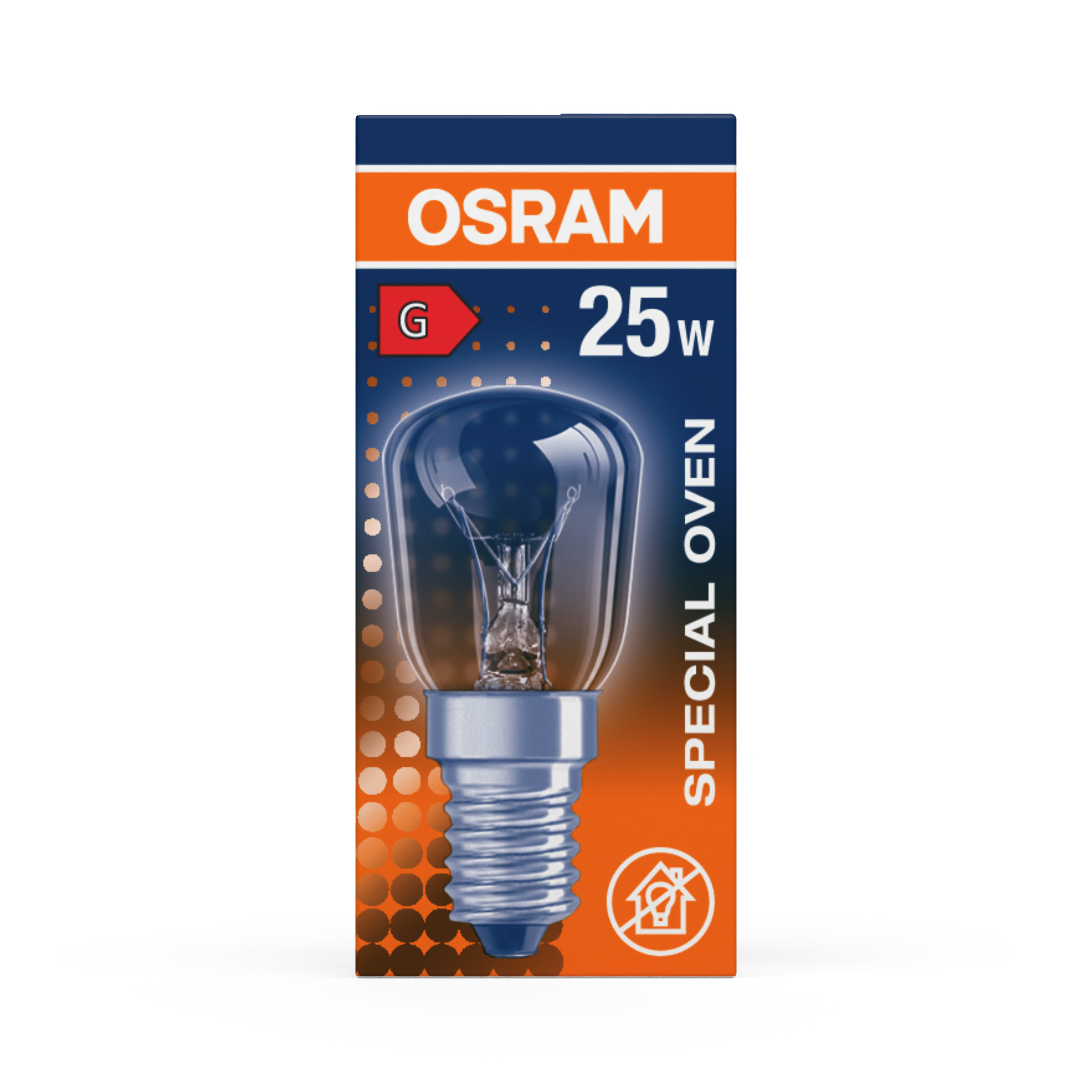

Packaging image, frontal
505586_SPECIAL T26-57 CL 25W 230V E1 TIF (958.48 KB)
Packaging image, spacial
SPCT26-57CL25W230VE14 JPG (1.2 MB)
Energy label
EL-4050300309637-AC353 07 PDF (21.47 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349634_HAL_HV_AK JPG (168.82 KB)
EAN SEG number STK number ELDAS number AU model number
4050300309637 8325582 4738930 940620071 OSRPILOT26CL25WE14
