SF BLKH 250 10W/4000K BK IP65

Product benefits
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Multiple mounting patterns for convenient installation
  • Separate covers available for an aesthetic and functional product design
  • 5 years guarantee
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8.20 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 350 mA
Inrush current 4.52 A
Inrush current time Th50 50 µs
Max. number of luminaires per miniature circuit breaker B16 94
Max. number of luminaires per miniature circuit breaker C10 75
Max. number of luminaires per miniature circuit breaker C16 120
Power factor λ ≥0.5
Total harmonic distortion < 10 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 800 lm
Luminous efficacy 80 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 250.00 mm
Height 70.00 mm
Product weight 520.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Screwless terminal
Type of protection IP65
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Number of illuminants -

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Multiple mounting patterns for convenient installation
  • Separate covers available for an aesthetic and functional product design
  • 5 years guarantee
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • Impact resistance: IK10
  • Push wire terminal for tool-free connection
  • Through wiring possible
  • Type of protection: IP65
  • Luminous flux: up to 800 lm
  • High luminous efficacy: up to 80 lm/W
  • Lifetime (L70/B50) up to 50,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+40 °C
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075374904 Folding box
1		 74 mm x 272 mm x 262 mm 602.00 g 5.27 dm³
4058075374911 Shipping box
8		 550 mm x 285 mm x 315 mm 5398.00 g 49.38 dm³
Product image Product name EAN
SF BLKH EYELID 250 BK 4058075375505
SF BLKH RING 250 BK 4058075399358

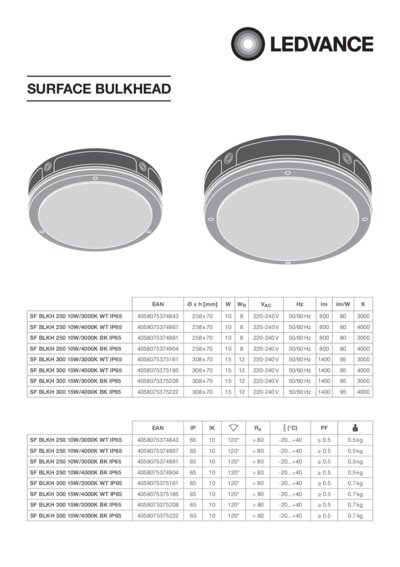

User instruction / safety instructions
SURFACE BULKHEAD PDF (4.82 MB)

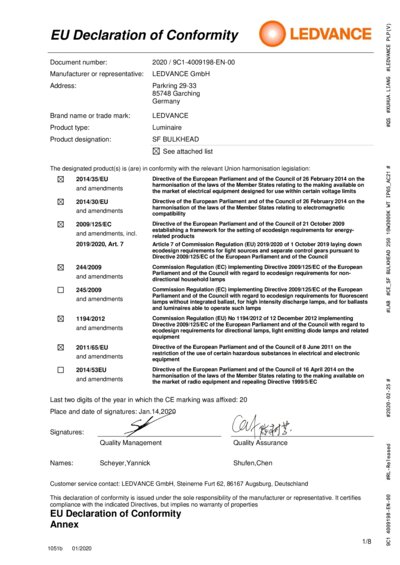

Declarations of conformity
SF BULKHEAD PDF (329.18 KB)

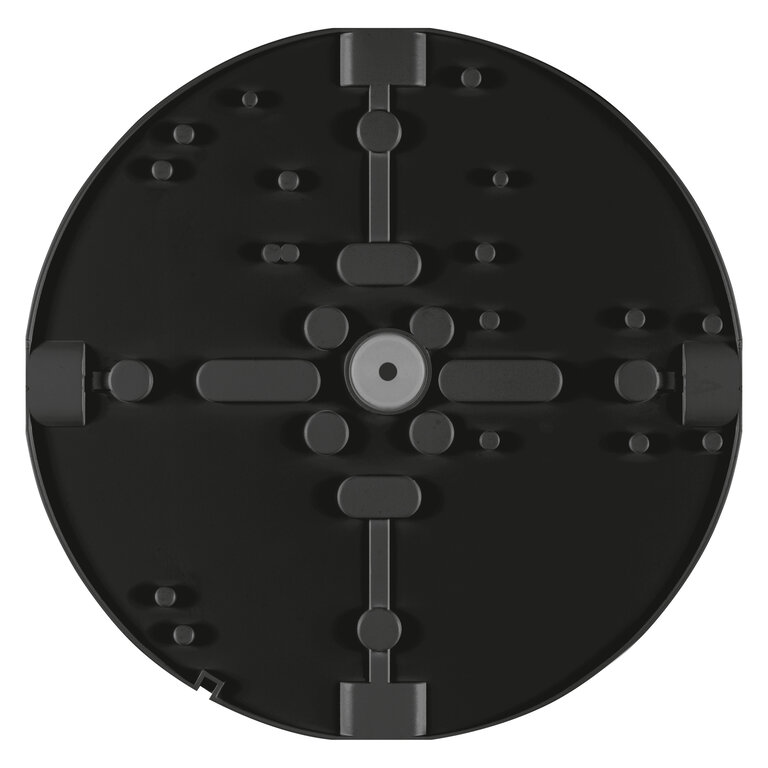

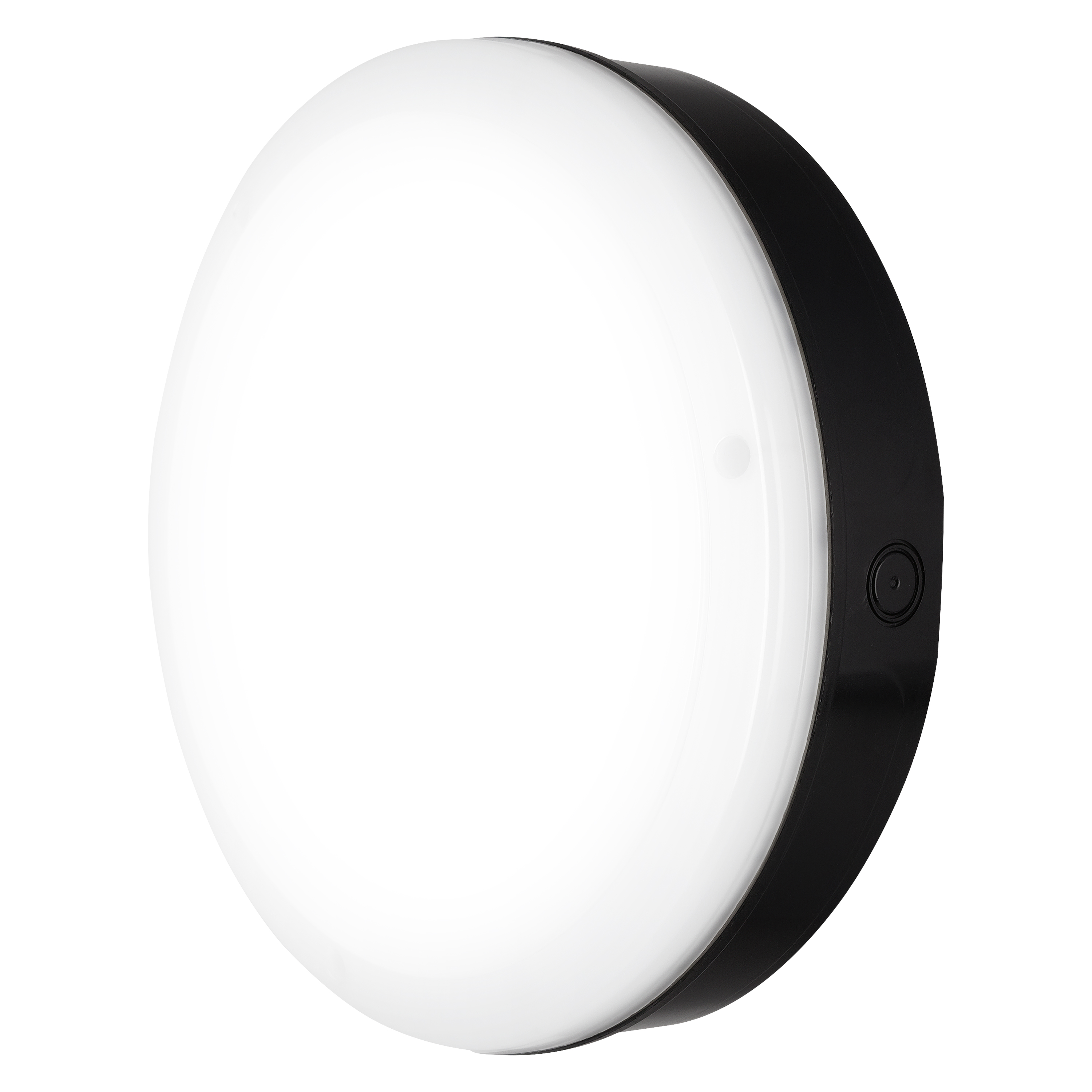

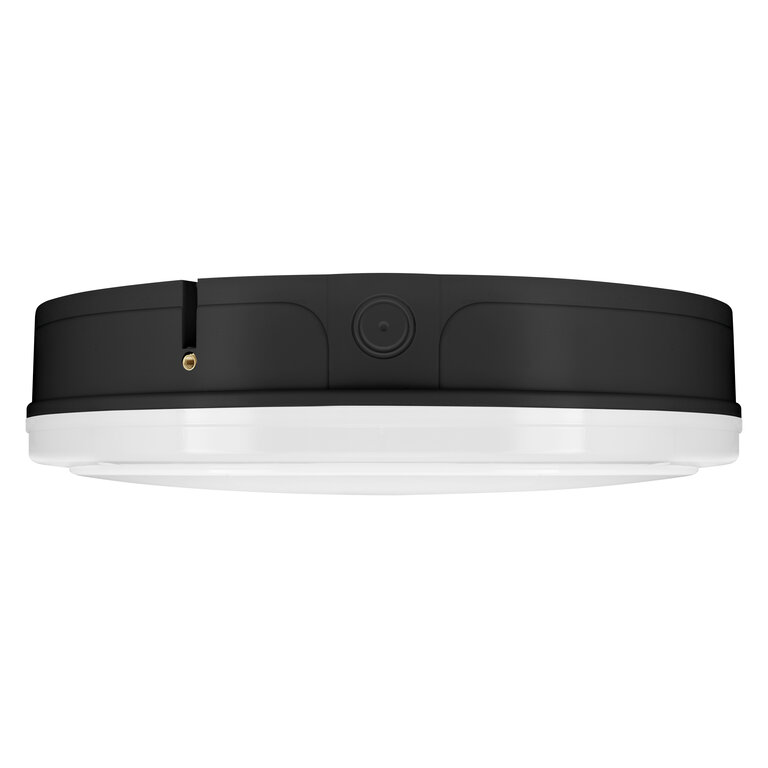

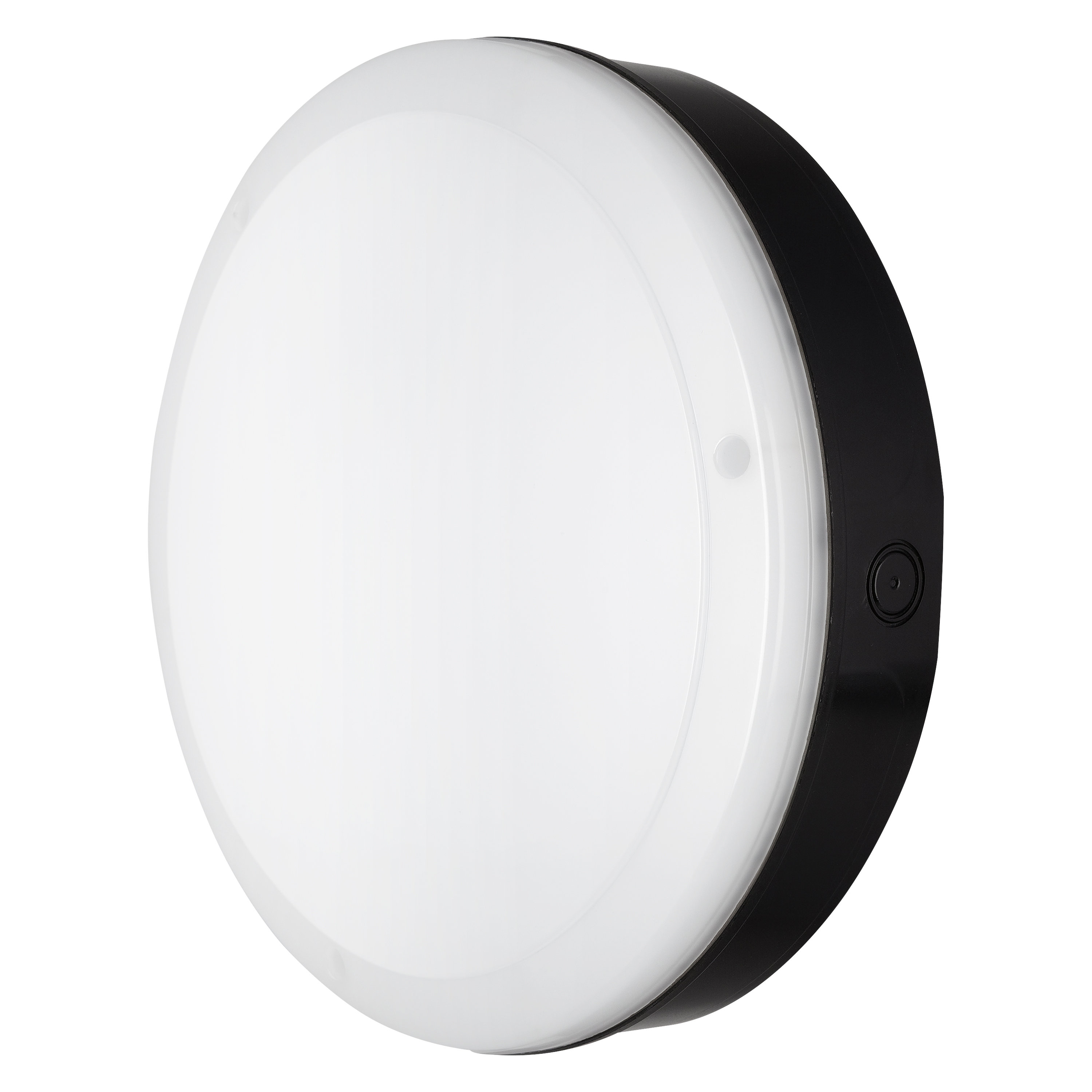

Product image: white background, diagonal
SF BLKH 250 10W BK IP6 5 JPG (1.35 MB)
Product image: white background, diagonal
SF BLKH 250 10W BK IP6 5 JPG (1.79 MB)
Product line drawing with letters
SF BLKH 250 10W IP65 SVG (10.52 KB)
Product line drawing with numbers
SF BLKH 250 10W IP65 SVG (14.78 KB)
Product line drawing - technical
SF BLKH 250 10W IP65 SVG (8.89 KB)

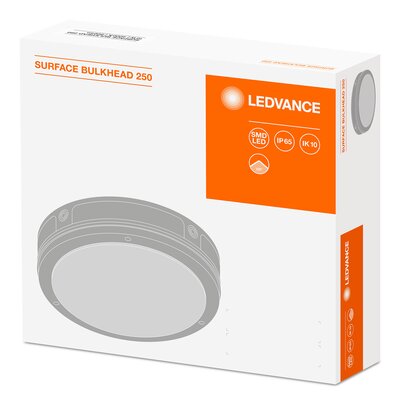

Packaging image, spacial
Surface Bulkhead 250 B K 10W 840 MiCh TIF (12.58 MB)
Catalog info 3
Surface Bulkhead PDF (4.24 MB)
IES file (IES)
SF BLKH 250 P 10W 840 BK IP65 IES (1.58 KB)
LDT file (Eulumdat)
SF BLKH 250 P 10W 840 BK IP65 LDT (1.46 KB)

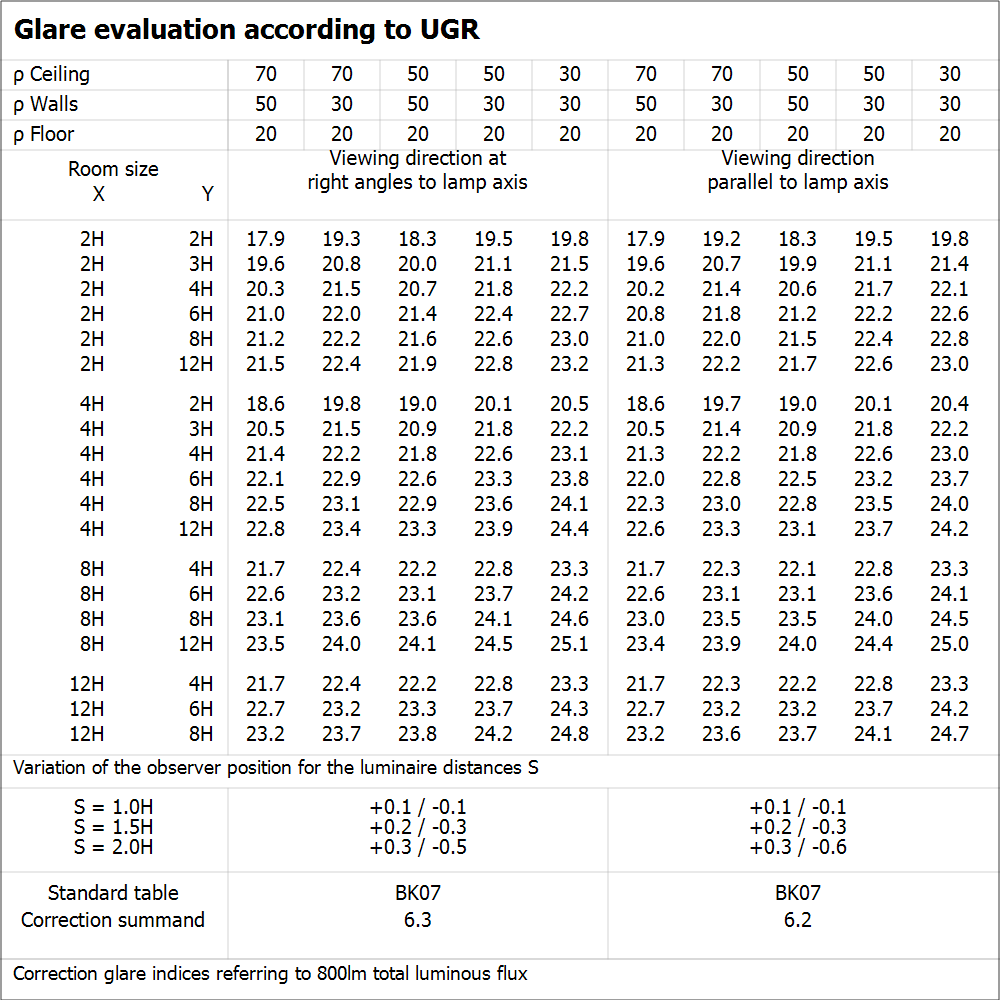

UGR file (UGR table)
SF BLKH 250 10W4000K B K IP65 LEDV LDT PNG (59.2 KB)
Light distribution curve type cone
SF BLKH 250 10W4000K B K IP65 LEDV LDT SVG (88.22 KB)
Light distribution curve type polar
SF BLKH 250 10W4000K B K IP65 LEDV LDT SVG (332.76 KB)
Tender documents
SURFACE BULKHEAD 250 O NOFF 10W4000K BK IP65- EN TXT (1.31 KB)
Video
Surface Bulkhead video English MP4 (123.59 MB)
EAN SEG number STK number EFO number ELDAS number
4058075374904 7704489 4125352 3000484 941000960
