SF BLKH 300 S EM 15W/3000K WT IP65

Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Separate covers available for an aesthetic and functional product design
  • 3 years guarantee
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Multiple mounting patterns for convenient installation
  • Convenient visualization of results of automatic test with an included control LED
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 16.50 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 350 mA
Inrush current 4.52 A
Inrush current time Th50 50 µs
Max. number of luminaires per miniature circuit breaker B16 94
Max. number of luminaires per miniature circuit breaker C10 75
Max. number of luminaires per miniature circuit breaker C16 120
Power factor λ ≥0.5
Total harmonic distortion < 10 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1400 lm
Luminous efficacy 93 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 308 mm
Height 70.00 mm
Product weight 990.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range +5…+40 °C
Temperature range at storage 5…+35 °C
Type of connection Screwless terminal
Type of protection IP65
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Sensor

Type of sensor Motion, Light
Sensor technology Microwave
Sensor detection angle 110 °
Sensor controlled switching time 5 s/30 s/90 s/3 min/20 min/30 min
Detection range of motion sensor 8 m
Detection threshold of daylight sensor 25 lx

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 16.5 W
Wattage in emergency operation mode 3,0 W
Luminous flux in maintained operation mode 1400 lm
Luminous flux in emergency operation mode 300 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, CB
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Separate covers available for an aesthetic and functional product design
  • 3 years guarantee
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Multiple mounting patterns for convenient installation
  • Convenient visualization of results of automatic test with an included control LED
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High frequency sensor for daylight and motion detection
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Luminaire suited for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Ambient temperature in operation: 5°…+40 C
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • Impact resistance: IK10
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075375406 Folding box
1		 74 mm x 322 mm x 312 mm 1095.00 g 7.43 dm³
4058075375413 Shipping box
8		 650 mm x 335 mm x 315 mm 9481.00 g 68.59 dm³
Product image Product name EAN
SF BLKH RING 300 WT 4058075399372
SF BLKH EYELID 300 WT 4058075375529

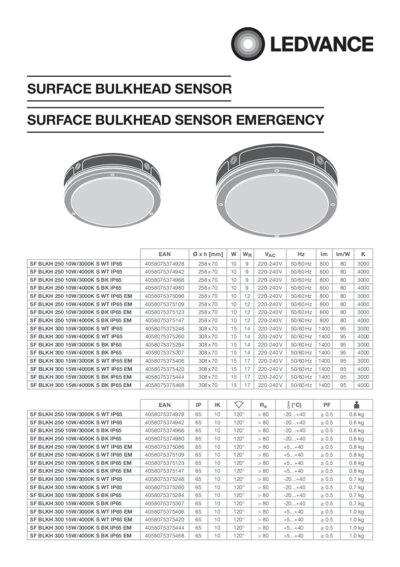

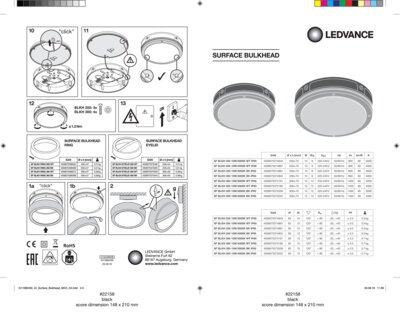

User instruction / safety instructions
SURFACE BULKHEAD SENSO R PDF (1.45 MB)

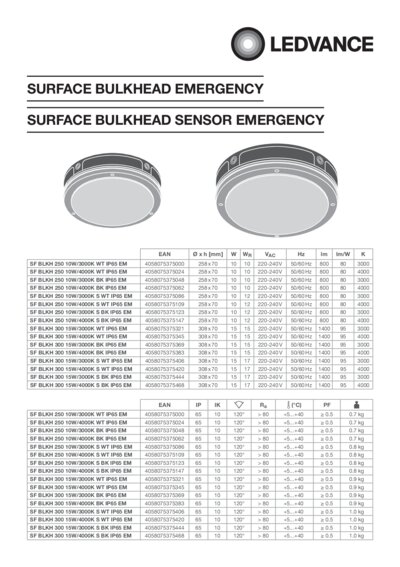

User instruction / safety instructions
SURFACE BULKHEAD EMERG ENCY PDF (3.12 MB)

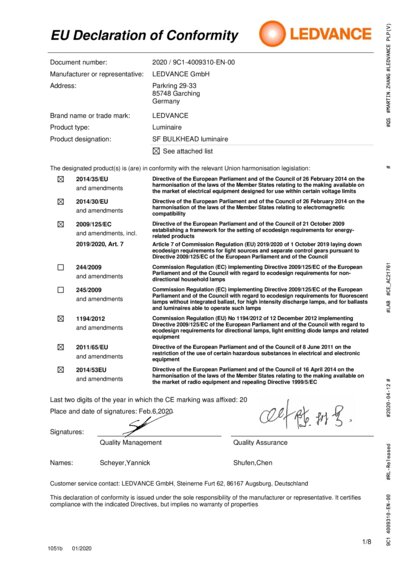

Declarations of conformity
SF BLKH 300 15W 3000K S WT IP65 PDF (158.86 KB)

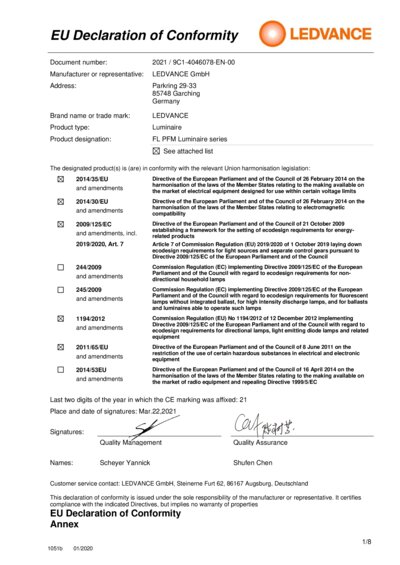

Declarations of conformity
FL PFM 3000K SYM 60 BK PDF (178.01 KB)

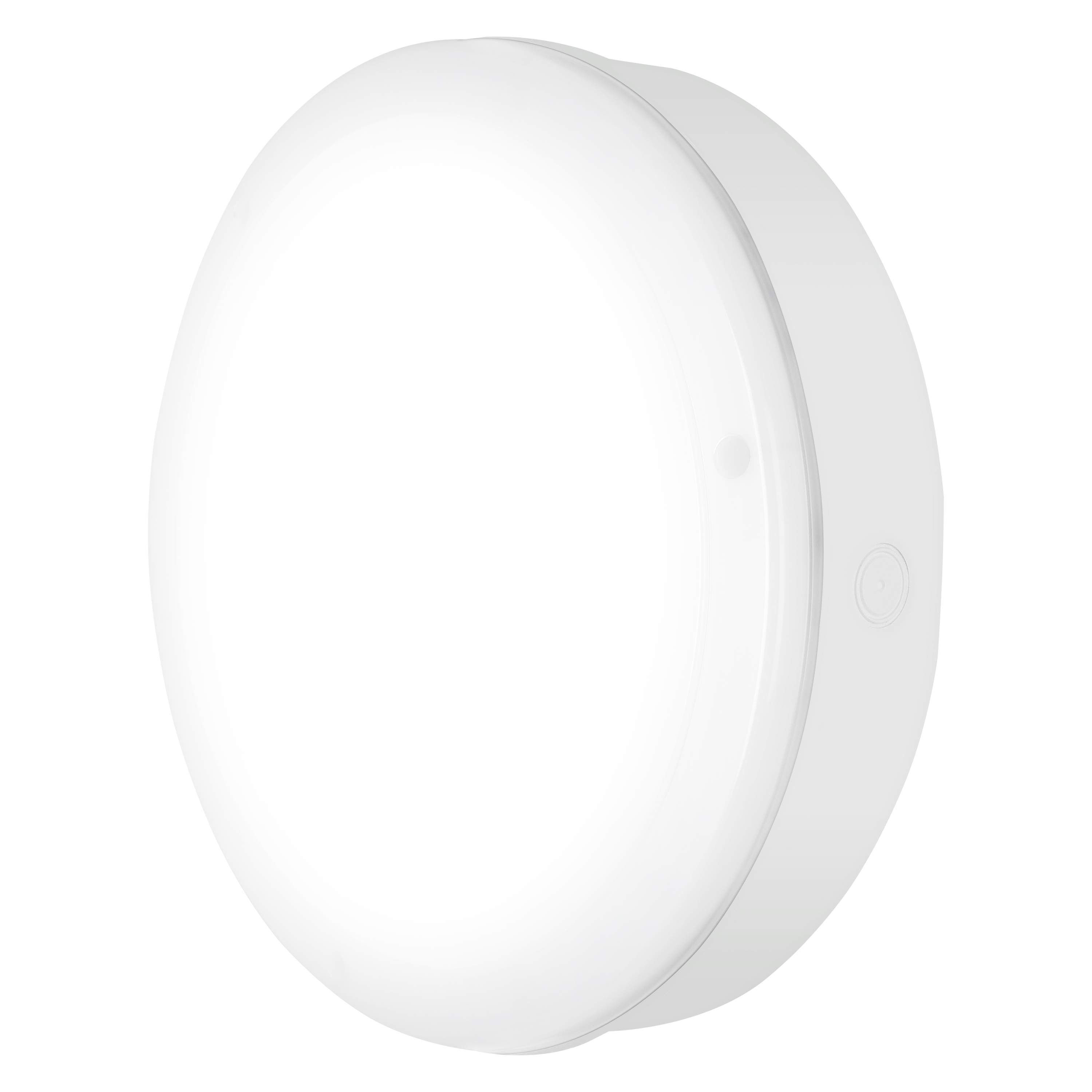

Product image: white background, diagonal
SF BLKH 250 10W WT IP6 5 JPG (945.88 KB)

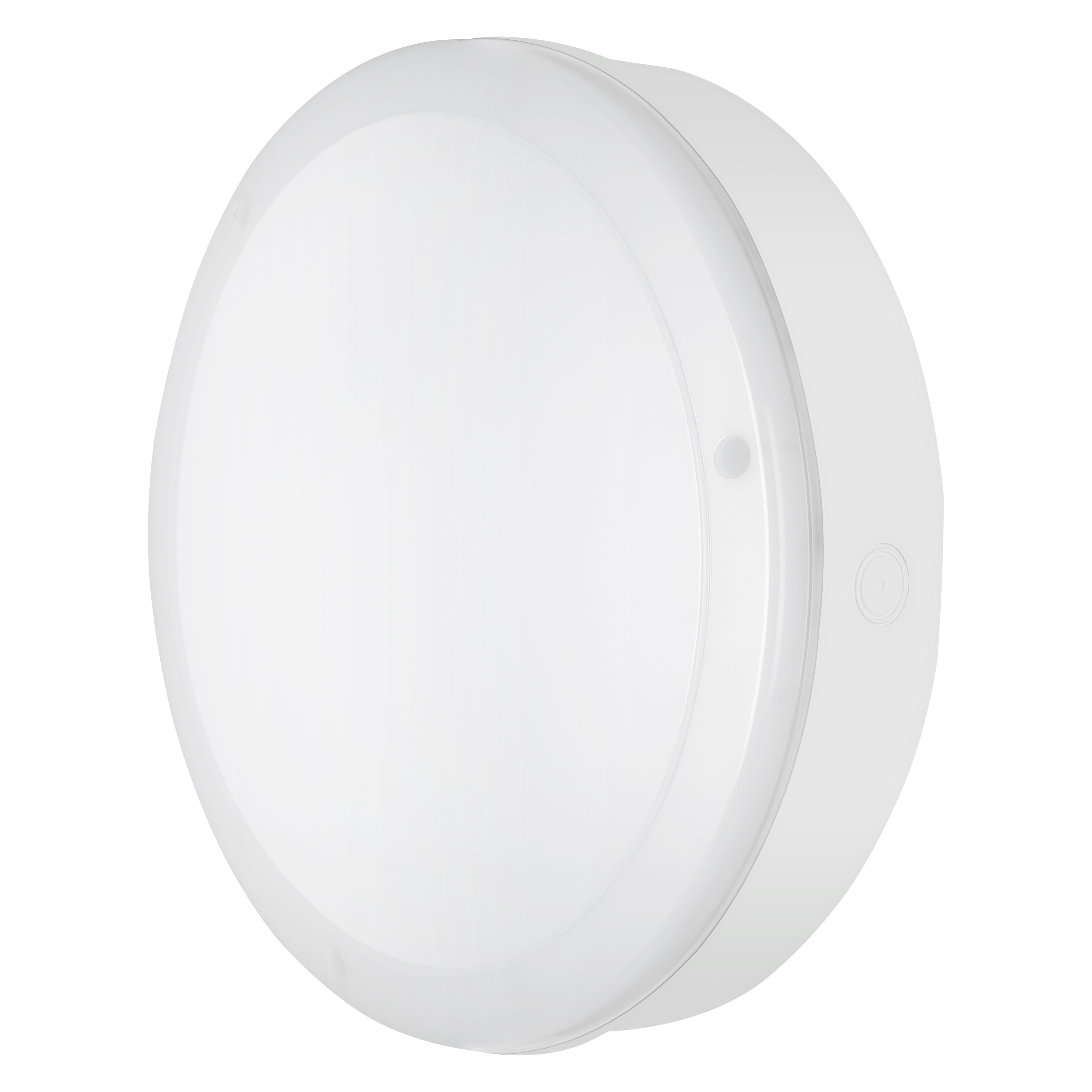

Product image: white background, diagonal
SF BLKH 250 10W WT IP6 5 JPG (1.37 MB)
Product line drawing with letters
SF BLKH 300 15W IP65 E M SVG (11.56 KB)
Product line drawing with letters
SF BLKH 300 15W S IP65 EM SVG (11.56 KB)
Product line drawing with numbers
SF BLKH 300 15W S IP65 EM SVG (15.92 KB)
Product line drawing with numbers
SF BLKH 300 15W IP65 E M SVG (15.92 KB)
Product line drawing - technical
SF BLKH 300 15W S IP65 EM SVG (9.88 KB)

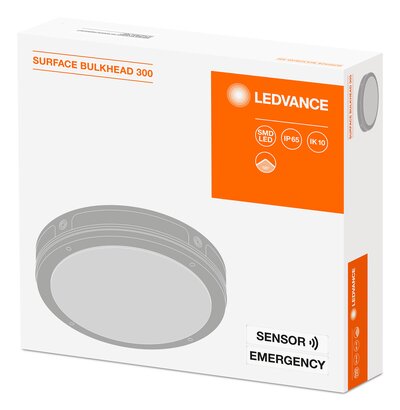

Packaging image, spacial
