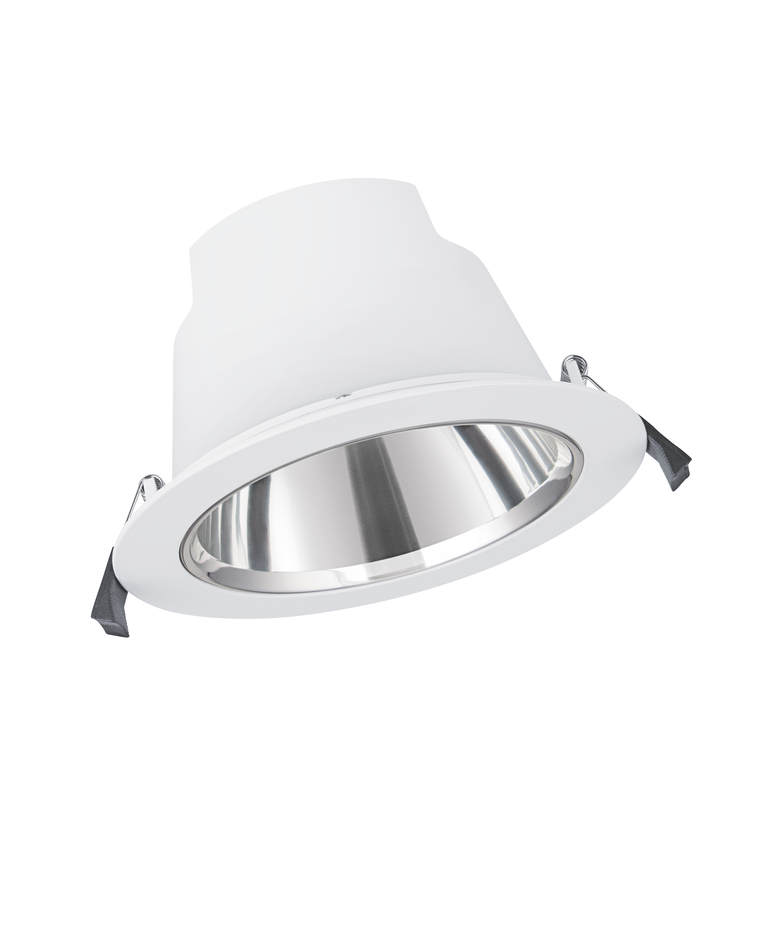

DL COMFORT DN 155 18 W 3CCT IP54 WT

Product benefits
  • Three light color in one luminaire: Warm White, Cool White, Daylight White
  • Simple installation thanks to integrated driver
  • Easy installation with fast connection
  • 5 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 18.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Nominal current 200 mA
Inrush current 55 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 15
Max. number of luminaires per miniature circuit breaker C10 12
Max. number of luminaires per miniature circuit breaker C16 19
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1400 lm / 1620 lm / 1470 lm 1)
Luminous efficacy 85 lm/W 2)
Color temperature 3000 K / 4000 K / 5700 K
Light color (designation) Warm White, Cool White, Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 60 °

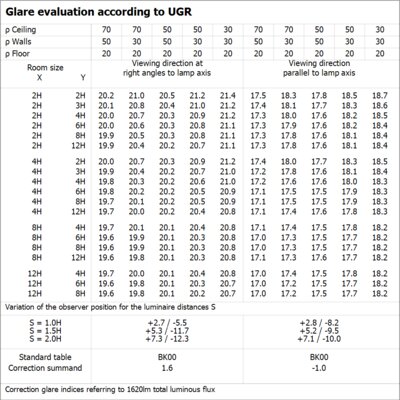

UGR < 22

1) Luminous flux dependent on selected color temperature: 1040 lm@3000 K/1620 lm@4000 K/1470 lm@5700 K
2) Value at 5700 K, different for other color temperatures

Dimensions & Weight

Diameter 172.00 mm
Height 95.00 mm
Product weight 350.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screwless terminal, 2-Pole
Type of protection IP54/IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 155,0 mm
Mounting depth 125 mm
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 43000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Number of illuminants Not relevant
Added function MULTI SELECT
BEG eligible No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Three light color in one luminaire: Warm White, Cool White, Daylight White
  • Simple installation thanks to integrated driver
  • Easy installation with fast connection
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Bathrooms
  • Kitchens
  • Offices
  • Corridors
  • Foyers
  • Shops
  • Stairways
Product features

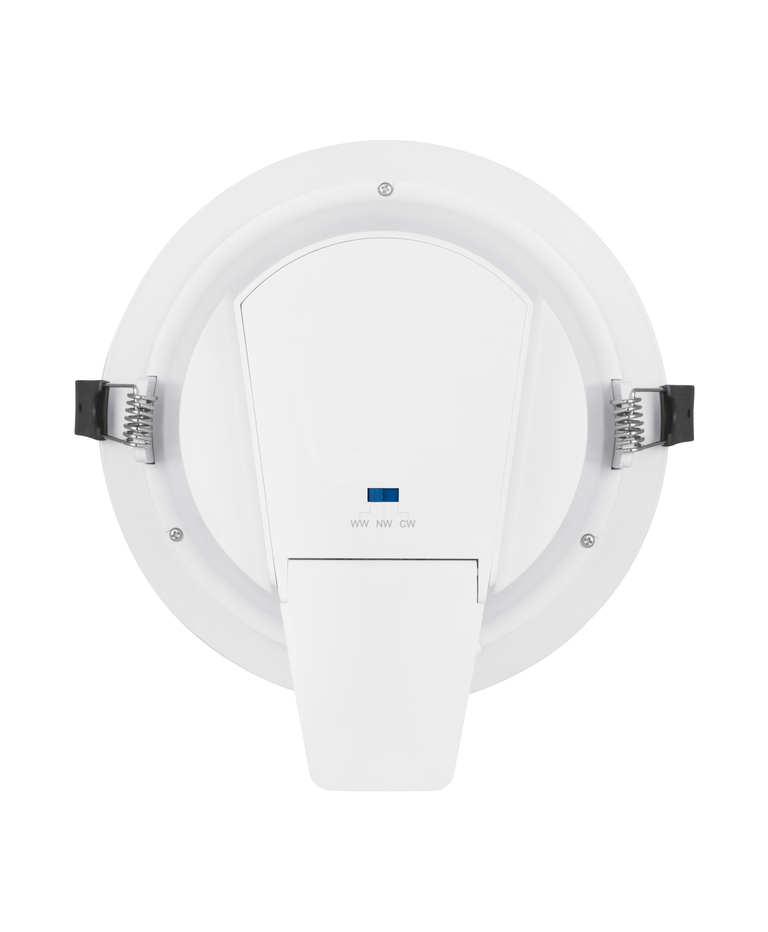

  • Three light colors selectable via slide switch
  • Type of protection: IP54
  • Connector box with push wire terminal for tool-free connection
  • Through wiring possible
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075104082 Folding box
1
195 mm x 195 mm x 140 mm 430.00 g 5.32 dm³
4058075104099 Shipping box
8
410 mm x 410 mm x 300 mm 4760.00 g 50.43 dm³
EAN SEG number STK number EFO number ELDAS number
4058075104082 7470588 4231816 3201667 941400100
