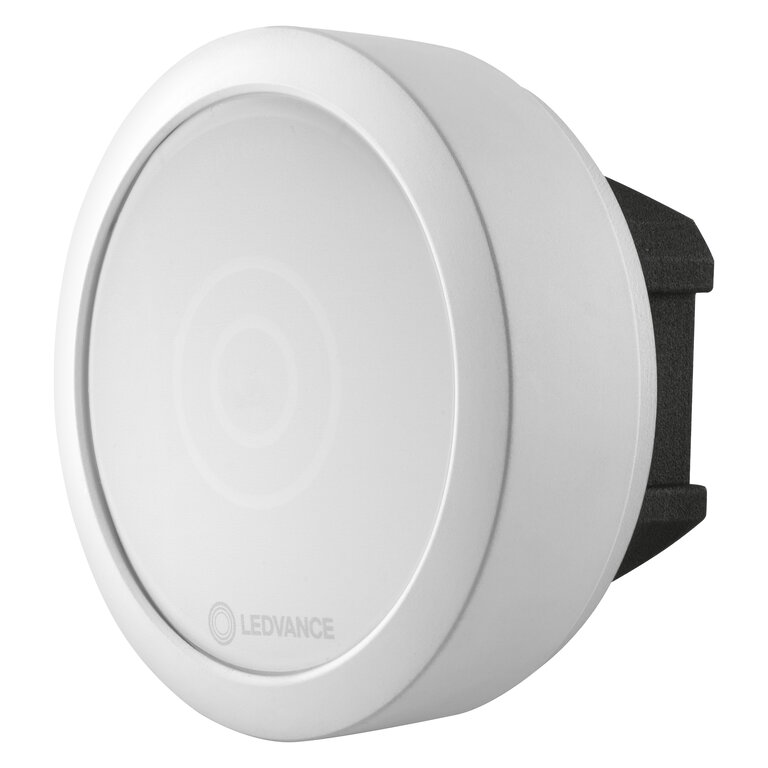

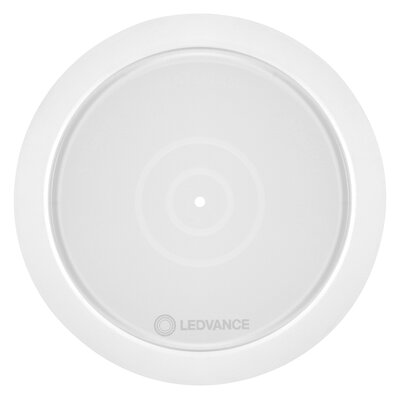

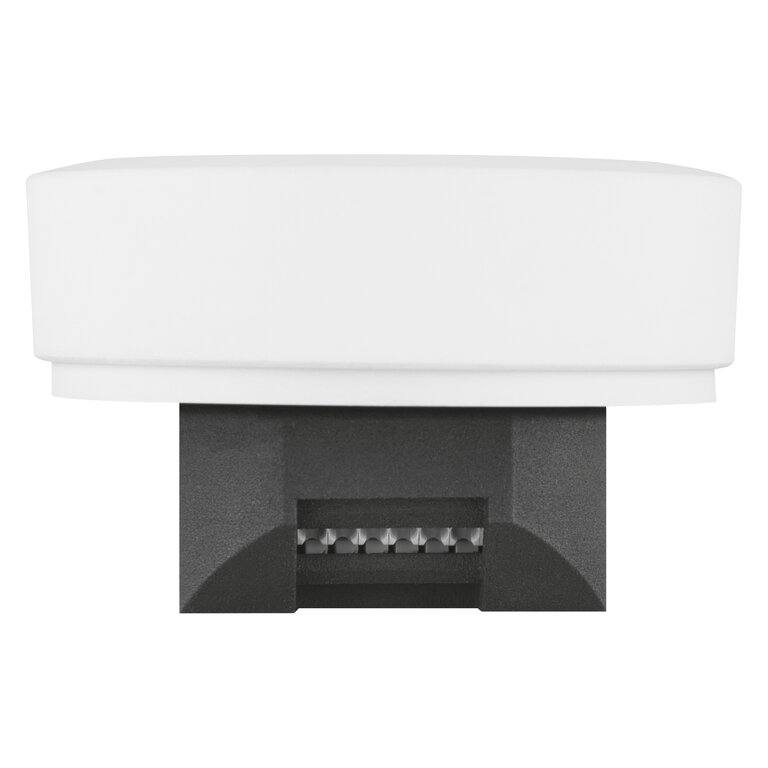

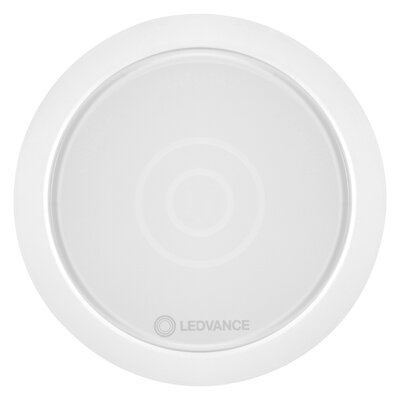

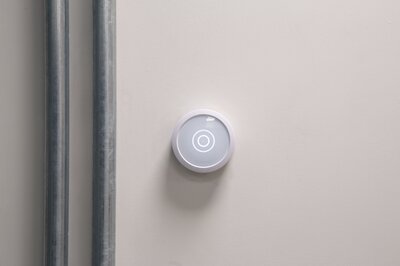

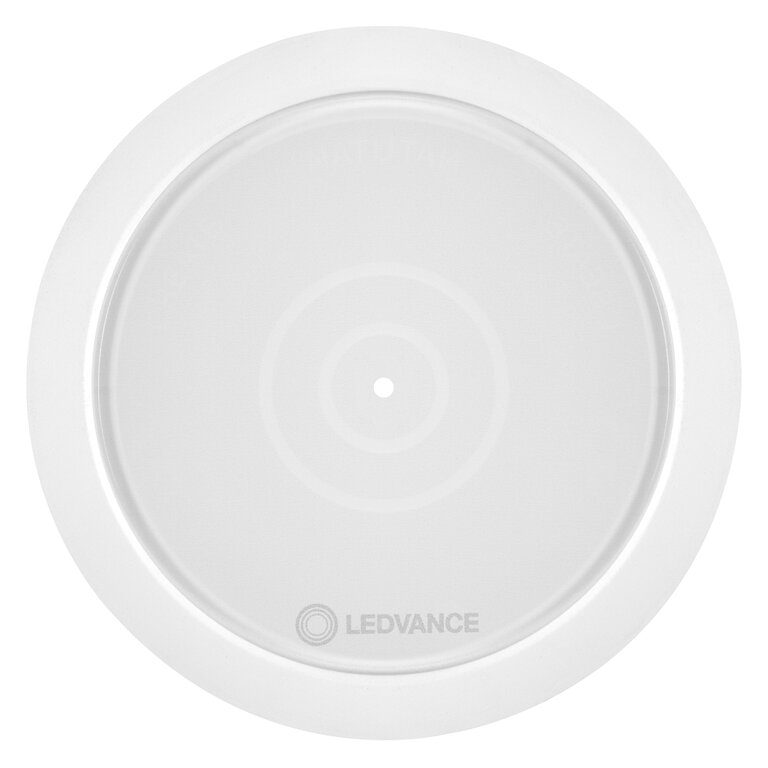

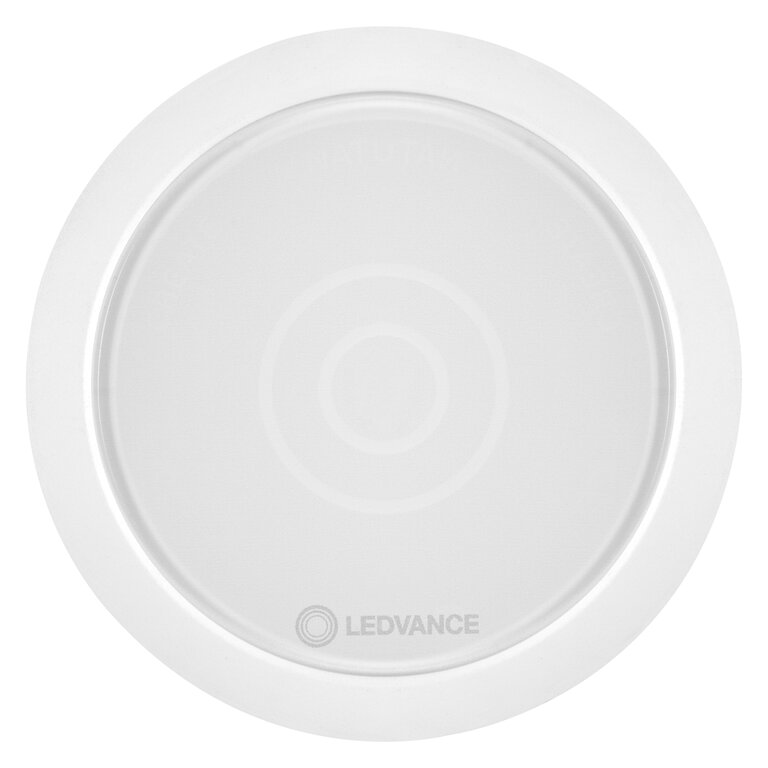

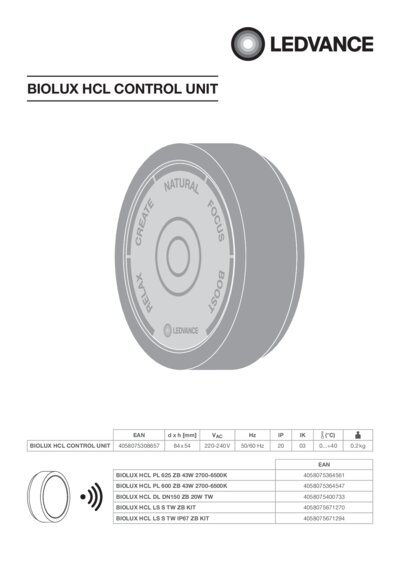

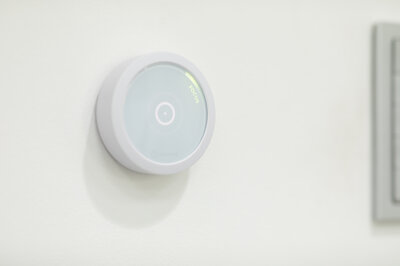

BIOLUX HCL CONTROL UNIT

Product benefits

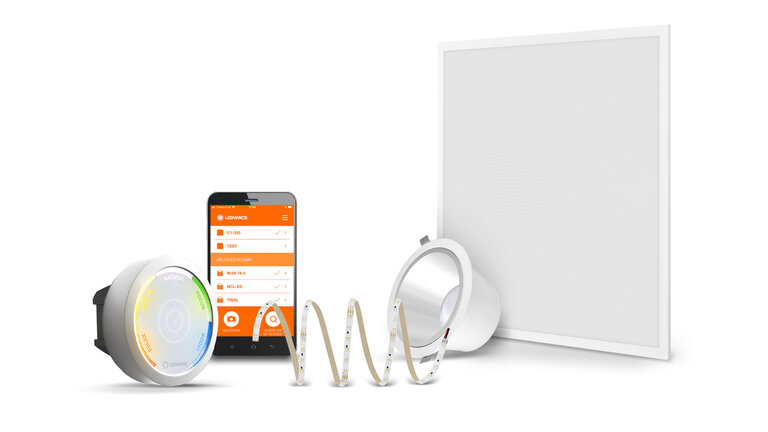

  • Easy and quick installation of the BIOLUX HCL-lighting system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL-luminaire(s) / BIOLUX HCL LED strips / VIVARES occupancy sensor) thanks to wireless Zigbee 3.0 technology
  • Automated commissioning and setup by LEDVANCE BIOLUX app, no programming, registration or cloud required
  • Intuitive control of BIOLUX HCL luminaires - BIOLUX HCL LED strips via control unit
  • Easy selection of the appropriate lighting modes for different working situations
  • Can support working with more concentration
  • 5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips and VIVARES occupancy sensor)

PRODUCT DETAILS

Electrical data

Nominal wattage 1.00 W
Nominal voltage 220…240 V
Type of current AC
Mains frequency 50…60 Hz

Luminaire control gear data

Low flicker Yes

Dimensions & Weight

Width 84,0 mm
Height 54.00 mm
Diameter 84,0 mm
Product weight 226.00 g

Colors & materials

Product color White
Body material Polycarbonate|Methacrylate butadiene styrene|Polymethylmethacrylate
Cover material Polymethylmethacrylate (PMMA)

Temperatures & operating conditions

Ambient temperature range 0…+40 °C
Temperature range in operation 0…+40 °C

Additional product data

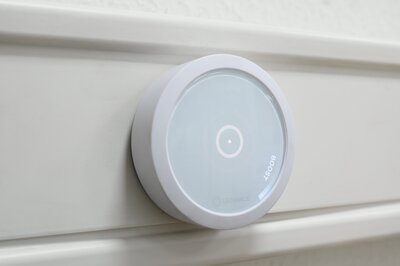

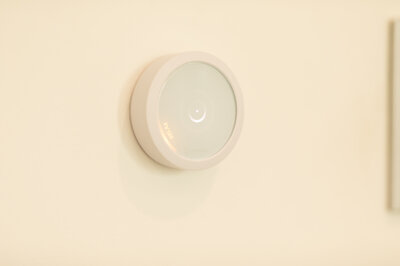

Mounting location Wall
Low flicker Yes

Capabilities

Dimmable No

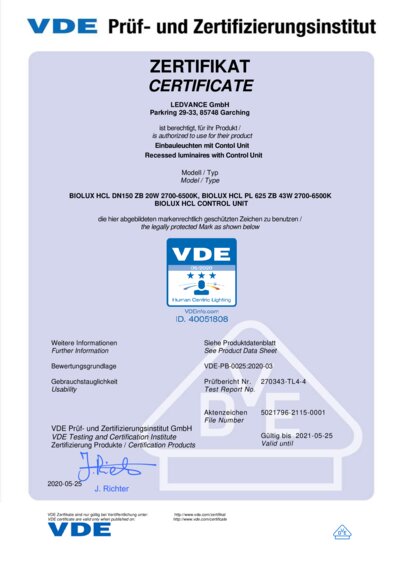

Certificates & Standards

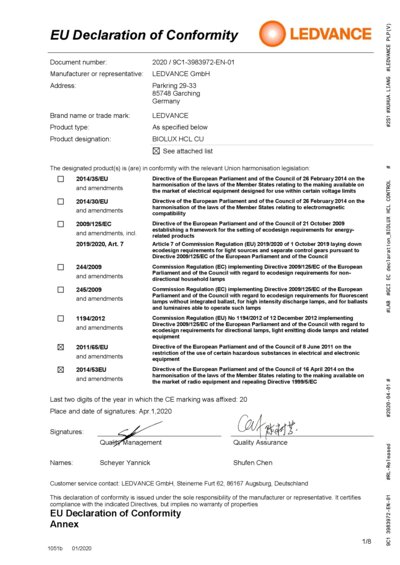

Standards CE
Type of protection IP20
Product benefits
  • Easy and quick installation of the BIOLUX HCL-lighting system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL-luminaire(s) / BIOLUX HCL LED strips / VIVARES occupancy sensor) thanks to wireless Zigbee 3.0 technology
  • Automated commissioning and setup by LEDVANCE BIOLUX app, no programming, registration or cloud required
  • Intuitive control of BIOLUX HCL luminaires - BIOLUX HCL LED strips via control unit
  • Easy selection of the appropriate lighting modes for different working situations
  • Can support working with more concentration
  • 5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips and VIVARES occupancy sensor)
Areas of application
  • Lighting solution for up to 48 BIOLUX HCL products (luminaires/ LED strips / VIVARES occupancy sensors)

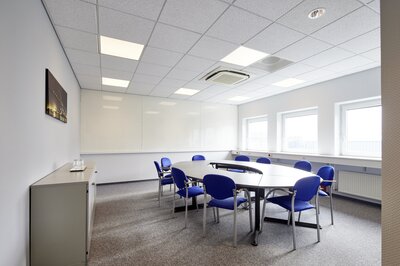

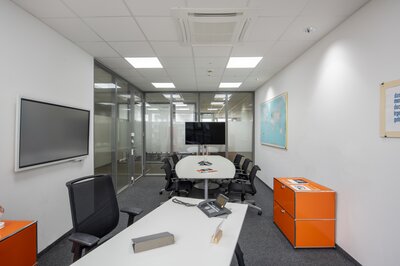

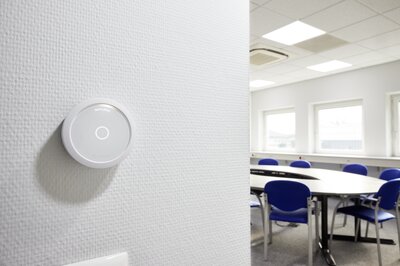

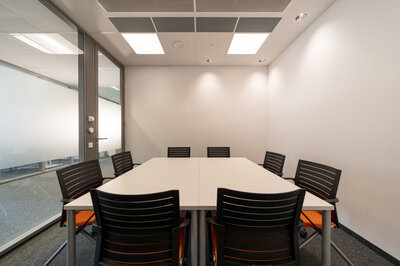

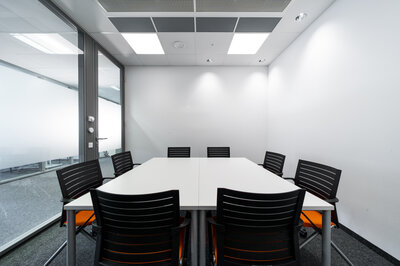

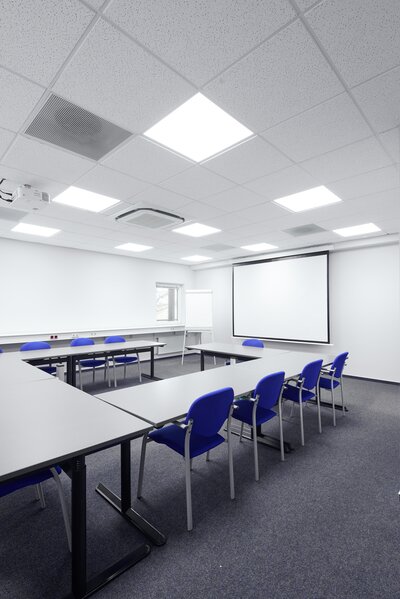

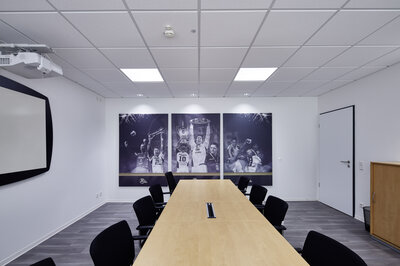

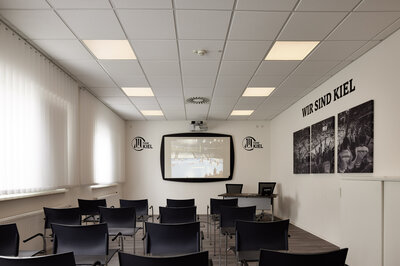

  • Meeting and conference rooms

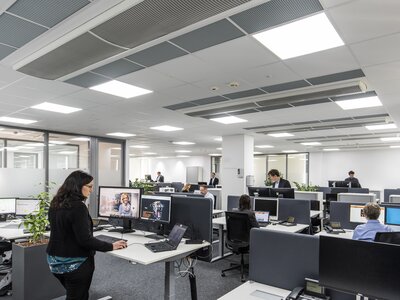

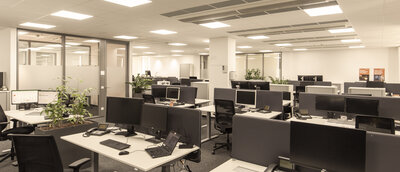

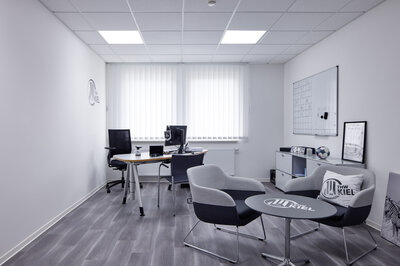

  • Hotel and office rooms with little daylight
  • Nursery and elderly homes
  • Hospitals
Product features
  • LEDVANCE designed high-value product

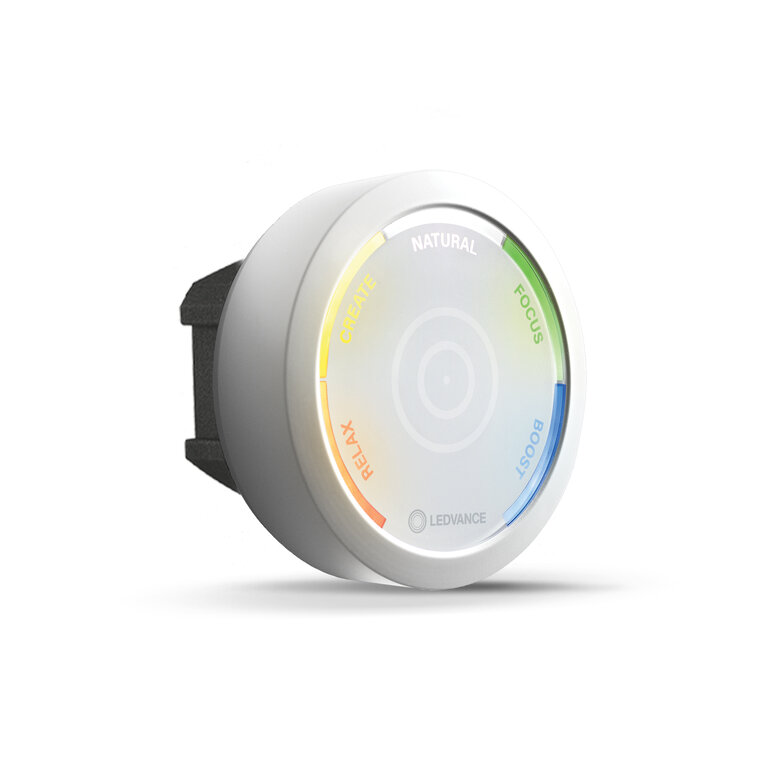

  • 6 preprogrammed lighting modes selectable: RELAX, CREATE, NATURAL, FOCUS, BOOST and ON/OFF

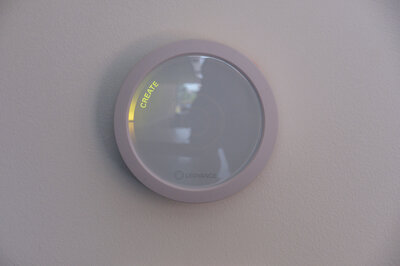

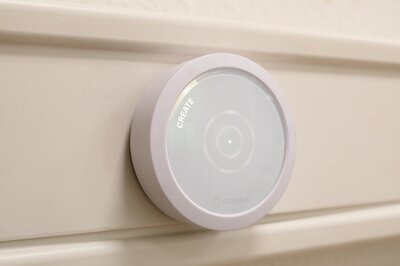

  • Selected lighting mode is shown on the display of the control unit
  • Intuitive timetable mode for individual date and time settings of the 6 lighting modes in the BIOLUX app for automated course

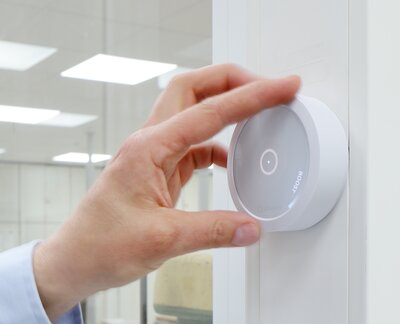

  • Switch on/off the lights with the control unit and optional VIVARES occupancy sensor
  • Implemented FAQ and installation guide in the BIOLUX app for quick support during the on-site installation

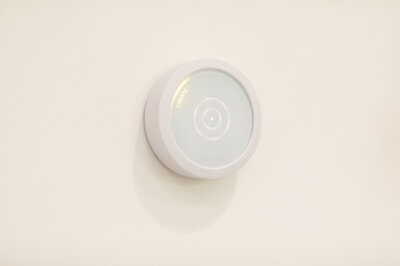

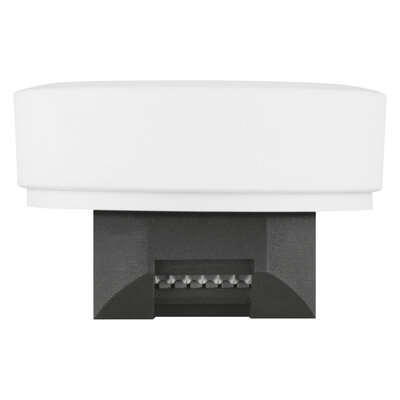

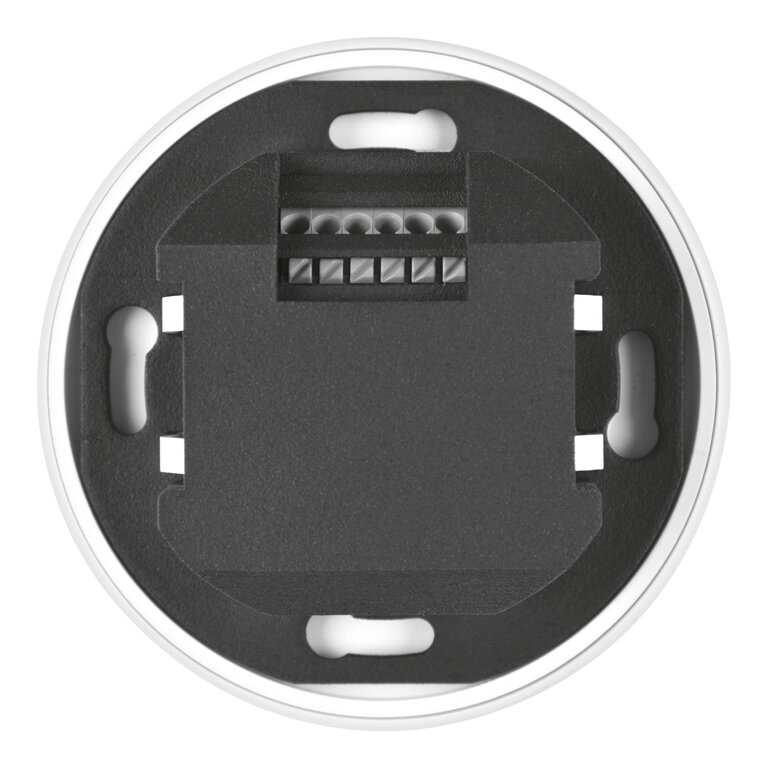

  • Installation in standard flush-mounted boxes like used for lighting switches and sockets
Equipment / Accessories

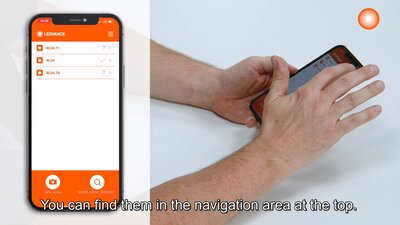

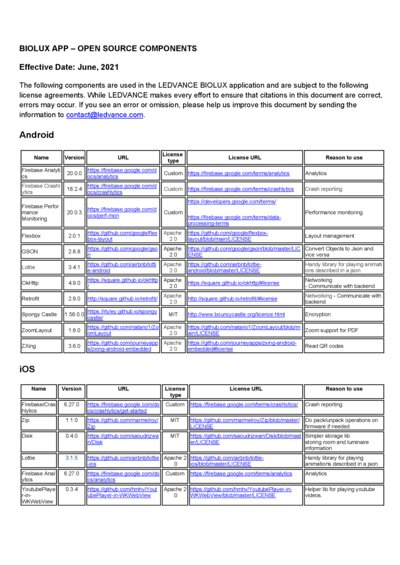

  • LEDVANCE BIOLUX app required for commissioning and additional functions time table / sensor configuration / NATURAL test (available for Android and iOS)
Legal advice
  • The use of the LEDVANCE BIOLUX app is exclusively subject to the LEDVANCE BIOLUX app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
  • Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s), LED strips and VIVARES occupancy sensor including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL system products.

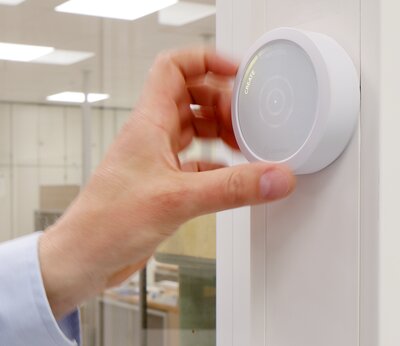

  • Important operating notice: The BIOLUX HCL CONTROL UNIT may be rotated clockwise or counterclockwise a maximum of 7,200° (equivalent to 20 complete 360° rotations) per day in total (adding together all operating procedures).
References / Links
  • For Guarantee see www.ledvance.com/guarantee

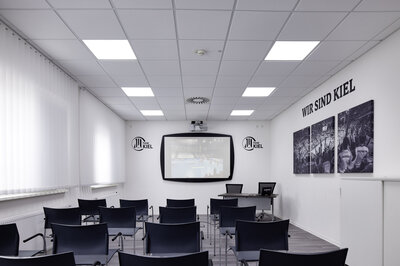

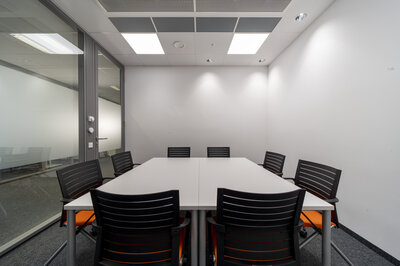

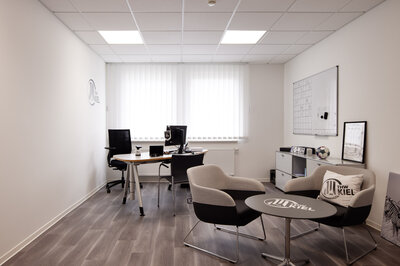

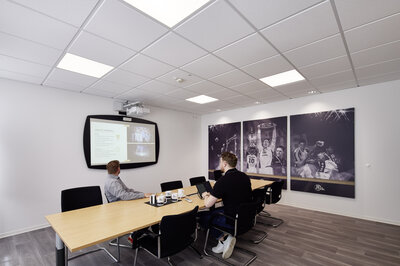

  • For reference projects see https://www.ledvance.com/professional/lighting-solutions
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

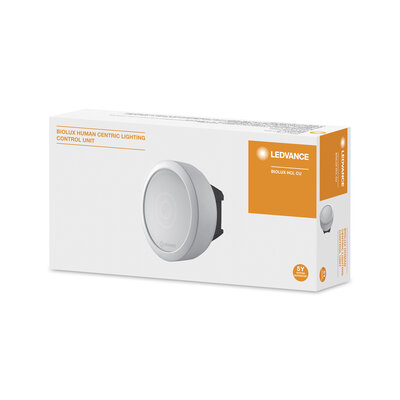

4058075308657 Folding box
1
54 mm x 205 mm x 104 mm 288.00 g 1.15 dm³
4058075308664 Shipping box
2
224 mm x 124 mm x 144 mm 678.00 g 4.00 dm³
EAN SEG number STK number EFO number ELDAS number
4058075308657 7985300 2628006 1407931 919000100
