Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

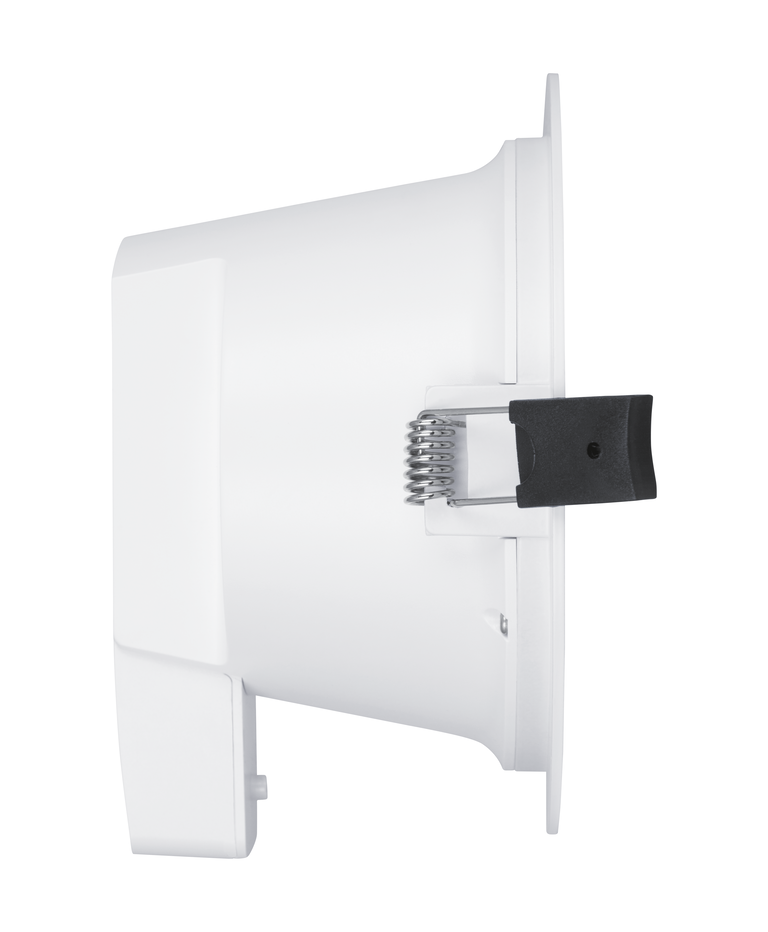

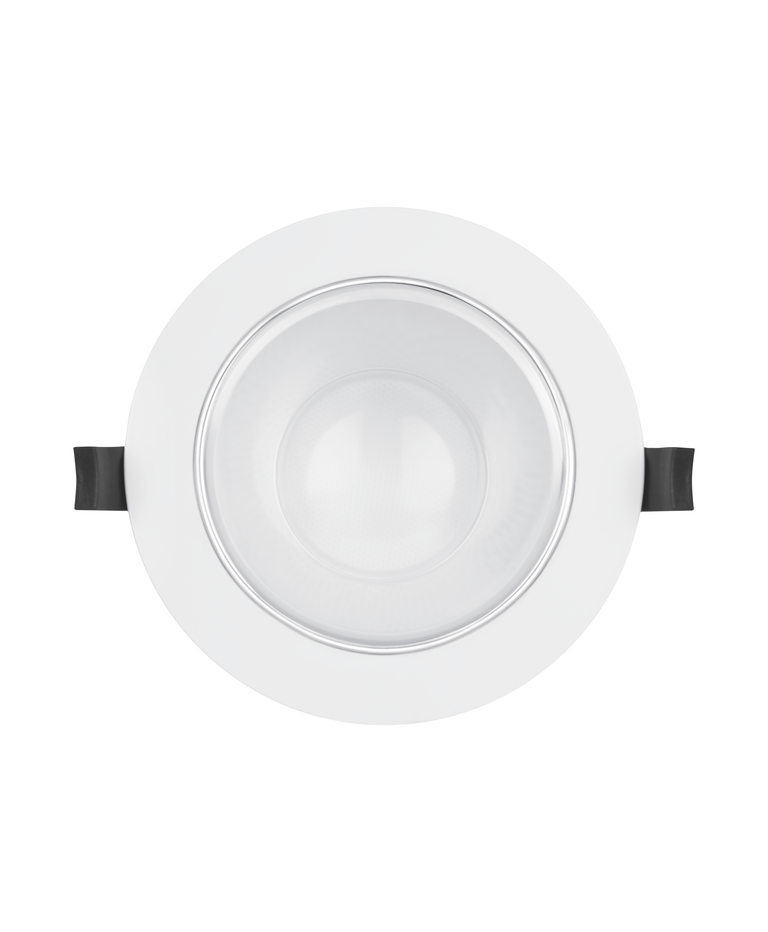

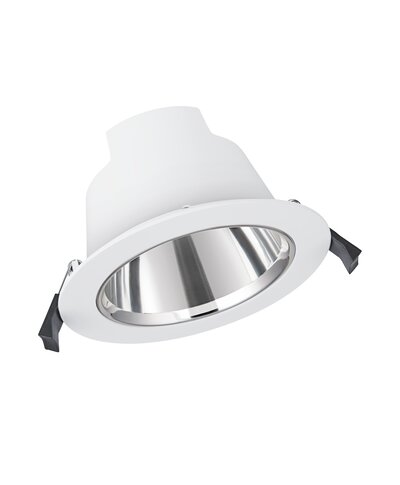

| DL COMFORT DN 130 13 W 3CCT IP54 WT | 13.00 W | 50000 | 60 ° | 1030 lm / 1210 lm / 1110 lm | No |

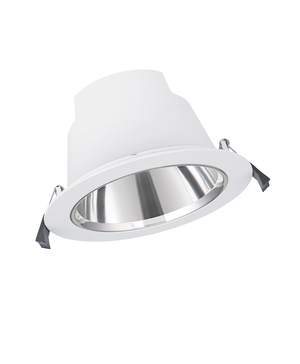

| DL COMFORT DN 155 18 W 3CCT IP54 WT | 18.00 W | 50000 | 60 ° | 1400 lm / 1620 lm / 1470 lm | No |

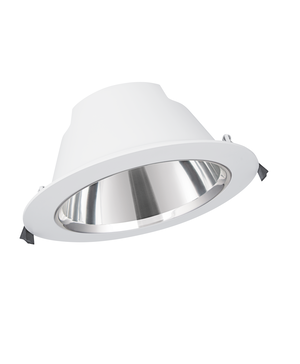

| DL COMFORT DN 205 20 W 3CCT IP54 WT | 20.00 W | 50000 | 60 ° | 1720 lm / 1930 lm / 1810 lm | No |
| Nominal wattage | 13.00 W |
| Nominal voltage | 100…277 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 140 mA |
| Inrush current | 40 A |
| Inrush current time Th50 | 100 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 18 |
| Max. number of luminaires per miniature circuit breaker C10 | 15 |
| Max. number of luminaires per miniature circuit breaker C16 | 24 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 1030 lm / 1210 lm / 1110 lm 1) |
| Luminous efficacy | 85 lm/W 2) |
| Color temperature | 3000 K / 4000 K / 5700 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 60 ° |

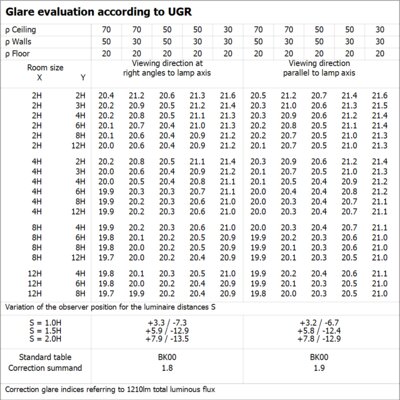

| UGR | < 22 |
1) Luminous flux dependent on selected color temperature: 1030 lm@3000 K /1110 lm@5700 K /1210 lm@4000 K
2) Value at 5700 K, different for other color temperatures
| Diameter | 145.00 mm |
| Height | 82.00 mm |
| Product weight | 265.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |

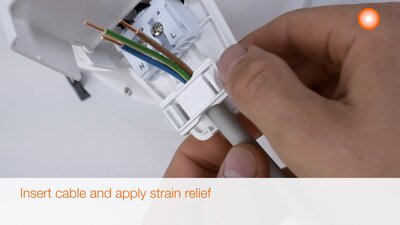

| Type of connection | Screwless terminal, 2-Pole |
| Type of protection | IP54/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 130 mm |
| Mounting depth | 125 mm |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 43000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

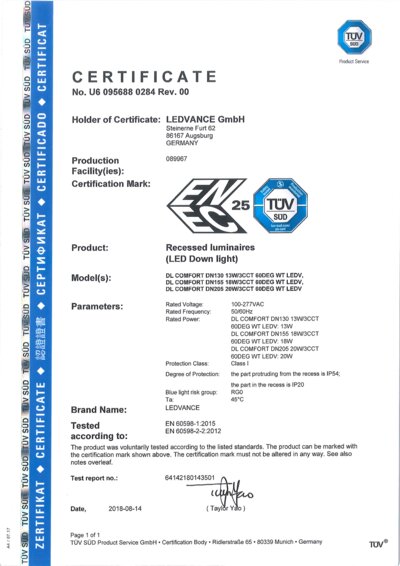

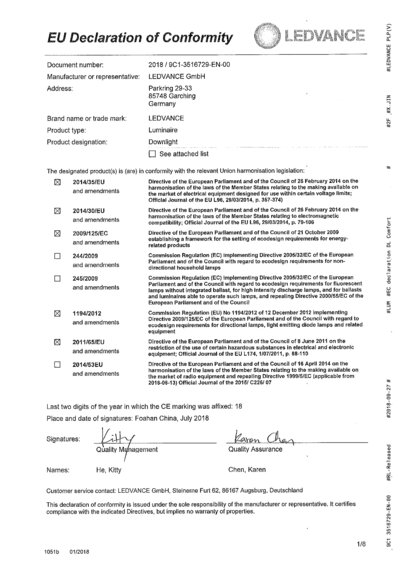

| Standards | CE, CB, ENEC, TÜV SÜD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |

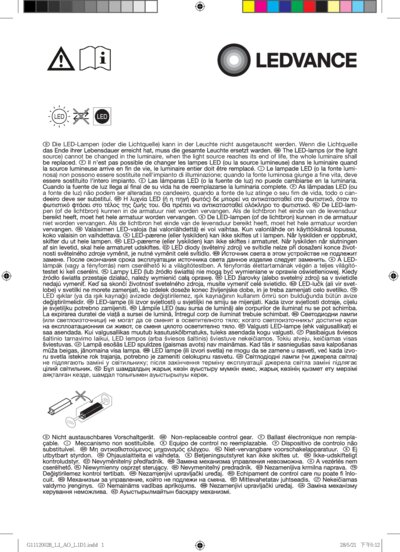

| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | Not relevant |

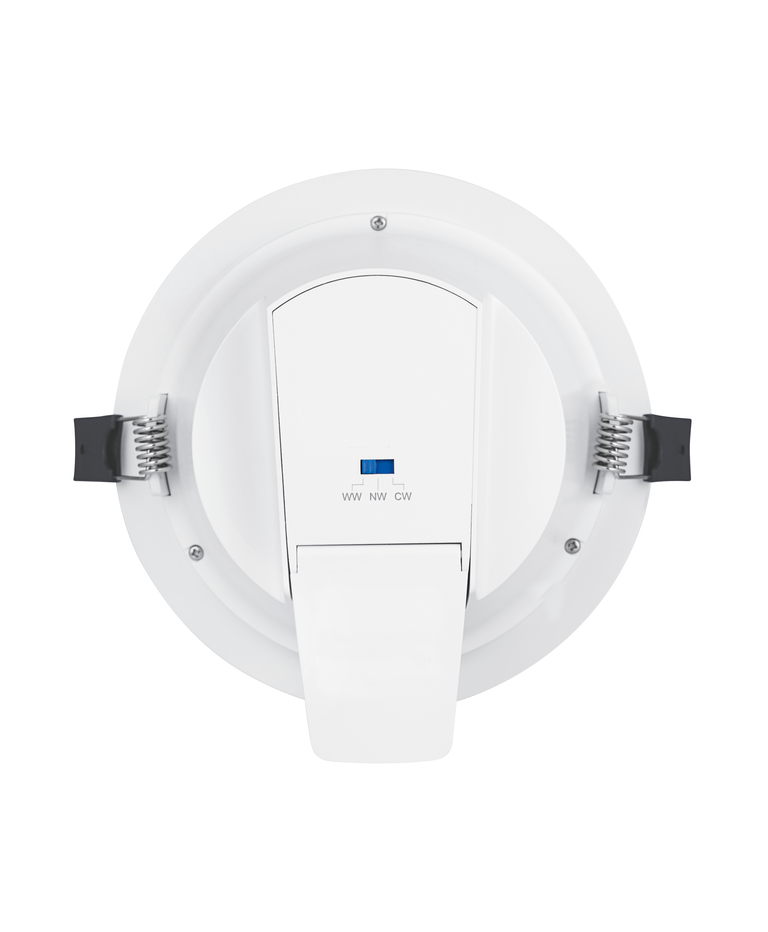

| Added function | MULTI SELECT |
| BEG eligible | No |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

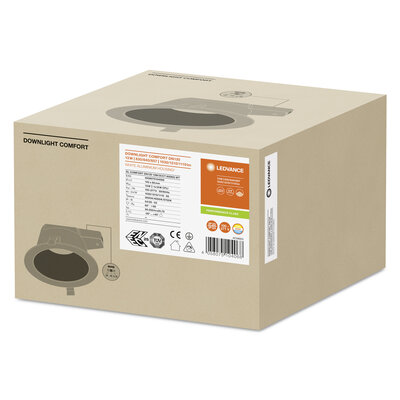

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075104068 | Folding box 1 |
170 mm x 170 mm x 125 mm | 326.00 g | 3.61 dm³ |
| 4058075104075 | Shipping box 8 |
360 mm x 360 mm x 270 mm | 3640.00 g | 34.99 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075104068 | 7470587 | 4231815 | 3201666 | 941400090 |
