Daylight with the BIOLUX HCL system

Project benefits at a glance:

BIOLOGICALLY ACTIVE LIGHT
Light that respects the natural course of daylight with an improved lighting quality which occupies a room without needing windows.
INTUITIVE CONTROL
Possibility of adapting the lighting to a specific lighting need, from "Boost" to "Relax" mode.
LIGHT QUALITY
Uniform brightness with reduced glare of UGR ≤ 14.

Project info:

Bordeaux, France, 2022
Customer: ENSEGID School
Project: Conversion school lighting to BIOLUX HCL system
Application: Educational institutions lighting
Technology: LED
Products: BIOLUX HCL PANEL and BIOLUX HCL CONTROL UNIT

MORE FLEXIBILITY AND IMPROVEMENT OF WELL-BEING OF STUDENTS AND TEACHERS IN THE SCHOOL CAFETERIA

THE CHALLENGE

The cafeteria of the school is a room with limited daylight. This lack of daylight made it an unfriendly and uncomfortable place to be. At the beginning the project consisted in the creation of a glass roof located at about six meters high to let the natural light in through the ceiling. The technical and economic constraints were too big for this project.

THE SOLUTION

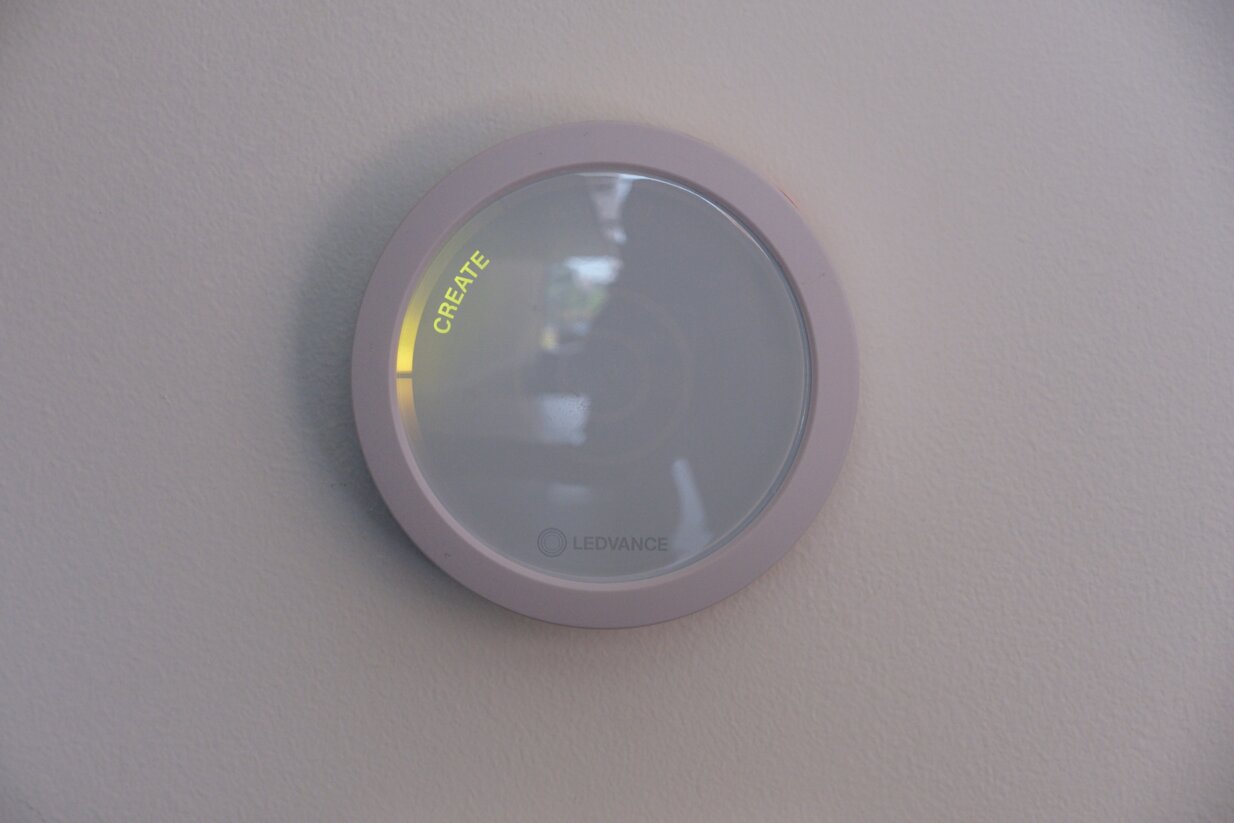

The BIOLUX HCL system from LEDVANCE was the easiest solution to implement. The BIOLUX HCL system from LEDVANCE, with its intuitive adjustment of different lighting modes, makes it very easy to obtain lighting adapted to every situations and following the natural course of daylight (variation of color temperature and luminous flux at the same time). One BIOLUX HCL CONTROL UNIT and twenty-five BIOLUX HCL PANELS were installed in the cafeteria. The LEDVANCE BIOLUX HCL PANEL luminaires and their BIOLUX HCL CONTROL UNIT communicate wireless via Zigbee 3.0. Pairing is simple and intuitive, without tools. The homogeneous illumination of the panels as well as glare reduction of UGR ≤14 and flicker-free light ensure optimum user comfort.

THE BENEFITS

The twenty-five BIOLUX HCL PANEL luminaires and the BIOLUX HCL CONTROL UNIT communicate easily and wirelessly: a perfect solution for renovation (no additional cable runs, no drilling, etc.). The patented HCL technology of LEDVANCE, certified by an independent body, follows the natural lighting needs of people by automatically adjusting the color temperature and luminous flux according to the natural daylight pattern of the installation location; thus, respecting the circadian rhythm of the users. This perfectly creates the "light well" effect sought by the architect.

SUMMARY

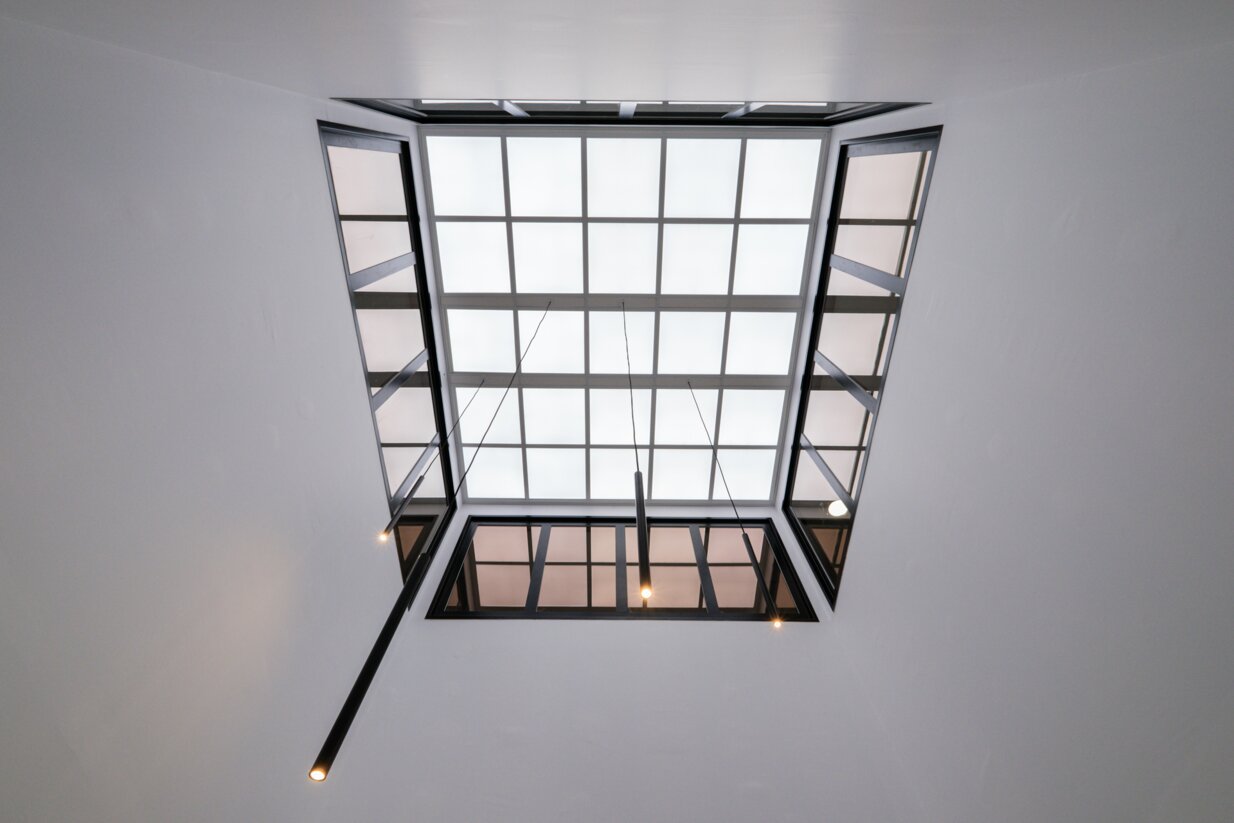

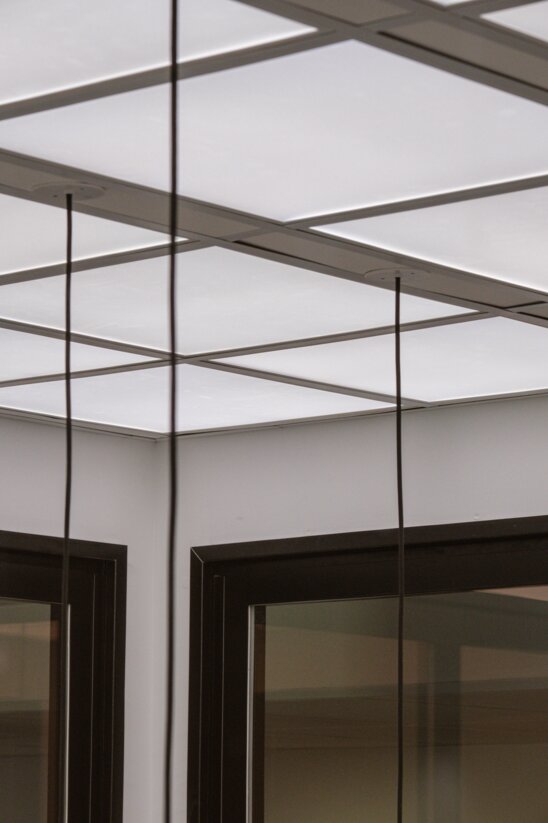

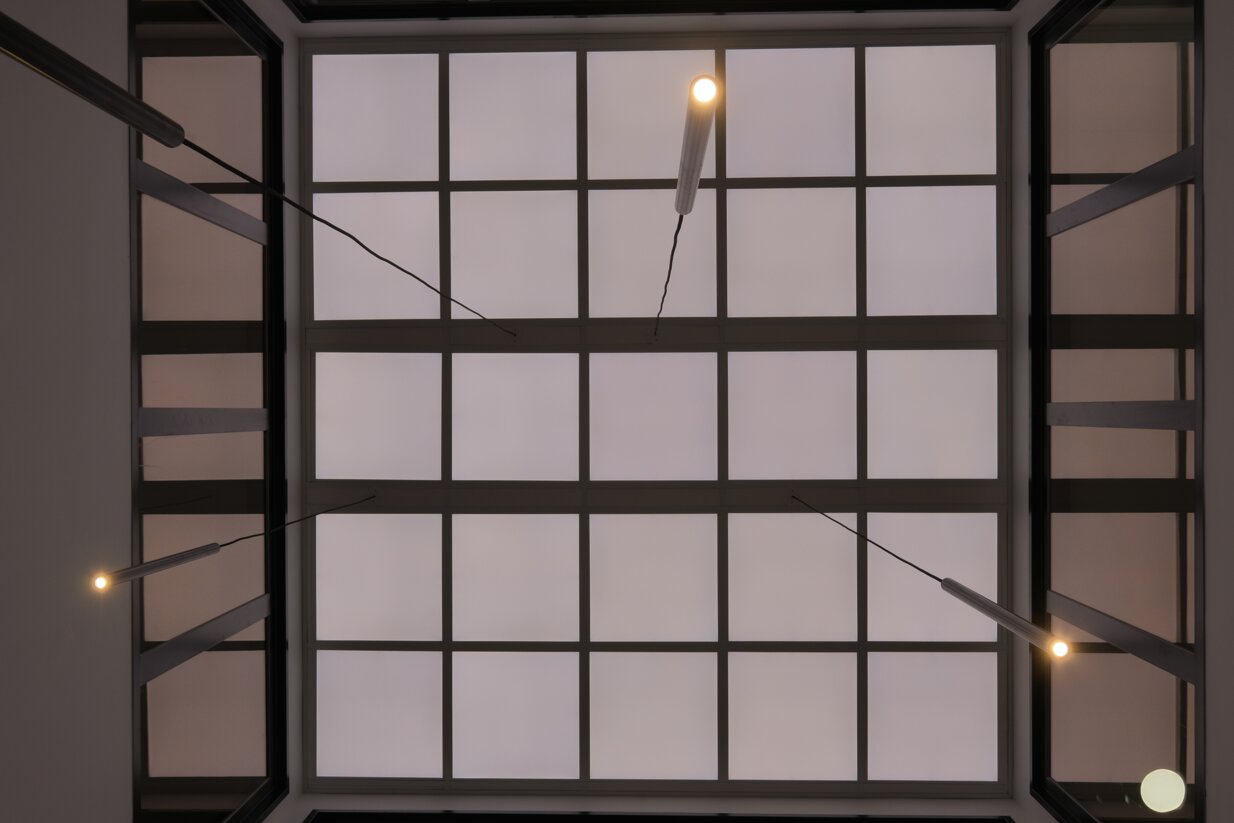

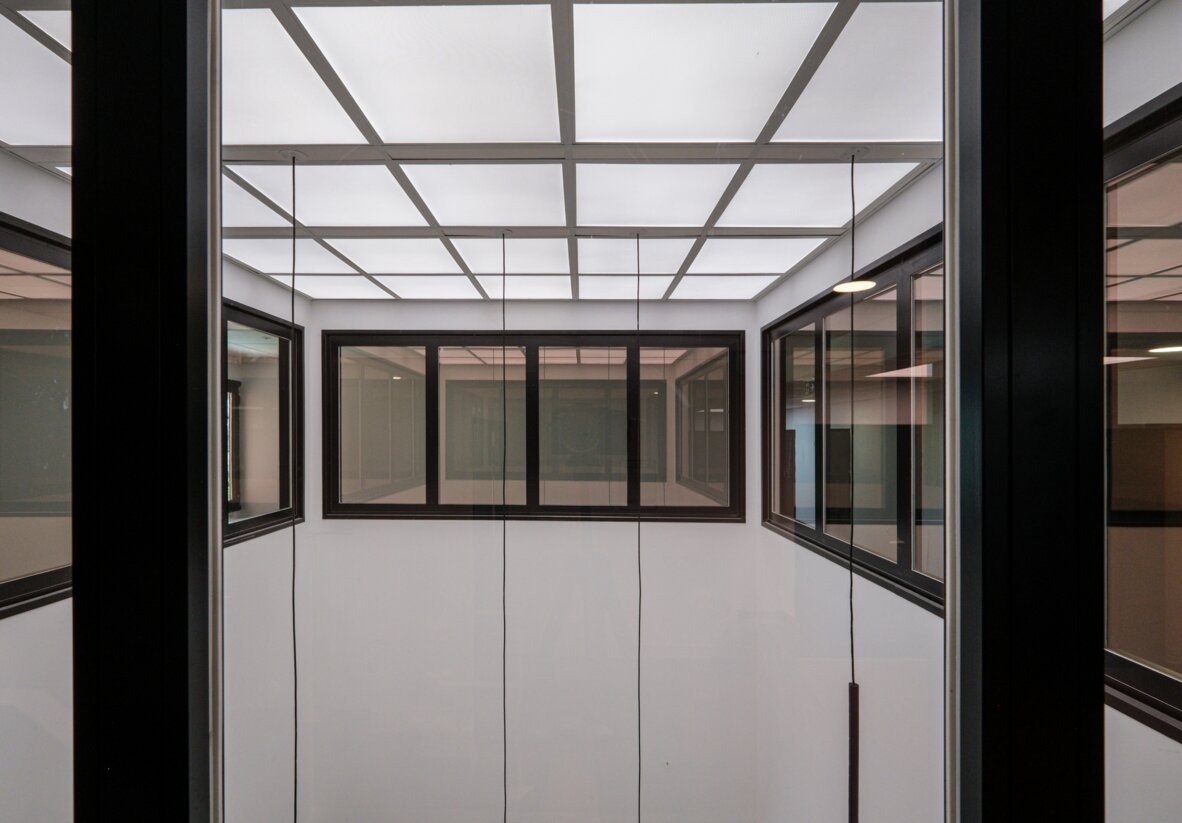

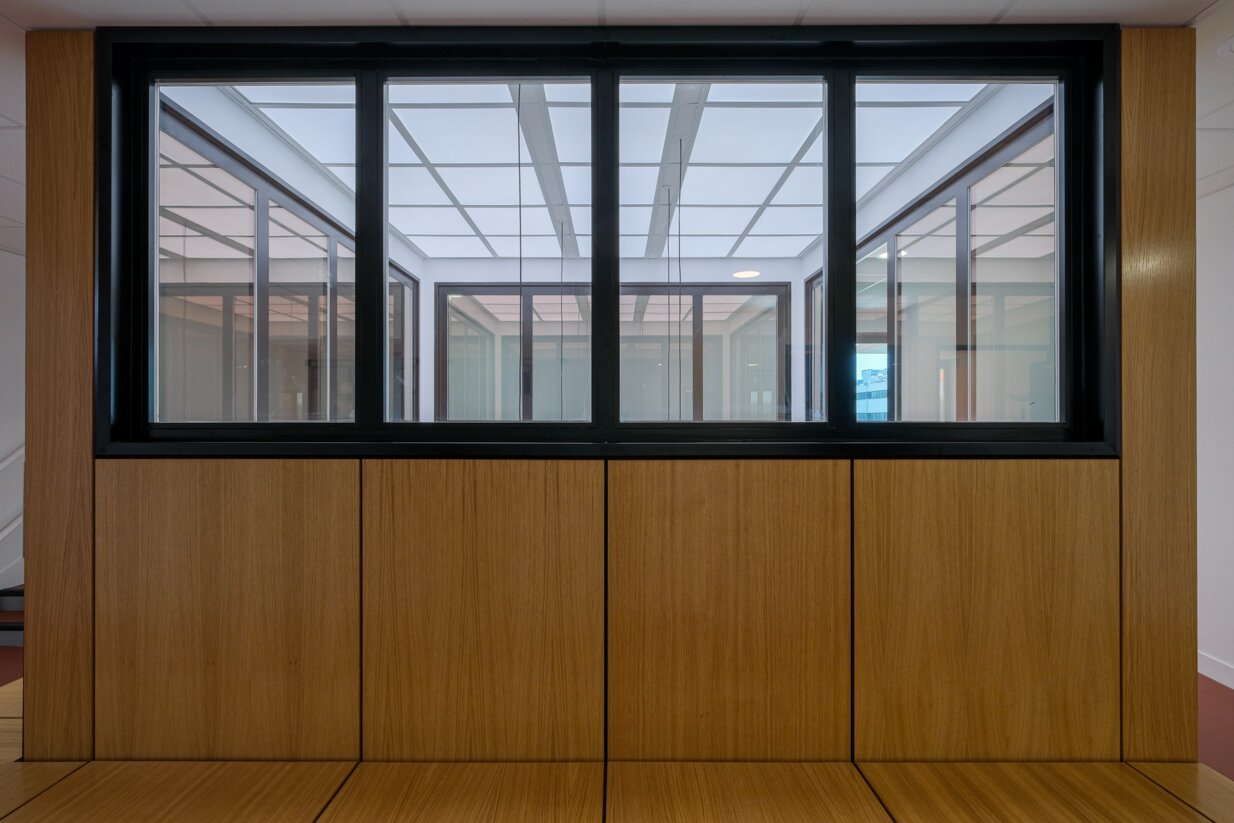

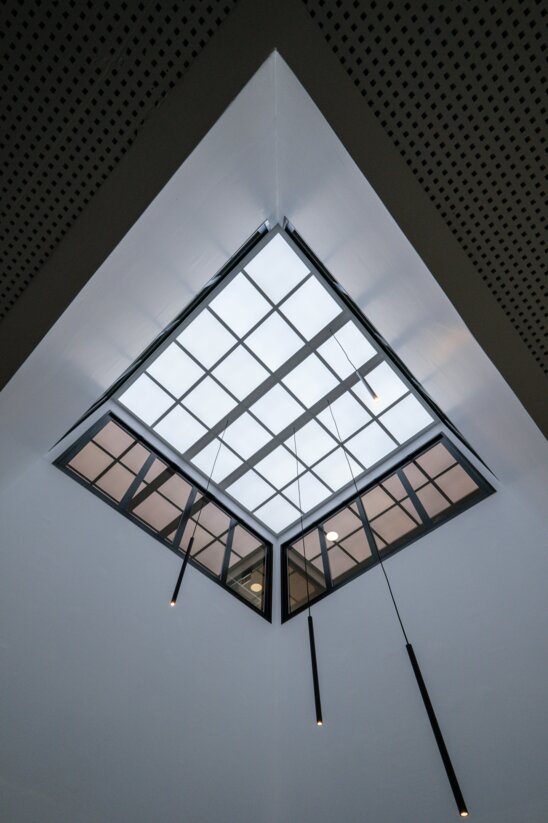

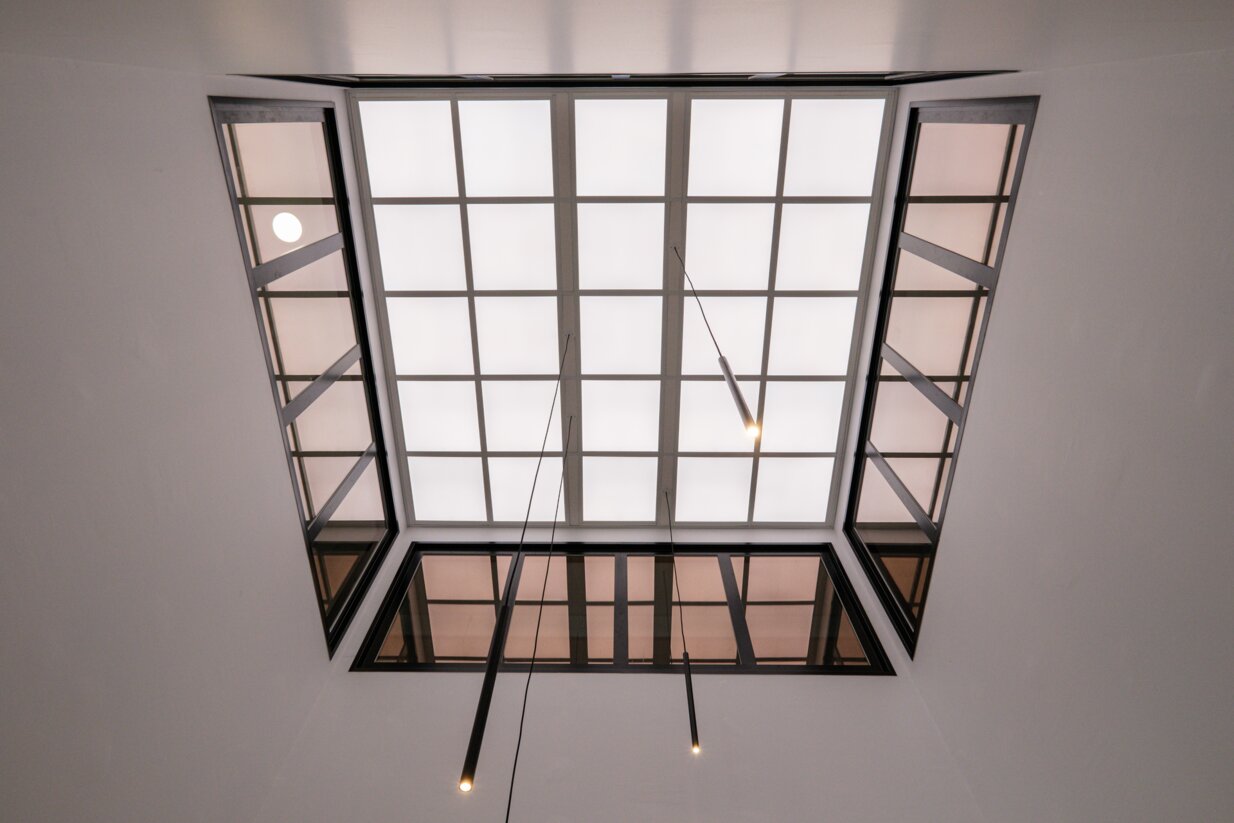

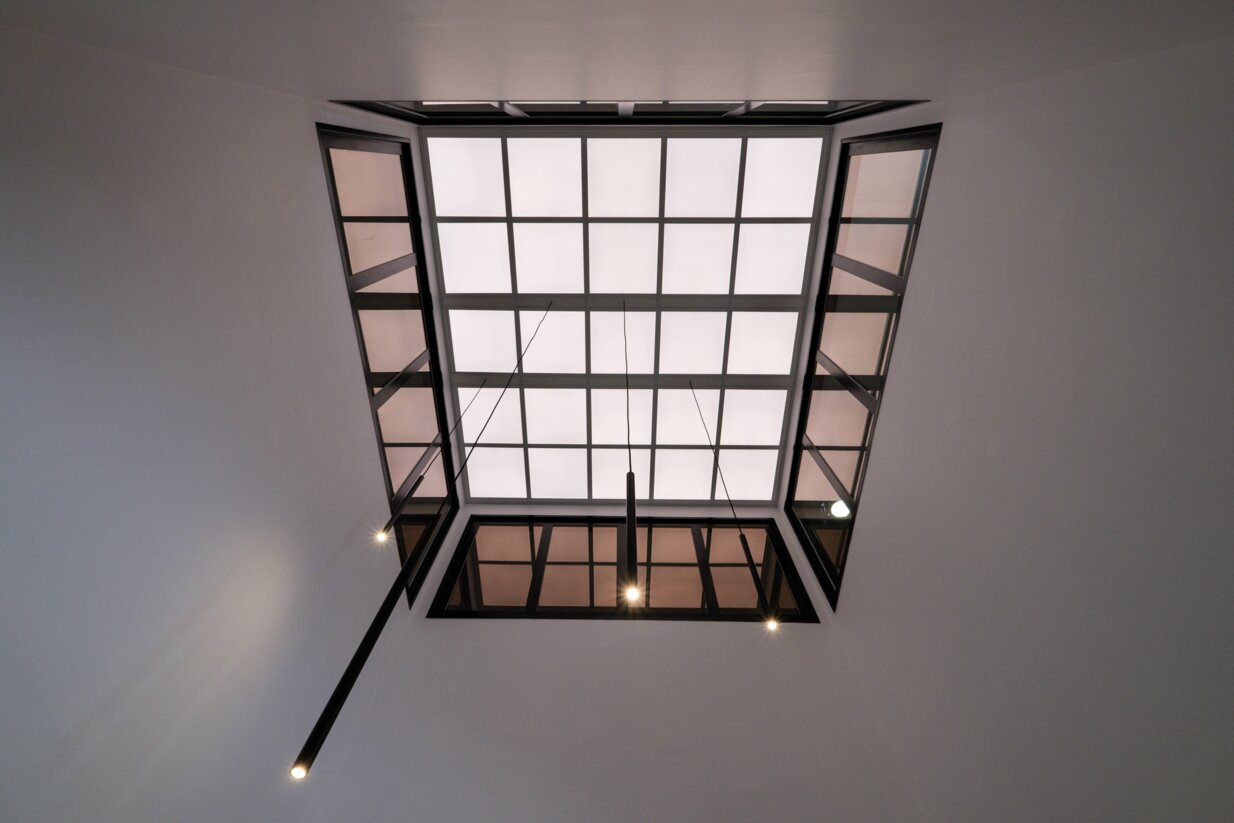

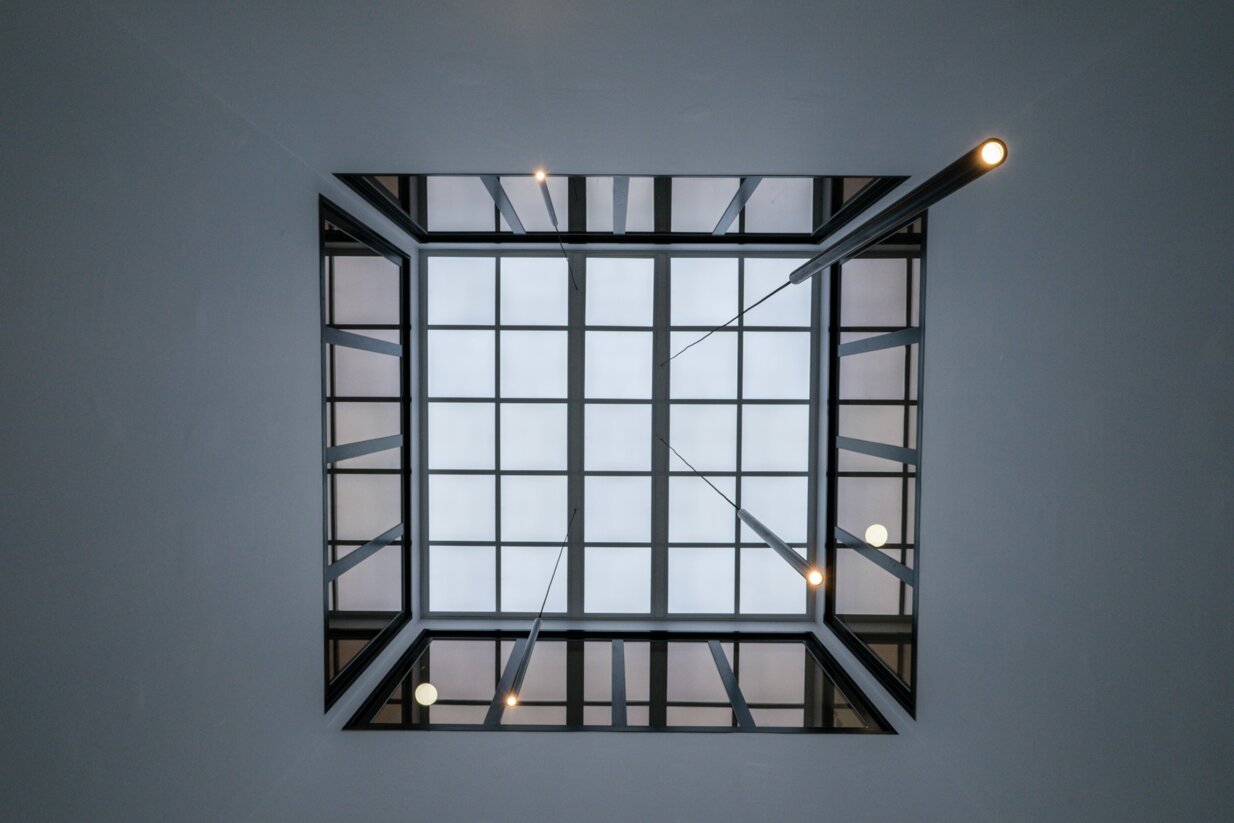

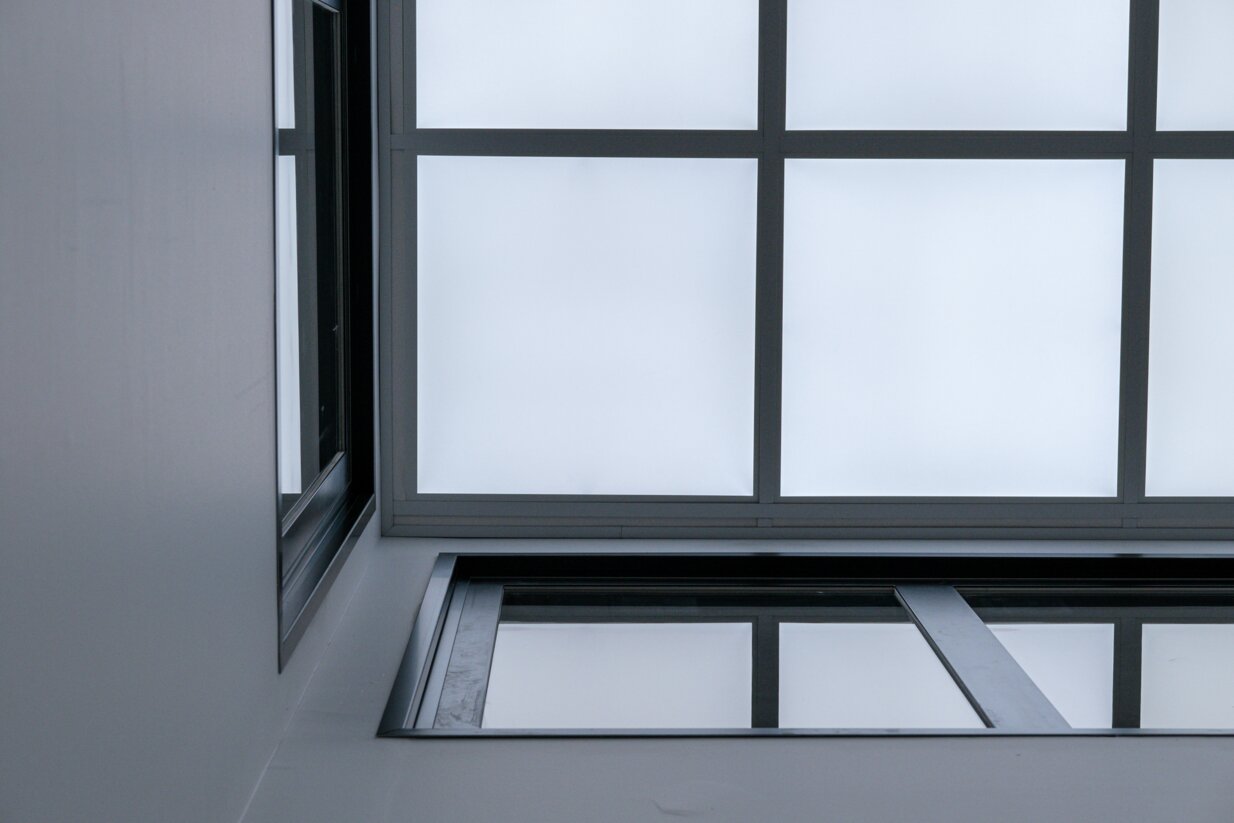

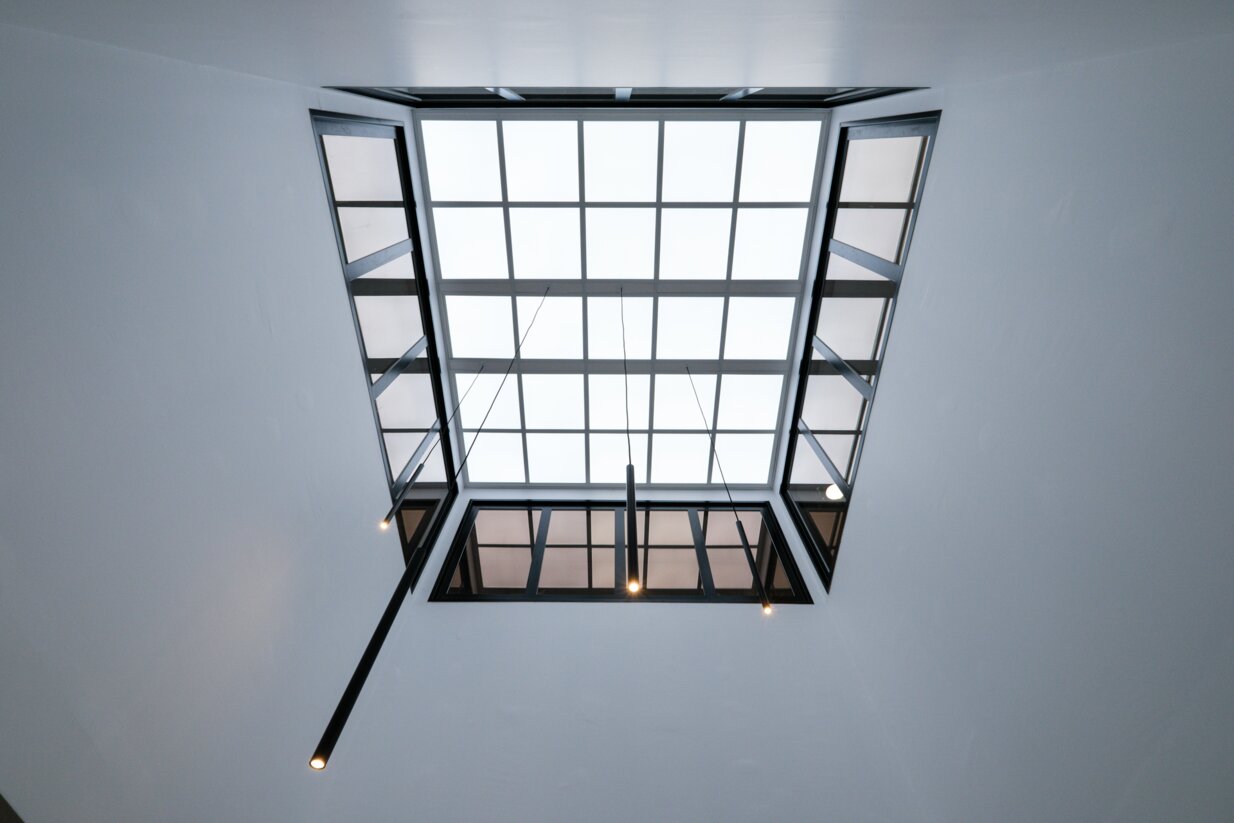

The lighting system of the ENSEGID school's cafeteria is based on twenty-five BIOLUX HCL PANEL luminaires and an associated BIOLUX HCL CONTROL UNIT that give the room a natural and comfortable lighting. The BIOLUX HCL PANEL luminaires give the impression of a glass roof through which the variations of natural light during the day can be seen: the color temperature and the luminous flux are adapted automatically to the room and time of day. Students and teachers also have the possibility to select the lighting mode corresponding to their activity and promote concentration or relaxation, while respecting the circadian rhythm.

This lighting management system makes sense in this cafeteria. The Relax mode is particularly appreciated in this space, which is conducive to relaxation. The automatic dynamic adaptation of the artificial light during the day according to the natural light curve significantly improves well-being, especially in winter when the days are darker. The system is appreciated and used.

Alain Dupuy, school director ENSEGID school
