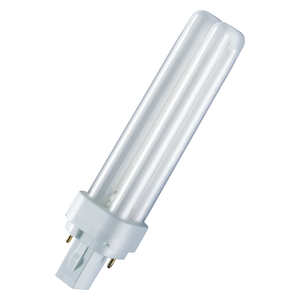

OSRAM DULUX® D

OSRAM DULUX D

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Dimmable
DULUX D 10 W/2700 K G24d-1 G24d-1 10 W No
DULUX D 10 W/6500 K G24d-1 G24d-1 10 W 10000 h 570 lm
DULUX D 10 W/6500 K G24d-1 G24d-1 10 W 10000 h 570 lm
DULUX D 10 W/3000 K G24d-1 G24d-1 10 W 10000 h 600 lm
DULUX D 10 W/4000 K G24d-1 G24d-1 10 W 10000 h 600 lm
DULUX D 13 W/2700 K G24d-1 G24d-1 13 W 10000 h 855 lm
DULUX D 13 W/6500 K G24d-1 G24d-1 13 W 10000 h 855 lm
DULUX D 13 W/3000 K G24d-1 G24d-1 13 W 10000 h 900 lm
DULUX D 13 W/4000 K G24d-1 G24d-1 13 W 10000 h 900 lm
DULUX D 18 W/2700 K G24d-2 G24d-2 18 W No
DULUX D 18 W/6500 K G24d-2 G24d-2 18 W 10000 h 1130 lm No
DULUX D 18 W/3000 K G24d-2 G24d-2 18 W 10000 h 1200 lm
DULUX D 18 W/4000 K G24d-2 G24d-2 18 W 10000 h 1200 lm No
DULUX D 26 W/6500 K G24d-3 G24d-3 26 W 10000 h 1700 lm
DULUX D 26 W/2700 K G24d-3 G24d-3 26 W 10000 h 1800 lm No
DULUX D 26 W/3000 K G24d-3 G24d-3 26 W 10000 h 1800 lm
DULUX D 26 W/4000 K G24d-3 G24d-3 26 W 10000 h 1800 lm

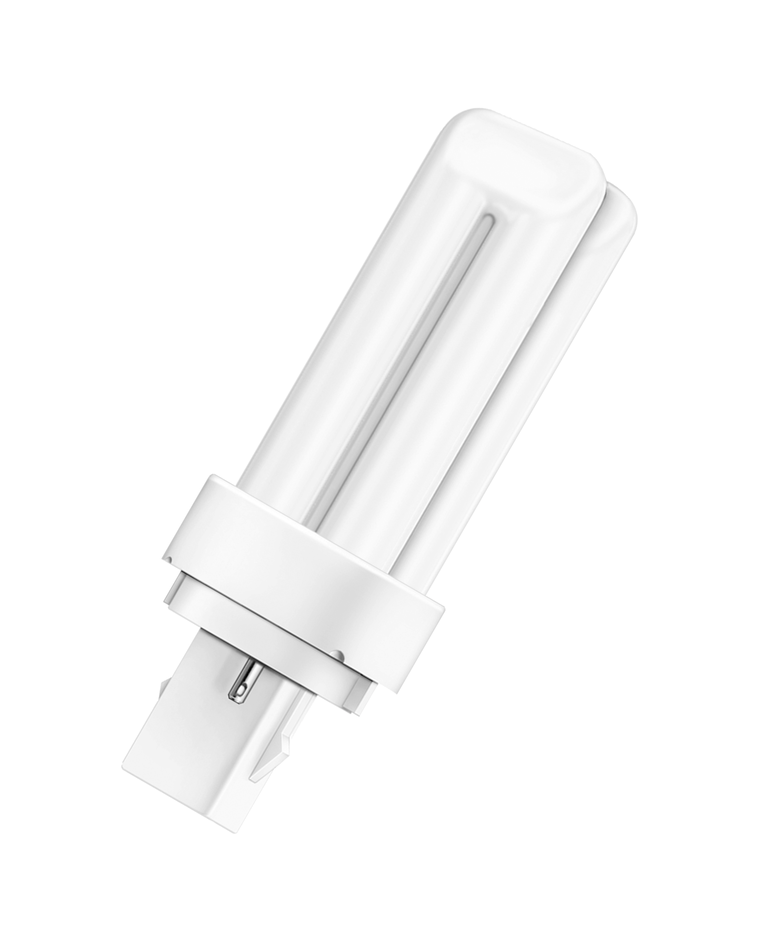

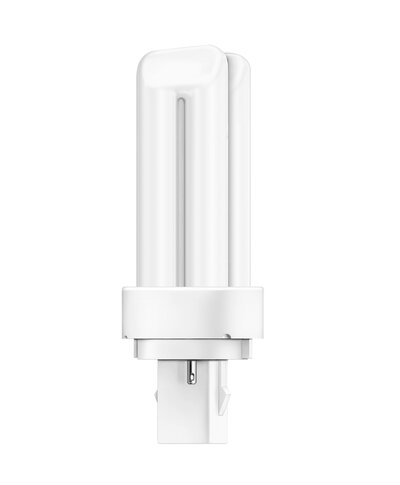

DULUX D 10 W/2700 K G24d-1

Product benefits
  • Improved maintenance

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W

Photometrical data

Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827

Dimensions & Weight

Overall length 112.00 mm
Diameter 12.00 mm
Product weight 33.74 g

Additional product data

Base (standard designation) G24d-1
Mercury content 2.5 mg

Capabilities

Dimmable No

Country-specific categorizations

Order reference DULUX D 10W/827

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G24d-1
Length 110.00 mm
Height 12.00 mm
Width 12.00 mm
Product benefits
  • Improved maintenance
Areas of application
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
  • Industry
Product features
  • Good color rendering index
  • Short and compact pin-base lamp with double-turn tubes
  • Single-ended two-pin plug-in G24d base
Equipment / Accessories
  • Suitable for operation on conventional control gear
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321830692 Folding box
1
35 mm x 35 mm x 118 mm 40.70 g 0.14 dm³
4008321830708 Shipping box
10
186 mm x 81 mm x 132 mm 461.00 g 1.99 dm³
