OSRAM DULUX® L LUMILUX®

OSRAM DULUX L LUMILUX

Choose your product version

Phase out

18 W/827 2G11

Phase out

18 W/830 2G11

Phase out

18 W/840 2G11

Phase out

24 W/827 2G11

Phase out

24 W/830 2G11

Phase out

24 W/840 2G11

36 W/840 2G11

36 W/865 2G11

Phase out

36 W/865 2G11

Phase out

36 W/827 2G11

Phase out

36 W/830 2G11

Phase out

36 W/840 2G11

Phase out

40 W/865 2G11

Phase out

40 W/830 2G11

Phase out

40 W/840 2G11

55 W/830 2G11

Phase out

55 W/865 2G11

Phase out

55 W/827 2G11

Phase out

55 W/830 2G11

Phase out

55 W/840 2G11

Phase out

80 W/830 2G11

Phase out

80 W/840 2G11

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
DULUX L 18 W/827 2G11 2G11 18 W 58 V 20000 h 1175 lm Yes
DULUX L 18 W/830 2G11 2G11 18 W 58 V 20000 h 1175 lm Yes
DULUX L 18 W/840 2G11 2G11 18 W 58 V 20000 h 1175 lm Yes
DULUX L 24 W/827 2G11 2G11 24 W 87 V 20000 h 1620 lm Yes
DULUX L 24 W/830 2G11 2G11 24 W 87 V 20000 h 1620 lm Yes
DULUX L 24 W/840 2G11 2G11 24 W 87 V 20000 h 1620 lm Yes
DULUX L 36 W/840 2G11 2G11 36 W 220 V 8000 h
DULUX L 36 W/865 2G11 2G11 36 W 220 V 8000 h
DULUX L 36 W/865 2G11 2G11 36 W 106 V 20000 h 2500 lm Yes
DULUX L 36 W/827 2G11 2G11 36 W 106 V 20000 h 2600 lm Yes
DULUX L 36 W/830 2G11 2G11 36 W 106 V 20000 h 2600 lm Yes
DULUX L 36 W/840 2G11 2G11 36 W 106 V 20000 h 2600 lm Yes
DULUX L 40 W/865 2G11 2G11 40 W 126 V 20000 h 3000 lm Yes
DULUX L 40 W/830 2G11 2G11 40 W 126 V 20000 h 3150 lm Yes
DULUX L 40 W/840 2G11 2G11 40 W 126 V 20000 h 3150 lm Yes
DULUX L 55 W/830 2G11 2G11 55 W 101 V 12000 h
DULUX L 55 W/865 2G11 2G11 55 W 101 V 20000 h 4100 lm Yes
DULUX L 55 W/827 2G11 2G11 55 W 101 V 20000 h 4320 lm Yes
DULUX L 55 W/830 2G11 2G11 55 W 101 V 20000 h 4320 lm Yes
DULUX L 55 W/840 2G11 2G11 55 W 101 V 20000 h 4320 lm Yes
DULUX L 80 W/830 2G11 2G11 80 W 145 V 20000 h 5600 lm Yes
DULUX L 80 W/840 2G11 2G11 80 W 145 V 20000 h 5600 lm Yes
Phase out


DULUX L 18 W/827 2G11

Product benefits
  • Less than half as long as tubular fluorescent lamps
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W
Construction wattage 18.90 W
Nominal voltage 58 V
Nominal current 0.38 A

Photometrical data

Luminous flux 1175 lm
Luminous efficacy 62 lm/W
Light color (designation) LUMILUX INTERNA
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Rated LLMF at 2,000 h 0.94
Rated LLMF at 4,000 h 0.90
Rated LLMF at 6,000 h 0.88
Rated LLMF at 8,000 h 0.85
Rated LLMF at 12,000 h 0.84
Rated LLMF at 16,000 h 0.81
Rated LLMF at 20,000 h 0.80

Dimensions & Weight

Overall length 221.00 mm
Length with base excl. base pins/connection 214,00 mm
Diameter 17,5 mm
Tube diameter 17,5 mm
Product weight 55.4 g

Temperatures & operating conditions

Ambient temperature range -5…+40 °C

Lifespan

Service life 13000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.95
Rated lamp survival factor at 16,000 0.81
Rated lamp survival factor at 20,000 h 0.50
Lifespan B50 20000 h

1) With preheat ECG

Additional product data

Base (standard designation) 2G11
Mercury content 2.5 mg
Product remark For ECG and CCG operation

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 19.00 kWh/1000h

Country-specific categorizations

ILCOS FSD-18/827-E-2G11-43,9/217
Order reference DULUX L 18W/827

Energy labelling regulation data acc EU 2019/2015

Lighting technology used CFLNI
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) 2G11
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 221.00 mm
Height 17,5 mm
Width 17,5 mm
Chromaticity coordinate x 0,455
Chromaticity coordinate y 0,415
Beam angle correspondence SPHERE_360
EPREL ID 666232
Model number AC35912

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Less than half as long as tubular fluorescent lamps
Areas of application
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
  • Industry
Product features
  • Short and compact pin-base lamp with double-turn tubes
  • Single-ended four-pin plug-in 2G11 base
  • Dimmable (1…100 % with QUICKTRONIC® QTi DALI/DIM)
  • Good color rendering index
Equipment / Accessories
  • Suitable for standard control gears and starters
  • Suitable for operation on electronic and conventional control gear
Safety advice
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300010748 Folding box
1		 27 mm x 46 mm x 246 mm 71.80 g 0.31 dm³
4050300242163 Shipping box
10		 260 mm x 136 mm x 103 mm 795.20 g 3.64 dm³
Declarations of conformity

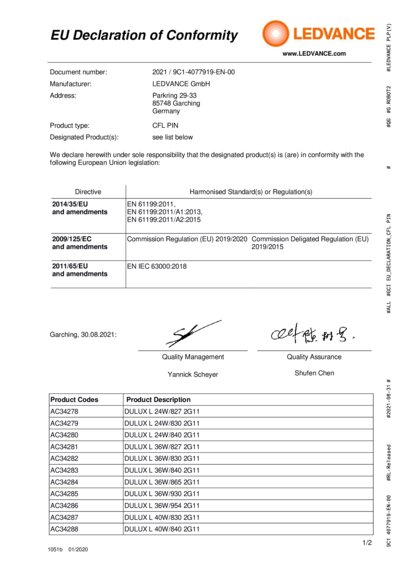

EC Declaration of Conf ormity - 2021 9C1-4077 919-EN-00 - DULUX L PDF (41.18 KB)
Certificates
EAC RU C-DE.HA46.B.011 31_21 21.05.2021-20.05 .2026 Expert Certifica tion - CFLpin PDF (1.18 MB)
Certificates
EAC N RU D-DE.MU62.B.0 0933_20 06.03.2020-05. 03.2025 Prommash Test - CFLpin PDF (1.12 MB)

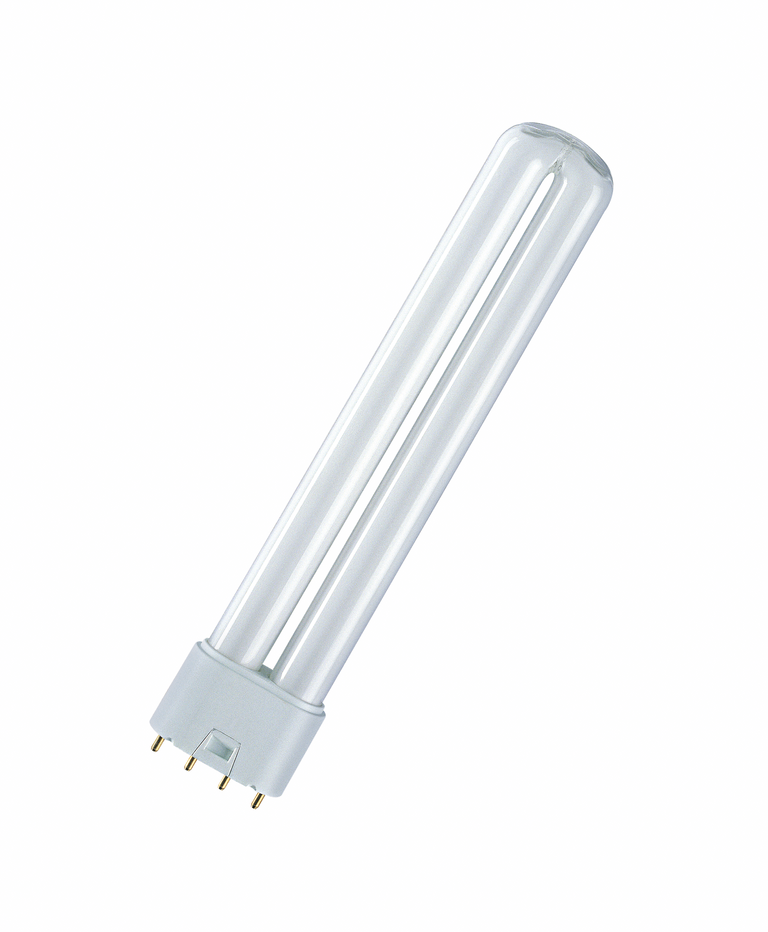

Product Image, Diagonal, White BG
323639_DULUX L LUMILUX TIF (21.43 MB)
Product line drawing with letters
319588_OSRAM DULUX L L UMILUX, L CONSTANT, L LUMILUX DE LUXE SVG (5.93 KB)
Product line drawing with numbers
325722_OSRAM DULUX L L UMILUX, L CONSTANT, L LUMILUX DE LUXE SVG (18.79 KB)
Product line drawing with numbers
567_DULUX L SVG (7.49 KB)
Product line drawing with numbers
566_DULUX L SVG (7.83 KB)
Prod.line drw, front, no dimensions
39487_DULUX L SVG (6.89 KB)
Prod.line drw, front, no dimensions
325436_DULUX L SVG (4.39 KB)
Prod.line drw, front, no dimensions
33639_OSRAM DULUX L SVG (3.98 KB)
Energy label
EL-4050300010748-AC359 12 PDF (21.42 KB)
Logos and Pictos
G left SVG (2.41 KB)
Logos and Pictos
G left BW SVG (1.07 KB)
Logos and Pictos
G right SVG (2.4 KB)
Logos and Pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349636_FL_827 PNG (92.23 KB)
EAN SEG number STK number EFO number ELDAS number
4050300010748 8330440 4933882 3820419 946165130
