Consumer
Country

OSRAM DULUX S

Choose your product version

Phase out

5 W/827

Phase out

5 W/840

7 W/865 G23

7 W 2700 K G23

Phase out

7 W/827

Phase out

7 W/830

7 W 4000 K G23

Phase out

7 W/840

9 W 840 K G23

9 W 6500 K G23

9 W/827 G23

Phase out

9 W/827

11 W 6500 K G23

11 W 840 K G23

11 W 2700 K G23

Phase out

11 W/827

Phase out

11 W/830

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
DULUX S 5 W/827 G23 5 W 35 V 10000 h 250 lm No
DULUX S 5 W/840 G23 5 W 35 V 10000 h 250 lm No
DULUX S 7 W/865 G23 G23 7 W 10000 h 380 lm No
DULUX S 7 W 2700 K G23 G23 7 W 10000 h 400 lm No
DULUX S 7 W/827 G23 7 W 47 V 10000 h 400 lm No
DULUX S 7 W/830 G23 7 W 47 V 10000 h 400 lm No
DULUX S 7 W 4000 K G23 G23 7 W 8000 h No
DULUX S 7 W/840 G23 7 W 47 V 10000 h 400 lm No
DULUX S 9 W 840 K G23 G23 9 W 8000 h No
DULUX S 9 W 6500 K G23 G23 9 W 10000 h 570 lm No
DULUX S 9 W/827 G23 G23 9 W 10000 h 600 lm No
DULUX S 9 W/827 G23 9 W 60 V 10000 h 600 lm No
DULUX S 11 W 6500 K G23 G23 11 W 10000 h 855 lm No
DULUX S 11 W 840 K G23 G23 11 W 8000 h No
DULUX S 11 W 2700 K G23 G23 11 W No
DULUX S 11 W/827 G23 11 W 91 V 10000 h 900 lm No
DULUX S 11 W/830 G23 11 W 91 V 10000 h 900 lm No
Phase out


DULUX S 5 W/827

Product benefits
  • Improved maintenance
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.60 W
Nominal voltage 35 V
Nominal current 0.18 A

Photometrical data

Luminous flux 250 lm
Luminous efficacy 45 lm/W
Light color (designation) LUMILUX INTERNA
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Rated LLMF at 2,000 h 0.85
Rated LLMF at 4,000 h 0.80
Rated LLMF at 6,000 h 0.77
Rated LLMF at 8,000 h 0.75

Dimensions & Weight

Overall length 108.00 mm
Length with base excl. base pins/connection 85,00 mm
Diameter 12.00 mm
Tube diameter 12 mm
Product weight 18.00 g

Temperatures & operating conditions

Ambient temperature range -5…+40 °C

Lifespan

Service life 6500 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.95
Rated lamp survival factor at 8,000 h 0.81
Lifespan B50 10000 h

Additional product data

Base (standard designation) G23
Mercury content 1.6 mg

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class G
Energy consumption 6.00 kWh/1000h

Country-specific categorizations

ILCOS FSD-5/827-I-G23
Order reference DULUX S 5W/827

Energy labelling regulation data acc EU 2019/2015

Lighting technology used CFLNI
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G23
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 108.00 mm
Height 12.00 mm
Width 12.00 mm
Chromaticity coordinate x 0,455
Chromaticity coordinate y 0,415
Beam angle correspondence SPHERE_360
EPREL ID 546483
Model number AC34258

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Improved maintenance
Areas of application
  • Ideal for cost-effective creative illumination and decoration
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
Product features
  • Good color rendering index
  • Short and compact pin-base lamps with single-turn tubes
  • Single-ended two-pin plug-in G23 base
Equipment / Accessories
  • Suitable for operation on conventional control gear
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300006130 Folding box
1		 35 mm x 22 mm x 113 mm 25.80 g 0.09 dm³
4050300315065 Shipping box
10		 190 mm x 54 mm x 127 mm 299.00 g 1.30 dm³
Declarations of conformity

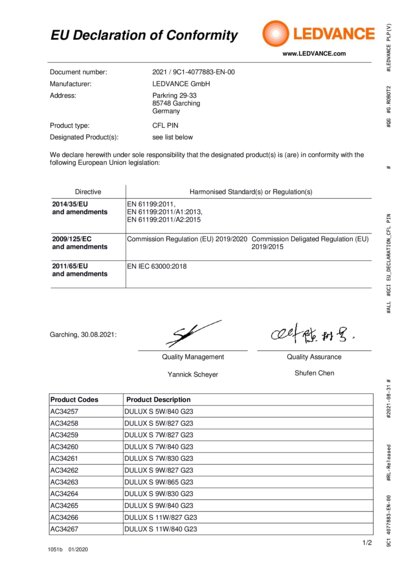

EC Declaration of Conf ormity - 2021 9C1-4077 883-EN-00 - DULUX S PDF (40.96 KB)
Certificates
EAC RU C-DE.HA46.B.011 31_21 21.05.2021-20.05 .2026 Expert Certifica tion - CFLpin PDF (1.18 MB)
Certificates
EAC N RU D-DE.MU62.B.0 0933_20 06.03.2020-05. 03.2025 Prommash Test - CFLpin PDF (1.12 MB)

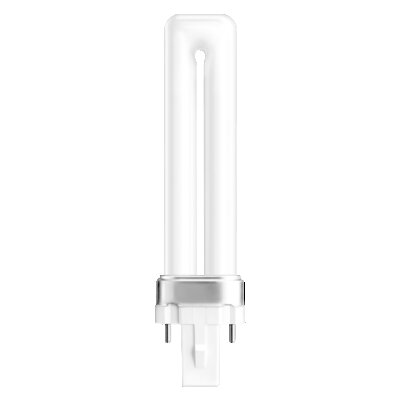

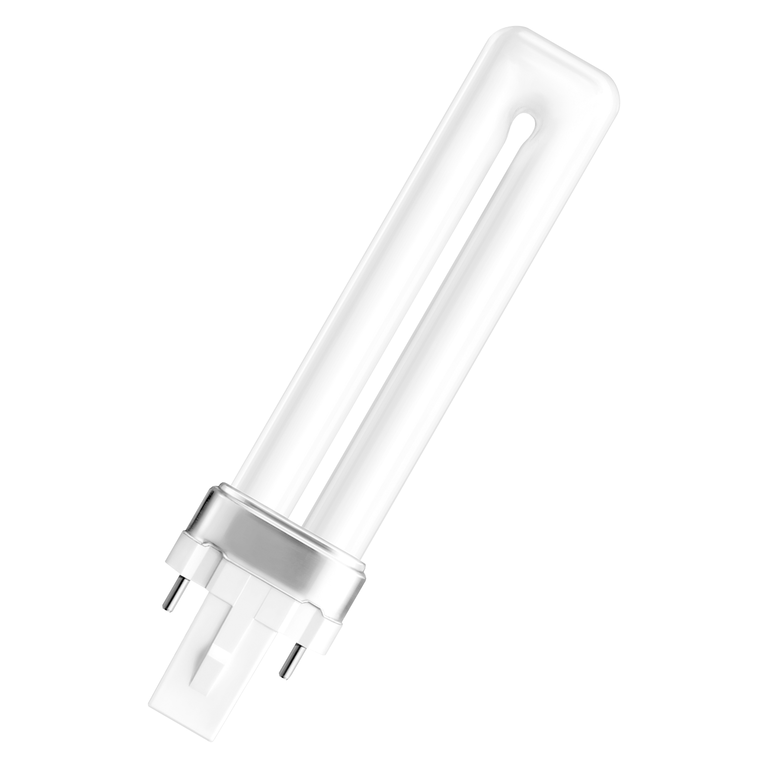

Product image: white background, diagonal
DULUX S 7W G23 TIF (976.15 KB)

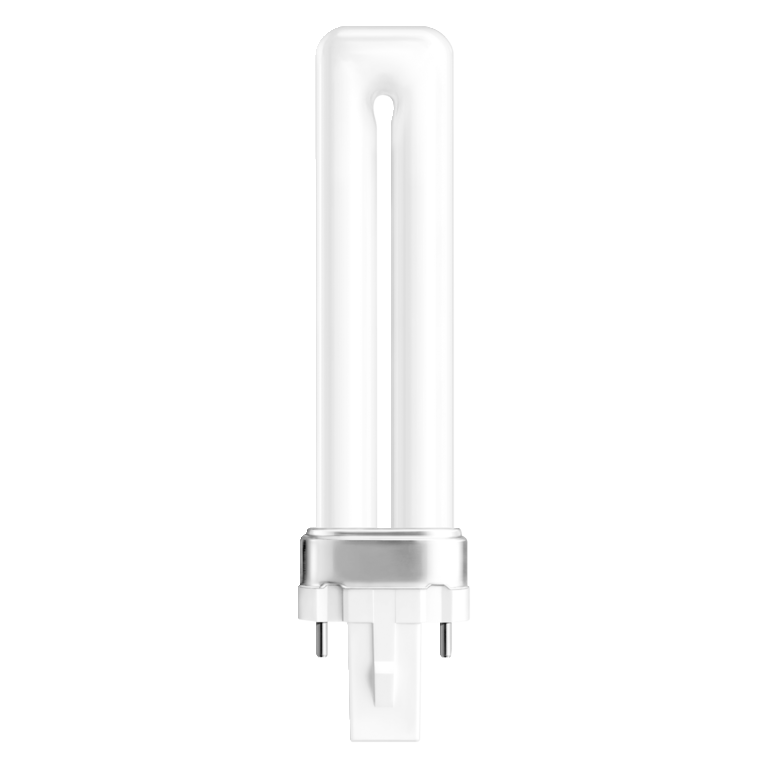

Product image: white background, upright
DULUX S 7W G23 TIF (924.39 KB)
Product line drawing with letters
319566_OSRAM DULUX S SVG (7.51 KB)
Product line drawing with numbers
325650_DULUX S FOR CCG SVG (17.75 KB)
Product line drawing, front, no dimensions
33644_OSRAM DULUX S SVG (3.55 KB)
Energy label
EL-4050300006130-AC342 58 PDF (21.89 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349636_FL_827 PNG (92.23 KB)
EAN SEG number STK number EFO number ELDAS number
4050300006130 8330000 4933845 3820406 946132130
