OSRAM DULUX® S/E

OSRAM DULUX S/E

Choose your product version

7 W 4000 K 2G7

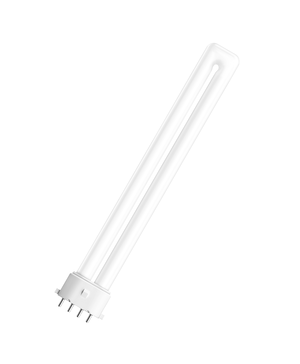

11 W 4000 K 2G7

OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal lamp life time	Nominal luminous flux	Dimmable
DULUX S/E 7 W 4000 K 2G7	2G7	7 W	10000 h	400 lm	No
DULUX S/E 11 W 4000 K 2G7	2G7	11 W	10000 h	900 lm	Yes

DULUX S/E 7 W 4000 K 2G7

Product benefits

Extremly economical
Good quality of light
Improved maintenance
Low power consumption (7 W, 9 W, 11 W)
Long service life
Extremely low profile

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	7 W
Construction wattage	7.10 W

Photometrical data

Luminous flux	400 lm
Luminous flux at 25 °C	400 lm
Light color (designation)	LUMILUX Cool White
Color temperature	4000 K
Color rendering index Ra	80…90
Light color	840
Rated LLMF at 2,000 h	0.90
Rated LLMF at 4,000 h	0.81
Rated LLMF at 6,000 h	0.80
Rated LLMF at 8,000 h	0.76
Rated lamp efficacy (standard co.)	56 lm/W

Dimensions & Weight

Overall length	112.00 mm
Diameter	12.00 mm
Maximum diameter	11 mm
Product weight	20.5 g

Temperatures & operating conditions

Rated ambient temp.w.max.luminous

25.0 °C

Lifespan

Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.95
Rated lamp survival factor at 8,000 h	0.81
Operation mode LLMF/LSF	HF

Additional product data

Base (standard designation)	2G7
Mercury content	1.3 mg

Capabilities

Suitable for indoor	Yes
Dimmable	No

Certificates & Standards

Energy efficiency class	A
Energy consumption	7.81 kWh/1000h

Country-specific categorizations

ILCOS	FSD-7/40/1B-E-2G7
Order reference	DULUX S/E 7W/84

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	2G7
Length	114.00 mm
Height	12.00 mm
Width	12.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Extremly economical
Good quality of light
Improved maintenance
Low power consumption (7 W, 9 W, 11 W)
Long service life
Extremely low profile

Areas of application

Offices, public buildings
Shops
Supermarkets and department stores
Hotels, restaurants

Product features

Short and compact pin-base lamps with single-turn tubes
Single-ended four-pin plug-in 2G7 base
Operates on battery, solar and AC power with suitable electronic control gear
Not dimmable

Equipment / Accessories

Suitable for operation on electronic control gear

Safety advice

In case of lamp breakage: www.ledvance.com/brokenlamp

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4008321583574	Folding box 1	38 mm x 22 mm x 127 mm	27.50 g	0.11 dm³
4008321583581	Shipping box 50	240 mm x 205 mm x 149 mm	1568.00 g	7.33 dm³

Product images and graphics

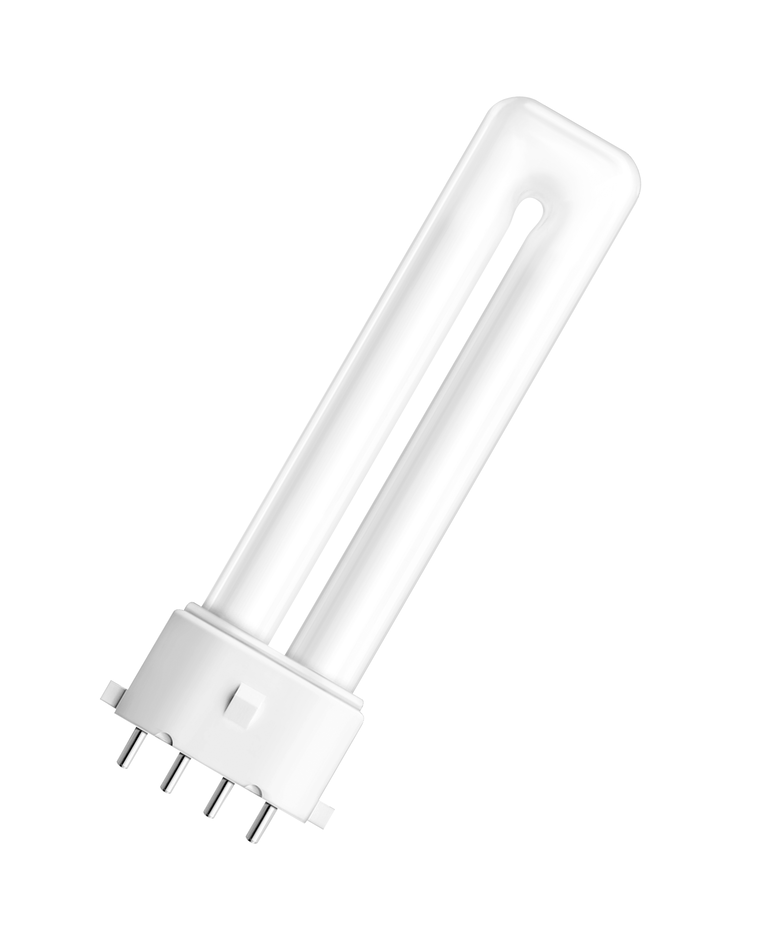

Product Image, Diagonal, White BG
DULUX S/E 7W 2G7 TIF (9.14 MB)

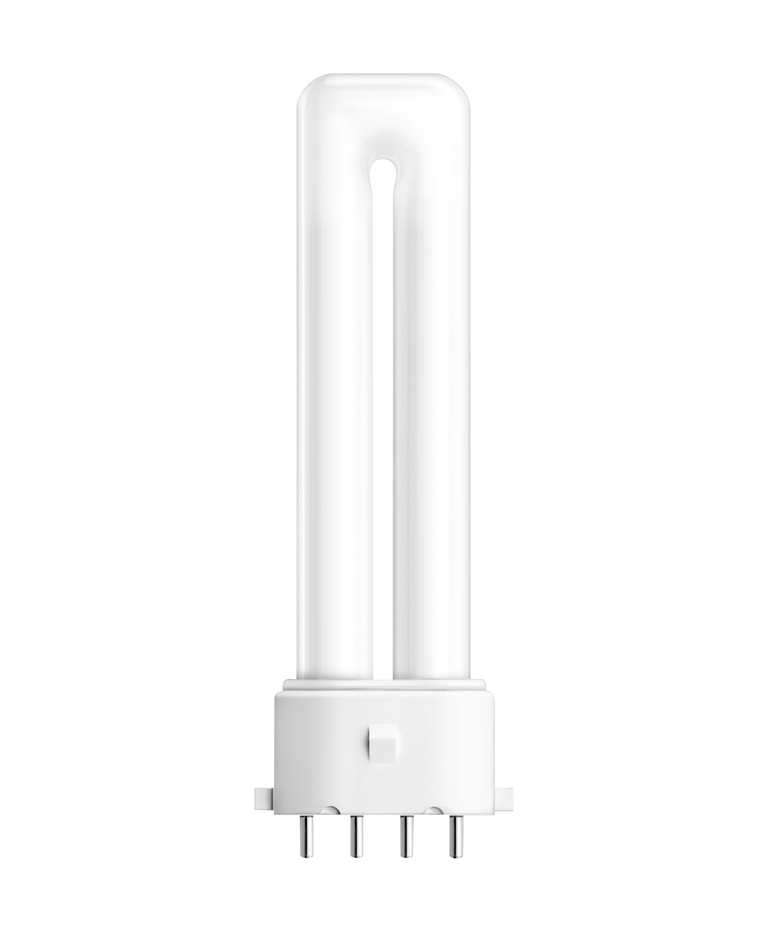

Product Image, Upright, White BG
DLULUX S/E 7W 2G7 TIF (6 MB)

Product line drawing with letters
319567_OSRAM DULUX S/E SVG (6.35 KB)

Prod.line drw, front, no dimensions
39479_DULUX S/E SVG (4.76 KB)
