DECOSTAR® 51 PRO

DECOSTAR 51 PRO

Choose your product version

20 W 12 V 60° GU5.3

OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
DECOSTAR 51 PRO 20 W 12 V 60° GU5.3	GU5.3	20 W	12 V	5000 h	380 lm	35 W	60 °	Yes

DECOSTAR 51 PRO 20 W 12 V 60° GU5.3

Product benefits

Brilliant accent lighting
Significantly lower CO₂ emissions compared to standard version
Constant luminous intensity and constant color location throughout the lifetime
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Contains no mercury

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	20 W
Construction wattage	20.00 W
Nominal voltage	12 V
Claimed equiv. conventional lamp power	35 W
Power factor λ	1.00

Photometrical data

Luminous intensity	450 cd
Luminous flux	380 lm
Nominal useful luminous flux 90°	300 lm
Luminous efficacy	19 lm/W
Lumen main.fact.at end of nom.life time	0.75
Light color (designation)	Warm White
Color temperature	3000 K
Color rendering index Ra	100
Light color	1030
Rated peak intensity	450 cd
UV protection	Yes

Light technical data

Beam angle	60 °
Warm-up time (60 %)	0.00 s
Starting time	0.0 s

Dimensions & Weight

Overall length	45.00 mm
Diameter	50.7 mm
Maximum diameter	51 mm
Product weight	31.7 g

Lifespan

Number of switching cycles

125000

Additional product data

Base (standard designation)	GU5.3
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Reflector

Capabilities

Dimmable	Yes
Burning position	Any

Certificates & Standards

Energy efficiency class	G
Energy consumption	22.00 kWh/1000h

Country-specific categorizations

ILCOS	HRGS//UBIB-20-12-GU5.3-51/60
Order reference	48860 ECO VWFL

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	OTHER
Non-directional or directional	DLS
Mains or non-mains	NMLS
Light source cap-type (or other electric interface)	GU5.3
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Length	46.00 mm
Height	50.7 mm
Width	50.7 mm
Chromaticity coordinate x	0.437
Chromaticity coordinate y	0.404
Beam angle correspondence	NARROW_CONE_90
EPREL ID	1337672
Model number	A330271

Product description

Product benefits

Brilliant accent lighting
Significantly lower CO₂ emissions compared to standard version
Constant luminous intensity and constant color location throughout the lifetime
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Contains no mercury

Areas of application

General illumination
Kitchen lighting
Dining table lighting
Mirror lighting
Workplace lighting
Shops
Restaurants, hotels and similar prestigious applications

Product features

Average life: 5,000 h
100 % dimmable
Color rendering index R_a: 100
Color temperature: 3,000 K
Diameter: 51 mm
Deco cover
IRC technology

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4050300620220	Folding box 1	58 mm x 46 mm x 51 mm	38.00 g	0.14 dm³
4050300620237	Shipping box 20	105 mm x 122 mm x 244 mm	836.00 g	3.13 dm³

Product images and graphics

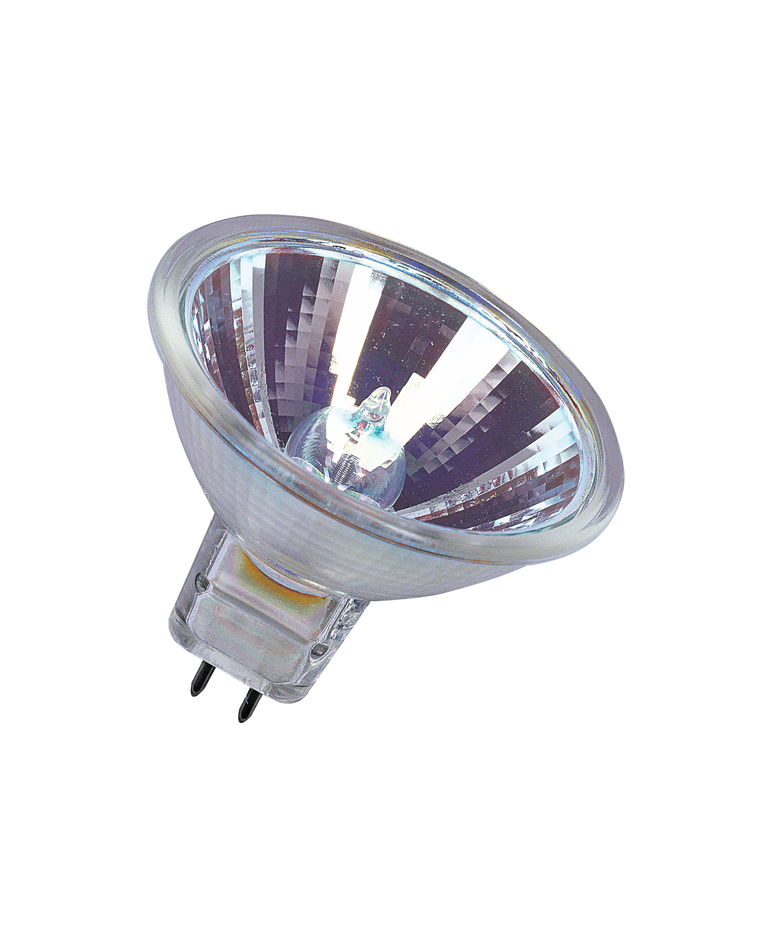

Product Image, Diagonal, White BG
323682_DECOSTAR 51 IRC TIF (21.43 MB)

Product line drawing with letters
25559_DECOSTAR 51 ENER GY SAVER SVG (7.63 KB)

Prod.line drw, front, no dimensions
325055_DECOSTAR 51 ENE RGY SAVER SVG (4.48 KB)

Energy label
EL-4050300620220-A3302 71 PDF (21.51 KB)

Logos and Pictos
G left SVG (2.41 KB)

Logos and Pictos
G left BW SVG (1.07 KB)

Logos and Pictos
G right SVG (2.4 KB)

Logos and Pictos
G right BW SVG (1.06 KB)

Photometric and lighting design files

Spectral power distribution
349622_HAL_DICRO_AK_IR C SVG (51.54 KB)

Country-specific information

EAN	SEG number	STK number	EFO number	ELDAS number
4050300620220	8326916	4735326	3720289	940394611
