LED VALUE MR16 230 V

Choose your product version

36 ° 5.5 W/2700 K GU5.3

36 ° 5.5 W/2700 K GU5.3

36 ° 5.5 W/3000 K GU5.3

36 ° 5.5 W/3000 K GU5.3

36 ° 5.5 W/4000 K GU5.3

36 ° 5.5 W/4000 K GU5.3

36 ° 5.5 W/6500 K GU5.3

36 ° 5.5 W/6500 K GU5.3

36 ° 6.5 W/2700 K GU5.3

36 ° 6.5 W/2700 K GU5.3

36 ° 6.5 W/3000 K GU5.3

36 ° 6.5 W/3000 K GU5.3

36 ° 6.5 W/4000 K GU5.3

36 ° 6.5 W/4000 K GU5.3

36 ° 6.5 W/6500 K GU5.3

36 ° 6.5 W/6500 K GU5.3

36 ° 7.5 W/2700 K GU5.3

36 ° 7.5 W/2700 K GU5.3

36 ° 7.5 W/3000 K GU5.3

36 ° 7.5 W/4000 K GU5.3

36 ° 7.5 W/6500 K GU5.3

36 ° 7.5 W/6500 K GU5.3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE MR 16 36 ° 5.5 W/2700 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 5.5 W/2700 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 5.5 W/3000 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 5.5 W/3000 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 5.5 W/4000 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 5.5 W/4000 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 5.5 W/6500 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 5.5 W/6500 K GU5.3 GU5.3 5.5 W 100…240 V 15000 h 525 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/2700 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/2700 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/3000 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/3000 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/4000 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/4000 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/6500 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 6.5 W/6500 K GU5.3 GU5.3 6.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 7.5 W/2700 K GU5.3 GU5.3 7.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 7.5 W/2700 K GU5.3 GU5.3 7.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 7.5 W/3000 K GU5.3 GU5.3 7.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 7.5 W/4000 K GU5.3 GU5.3 7.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 7.5 W/6500 K GU5.3 GU5.3 7.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No
LED VALUE MR 16 36 ° 7.5 W/6500 K GU5.3 GU5.3 7.5 W 100…240 V 15000 h 700 lm 50 W 36 ° No


LED VALUE MR 16 36 ° 7.5 W/2700 K GU5.3

Product benefits
  • Clear cast shadows for brilliant accent light
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Very low energy consumption
  • Good quality of light
  • Easy replacement of halogen lamps thanks to compact design
  • Easy and cost-effective operation
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7.5 W
Construction wattage 7.50 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 50 W
Nominal current 82-43 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.70

Photometrical data

Luminous intensity 1200 cd
Luminous flux 700 lm
Nominal useful luminous flux 90° 600 lm
Luminous efficacy 93 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 1200 cd

Light technical data

Beam angle 36 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 50.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 36.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20

Country-specific categorizations

Order reference LVMR16367,5W/82

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU5.3
Length 50.00 mm
Height 50.00 mm
Width 50.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Clear cast shadows for brilliant accent light
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Very low energy consumption
  • Good quality of light
  • Easy replacement of halogen lamps thanks to compact design
  • Easy and cost-effective operation
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Residential interiors
  • Hospitality
  • Restaurants
  • Museums, art galleries
Product features
  • High-quality LED replacement for halogen reflector lamps
  • High color consistency: < 6 SDCM
  • No electronic transformer is needed
  • Surge protection: up to 1,000 V
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075229648 Folding box
1		 53 mm x 53 mm x 77 mm 56.00 g 0.22 dm³
4058075229655 Shipping box
10		 273 mm x 114 mm x 90 mm 643.00 g 2.80 dm³

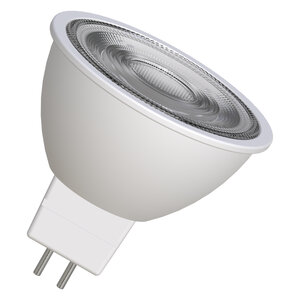

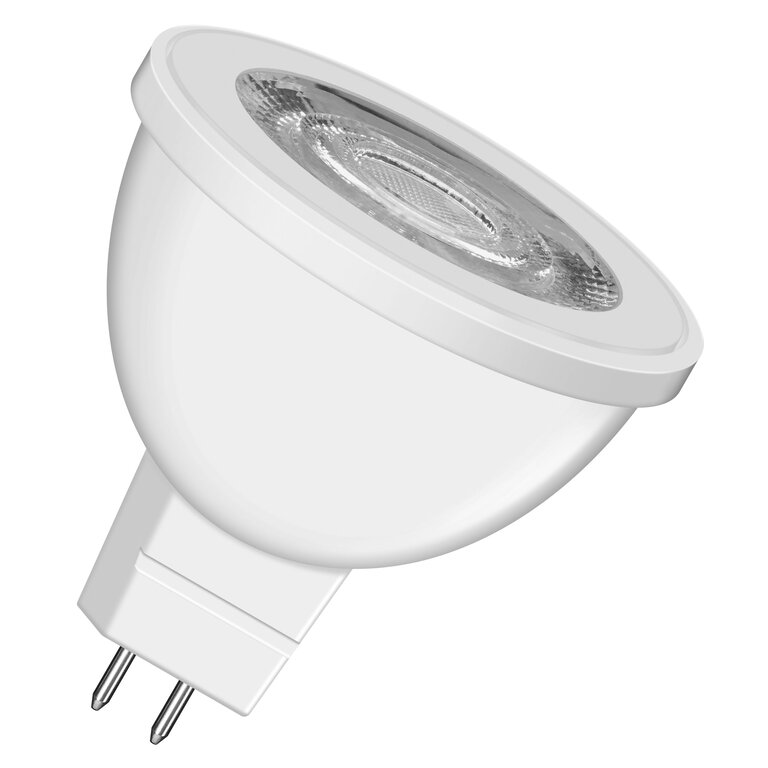

Product image: white background, diagonal
LED VALUE MR16 50 36 7 .5 W 100-240 V GU5.3 JPG (419.96 KB)

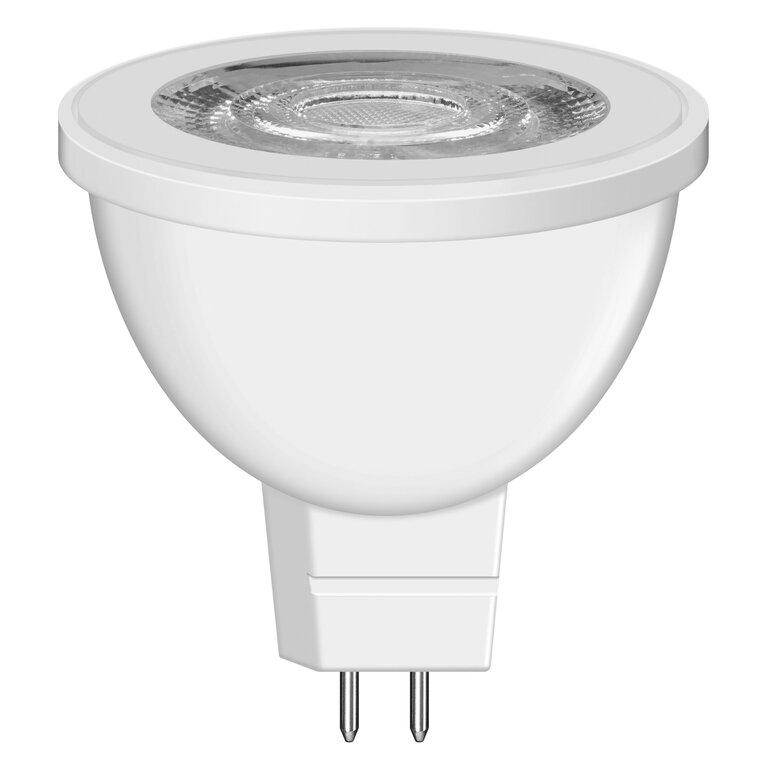

Product image: white background, upright
LED VALUE MR16 50 36 7 .5 W 100-240 V GU5.3 JPG (402.84 KB)
Product line drawing, front, no dimensions
506811_LED STAR MR16 5 0 36 SVG (4.12 KB)
IES file (IES)
LED VALUE MR16 36 7.5W IES (7.57 KB)
IES file (IES)
LVMR1636 7,5W 827 110V GU5.3 IES (8.54 KB)
IES file (IES)
LVMR1636 7,5W 827 220V GU5.3 IES (8.67 KB)
LDT file (Eulumdat)
LVMR1636 7,5W 827 110V GU5.3 LDT (9.08 KB)
LDT file (Eulumdat)
LVMR1636 7,5W 827 220V GU5.3 LDT (9.08 KB)

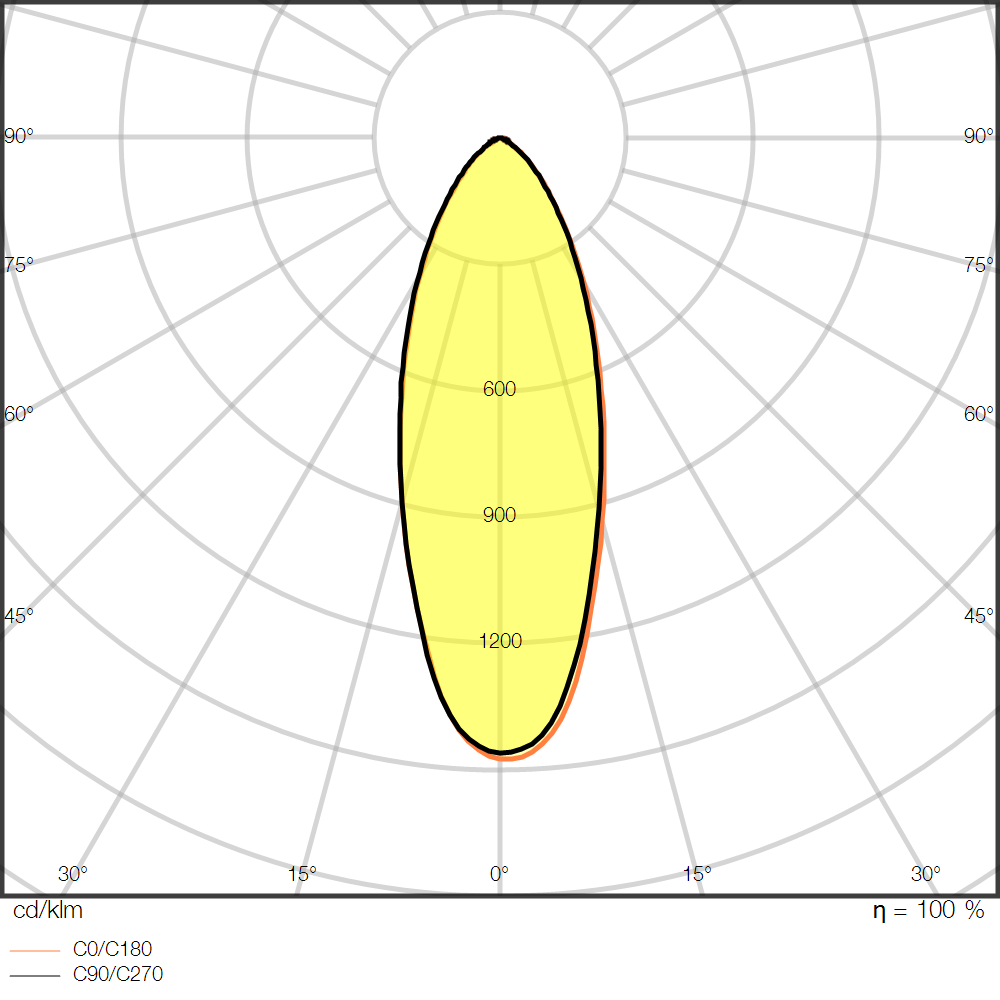

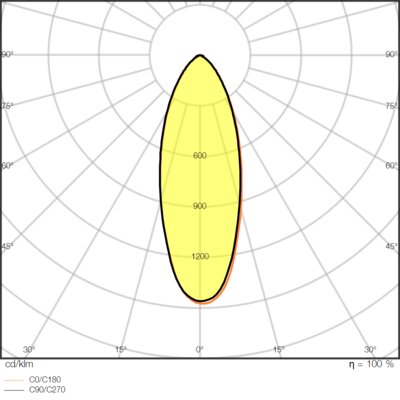

Light distribution curve type polar
LVMR1636 7,5W 827 110V GU5.3 PNG (108.6 KB)

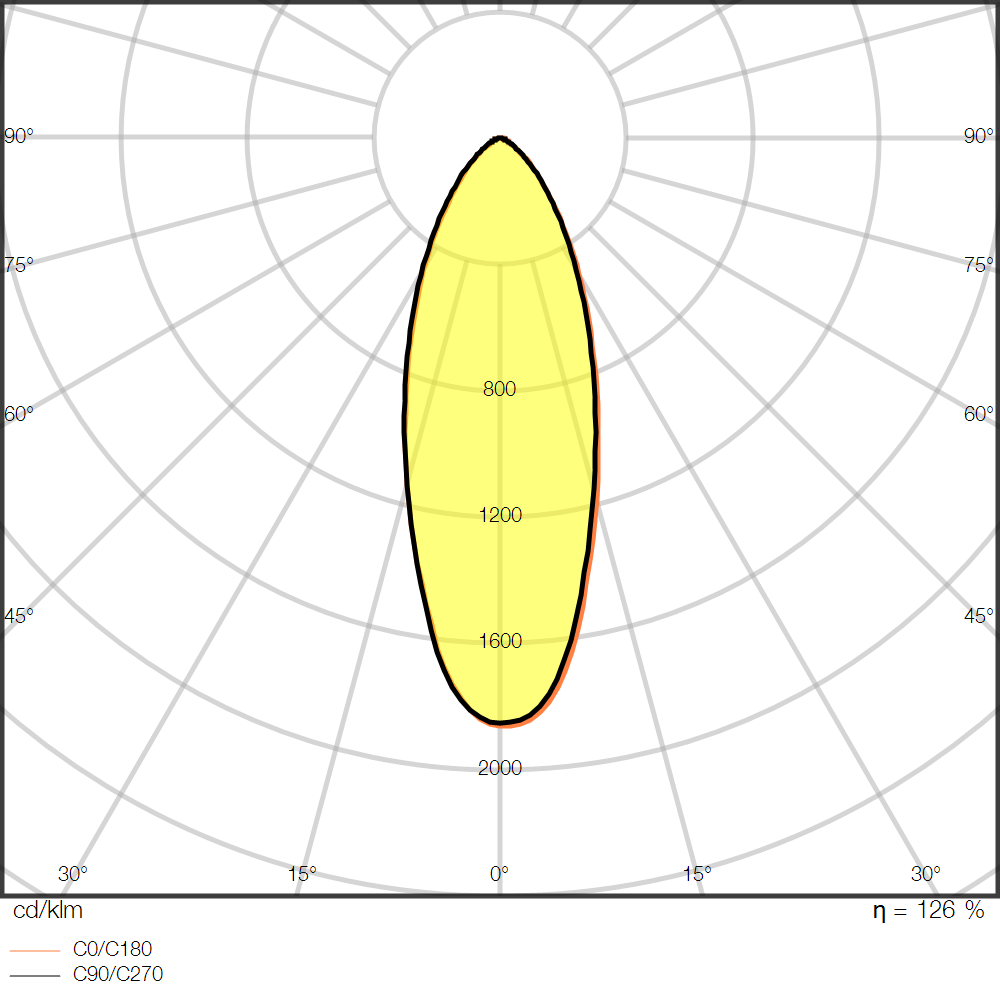

Light distribution curve type polar
LVMR1636 7,5W 827 220V GU5.3 PNG (108.63 KB)
Light distribution curve type polar
LVMR1636 7,5W 827 110V GU5.3 SVG (17.23 KB)
Light distribution curve type polar
LVMR1636 7,5W 827 220V GU5.3 SVG (17.23 KB)
