OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED VALUE PAR 16 50 24 ° 4.5 W/2700 K GU10	GU10	4.5 W	220…240 V	15000 h	350 lm	50 W	24 °	No
LED VALUE PAR 16 50 36 ° 4.5 W/2700 K GU10	GU10	4.5 W	220…240 V	15000 h	380 lm	50 W	36 °	No
LED VALUE PAR 16 50 36 ° 4.5 W/4000 K GU10	GU10	4.5 W	220…240 V	15000 h	400 lm	50 W	36 °	No
LED VALUE PAR 16 50 36 ° 4.5 W/6500 K GU10	GU10	4.5 W	220…240 V	15000 h	420 lm	50 W	36 °	No
VALUE PAR 16 80 36 ° 7 W/2700 K GU10	GU10	7 W	220…240 V	15000 h	560 lm	80 W	36 °	No
LED VALUE PAR 16 7 W/3000 K GU10	GU10	7 W	220…240 V	15000 h	575 lm
LED VALUE PAR 16 7 W/3000 K GU10	GU10	7 W	220…240 V	15000 h	575 lm
LED VALUE PAR 16 7 W/6500 K GU10	GU10	7 W	220…240 V	15000 h	575 lm
LED VALUE PAR 16 7 W/6500 K GU10	GU10	7 W	220…240 V	15000 h	575 lm
VALUE PAR 16 80 36 ° 7 W/2700 K GU10	GU10	7 W	220…240 V	15000 h	630 lm	80 W	36 °	No
VALUE PAR 16 80 36 ° 7 W/4000 K GU10	GU10	7 W	220…240 V	15000 h	650 lm	80 W	36 °	No
VALUE PAR 16 80 36 ° 7 W/6500 K GU10	GU10	7 W	220…240 V	15000 h	650 lm	80 W	36 °	No

LED VALUE PAR 16 50 36 ° 4.5 W/6500 K GU10

Product benefits

Attractive lamp appearance
Easy replacement of halogen lamps due to compact full glass design and single optic
Clear cast shadows for brilliant accent light
Uniform illumination thanks to TIR-reflector and fly eye single optic design
Energy savings of up to 91 % (compared to halogen lamps)
High color consistency thanks to narrow binning
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

View all details

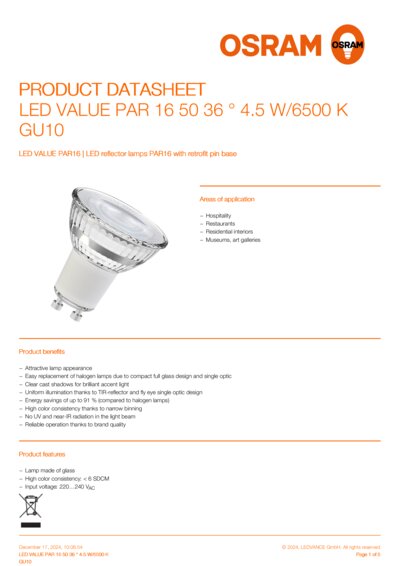

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	4.5 W
Construction wattage	4.50 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	50 W
Nominal current	41 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	0.50

Photometrical data

Luminous intensity	800 cd
Luminous flux	420 lm
Luminous efficacy	93 lm/W
Light color (designation)	Daylight
Color temperature	6500 K
Color rendering index Ra	80
Light color	865
Standard deviation of color matching	≤6 sdcm
Rated peak intensity	800 cd

Light technical data

Beam angle	36 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	54.00 mm
Diameter	50.00 mm
Maximum diameter	50 mm
Product weight	39.5 g

Temperatures & operating conditions

Ambient temperature range

-20…+40 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	GU10
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable

Certificates & Standards

Energy efficiency class	G ¹⁾
Type of protection	IP20
Standards	CE, EAC

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference

LVPAR165036 4,5

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	GU10
Length	54.00 mm
Height	50.00 mm
Width	50.00 mm

Product description

Product benefits

Attractive lamp appearance
Easy replacement of halogen lamps due to compact full glass design and single optic
Clear cast shadows for brilliant accent light
Uniform illumination thanks to TIR-reflector and fly eye single optic design
Energy savings of up to 91 % (compared to halogen lamps)
High color consistency thanks to narrow binning
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

Areas of application

Hospitality
Restaurants
Residential interiors
Museums, art galleries

Product features

Lamp made of glass
High color consistency: < 6 SDCM
Input voltage: 220…240 V_AC
Lifetime: up to 15,000 h
Not dimmable
Mercury-free lamps

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075588394	Folding box 1	49 mm x 49 mm x 62 mm	48.00 g	0.15 dm³
4058075588400	Shipping box 10	255 mm x 107 mm x 72 mm	533.00 g	1.96 dm³
4099854263071	Shipping box 10	255 mm x 107 mm x 72 mm	518.00 g	1.96 dm³

Product images and graphics

Product Image, Diagonal, White BG
LED VALUE PAR16 50 GU1 0 JPG (1.54 MB)

Product Image, Upright, White BG
LED VALUE PAR16 50 GU 10 JPG (1.5 MB)

Prod.line drw, front, no dimensions
LED VALUE PAR16 4.5 W GU10 SVG (5.28 KB)

50 24 ° 4.5 W/2700 K GU10

50 36 ° 4.5 W/2700 K GU10

50 36 ° 4.5 W/4000 K GU10

50 36 ° 4.5 W/6500 K GU10

80 36 ° 7 W/2700 K GU10

7 W/3000 K GU10
