LED PIN G9 DIM

LED PIN G9 DIM

Choose your product version

3W 827 Clear G9

4W 827 Clear G9

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PIN 30 300° DIM 3W 827 Clear G9 G9 3 W 220…240 V 25000 h 320 lm 30 W 300 ° Yes
LED PIN 40 320° DIM 4W 827 Clear G9 G9 4 W 220…240 V 25000 h 470 lm 40 W 300 ° Yes


LED PIN 40 320° DIM 4W 827 Clear G9

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 40 W
Nominal current 26 mA
Type of current AC
Inrush current 0.08 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 444
Max. lamp number on MCB B16 A 711
Total harmonic distortion 98.5 %
Power factor λ > 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 52.00 mm
Diameter 18.00 mm
Maximum diameter 18 mm
Product weight 8.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 90 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96

Additional product data

Base (standard designation) G9
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPIN40D CL 4W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G9
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 52.00 mm
Height 18.00 mm
Width 18.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 14
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 1403000,522882,1856531
Model number AC32118,AC17654,AC58921,AC58921
Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to conventional high voltage lamps
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075432246 Folding box
1		 20 mm x 49 mm x 95 mm 18.00 g 0.09 dm³
4058075622920 Shipping box
6		 109 mm x 79 mm x 104 mm 100.00 g 0.90 dm³
4058075432260 Shipping box
80		 256 mm x 236 mm x 237 mm 2188.00 g 14.32 dm³
4058075622937 Shipping box
48		 236 mm x 176 mm x 237 mm 1298.00 g 9.84 dm³

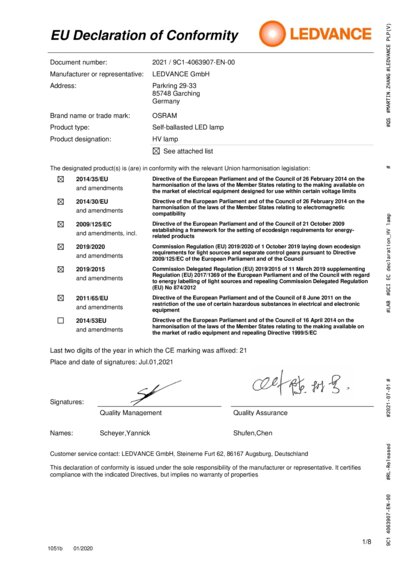

Declarations of conformity
LED SLIM LINE 78 60 NO N-DIM PDF (161.98 KB)
Declarations of conformity
LED PIN G9 PDF (301.66 KB)

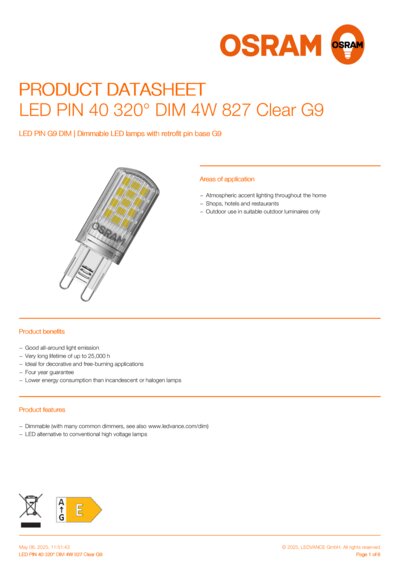

PRODUCT DATASHEET
PINDIM404W2700KG9en PDF (533.82 KB)
Product Datasheet -> old version of Product
LEDPIN40320°DIM4W827Cl earG9en PDF (551.48 KB)

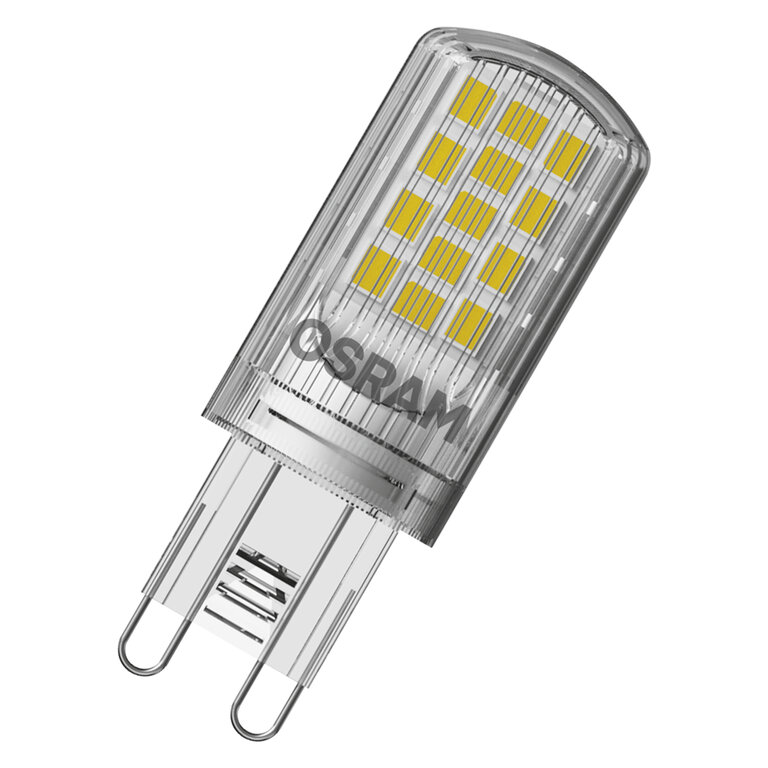

Product Image, Diagonal with OSRAM LOGO, White BG
LED PIN G9 40 21/22 JPG (1.48 MB)

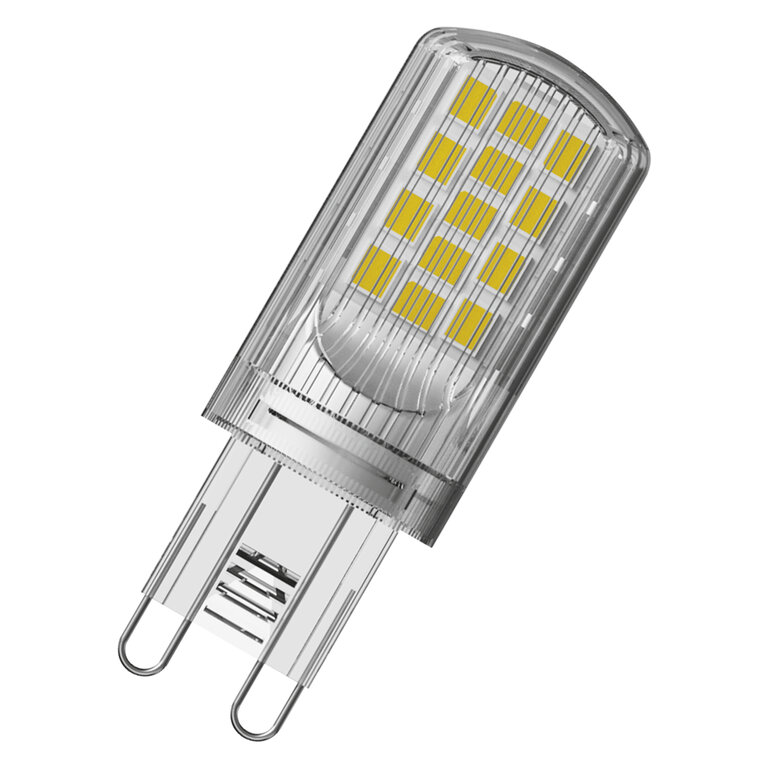

Product Image, Diagonal, White BG
LED PIN G9 40 21/22 JPG (1.48 MB)

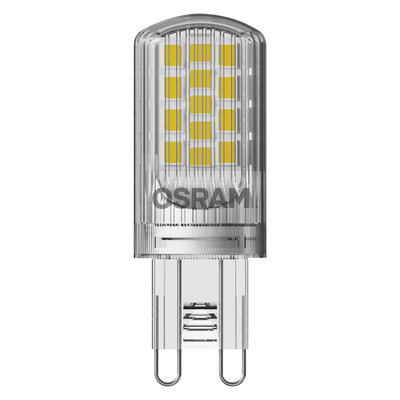

Product Image, Upright with Osram LOGO, White BG
LED PIN G9 40 21/22 JPG (1.25 MB)
Product Image, Upright, White BG
LED PIN G9 40 21/22 JPG (1.24 MB)
Product line drawing with letters
LED PIN G9 40 21/22 SVG (83.72 KB)
Product line drawing with numbers
LED PIN G9 SVG (14 KB)
Product line drawing - technical
LED PIN G9 40 21/22 SVG (82.09 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDPIN40D CL 4W-827 23 0V G9 FS1 OSRAM JPG (1.07 MB)

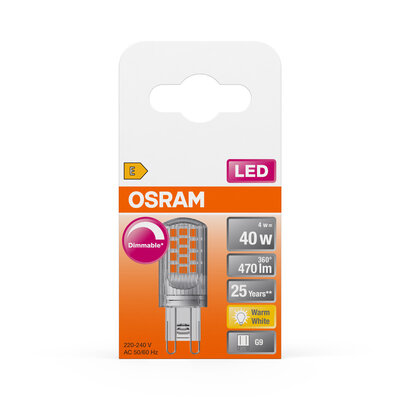

Packaging image, frontal
LED SST PIN 40 DIM 4.4 W 827 CL G9 MiCh TIF (853.85 KB)
Packaging image, spacial
LED SST PIN 40 DIM 4.4 W 827 CL G9 MiCh TIF (920.77 KB)
Energy label
EL-4058075432246-AC321 18 PDF (21.55 KB)
Energy label
EL-4058075432246-AC176 54 PDF (21.47 KB)
Energy label
EL-4058075432246-AC589 21 PDF (21.47 KB)
Logos and Pictos
E left SVG (1.9 KB)
Logos and Pictos
E left BW SVG (1.07 KB)
Logos and Pictos
E right SVG (1.86 KB)
Logos and Pictos
E right BW SVG (1.07 KB)
IES file (IES)
LED PIN40 DIM IES (61.27 KB)
LDT file (Eulumdat)
LED PIN 40 DIM LDT (43.69 KB)
Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
EAN EFO number
4058075432246 3740002
