LED LINE R7S

LED LINE R7S

Choose your product version

7.3W 827 Clear R7s

8W 827 Clear R7s

13W 827 Clear R7s

15W 827 Clear R7s

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Line 78 60 330° 7.3W 827 Clear R7s R7s 7.3 W 220…240 V 15000 h 806 lm 60 W 330 ° No
LED Line 78 75 330° 8W 827 Clear R7s R7s 8 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
LED Line 118 100 300° 13W 827 Clear R7s R7s 13 W 220…240 V 15000 h 1521 lm 100 W 330 ° No
LED Line 118 125 300° 15W 827 Clear R7s R7s 15 W 220…240 V 15000 h 2000 lm 125 W 300 ° No


LED Line 118 150 300° 19W 865 Clear R7s

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 19 W
Construction wattage 19.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 150 W
Nominal current 130 mA
Type of current AC
Inrush current 4.16 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 94
Max. lamp number on MCB B16 A 146
Total harmonic distortion < 175 %
Power factor λ ≥ 0.50

Photometrical data

Luminous flux 2452 lm
Nominal useful luminous flux 90° 2452 lm
Luminous efficacy 129 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 118.00 mm
Diameter 28.00 mm
Maximum diameter 28 mm
Product weight 95.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 82 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) R7s
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 19.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDLI118150 19W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 118.00 mm
Height 28.00 mm
Width 28.00 mm
Chromaticity coordinate x 0,312
Chromaticity coordinate y 0,328
R9 Colour rendering index 80
Beam angle correspondence SPHERE_360
Survival factor 0,9
Displacement factor 0,7
LED light source replaces a fluorescent light source No
EPREL ID 1291834
Model number AC44229,AC44229

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination within ambient temperatures from -20…+40 °C
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional R7s lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854022364 Folding box
1		 30 mm x 49 mm x 155 mm 110.00 g 0.23 dm³
4099854022371 Shipping box
6		 112 mm x 111 mm x 131 mm 708.00 g 1.63 dm³
Declarations of conformity
LED LINE R7s lamp PDF (309.13 KB)

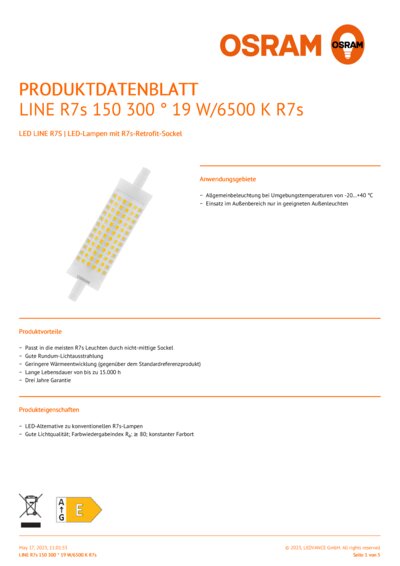

PRODUCT DATASHEET
LINER7s15030019W6500KR 7sde PDF (361.36 KB)
Product image: white background, diagonal with OSRAM logo
LED LINE R7S 118mm 150 + 150 DIM 21/22 JPG (1.3 MB)
Product image: white background, diagonal
LED LINE R7S 118mm 150 + 150 DIM 21/22 JPG (1.29 MB)
Product image: white background, upright, OSRAM logo
LED LINE R7S 118mm 150 + 150 DIM 21/22 JPG (1.08 MB)
Product image: white background, upright
LED LINE R7S 118mm 150 + 150 DIM 21/22 JPG (1.07 MB)
Product line drawing with letters
LED LINE R7S 118mm 150 + 150 DIM 21/22 SVG (87.83 KB)
Product line drawing with numbers
LED LINE R7S 118mm 150 + 150 DIM 21/22 SVG (91.49 KB)
Product line drawing - technical
LED LINE R7S 118mm 150 + 150 DIM 21/22 SVG (86.23 KB)

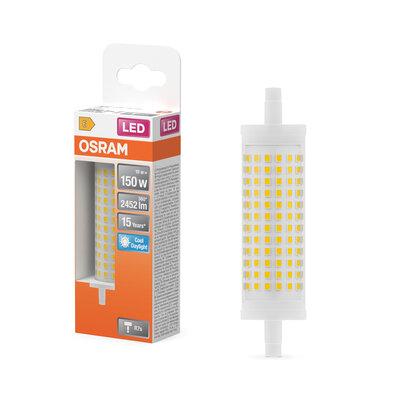

Combo Shot = Product Beauty Shot + Packaging Image
LED ST LINE 118 150 19 W 865 CL R7S MiCh JPG (1.48 MB)

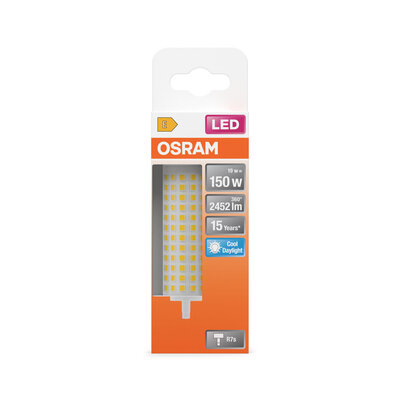

Packaging image, frontal
LED ST LINE 118 150 19 W 865 CL R7S MiCh JPG (1.23 MB)

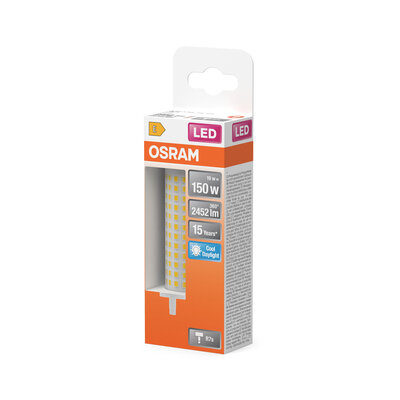

Packaging image, spacial
LED ST LINE 118 150 19 W 865 CL R7S MiCh JPG (1.49 MB)
Energy label
EL-4099854022364-AC442 29 PDF (21.32 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
LISO spectral power di stribution 6500K CRI80 v2 PNG (104.45 KB)
