Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|
| LED Line 78 60 330° 7.3W 827 Clear R7s | R7s | 7.3 W | 220…240 V | 15000 h | 806 lm | 60 W | 330 ° | No |
| LED Line 78 75 330° 8W 827 Clear R7s | R7s | 8 W | 220…240 V | 15000 h | 1055 lm | 75 W | 300 ° | No |
| LED Line 118 100 300° 13W 827 Clear R7s | R7s | 13 W | 220…240 V | 15000 h | 1521 lm | 100 W | 330 ° | No |
| LED Line 118 125 300° 15W 827 Clear R7s | R7s | 15 W | 220…240 V | 15000 h | 2000 lm | 125 W | 300 ° | No |
| Nominal wattage | 15 W |
| Construction wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | AC Mains |
| Claimed equiv. conventional lamp power | 125 W |
| Nominal current | 95 mA |
| Type of current | AC |
| Inrush current | 6.33 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 34 |
| Max. lamp number on MCB B16 A | 40 |
| Total harmonic distortion | < 175 % |
| Power factor λ | 0.70 |
| Luminous flux | 2000 lm |
| Nominal useful luminous flux 90° | 2000 lm |
| Luminous efficacy | 133 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 118.00 mm |
| Diameter | 29 mm |
| Maximum diameter | 28 mm |
| Product weight | 95.00 g |
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 91 °C |
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | R7s |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Dimmable | No |
| Energy efficiency class | E 1) |
| Energy consumption | 15.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
| Order reference | LEDLI118125 15W |
| Temperature range at storage | -20…+80 °C |
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | R7s |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.00 |
| Networked standby power for CLS | 0 W |
| Claim of equivalent power | Yes |
| Length | 118.00 mm |
| Height | 29 mm |
| Width | 29 mm |
| Chromaticity coordinate x | 0.458 |
| Chromaticity coordinate y | 0.410 |
| R9 Colour rendering index | 1 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.70 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1402934,522897,1368313 |
| Model number | AC32131,AC45786,AC11923 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

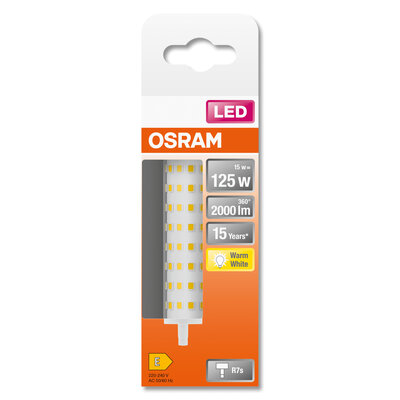

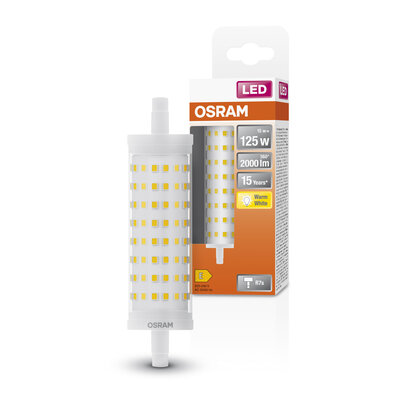

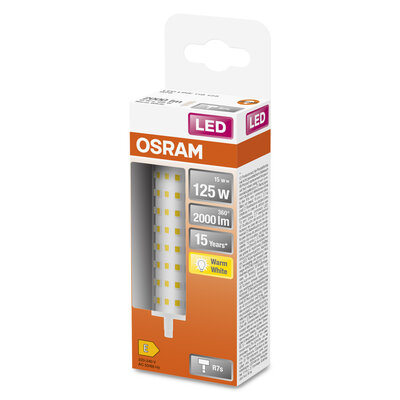

| 4058075432673 | Folding box 1 |
30 mm x 49 mm x 155 mm | 110.00 g | 0.23 dm³ |
| 4058075632950 | Shipping box 6 |
112 mm x 111 mm x 131 mm | 600.00 g | 1.63 dm³ |
