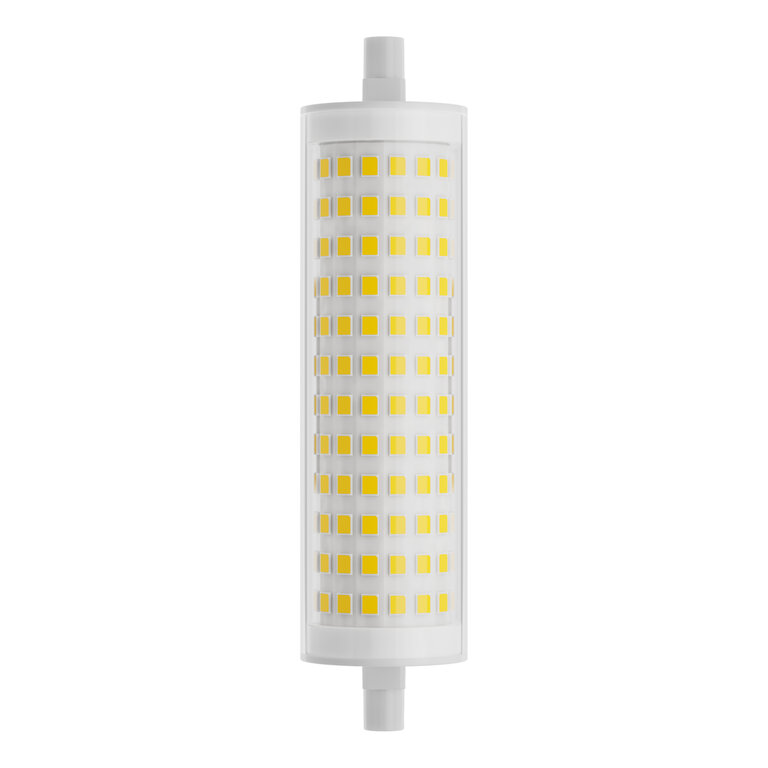

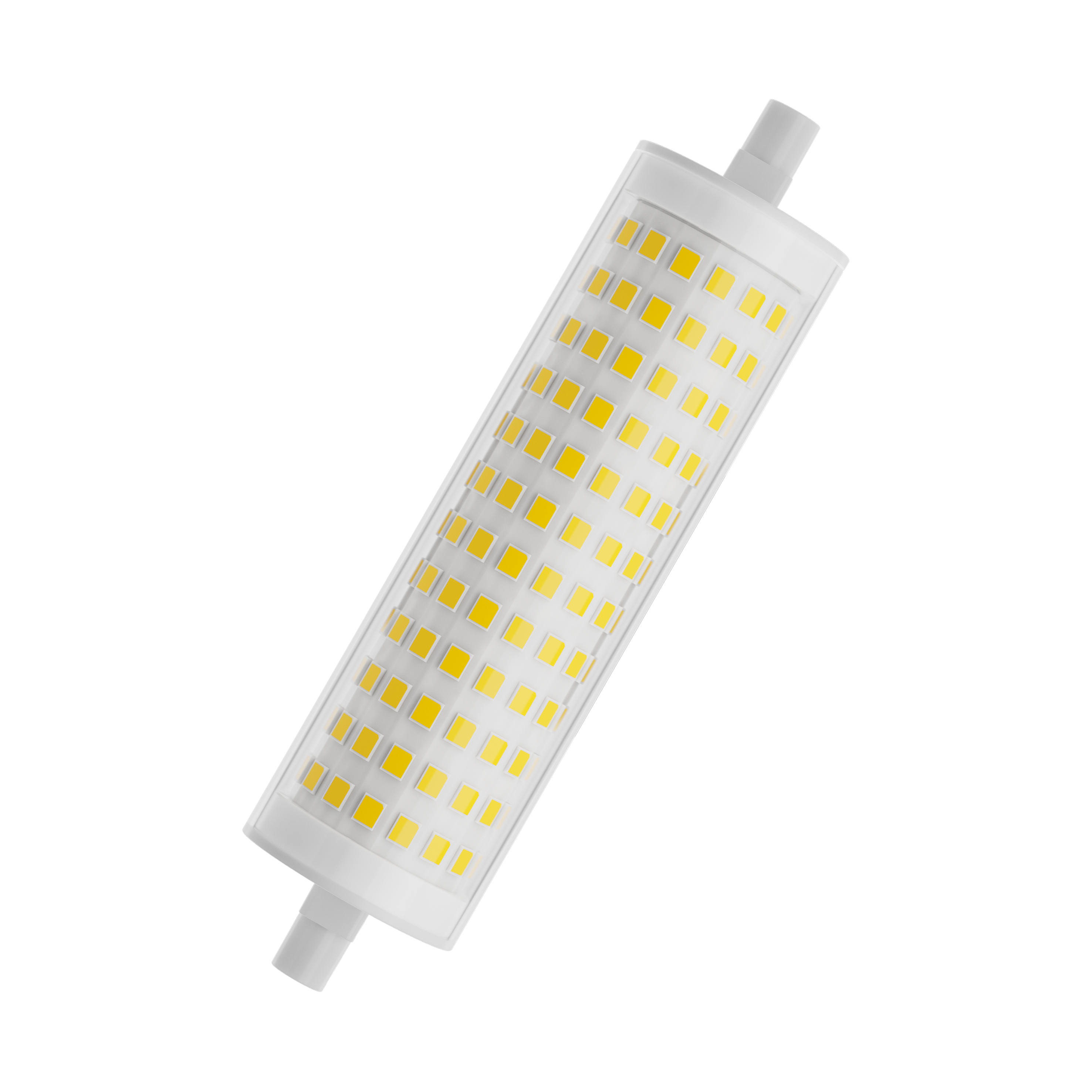

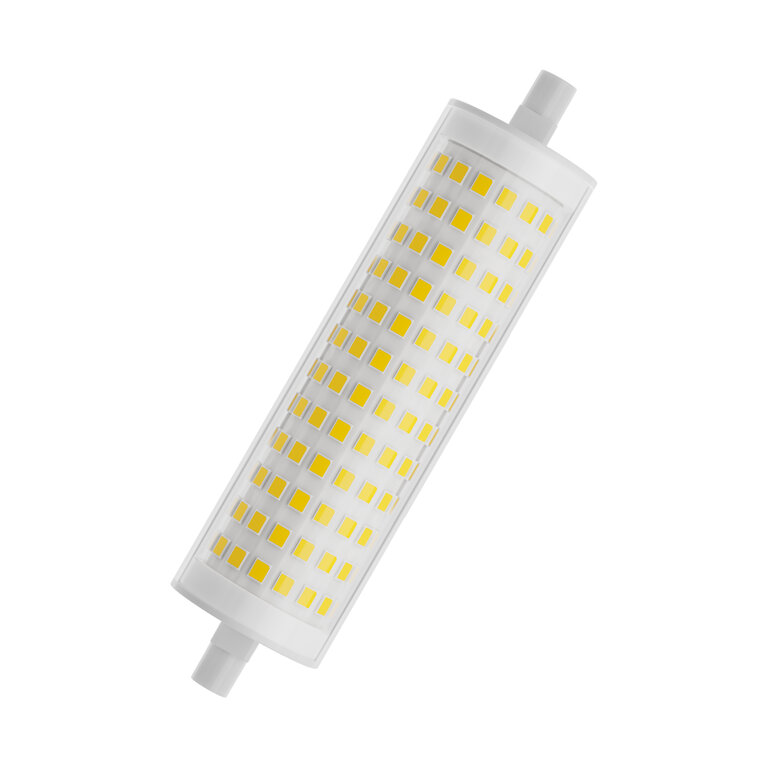

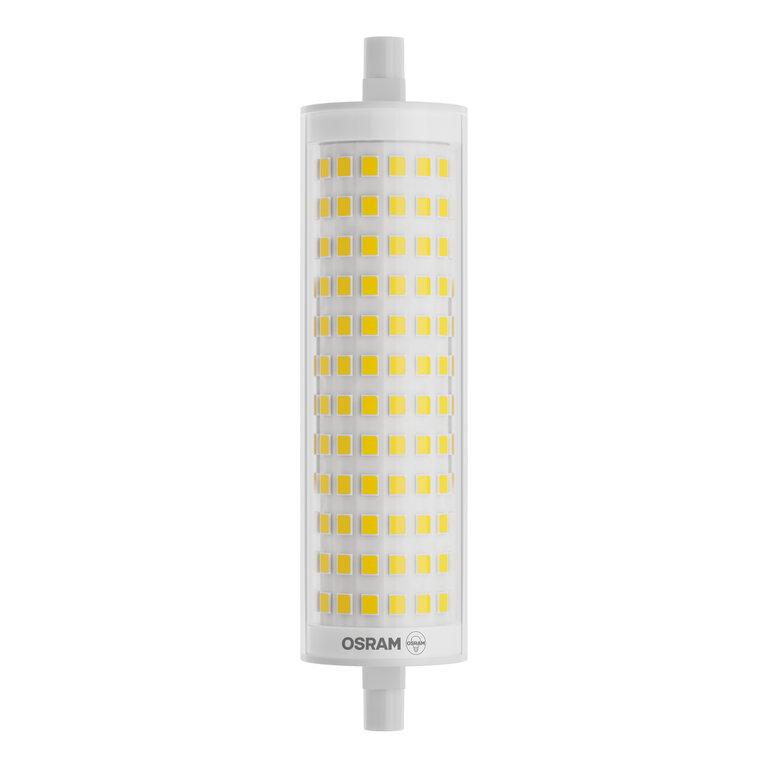

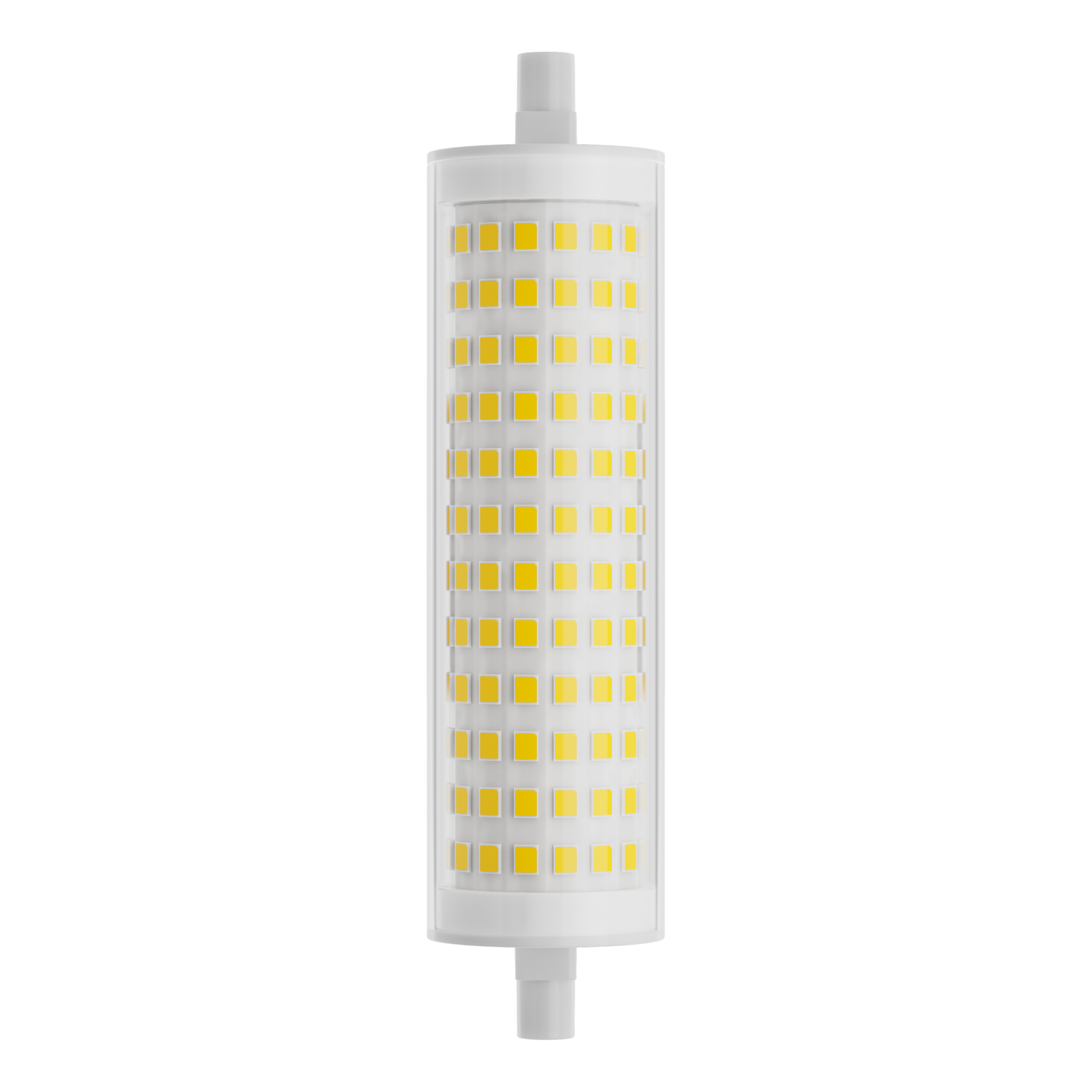

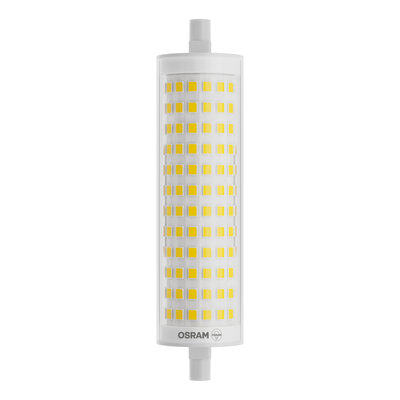

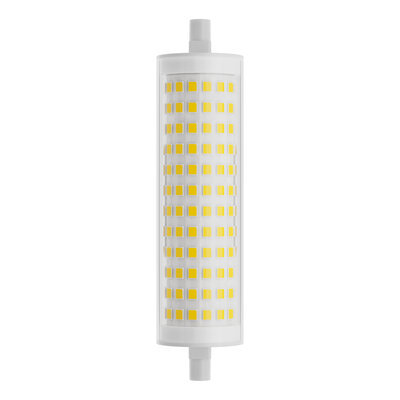

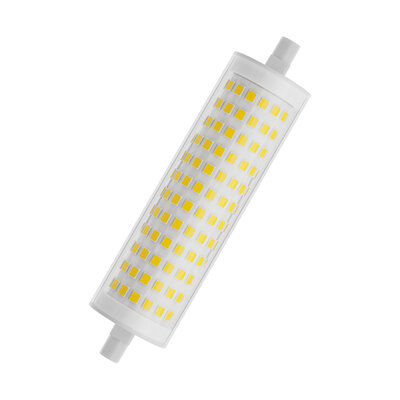

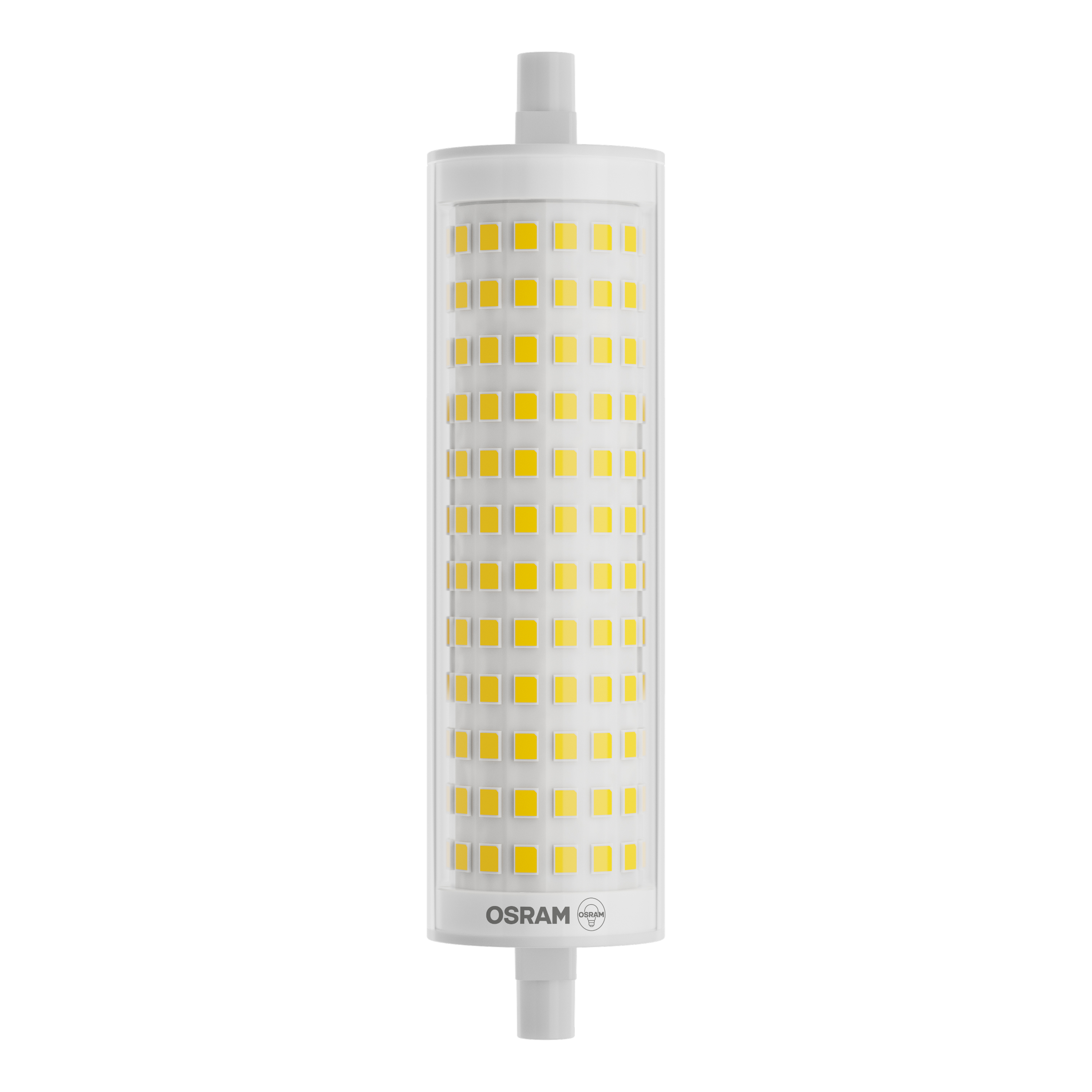

LED LINE R7S

LED LINE R7S

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Line 78 60 330° 7.3W 827 Clear R7s R7s 7.3 W 220…240 V 15000 h 806 lm 60 W 330 ° No
LED Line 78 75 330° 8W 827 Clear R7s R7s 8 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
LED Line 118 100 300° 13W 827 Clear R7s R7s 13 W 220…240 V 15000 h 1521 lm 100 W 330 ° No
LED Line 118 125 300° 15W 827 Clear R7s R7s 15 W 220…240 V 15000 h 2000 lm 125 W 300 ° No


LED Line 118 177 300° 20W 830 Clear R7s

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps

PRODUCT DETAILS

Electrical data

Nominal wattage 20 W
Construction wattage 20.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 177 W
Nominal current 148 mA
Type of current AC
Inrush current 8.2 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 54
Max. lamp number on MCB B16 A 74
Total harmonic distortion 114.8 %
Power factor λ > 0.50

Photometrical data

Luminous flux 3000 lm
Luminous efficacy 150 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 118.00 mm
Diameter 28.00 mm
Maximum diameter 28 mm
Product weight 95.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 88.8 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) R7s
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 20.00 kWh/1000h
Type of protection IP20

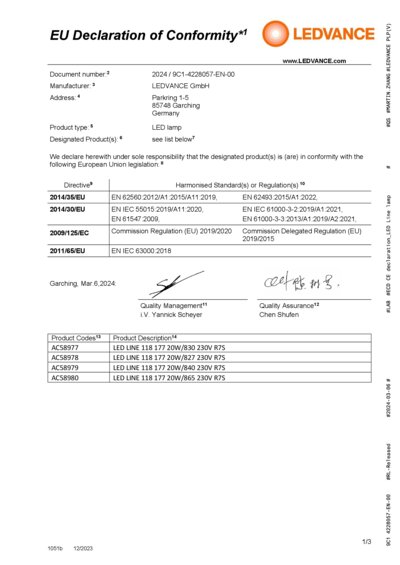

Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDLI118177 20W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 118.00 mm
Height 28.00 mm
Width 28.00 mm
Chromaticity coordinate x 0.4339
Chromaticity coordinate y 0.4033
R9 Colour rendering index 6
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.70
LED light source replaces a fluorescent light source No
EPREL ID 1856536,2201949
Model number AC58977,AC71612

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination within ambient temperatures from -20…+40 °C
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional R7s lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

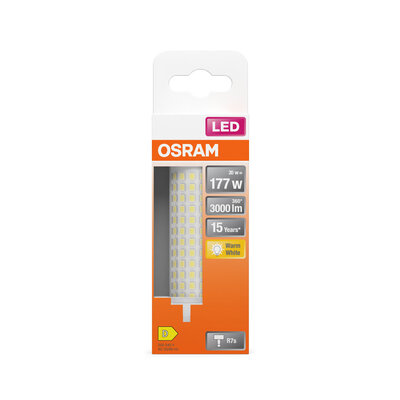

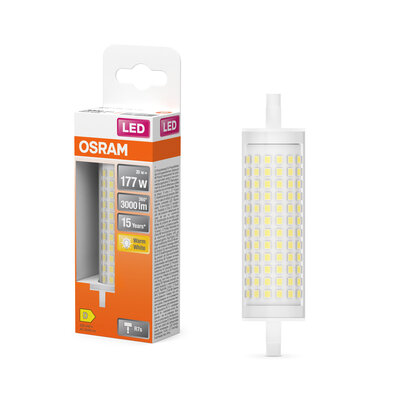

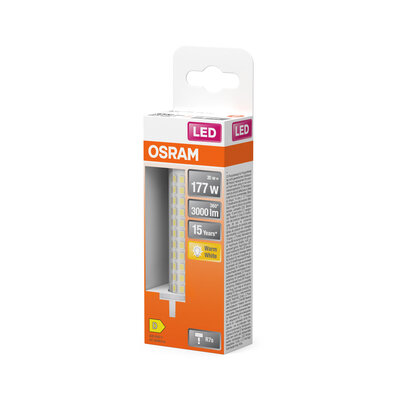

4099854248153 Folding box
1
30 mm x 49 mm x 155 mm 105.00 g 0.23 dm³
4099854248160 Shipping box
6
112 mm x 111 mm x 131 mm 678.00 g 1.63 dm³
