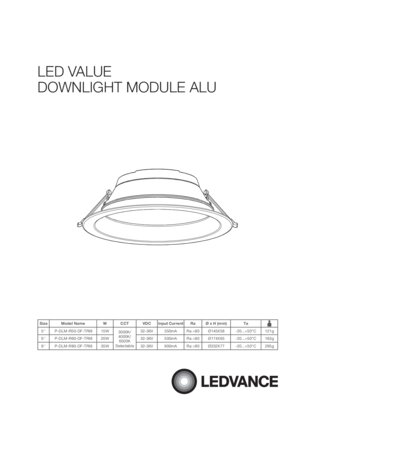

LED VALUE DOWNLIGHT MODULE ALU

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Dimmable
15.00 W 105 ° No
20.00 W 105 ° No
35.00 W 105 ° No


Product benefits
  • Selectable color temperature: 3000K or 4000K or 6500K
  • Diffusor structure design
  • Luminous flux output of up to 4200 lm
  • Safety compliance certificates: CB, EU RoHS 2.0, indicating adherence to safety and environmental regulations

PRODUCT DETAILS

Electrical data

Nominal wattage 15.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Protection class II

Photometrical data

Color rendering index Ra ≥80
Beam angle 105 °

Dimensions & Weight

Diameter 145.00 mm
Height 74.00 mm
Product weight 130.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Mercury content 0.0 mg

Application & Mounting

Type of protection IP20
Dimmable No
Mounting type Recessed
Application environment Indoor
Replaceable light source No

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Selectable color temperature: 3000K or 4000K or 6500K
  • Diffusor structure design
  • Luminous flux output of up to 4200 lm
  • Safety compliance certificates: CB, EU RoHS 2.0, indicating adherence to safety and environmental regulations
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854318795 Folding box
1
165 mm x 165 mm x 78 mm 180.00 g 2.12 dm³
4099854318801 Shipping box
18
515 mm x 350 mm x 255 mm 3738.00 g 45.96 dm³
