LED ECO PANEL 0606 HO

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
42.00 W 115 ° 4500 lm No
42.00 W 115 ° 5000 lm No
42.00 W 115 ° 5000 lm No


Product benefits
  • High lumen output of up to 5000 lm
  • Sturdy SPCC housing
  • Available in 600 x 600 mm standard sizes
  • High color rendering: CRI > 80
  • Ultra slim housing design in 33 mm height
  • Safety compliance certificates: CB

PRODUCT DETAILS

Electrical data

Nominal wattage 42.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II

Photometrical data

Luminous flux 4500 lm
Luminous efficacy 107 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Beam angle 115 °

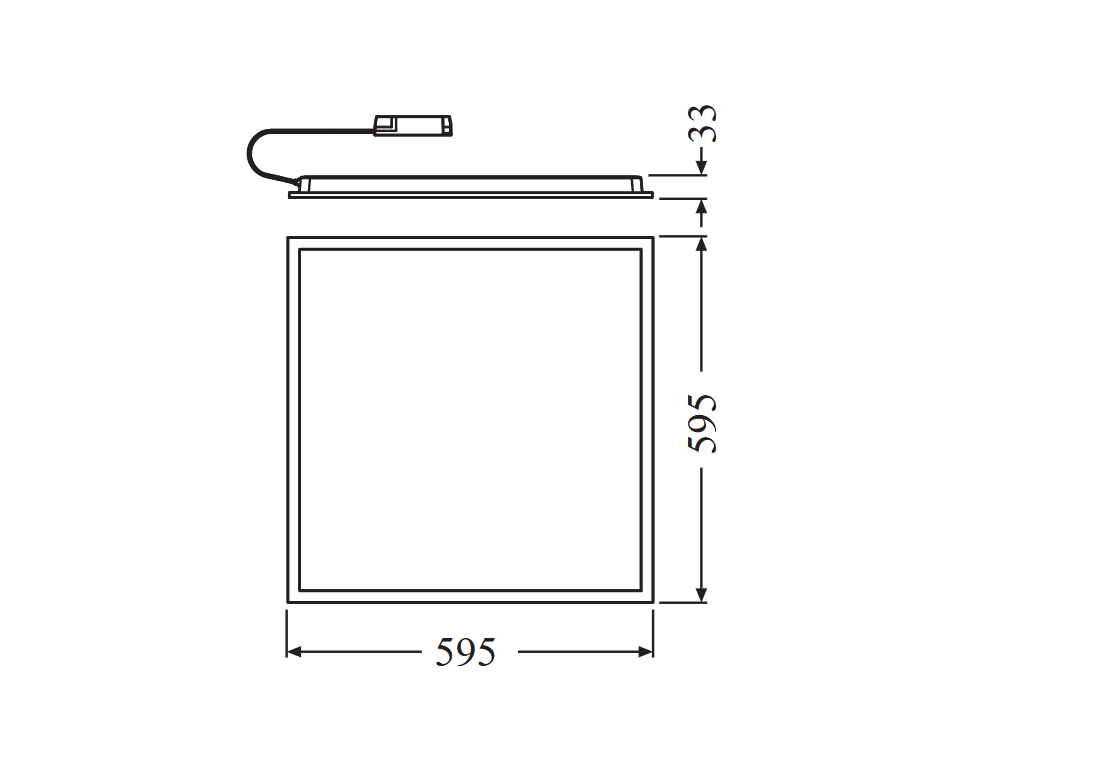

Dimensions & Weight

Length 595.00 mm
Height 33.00 mm
Width 595.00 mm
Product weight 1740.00 g

Materials & Colors

Mercury content 0.0 mg

Application & Mounting

Dimmable No
Mounting type Recessed
Application environment Indoor
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High lumen output of up to 5000 lm
  • Sturdy SPCC housing
  • Available in 600 x 600 mm standard sizes
  • High color rendering: CRI > 80
  • Ultra slim housing design in 33 mm height
  • Safety compliance certificates: CB
Product features
  • Latest backlit LED technology platform
  • Standard CCT: 4000K, 6500K & 3000K
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854590115 Folding box
1
622 mm x 40 mm x 628 mm 2208.00 g 15.62 dm³
4099854590122 Shipping box
6
642 mm x 258 mm x 655 mm 14682.00 g 108.49 dm³
