LED VALUE SPOT

LED VALUE SPOT

Choose your product version

2 W 3000 K 14 ° ADJ

3 W 3000 K 24 ° ADJ

5 W 3000 K 14 ° ADJ

5 W 3000 K 24 ° ADJ

8 W 3000 K 14 ° ADJ

8 W 3000 K 24 ° ADJ

10 W 3000 K 36 ° ADJ

10 W 3000 K 14 ° ADJ

10 W 3000 K 24 ° ADJ

OVERVIEW

Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
SPOT LED AD PRO 2 W 3000 K 14 ° ADJ	2.00 W	25000	14 °	95 lm	No
SPOT LED AD PRO 3 W 3000 K 24 ° ADJ	3.00 W	25000	24 °	215 lm	No
SPOT LED AD PRO 5 W 3000 K 14 ° ADJ	5.00 W	25000	14 °	350 lm	No
SPOT LED AD PRO 5 W 3000 K 24 ° ADJ	5.00 W	25000	24 °	350 lm	No
SPOT LED AD PRO 8 W 3000 K 14 ° ADJ	8.00 W	25000	14 °	550 lm	No
SPOT LED AD PRO 8 W 3000 K 24 ° ADJ	8.00 W	25000	24 °	550 lm	No
SPOT LED AD PRO 10 W 3000 K 36 ° ADJ	10.00 W	25000	36 °	600 lm	No
SPOT LED AD PRO 10 W 3000 K 14 ° ADJ	10.00 W	25000	14 °	600 lm	No
SPOT LED AD PRO 10 W 3000 K 24 ° ADJ	10.00 W	25000	24 °	600 lm	No

SPOT LED AD PRO 2 W 3000 K 14 ° ADJ

Product benefits

High power COB LED provides high lumen output in compact housing
Double optic design for replication of the halogen spot effect
Robust housing and front ring made of high grade aluminum
External driver for reduced overall height for use also in low suspended ceilings
Low maintenance costs thanks to long lifetime of LED
High efficiency and reliability

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	2.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	20 mA
Power factor λ	≥0.5
Protection class	II

Photometrical data

Luminous flux	95 lm
Luminous efficacy	50 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	80
Standard deviation of color matching	≤6 sdcm
Photobiological safety group acc. to EN62778	RG1
Beam angle	14 °

Dimensions & Weight

Diameter	52.00 mm
Height	30.00 mm
Product weight	87.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Polycarbonate (PC)
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-15…+45 °C
Temperature range at storage	-40…+70 °C
Type of connection	Cable/Connector
Type of protection	IP20
Dimmable	No
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting diameter	44…46 mm
LED module replaceable	Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C	30000 h ¹⁾
Number of switching cycles	25000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Product description

Product benefits

High power COB LED provides high lumen output in compact housing
Double optic design for replication of the halogen spot effect
Robust housing and front ring made of high grade aluminum
External driver for reduced overall height for use also in low suspended ceilings
Low maintenance costs thanks to long lifetime of LED
High efficiency and reliability

Areas of application

Spotlighting for shop windows, displays, shelves
Offices
Residential interiors
Hospitality
Retail
Indoor wall washer

Product features

2 W, 3 W, 5 W, 8 W and 10 W version available
Beam angles: 10°, 14°, 24° and 36°
Color temperature: 3,000 K
Color rendering index R_a: ≥ 80
Pre-wired with mains cable
Long lifetime: up to 30,000 h
CCC marked, CB test certificate

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075247109	Folding box 1	97 mm x 97 mm x 74 mm	126.00 g	0.70 dm³
4058075247116	Shipping box 36	410 mm x 315 mm x 250 mm	5155.00 g	32.29 dm³

Product images and graphics

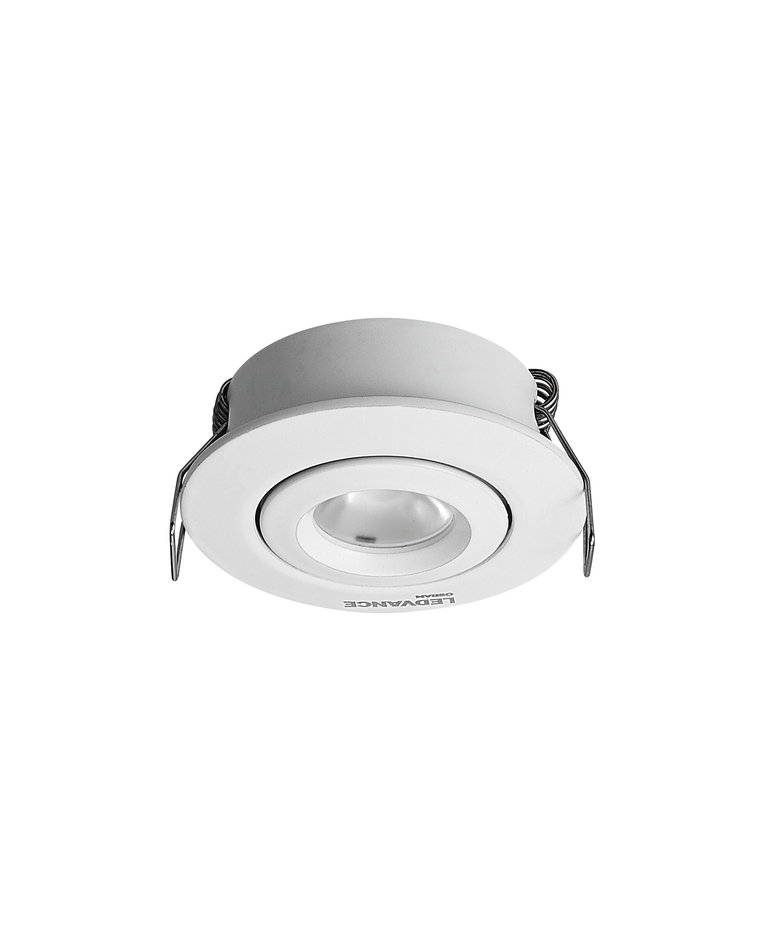

Product Image, Horizontal, White BG
12_SPOT LED AD PRO 2W3 000K SP WT TIF (6.57 MB)

Product line drawing with letters
SPOT LED AD PRO 2W3000 K SP WT SVG (14.98 KB)

Photometric and lighting design files

IES file (IES)
SPOT LED AD PRO 2W/300 0K IES (19.69 KB)
