Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

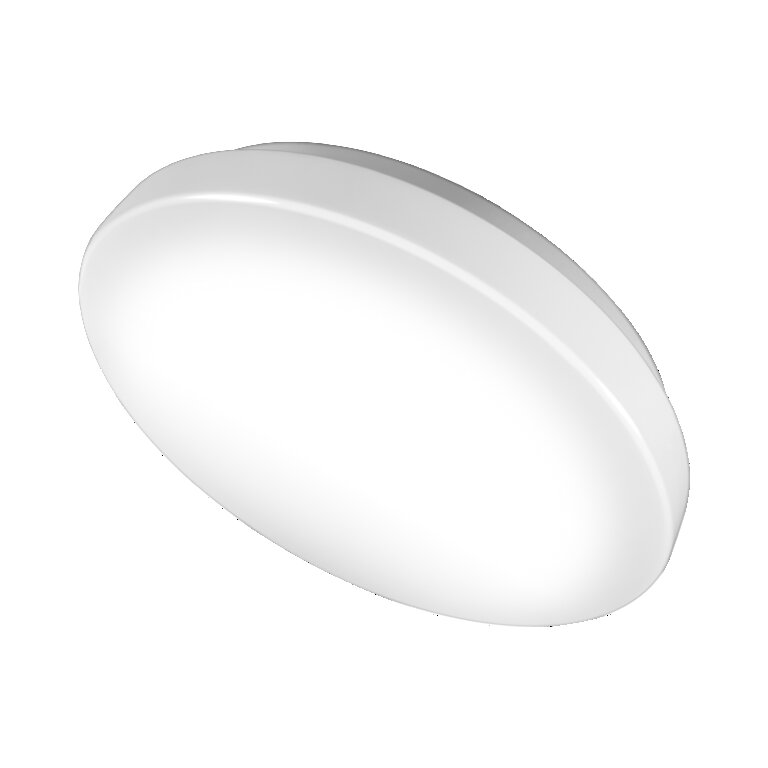

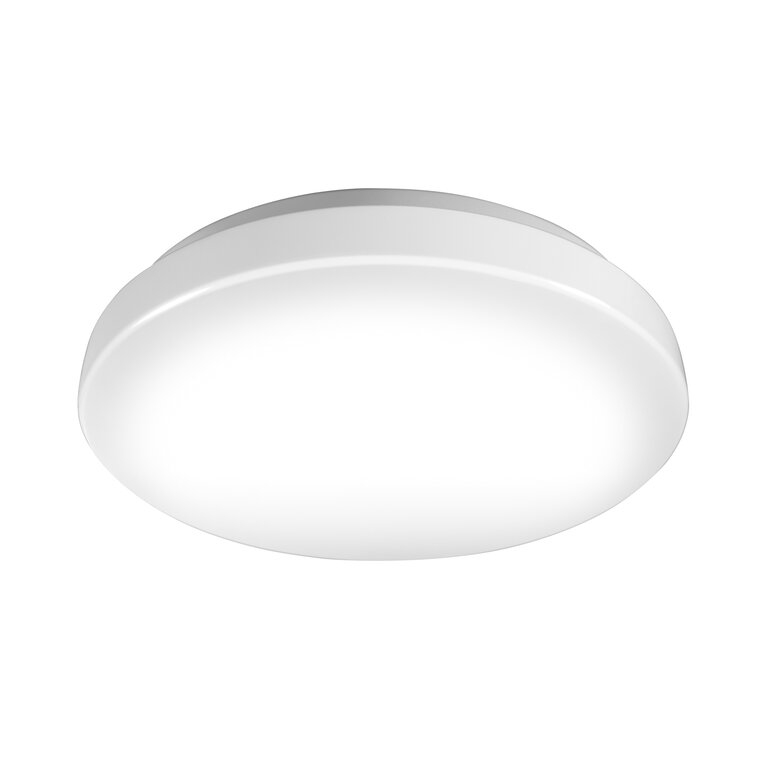

| VALUE CEILING 10 W 3000 K GEN3 | 10.00 W | 30000 | 120 ° | 760 lm | No |
| VALUE CEILING 10 W 4000 K GEN3 | 10.00 W | 30000 | 120 ° | 800 lm | No |
| VALUE CEILING 10 W 6500 K GEN3 | 10.00 W | 30000 | 120 ° | 800 lm | No |
| VALUE CEILING 20 W 3000 K GEN3 | 20.00 W | 30000 | 120 ° | 1520 lm | No |
| VALUE CEILING 20 W 4000 K GEN3 | 20.00 W | 30000 | 120 ° | 1600 lm | No |
| VALUE CEILING 20 W 6500 K GEN3 | 20.00 W | 30000 | 120 ° | 1600 lm | No |
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 220.000 mA |
| Power factor λ | > 0.5 |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 1520 lm |
| Luminous efficacy | 76 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 120 ° |
| Diameter | 330.00 mm |
| Height | 73.00 mm |
| Product weight | 535.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polymethylmethacrylate (PMMA) |
| Cover material | Polymethylmethacrylate (PMMA) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Plug, quick disconnect |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 30000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075310162 | Folding box 1 |
357 mm x 87 mm x 358 mm | 859.00 g | 11.12 dm³ |
| 4058075310179 | Shipping box 5 |
451 mm x 373 mm x 385 mm | 5297.00 g | 64.77 dm³ |
