| Product description |
|---|

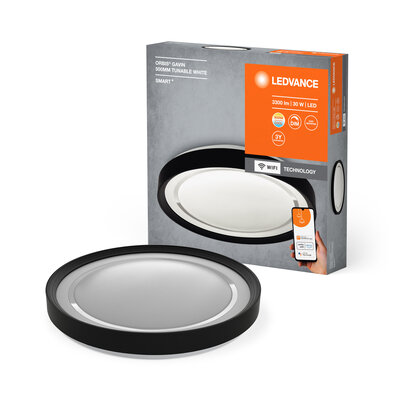

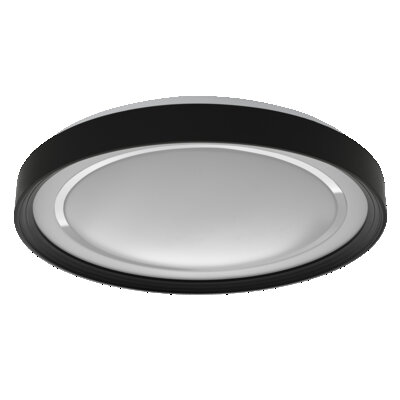

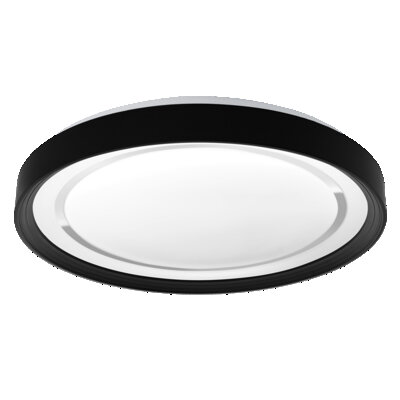

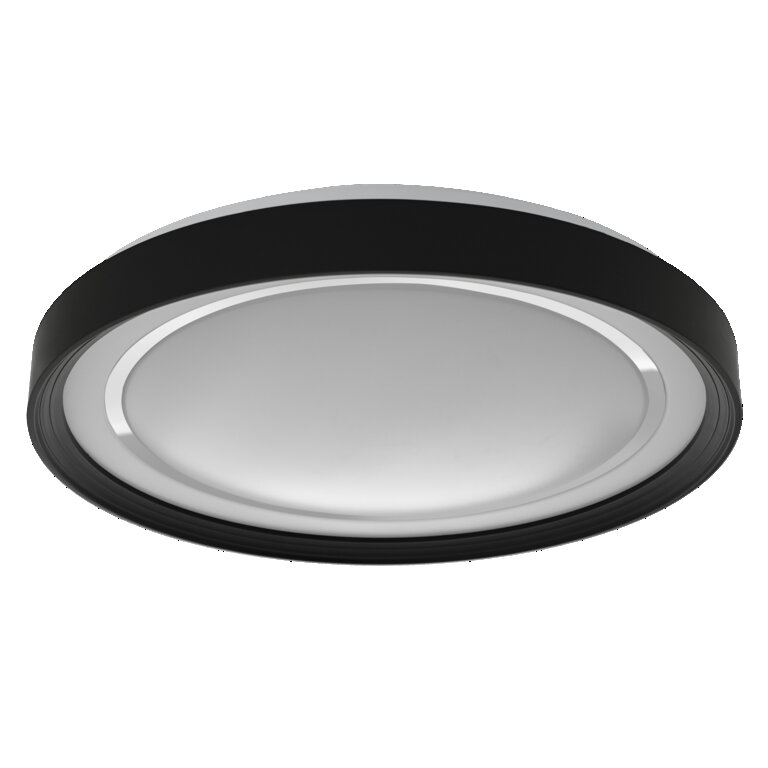

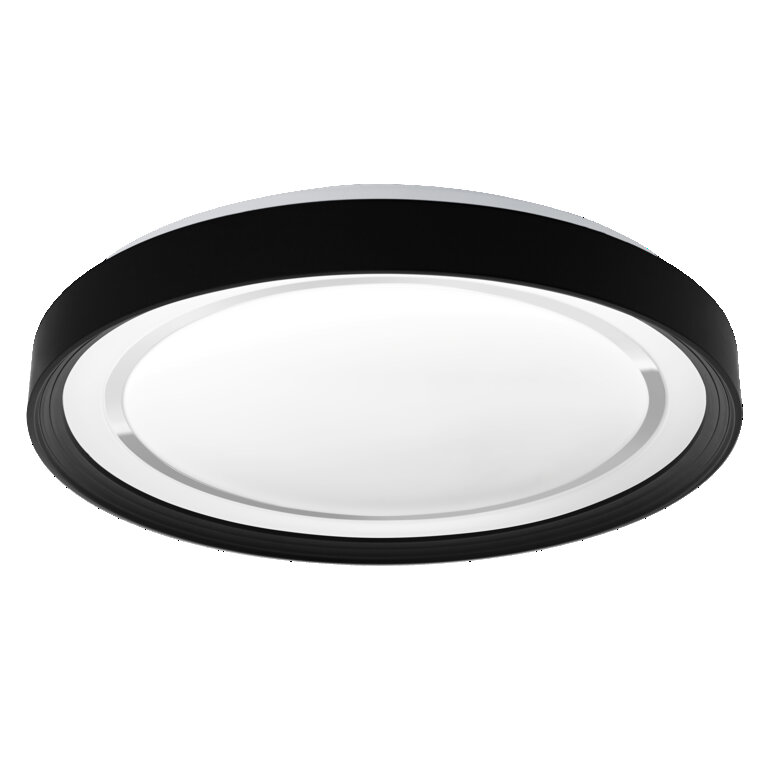

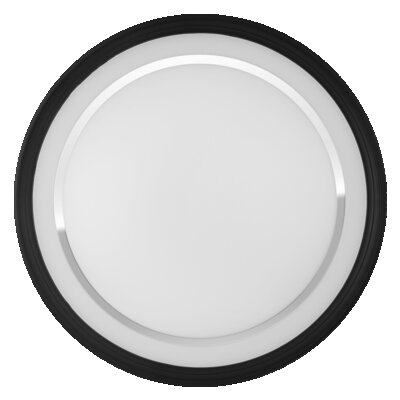

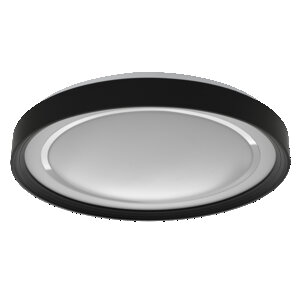

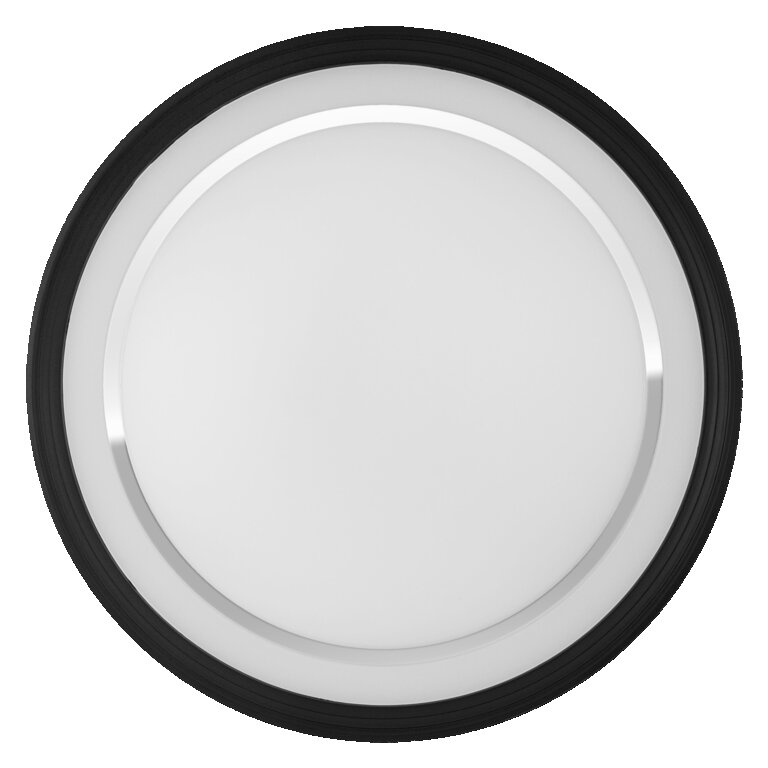

| SMART+ Wifi Orbis Gavin 500mm TW |
| Nominal wattage | 30.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 154.000 mA |
| Inrush current | 40 A |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 1850 lm |
| Total luminous flux of contained light sources | 3300 lm |
| Luminous efficacy | 110 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| Diameter | 484.00 mm |
| Height | 85.00 mm |
| Product weight | 1270.00 g |
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 15000 |
| Type of emergency operation test | None |
| Integrated test switch | No |

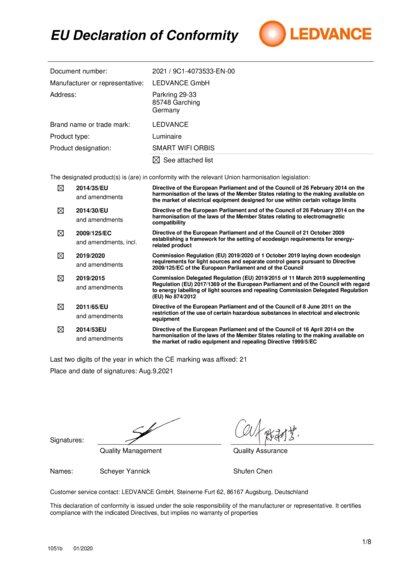

| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

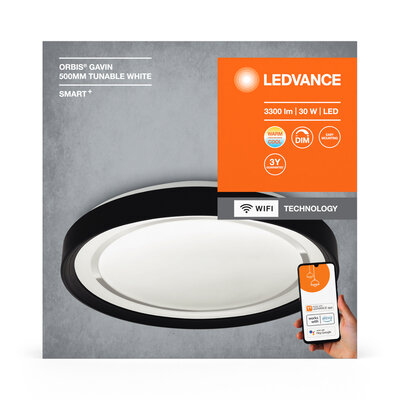

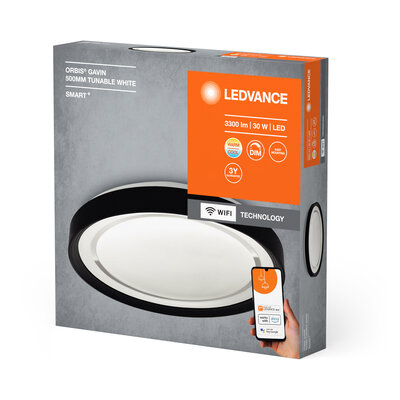

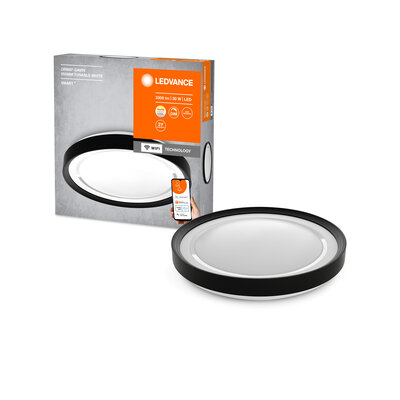

| 4058075573512 | Folding box 1 |
528 mm x 103 mm x 533 mm | 1858.00 g | 28.99 dm³ |
| 4058075573529 | Shipping box 5 |
546 mm x 531 mm x 562 mm | 10759.00 g | 162.94 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075573512 | 941390360 |
