| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 99.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Max. number of luminaires per miniature circuit breaker C16 | 24 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 1500 lm |
| Total luminous flux of contained light sources | 2200 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Tunable White, RGB |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |

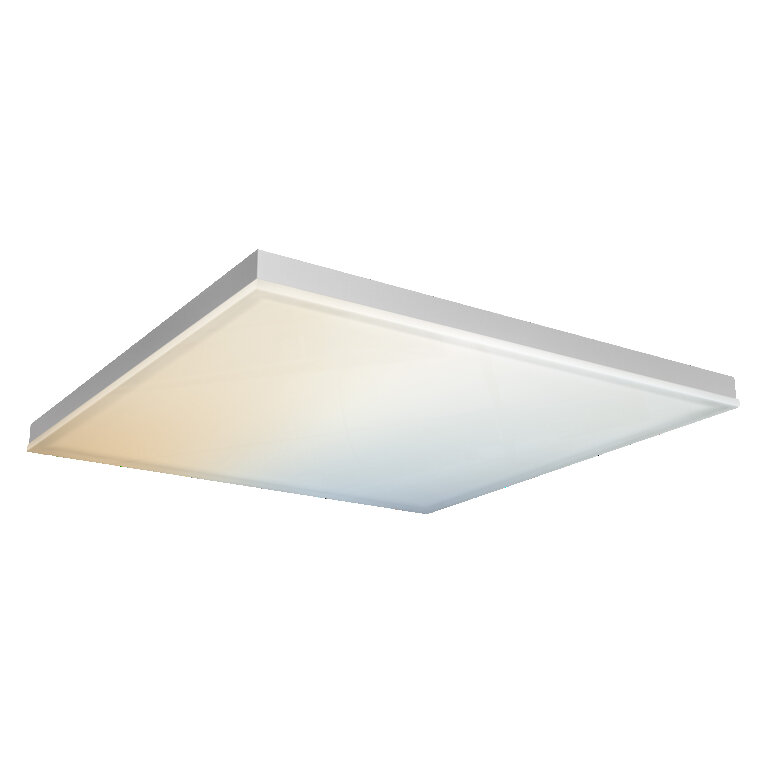

| Length | 300.00 mm |
| Height | 62.00 mm |
| Width | 300.00 mm |
| Product weight | 1720.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| With light source | No |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 15000 |

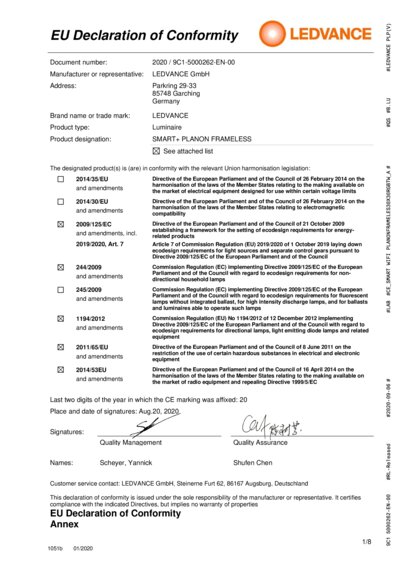

| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075484351 | Folding box 1 |
335 mm x 95 mm x 337 mm | 1899.00 g | 10.73 dm³ |
| 4058075484368 | Shipping box 5 |
492 mm x 353 mm x 366 mm | 1020.00 g | 63.57 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075484351 | 941002230 |
