Choose your product version
| Product description |
|---|

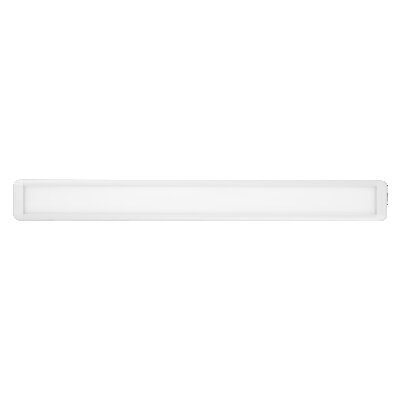

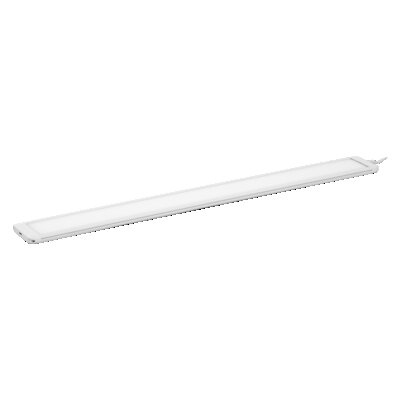

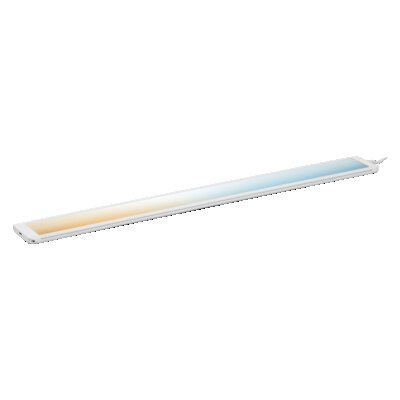

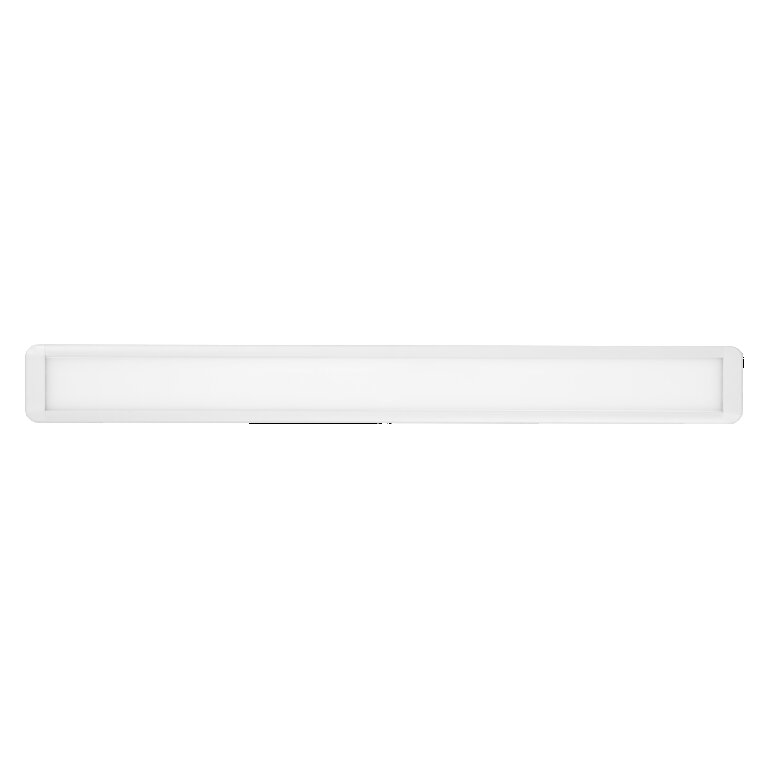

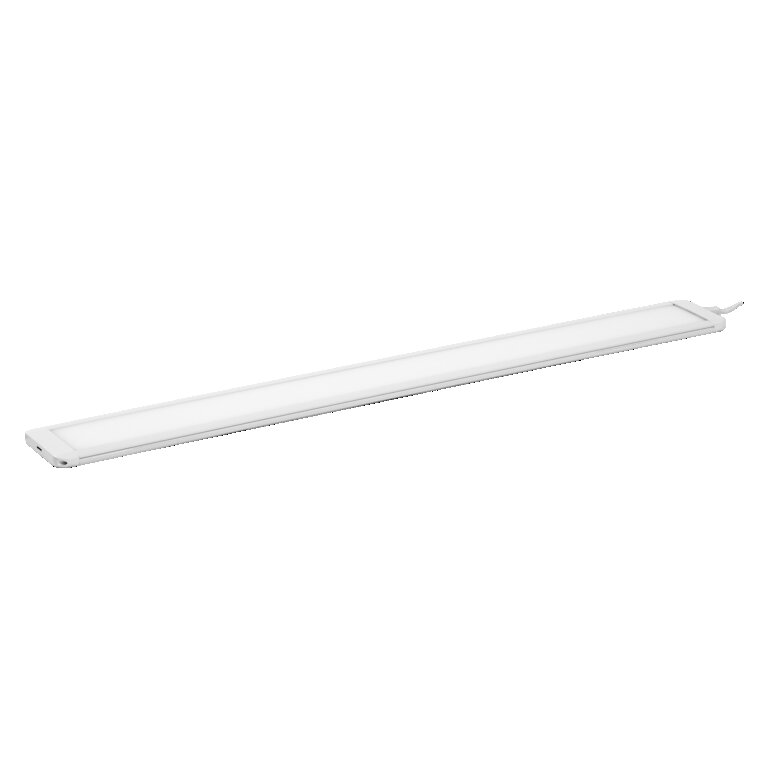

| SMART+ Wifi Undercabinet 45.7x6.5 TW |

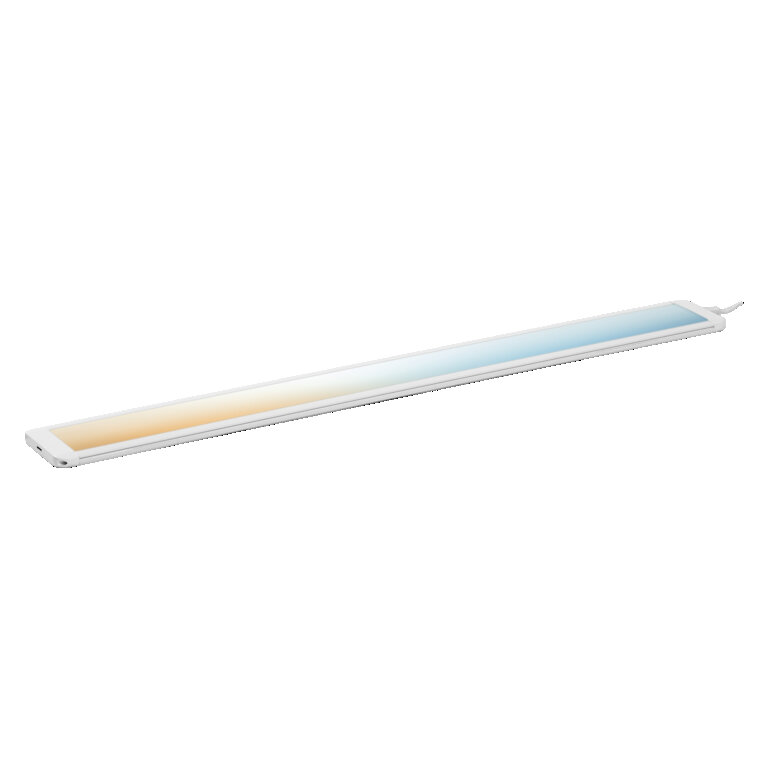

| SMART+ Wifi Undercabinet 60x6.5 TW |
| Nominal wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 70.000 mA |
| Inrush current | 38 A |
| Max. number of luminaires per miniature circuit breaker B16 | 114 |
| Max. number of luminaires per miniature circuit breaker C10 | 71 |
| Max. number of luminaires per miniature circuit breaker C16 | 114 |
| Power factor λ | ≥0.5 |
| Protection class | II |
| Luminous flux | 580 lm |
| Total luminous flux of contained light sources | 1100 lm |
| Luminous efficacy | 48 lm/W |
| Color temperature | 2700…6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K 1) |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 120 ° |
1) Performing a reset will restore the default values set by the manufacturer
| Length | 600.00 mm |
| Height | 9.00 mm |
| Width | 65.00 mm |
| Product weight | 441.00 g |
| Cable length | 1500 mm |
| Product color | White |
| Housing color | White |
| Body material | Aluminum|Plastic |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Cabinet undersides |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
| Luminous flux in maintained operation mode | - |
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

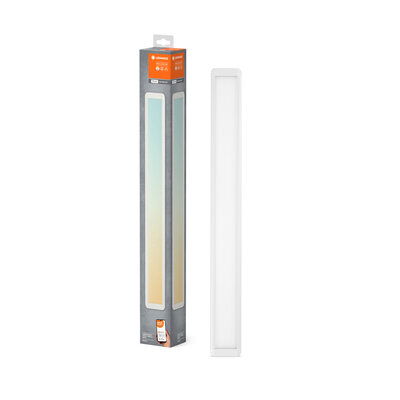

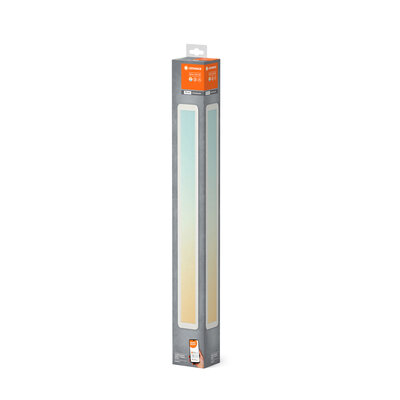

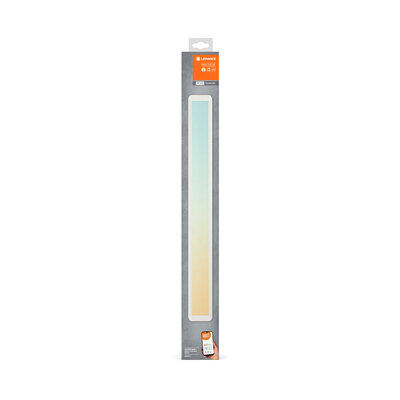

| 4058075575714 | Folding box 1 |
64 mm x 76 mm x 612 mm | 637.00 g | 2.98 dm³ |
| 4058075575721 | Shipping box 8 |
637 mm x 275 mm x 181 mm | 5756.00 g | 31.71 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075575714 | 941602580 |
