Choose your product version
| Nominal wattage | 6.80 W |
| Nominal voltage | 24 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 272.000 mA |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Power factor λ | ≥0.5 |
| Protection class | III |
| Operating mode | Integrated LED driver |
| Luminous flux | 530 lm |
| Total luminous flux of contained light sources | 780 lm |
| Luminous efficacy | 77 lm/W |
| Color temperature | 2700…6500 K |
| Reference control setting of contained light source (Kelvin) | 2700 K 1) |
| Light color (designation) | Tunable White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 120 ° |
1) Performing a reset will restore the default values set by the manufacturer
| Length | 300.00 mm |
| Height | 7.50 mm |
| Width | 200.00 mm |
| Product weight | 428.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum|Plastic |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |

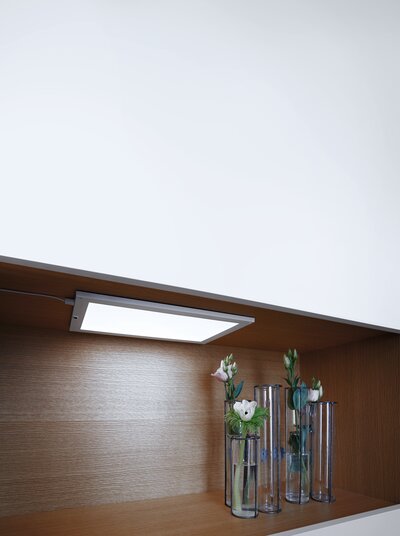

| Mounting location | Cabinet undersides |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
| Luminous flux in maintained operation mode | - |
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| BEG eligible | No |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075576339 | Folding box 1 |
322 mm x 212 mm x 66 mm | 654.00 g | 4.51 dm³ |
| 4058075576346 | Shipping box 8 |
447 mm x 347 mm x 287 mm | 5652.00 g | 44.52 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075576339 | 941602630 |
