| Product description |
|---|

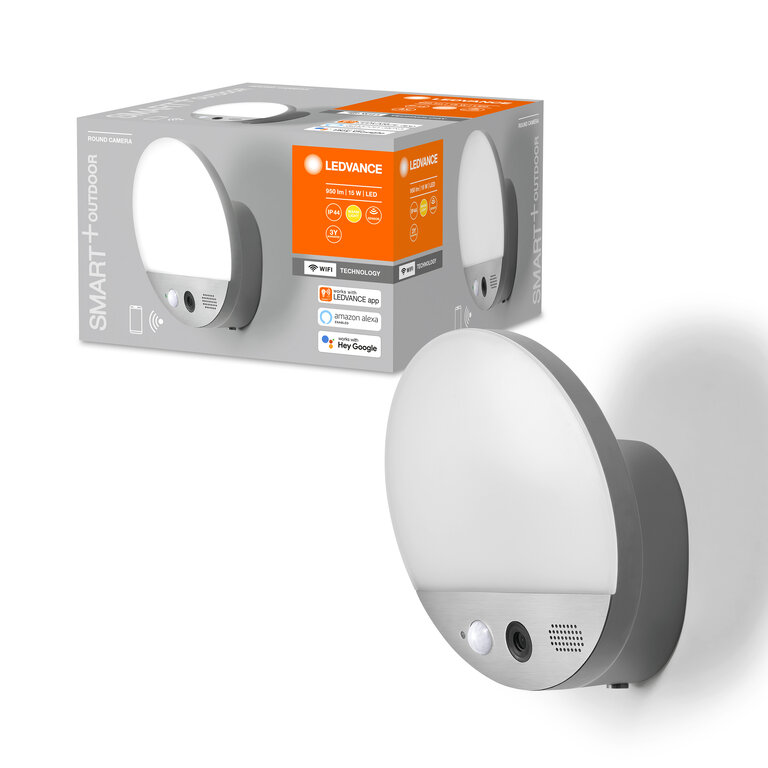

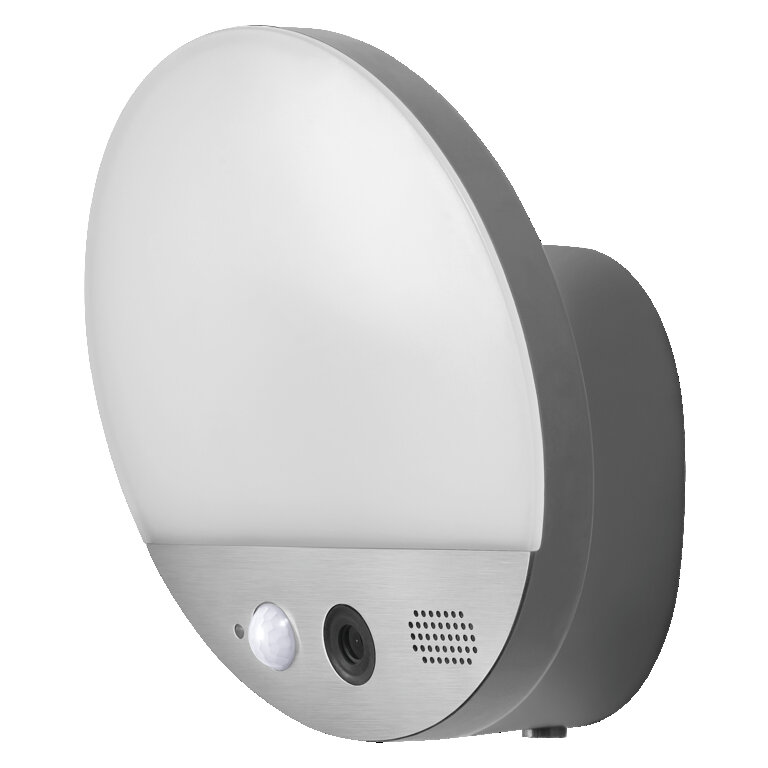

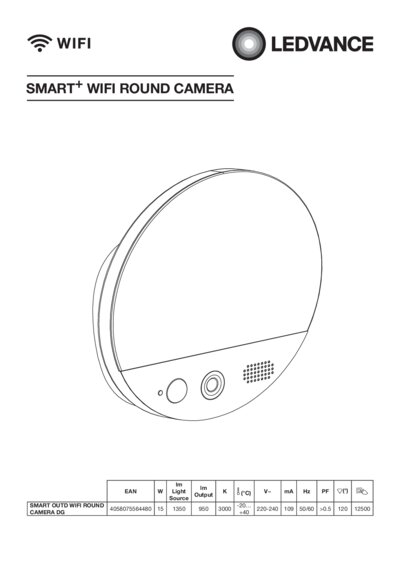

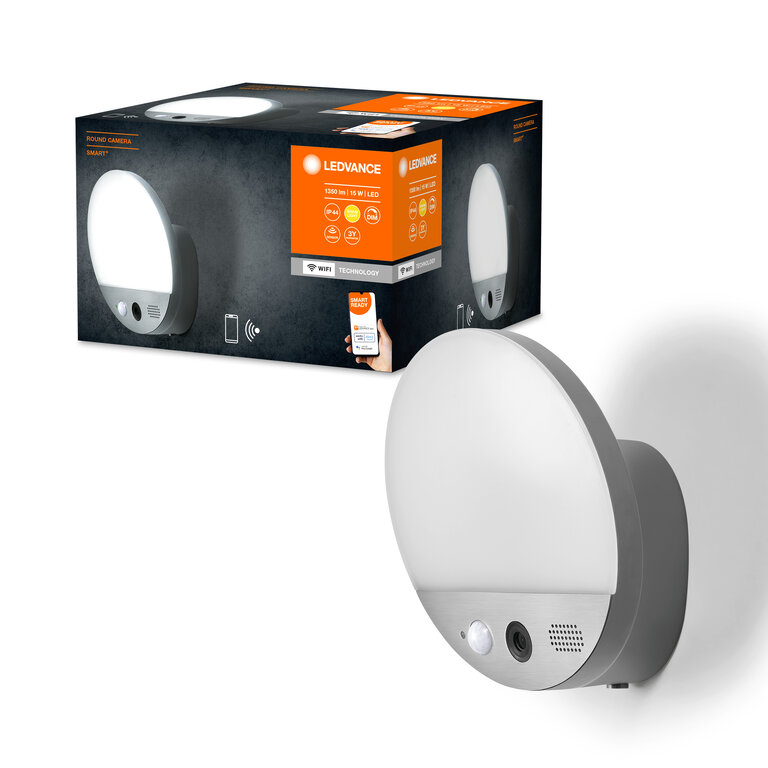

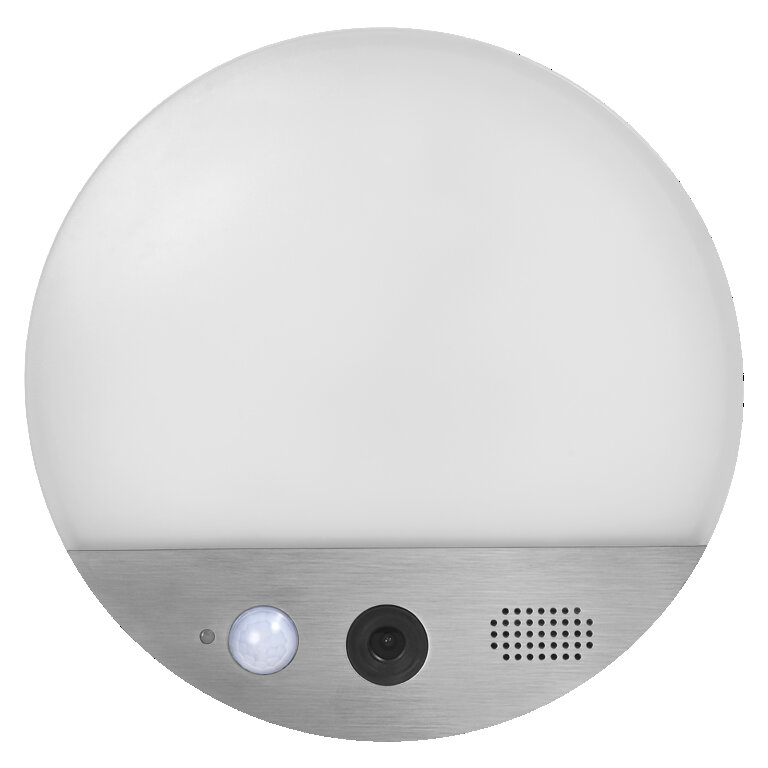

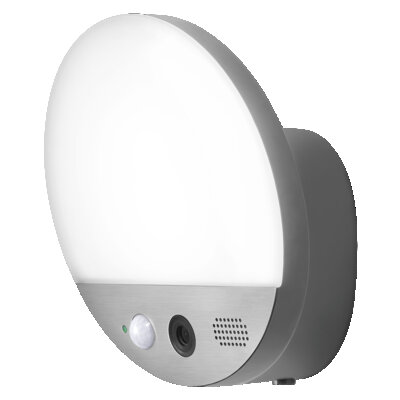

| SMART+ Wifi Camera Round |
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 109.000 mA |
| Inrush current | 3.6 A |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 950 lm |
| Total luminous flux of contained light sources | 1350 lm |
| Luminous efficacy | 63 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| Diameter | 180.00 mm |
| Length | 105.00 mm |
| Height | 105.00 mm |
| Product weight | 730.00 g |
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Plastic |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |
| Type of sensor | Infrared sensor |
| Integrated test switch | No |

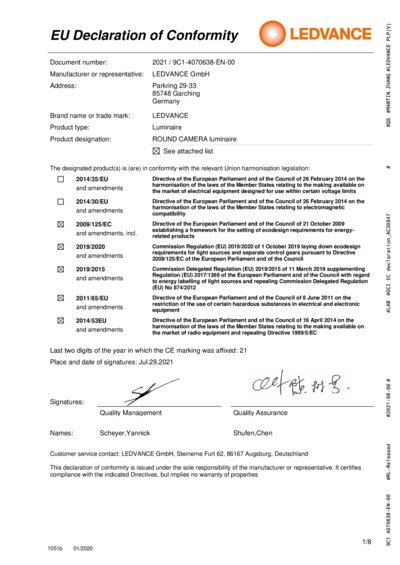

| Standards | CE, UKCA |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075564480 | Folding box 1 |
197 mm x 197 mm x 127 mm | 1074.00 g | 4.93 dm³ |
| 4058075564497 | Shipping box 4 |
410 mm x 270 mm x 225 mm | 4791.00 g | 24.91 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075564480 | 941264790 |
