| Product description |
|---|

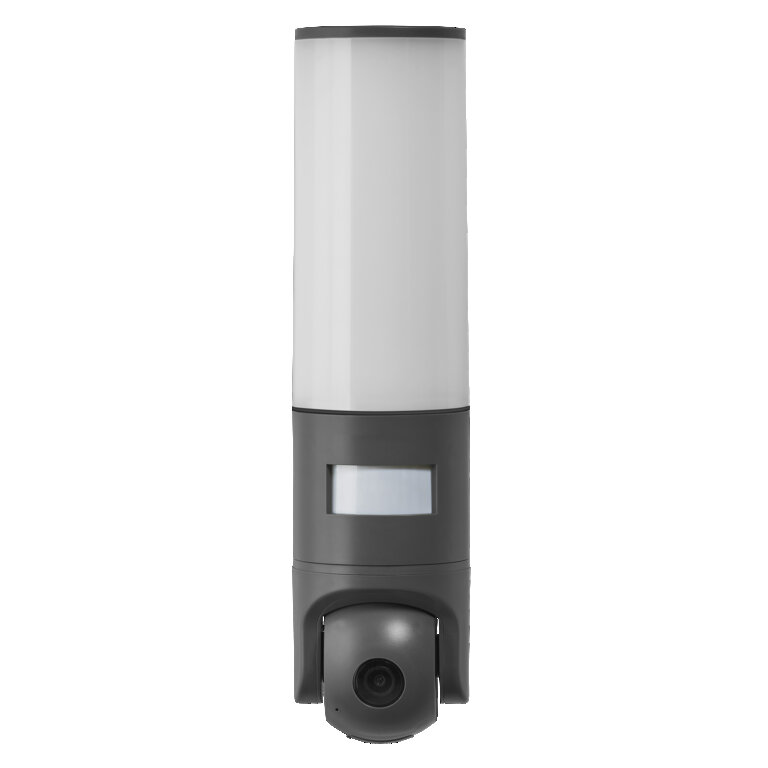

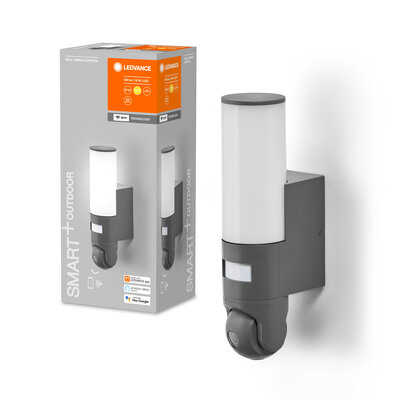

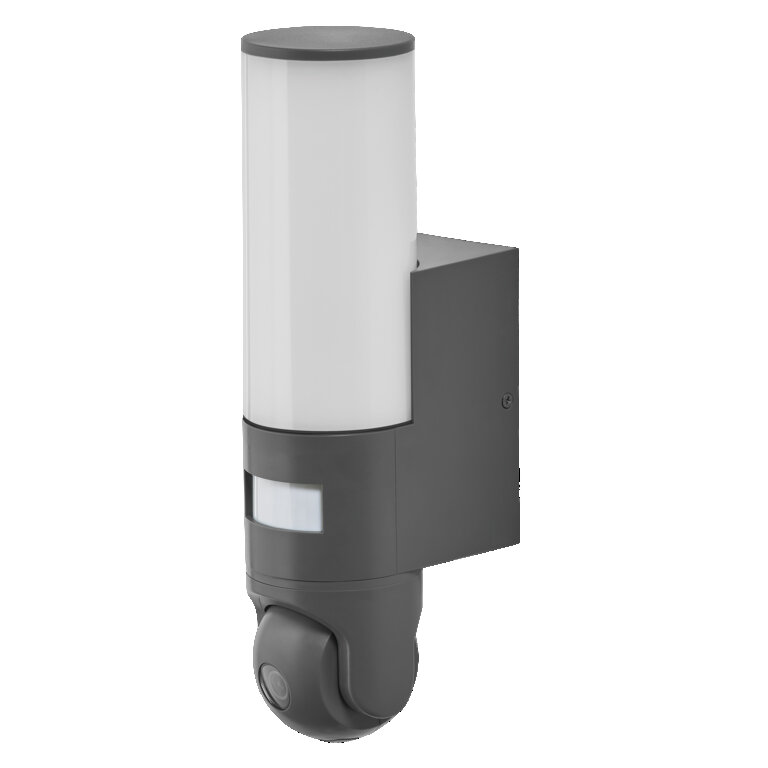

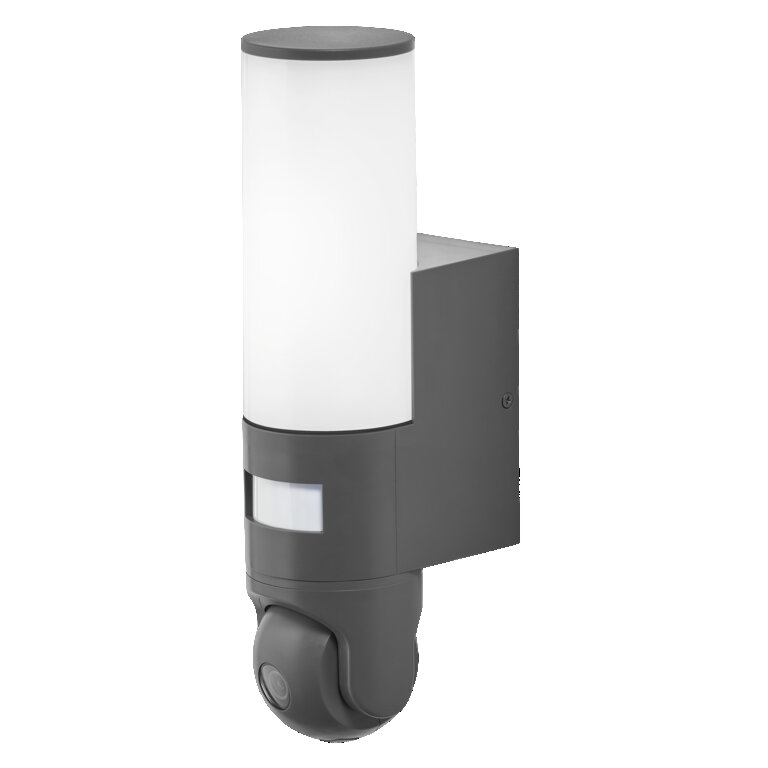

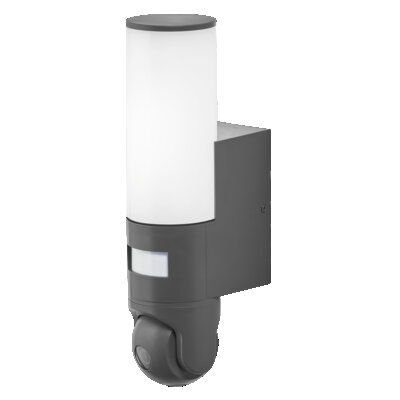

| SMART+ Wifi Wall Camera Control |
| Nominal wattage | 16.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 73.000 mA |
| Inrush current | 25 A |
| Power factor λ | > 0.5 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 900 lm |
| Total luminous flux of contained light sources | 1750 lm |
| Luminous efficacy | 60 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 207.50 ° |
| Length | 120.00 mm |
| Height | 320.00 mm |
| Width | 80.00 mm |
| Product weight | 850.00 g |
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Plastic |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK05 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |
| EEI – Energy Label | D |
| Type of sensor | Infrared sensor |
| Sensor technology | Passive infrared (PIR) |
| Integrated test switch | No |

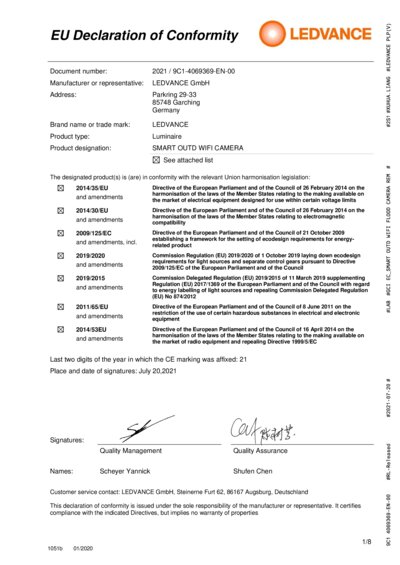

| Standards | CE, UKCA |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075564602 | Folding box 1 |
347 mm x 122 mm x 147 mm | 950.00 g | 6.22 dm³ |
| 4058075564619 | Shipping box 4 |
370 mm x 260 mm x 329 mm | 4255.00 g | 31.65 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075564602 | 941264800 |
