Product description
SMART+ Wifi Floodlight 10W RGB + W
SMART+ Wifi Floodlight 20W RGB + W
SMART+ Wifi Floodlight 30W RGB + W

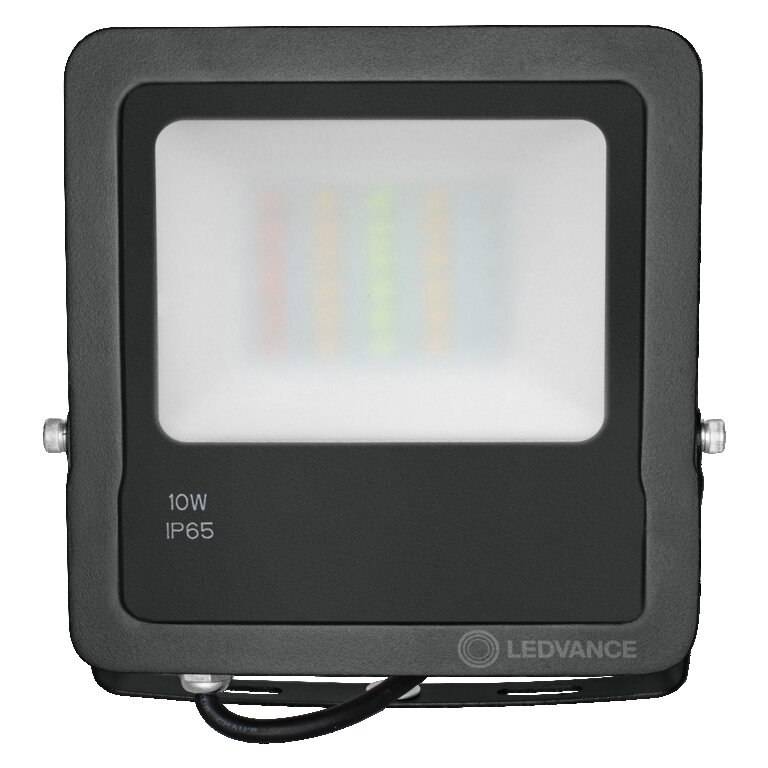

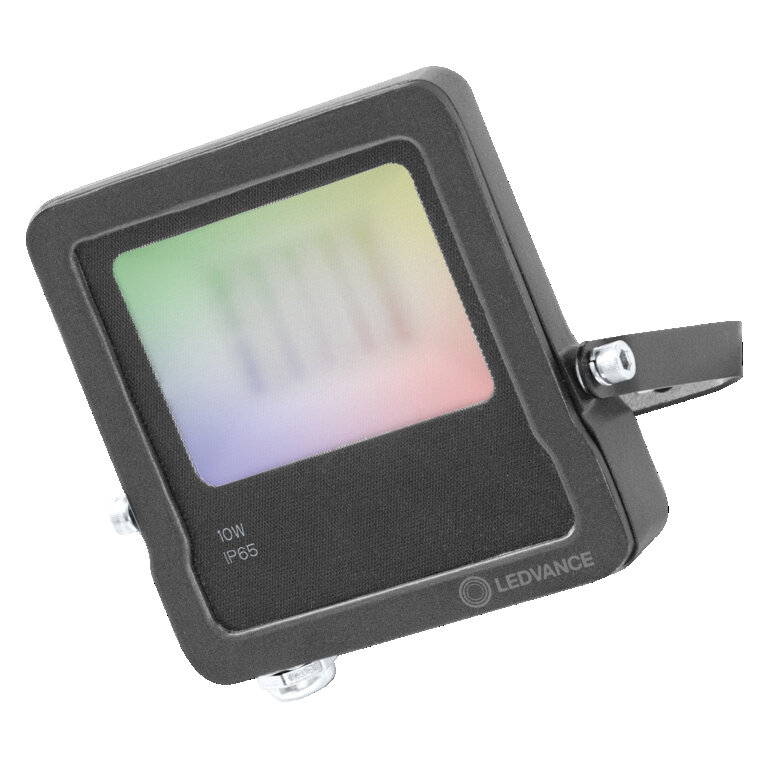

SMART+ Wifi Floodlight 10W RGB + W

Product benefits

Easy and quick installation
Colorful garden lighting with smart and intelligent control options
Combines the functionality of general lighting and mood lighting

View all details

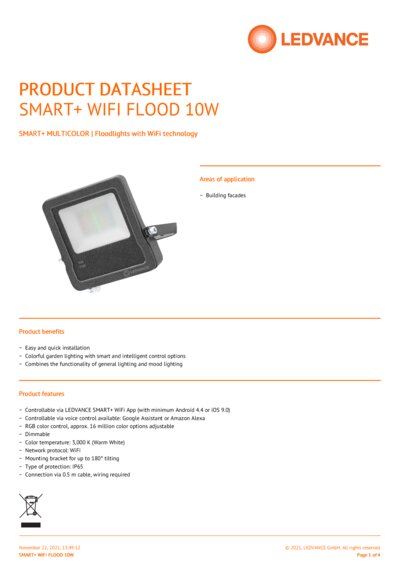

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	10.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Max. number of luminaires per miniature circuit breaker B16	22
Max. number of luminaires per miniature circuit breaker C16	32
Power factor λ	> 0.90
Total harmonic distortion	≤ 40 %
Protection class	I
Operating mode	Mains voltage

Photometrical data

Luminous flux	800 lm
Luminous efficacy	63 lm/W
Color temperature	3000 K
Light color (designation)	RGBW
Color rendering index Ra	≥80
Standard deviation of color matching	< 6 sdcm
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Beam angle	100 °

Dimensions & Weight

Length	152.00 mm
Height	28.00 mm
Width	125.00 mm
Product weight	380.00 g

Materials & Colors

Product color	Dark gray
Housing color	Dark gray
Body material	Aluminum
Cover material	Glass
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+85 °C
Type of connection	Cable, 3-pole
Type of protection	IP65
Protection class IK (shock resistance)	IK05
Dimmable	Yes
Type of dimming	WiFi
Mounting type	Surface
Mounting location	Wall
Application environment	Outdoor
LED module replaceable	Not replaceable
With light source	No

Lifespan

Lifespan L70/B50 at 25 °C	30000 h
Number of switching cycles	30000

Certificates & Standards

Standards	CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign"	No

Additional product data

Product remark

Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.

Product description

Product benefits

Easy and quick installation

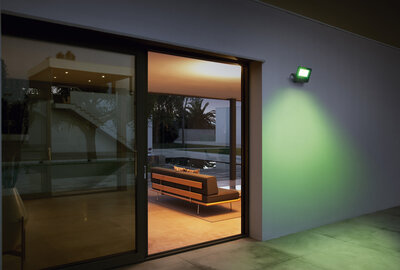

Colorful garden lighting with smart and intelligent control options
Combines the functionality of general lighting and mood lighting

Areas of application

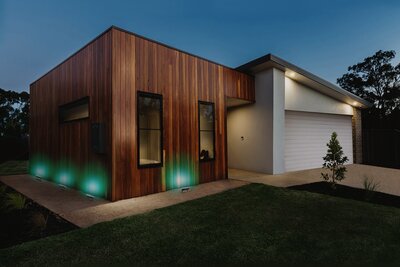

Building facades

Product features

Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
Controllable via voice control available: Google Assistant or Amazon Alexa
RGB color control, approx. 16 million color options adjustable
Dimmable
Color temperature: 3,000 K (Warm White)
Network protocol: WiFi
Mounting bracket for up to 180° tilting
Type of protection: IP65
Connection via 0.5 m cable, wiring required

Equipment / Accessories

Mounting bracket included
Mounting screws and dowels included
Control via app or voice control requires compatible Smart home system
For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.

References / Links

Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq

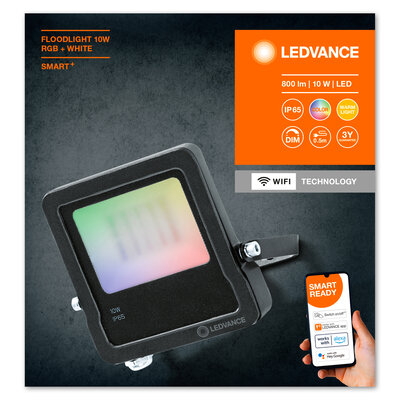

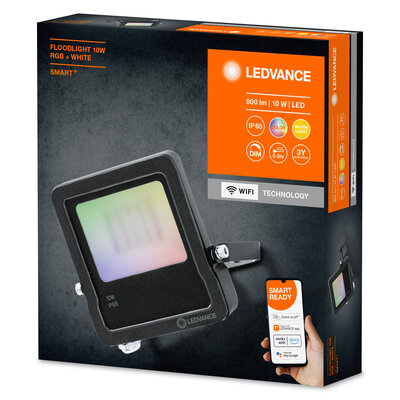

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075474604	Folding box 1	154 mm x 40 mm x 166 mm	445.00 g	1.02 dm³
4058075474611	Shipping box 12	327 mm x 257 mm x 190 mm	5748.00 g	15.97 dm³

Country-specific information

EAN	SEG number	STK number	ELDAS number
4058075474604	7766855	4529802	941500610
