Choose your product version
| Product description |
|---|

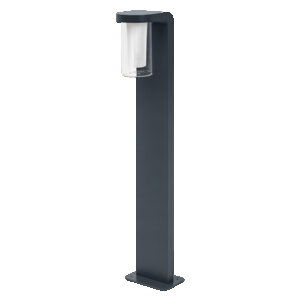

| SMART+ Wifi Cascade 80cm Post |

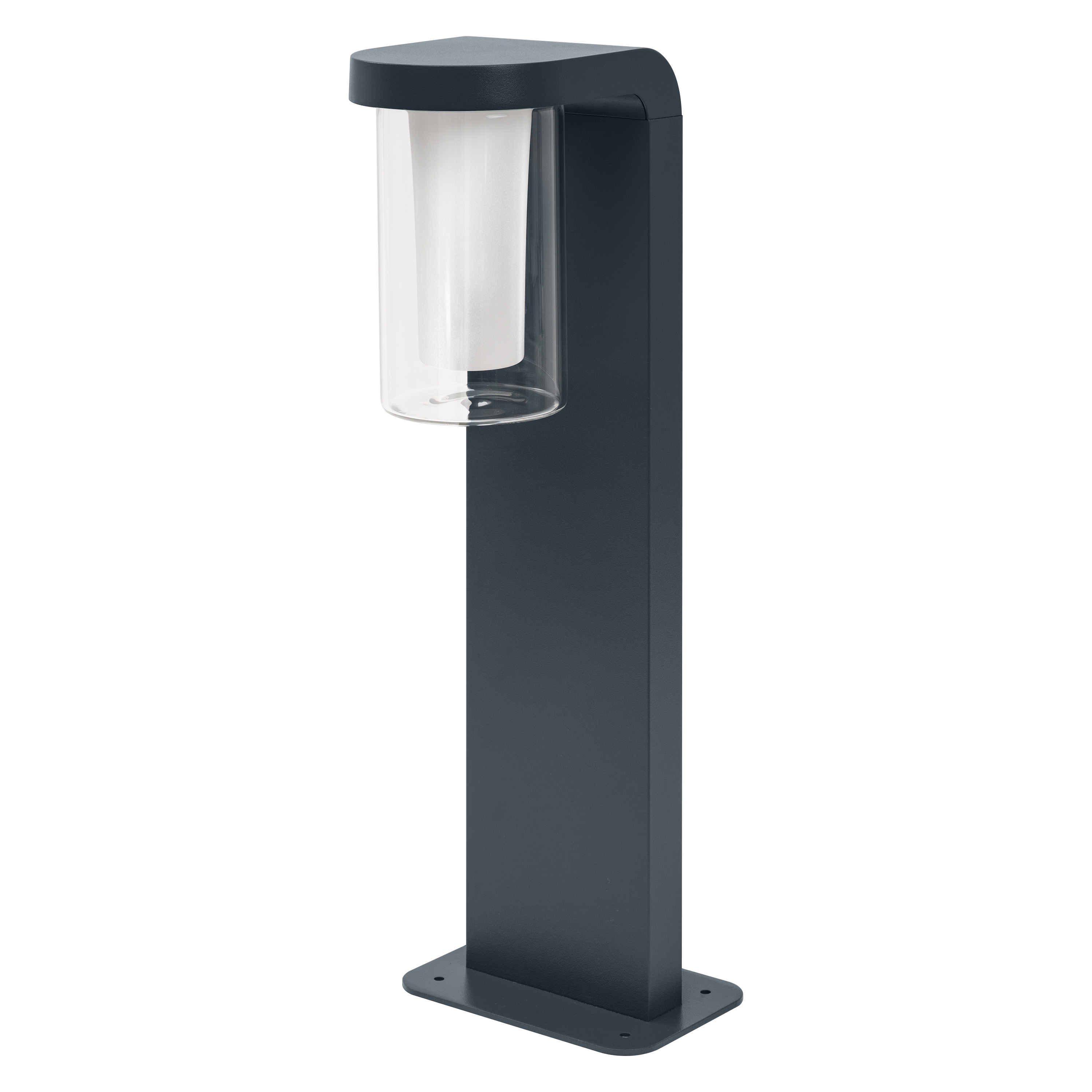

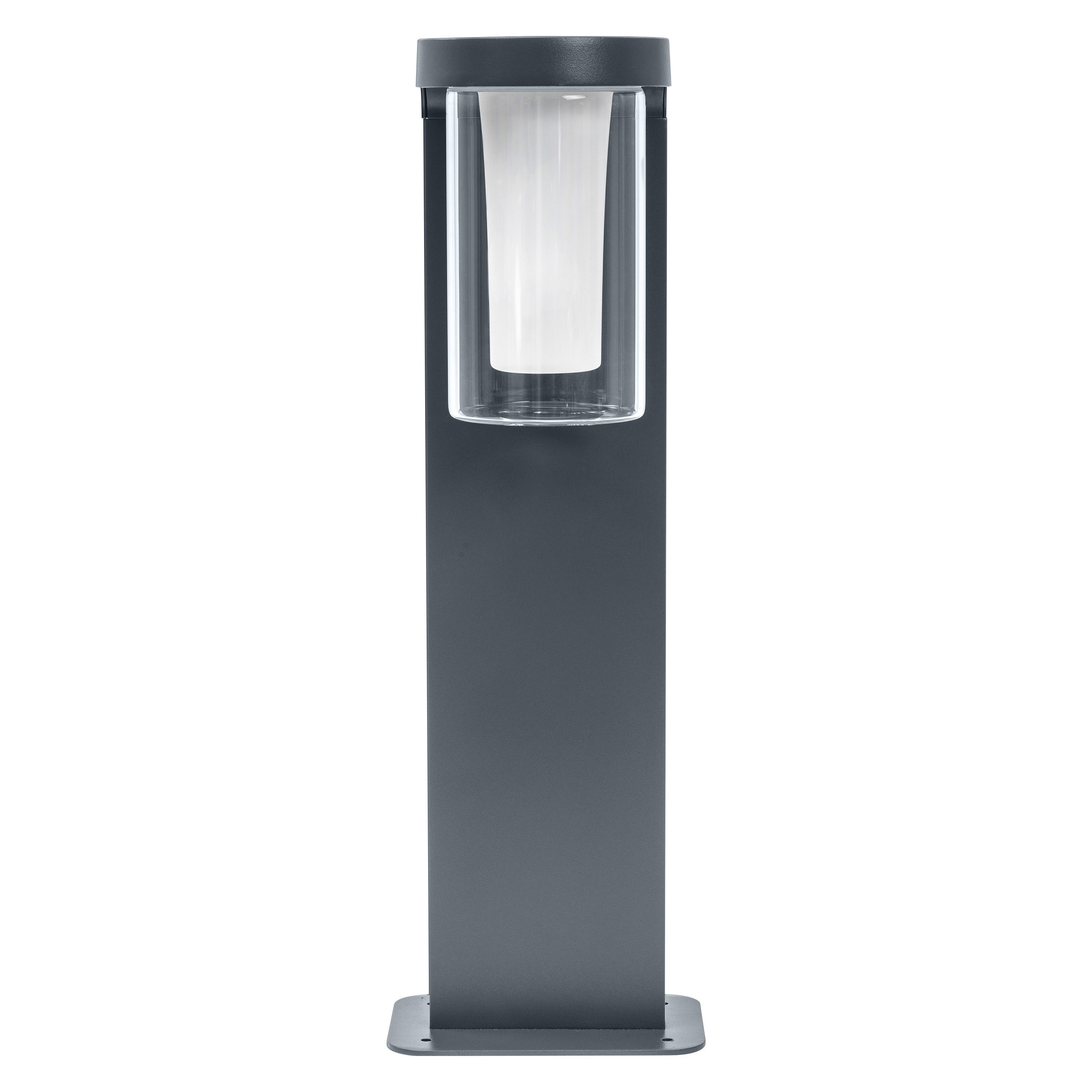

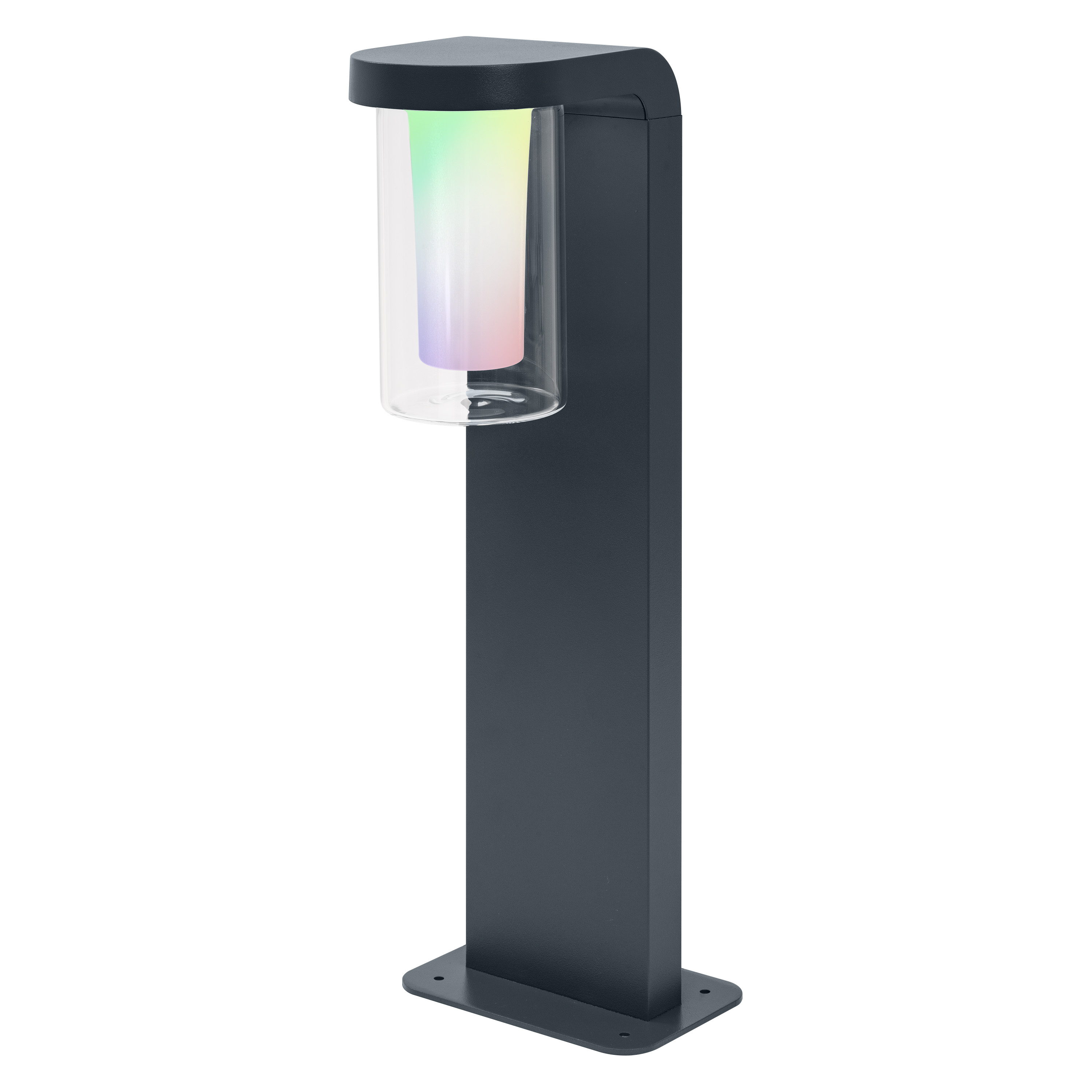

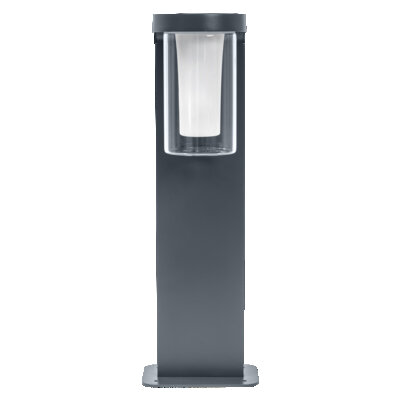

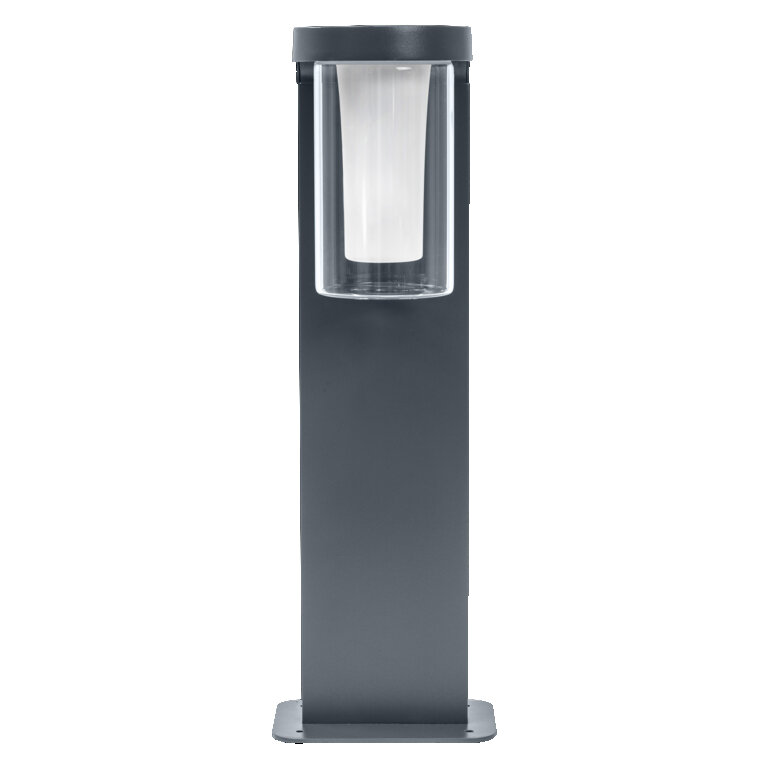

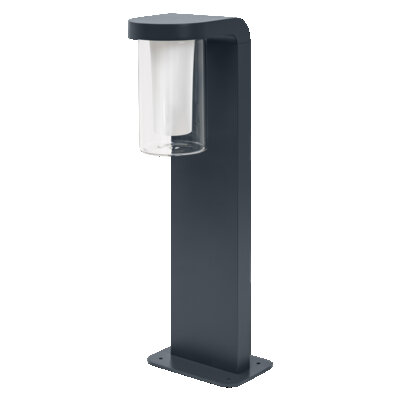

| SMART+ Wifi Cascade 50cm Post |

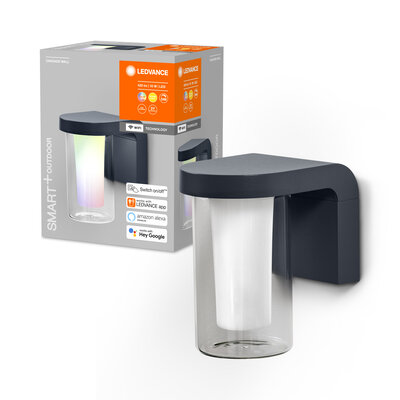

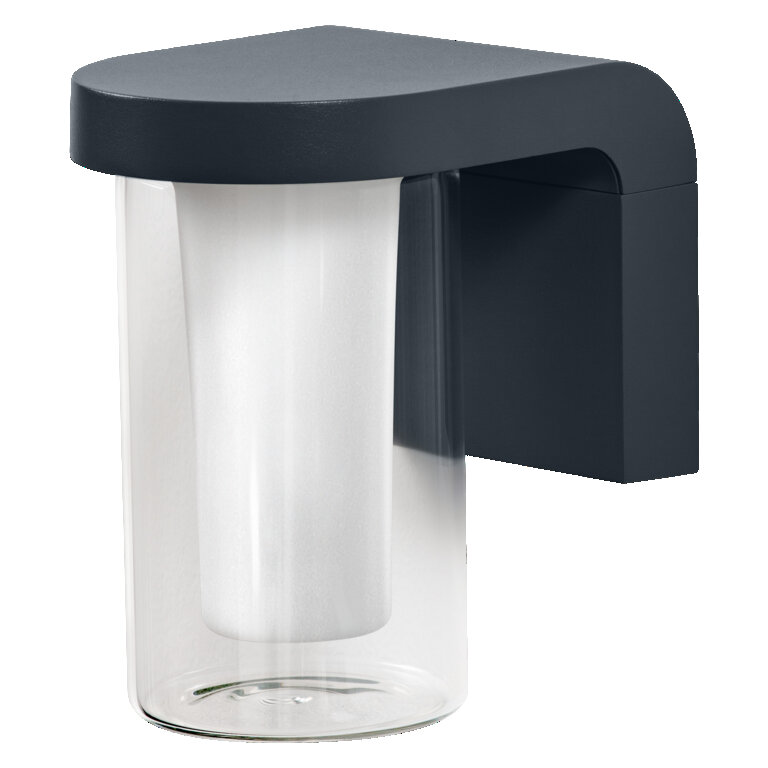

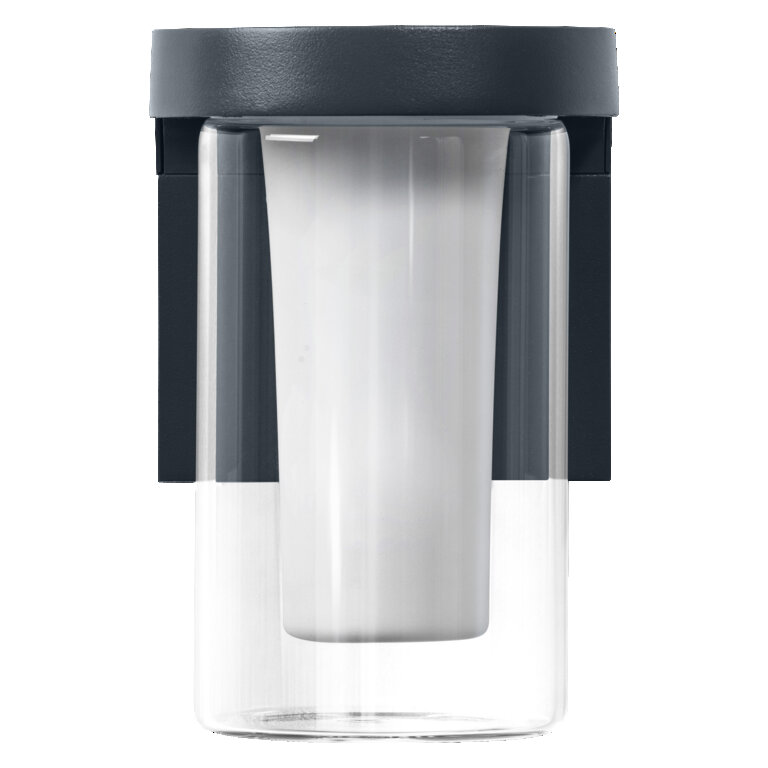

| SMART+ Wifi Cascade Wall |
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 72.000 mA |
| Inrush current | 3.6 A |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 420 lm |
| Total luminous flux of contained light sources | 800 lm |
| Luminous efficacy | 38 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | ≤1 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 180 ° |
| Length | 200.00 mm |
| Height | 800.00 mm |
| Width | 160.00 mm |
| Product weight | 1921.00 g |
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Glass |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ground |
| Application environment | Outdoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |
| Integrated test switch | No |
| Standards | CE, UKCA |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075564282 | Folding box 1 |
222 mm x 182 mm x 822 mm | 2541.00 g | 33.21 dm³ |
| 4058075564299 | Shipping box 2 |
840 mm x 380 mm x 250 mm | 6212.00 g | 79.80 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075564282 | 941700390 |
