Choose your product version
| Product description |
|---|

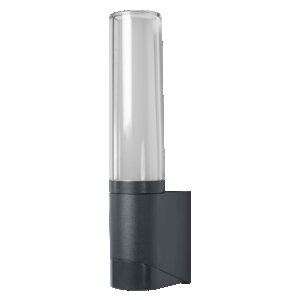

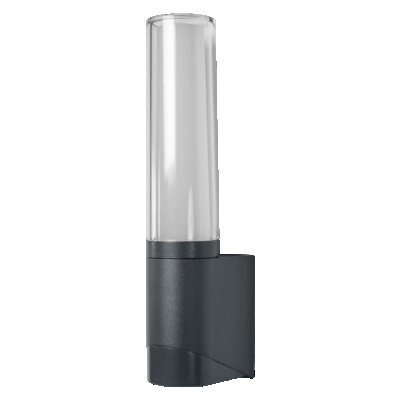

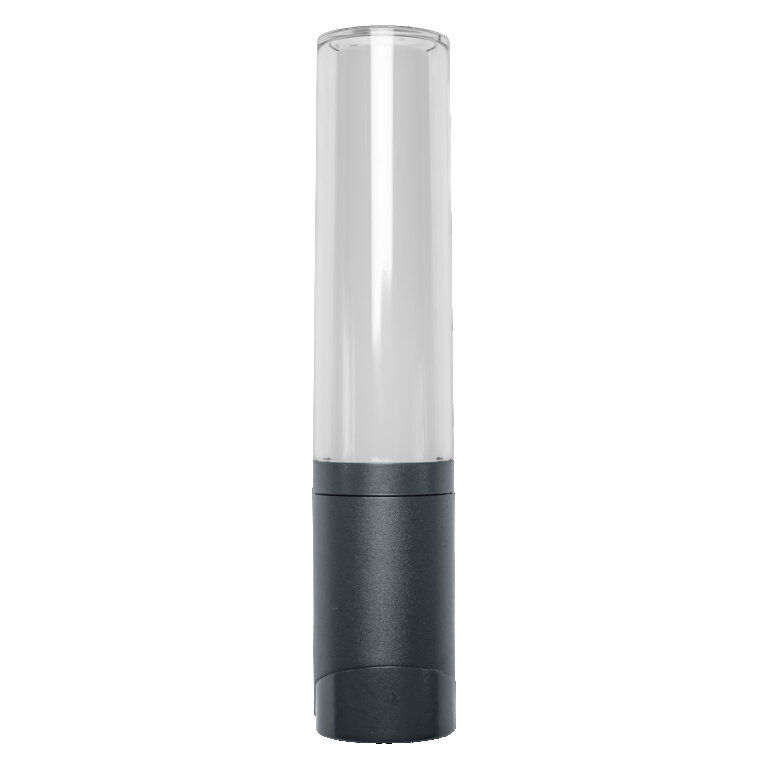

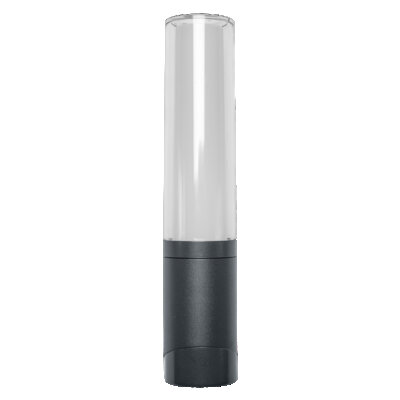

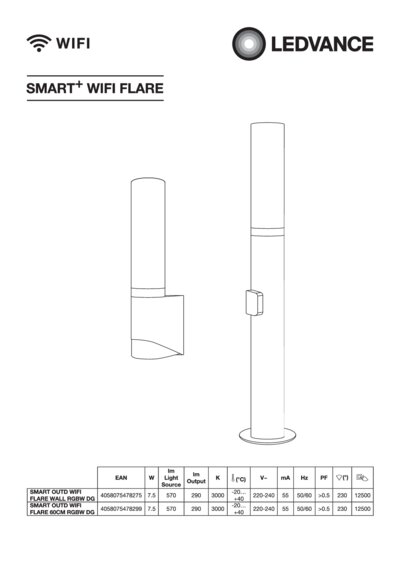

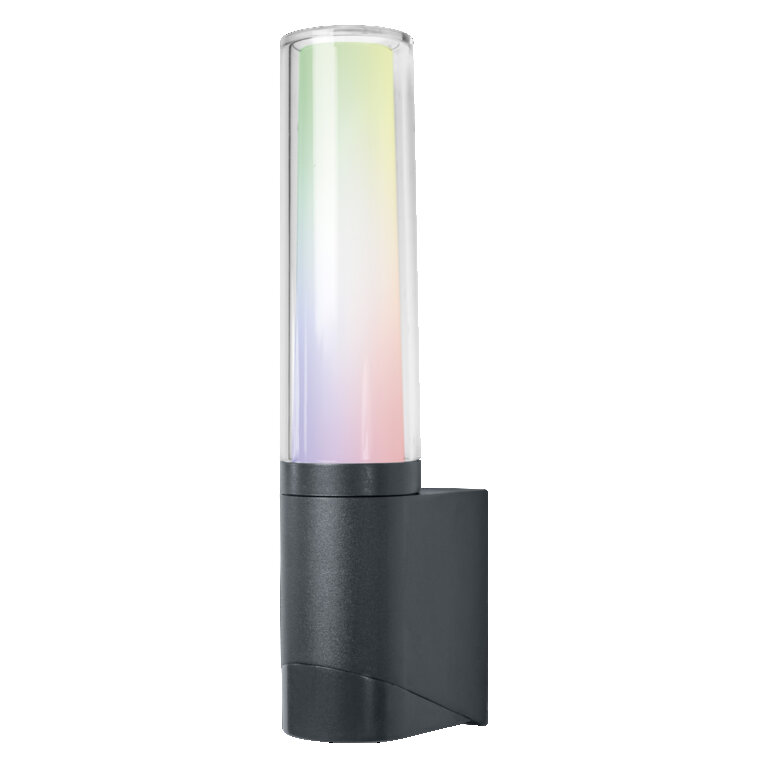

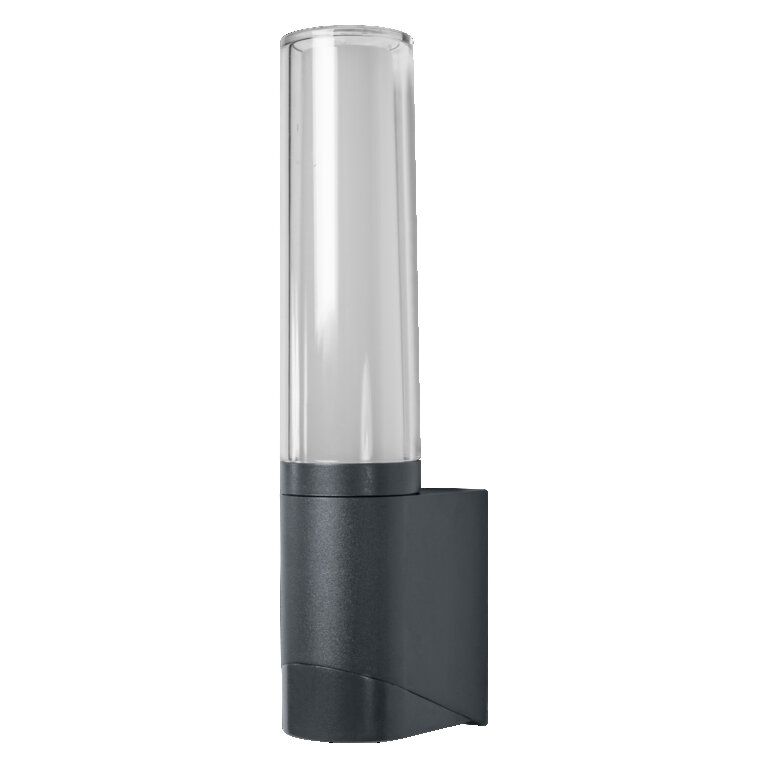

| SMART+ Wifi Flare Wall RGB + W |

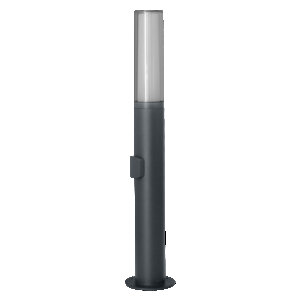

| SMART+ Wifi Flare Post 60cm RGB + W |
| Nominal wattage | 7.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.5 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 320 lm |
| Total luminous flux of contained light sources | 570 lm |
| Luminous efficacy | 43 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | RGBW |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 230.00 ° |
| Length | 98.00 mm |
| Height | 331.00 mm |
| Width | 66.00 mm |
| Product weight | 900.00 g |
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| LED module replaceable | Not replaceable |
| With light source | No |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |

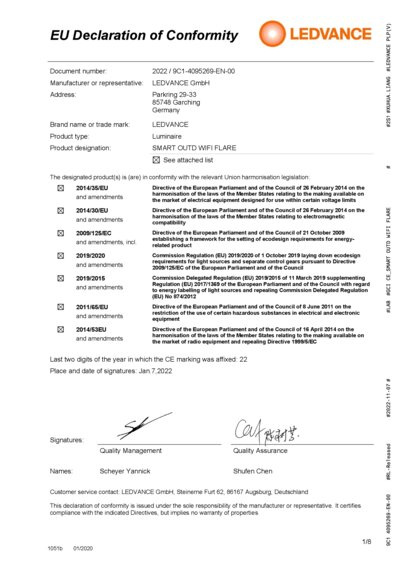

| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

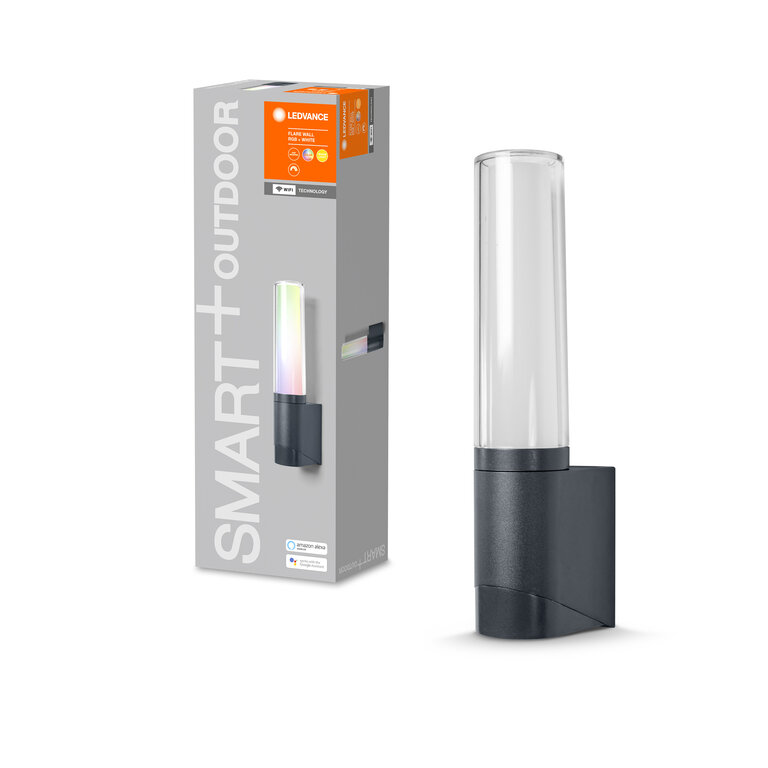

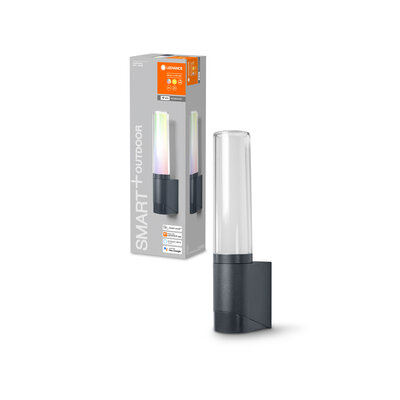

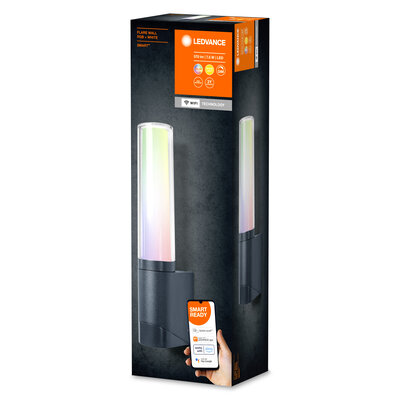

| 4058075478275 | Folding box 1 |
117 mm x 87 mm x 354 mm | 979.00 g | 3.60 dm³ |
| 4058075478282 | Shipping box 4 |
368 mm x 248 mm x 199 mm | 4321.00 g | 18.16 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075478275 | 941200750 |
