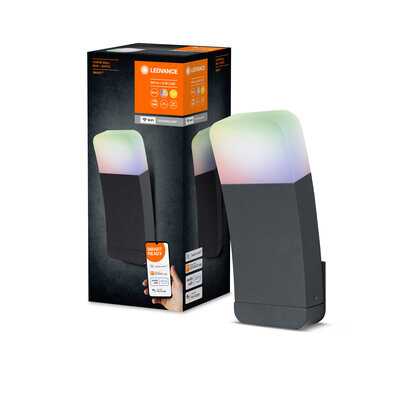

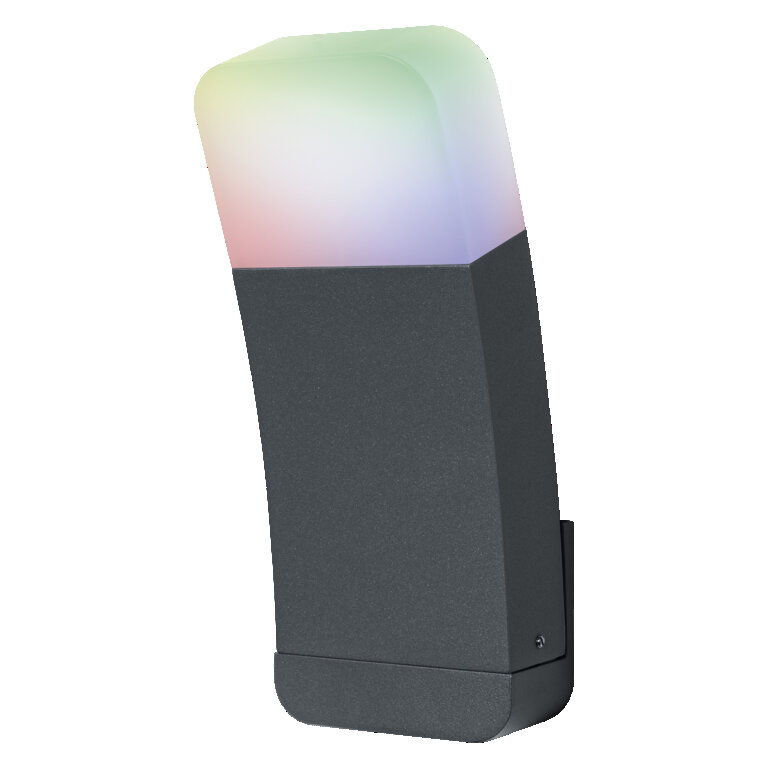

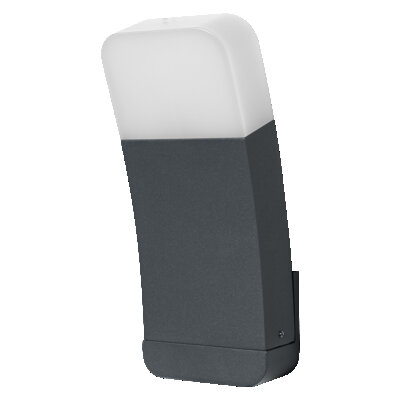

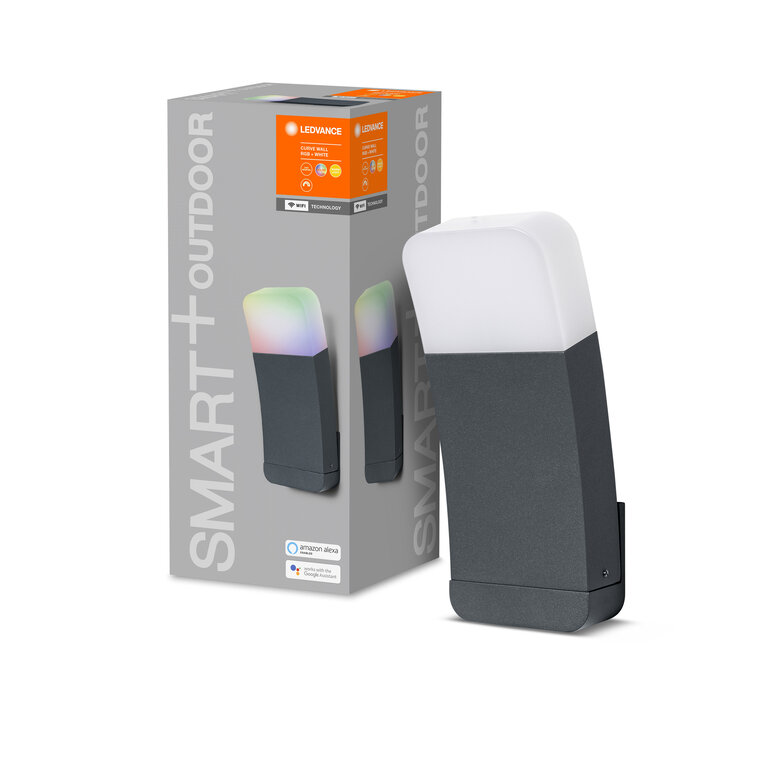

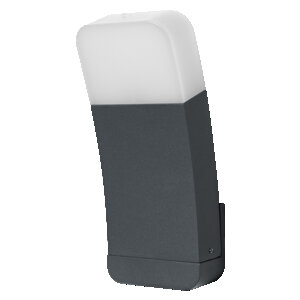

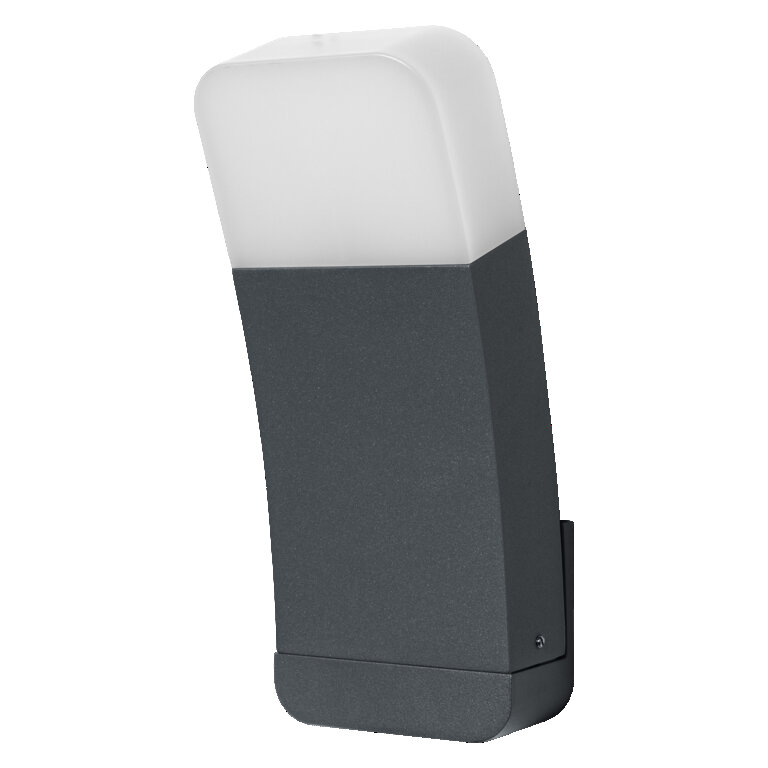

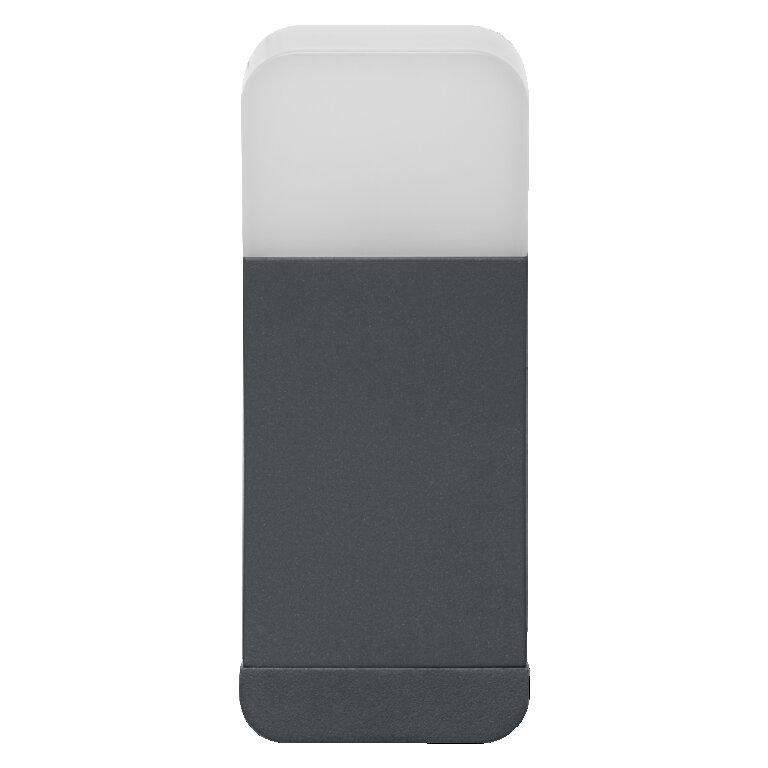

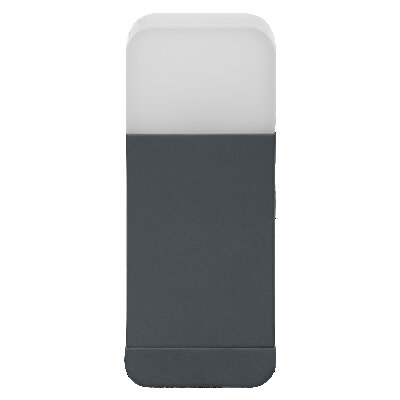

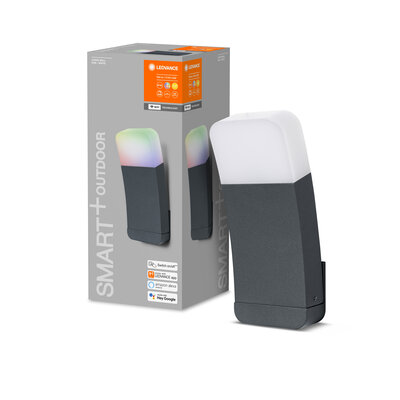

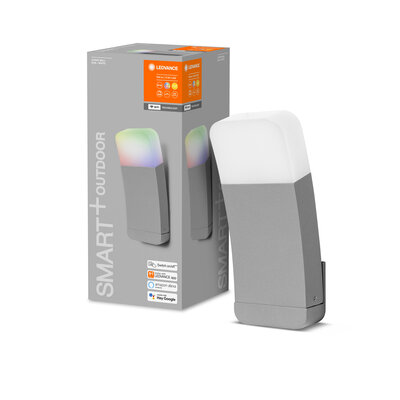

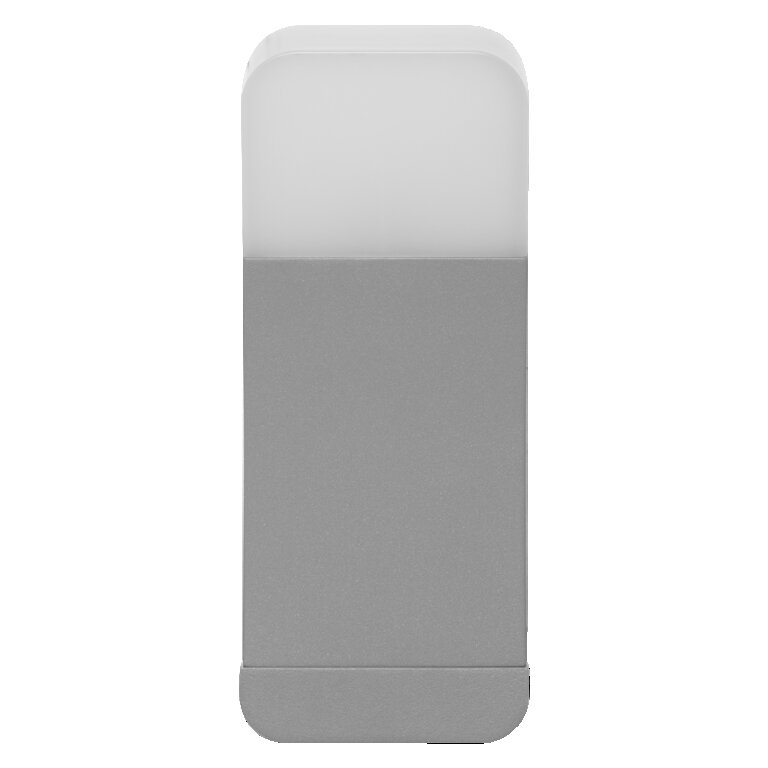

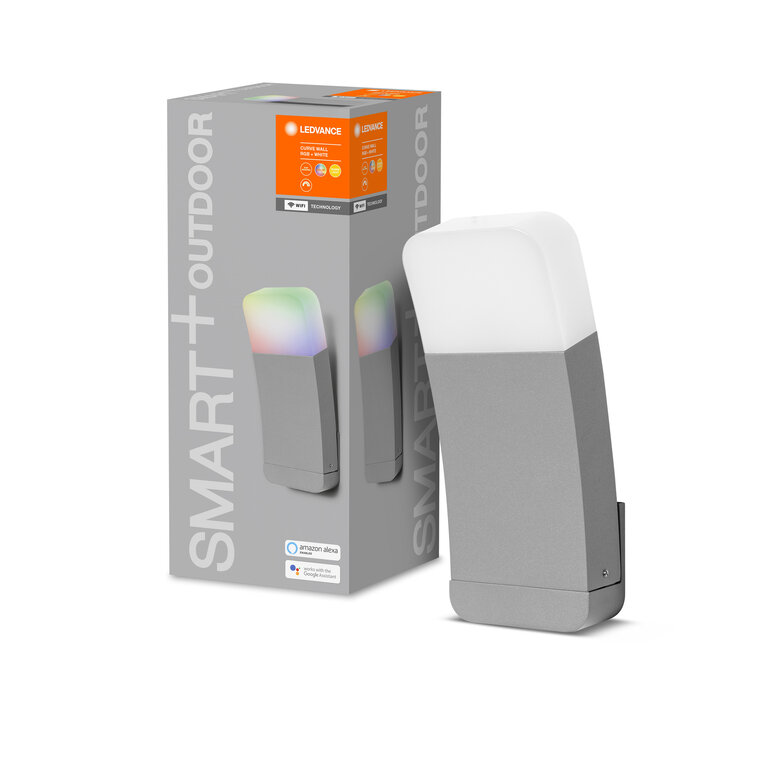

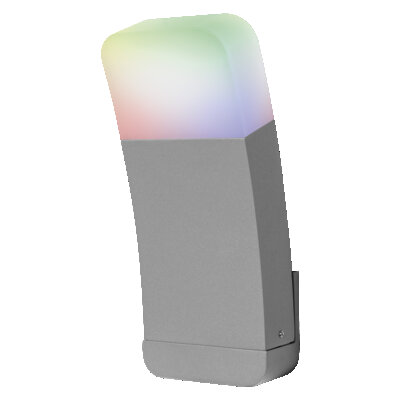

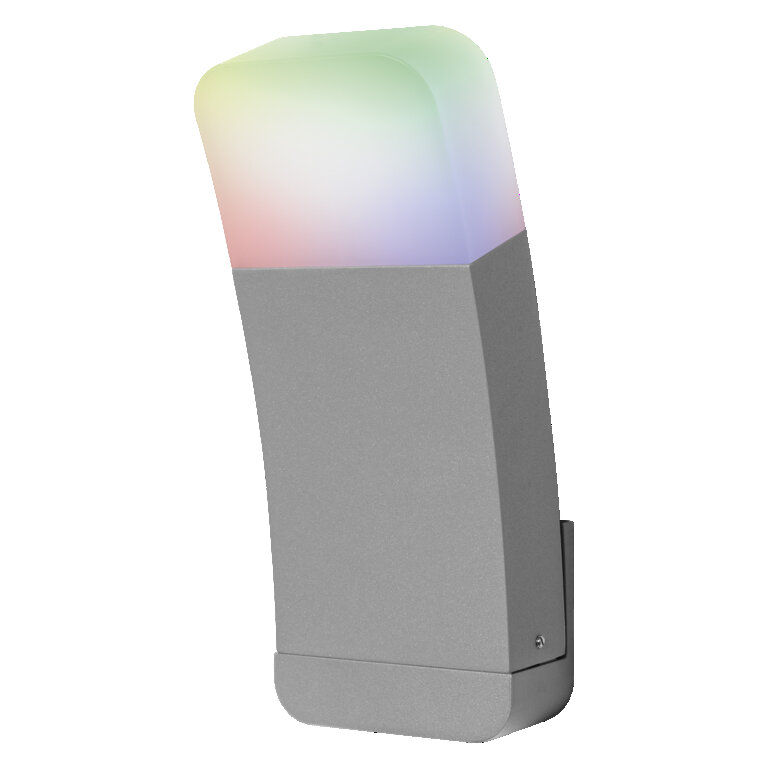

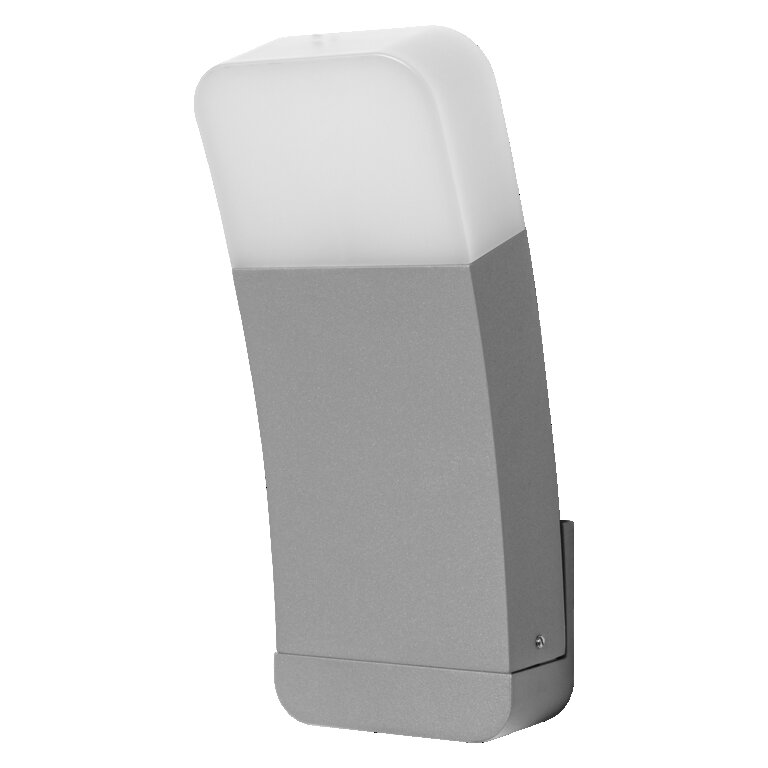

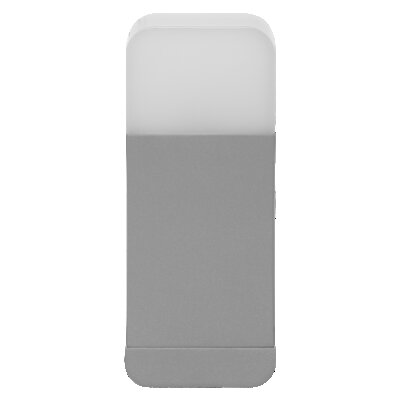

SMART+ Wifi Curve Wall RGB + W
SMART+ Wifi Curve Wall RGB + W

SMART+ Wifi Curve Wall RGB + W

Product benefits

Easy and quick installation
Colorful garden lighting with smart and intelligent control options
Combines the functionality of general lighting and mood lighting

View all details

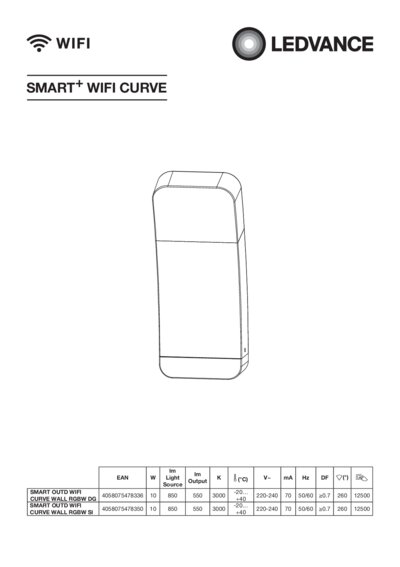

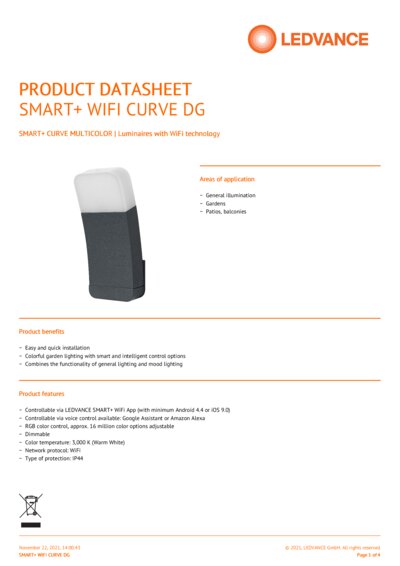

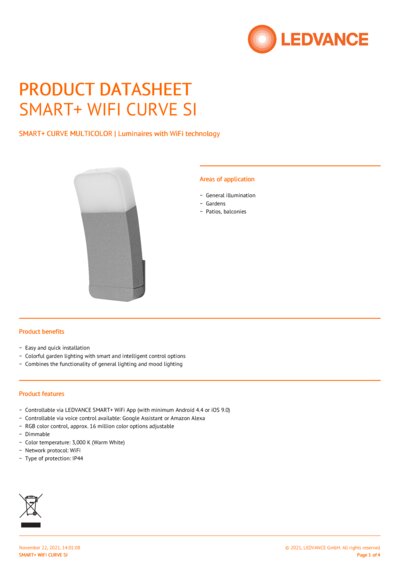

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	10.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	70.000 mA
Power factor λ	> 0.5
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Mains voltage

Photometrical data

Luminous flux	550 lm
Total luminous flux of contained light sources	850 lm
Luminous efficacy	58 lm/W
Color temperature	3000 K
Light color (designation)	RGBW
Color rendering index Ra	≥80
Standard deviation of color matching	< 6 sdcm
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	260.00 °

Dimensions & Weight

Length	93.00 mm
Height	248.00 mm
Width	100.00 mm
Product weight	950.00 g

Materials & Colors

Product color	Silver
Housing color	Silver
Body material	Aluminum
Cover material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C

Application & Mounting

Ambient temperature range	-20…+40 °C
Type of connection	Terminal, 3-Pole (L, N, PE)
Type of protection	IP44
Protection class IK (shock resistance)	IK03
Dimmable	Yes
Type of dimming	WiFi
Mounting type	Surface
Mounting location	Wall
Application environment	Outdoor
LED module replaceable	Not replaceable
With light source	No

Lifespan

Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	12500

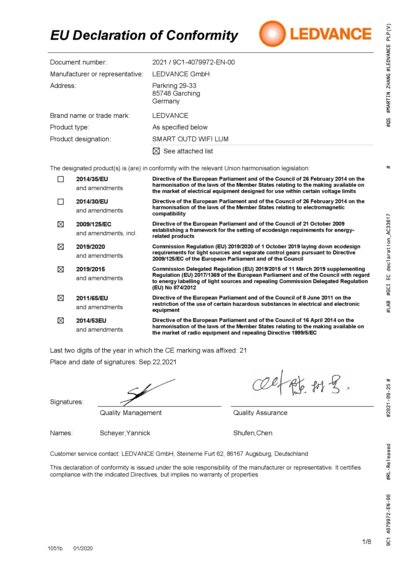

Certificates & Standards

Standards	CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign"	No

Additional product data

Product remark

Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.

Product description

Product benefits

Easy and quick installation
Colorful garden lighting with smart and intelligent control options
Combines the functionality of general lighting and mood lighting

Areas of application

General illumination
Gardens
Patios, balconies

Product features

Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
Controllable via voice control available: Google Assistant or Amazon Alexa
RGB color control, approx. 16 million color options adjustable
Dimmable
Color temperature: 3,000 K (Warm White)
Network protocol: WiFi
Type of protection: IP44

Equipment / Accessories

Mounting screws and dowels included
Control via app or voice control requires compatible Smart home system
For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075478350	Folding box 1	112 mm x 112 mm x 264 mm	1023.00 g	3.31 dm³
4058075478367	Shipping box 4	278 mm x 238 mm x 249 mm	4463.00 g	16.47 dm³

Country-specific information

EAN	ELDAS number
4058075478350	941200740
