Choose your product version

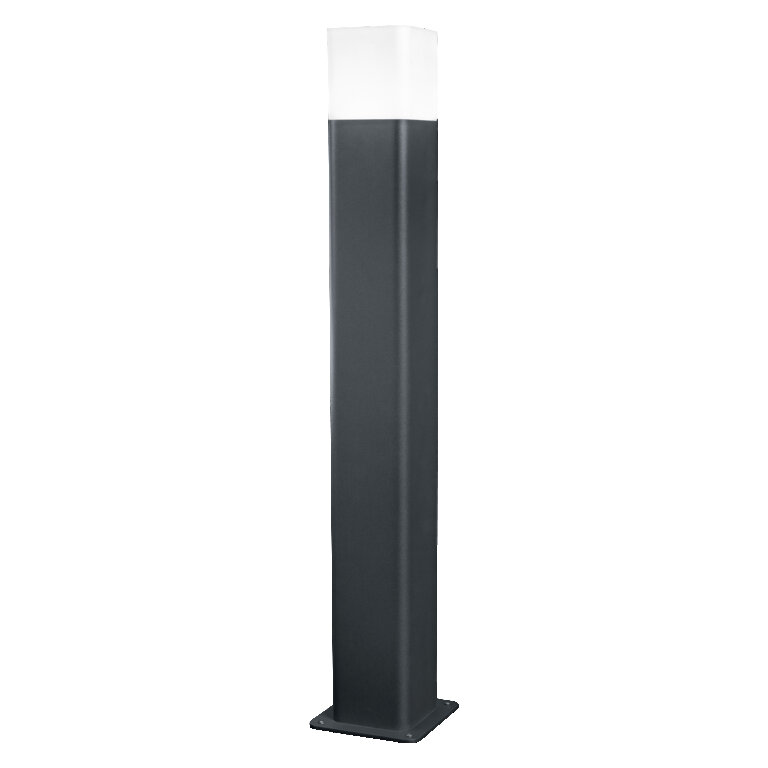

| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 70.000 mA |
| Power factor λ | > 0.5 |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 500 lm |
| Total luminous flux of contained light sources | 800 lm |
| Luminous efficacy | 56 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | RGBW |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 205.00 ° |

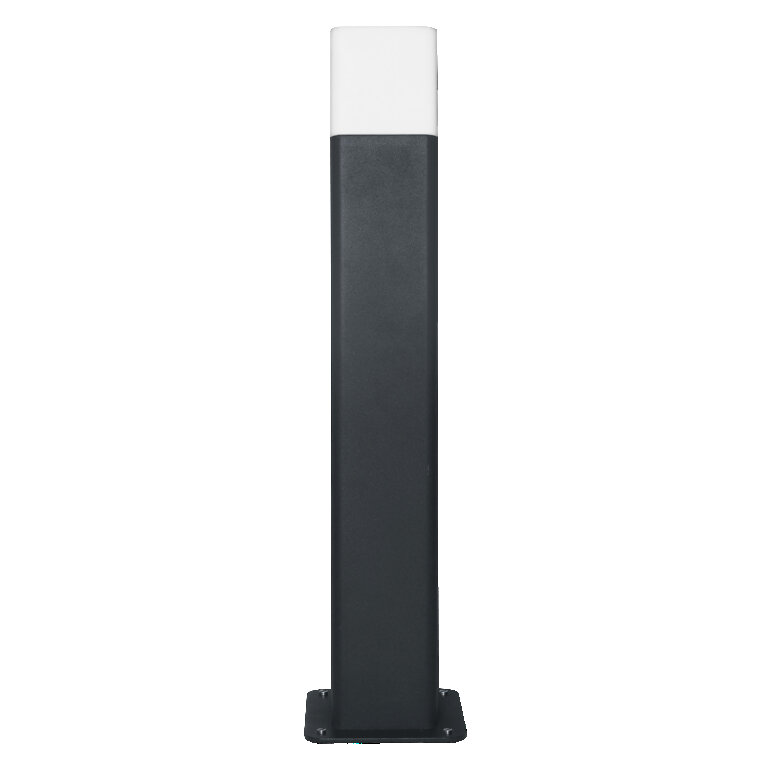

| Length | 120.00 mm |
| Height | 500.00 mm |
| Width | 120.00 mm |
| Product weight | 900.00 g |
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ground |
| Application environment | Outdoor |
| LED module replaceable | Not replaceable |
| With light source | No |
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |

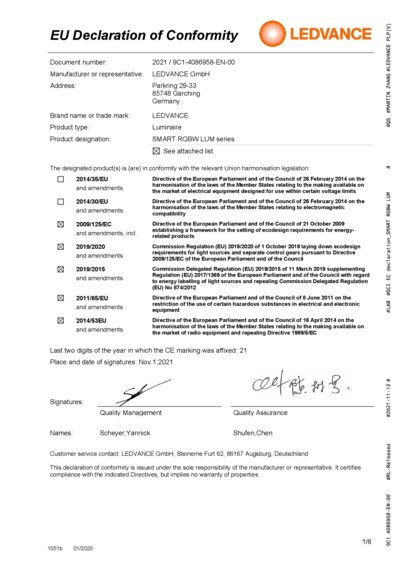

| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

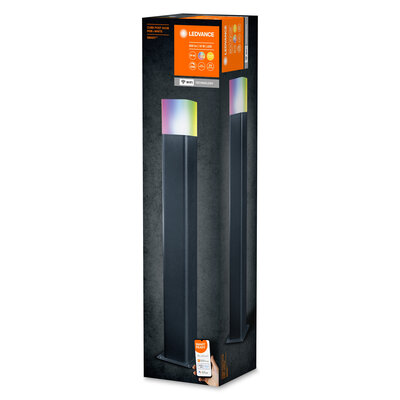

| 4058075478152 | Folding box 1 |
125 mm x 125 mm x 510 mm | 1037.00 g | 7.97 dm³ |
| 4058075478169 | Shipping box 2 |
530 mm x 270 mm x 145 mm | 2582.00 g | 20.75 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075478152 | 941740050 |
