Choose your product version
| Product description |
|---|

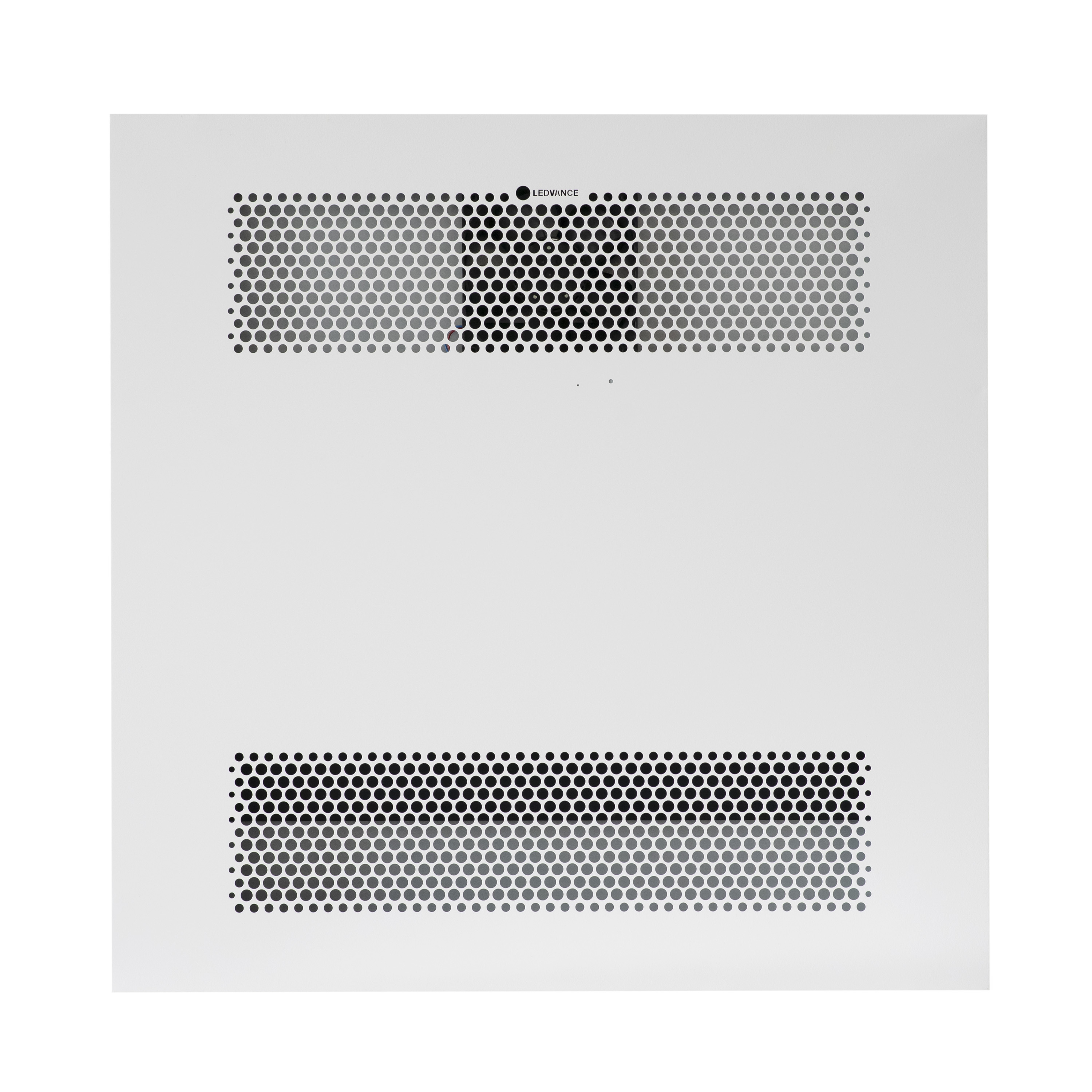

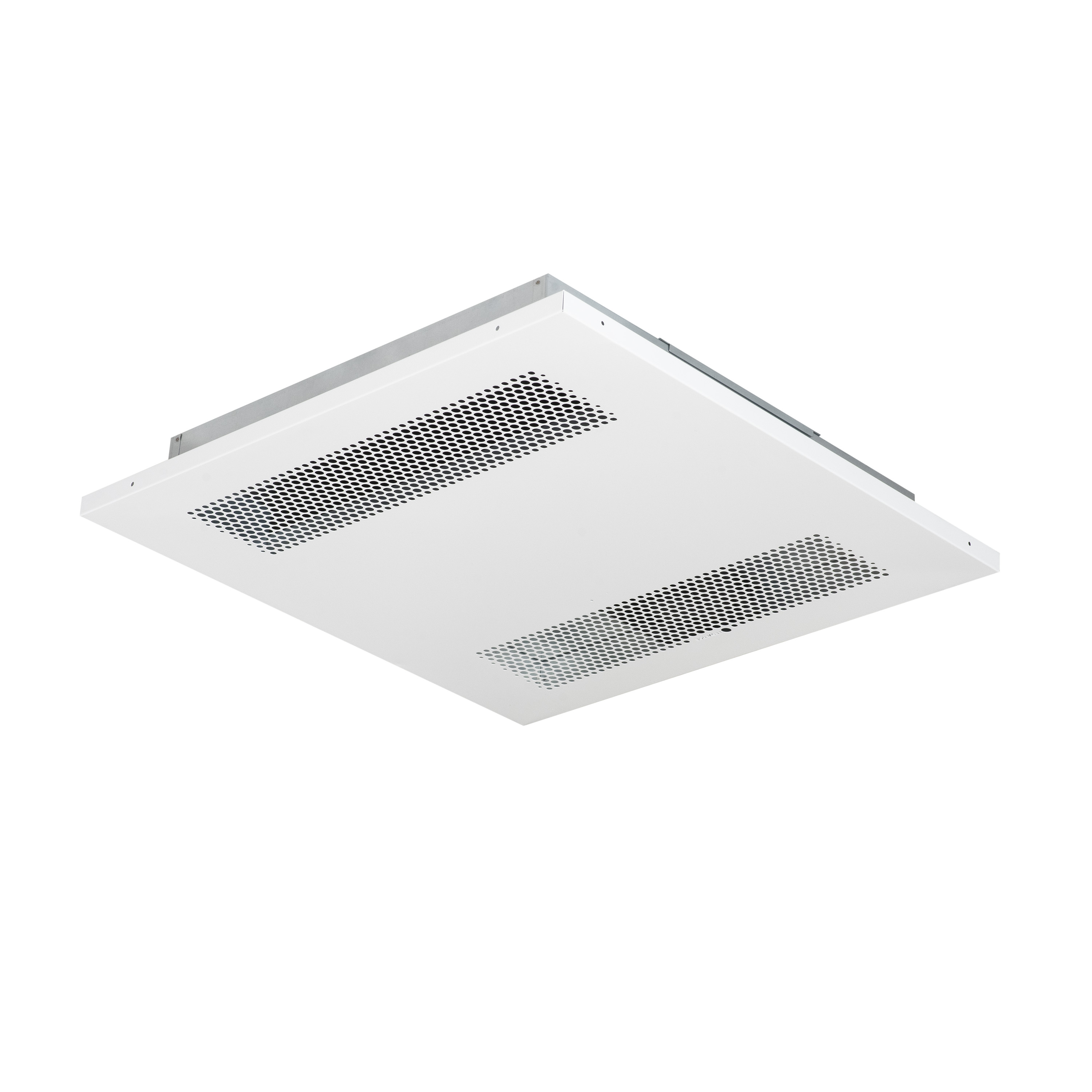

| UVC PANEL 600 2X25W WT |

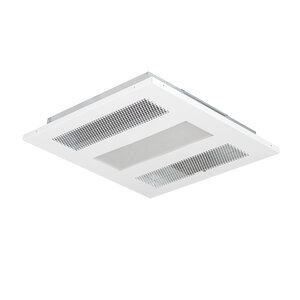

| UVC PANEL 600 2X25W LED 30W WT |
| Nominal wattage | 55.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 243.000 mA |
| Inrush current | 16.6 A |
| Inrush current time Th50 | 224 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 21 |
| Max. number of luminaires per miniature circuit breaker C10 | 19 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Electronic control gear (ECG) |
| Maximum disinfection volume flow | 60 m³/h |
| Air circulation | 60 |
| UV radiated power | 16.4 W |
| Average radiation dose | 57 J/m |
| UV-C source lifetime | 10800 h |
| Noise level in UV-C disinfection mode | <45 dB |
| Suitable for room space up to | 25 |
| Length | 595.00 mm |
| Height | 86.00 mm |
| Width | 595.00 mm |
| Product weight | 5200.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 5.0 mg |
| Ambient temperature range | +10…+40 °C |
| Type of connection | Push terminal |
| Type of protection | IP40 |
| Dimmable | No |
| Mounting type | Recessed |
| Application environment | Indoor |
| Equipped/equippable with | UVC T8 25W/G13 LEDVANCE |
| Wattage in maintained operation mode | 55 W |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075634411 | Shipping box 1 |
628 mm x 612 mm x 95 mm | 5740.00 g | 36.51 dm³ |
| EAN | SEG number | EFO number |
|---|---|---|
| 4058075634411 | 8749043 | 4901456 |
