LED SUP DL 150 12W 930 WV

Product benefits
  • Energy savings thanks to system efficacy of up to 140lm/W
  • High color rendering makes this product an ideal solution for attractive lighting tasks
  • Low UGR design ensures comfortable lighting in indoor applications
  • High-grade aluminum housing and front ring ensure reliable operation
  • Various CCT options and wattages provide more choices
  • Good glare reduction (UGR < 19)
  • Safety compliance certificates: CB, EU RoHS 2.0
  • Type of protection: IP54 (room side) provides additional protection against humidity
  • Low maintenance costs thanks to a lifetime of up to 50,000 h
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 12.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Power factor λ 0.90
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 1600 lm
Luminous efficacy 133 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 90
Standard deviation of color matching < 3 sdcm
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62471 RG0
Beam angle 65 °
UGR < 19

Dimensions & Weight

Diameter 180.00 mm
Height 65.00 mm
Product weight 410.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Temperature range at storage -20…+80 °C
Type of connection Cable, 2-pole
Type of protection IP54/IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting depth ≥ 30 mm
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings thanks to system efficacy of up to 140lm/W
  • High color rendering makes this product an ideal solution for attractive lighting tasks
  • Low UGR design ensures comfortable lighting in indoor applications
  • High-grade aluminum housing and front ring ensure reliable operation
  • Various CCT options and wattages provide more choices
  • Good glare reduction (UGR < 19)
  • Safety compliance certificates: CB, EU RoHS 2.0
  • Type of protection: IP54 (room side) provides additional protection against humidity
  • Low maintenance costs thanks to a lifetime of up to 50,000 h
Areas of application
  • Offices
  • Shops
  • Hotels, restaurants
  • Corridors
Product features
  • High system efficiency up to 140 lm/W
  • 100-277 V wide voltage operation models available
  • Color rendering index Ra: > 90
  • Available in 6W, 9W, 12W, 15W and 18W
  • Standard CCT: 4000K, 6500K & 3000K
  • Power factor: > 0.9
  • Flicker free driver
  • EMC suppression circuit in driver
  • Type of protection: IP54 (frontside), IP20 (backside)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854101076 Folding box
1		 215 mm x 84 mm x 219 mm 610.00 g 3.96 dm³
4099854101083 Shipping box
24		 526 mm x 449 mm x 468 mm 16046.00 g 110.53 dm³

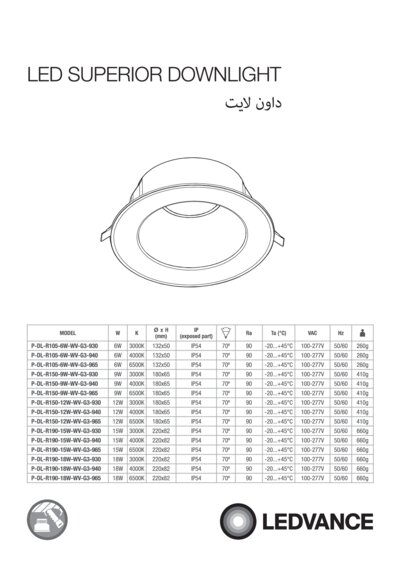

User instruction / safety instructions
LDSUP DL PDF (1.05 MB)

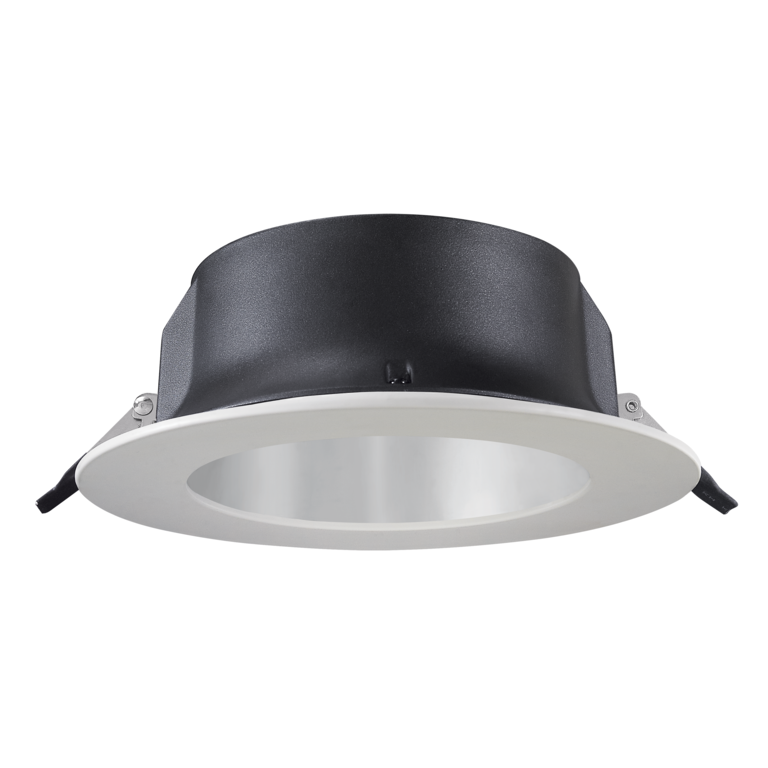

Product image: white background, diagonal
LDSUP DL PNG (4 MB)

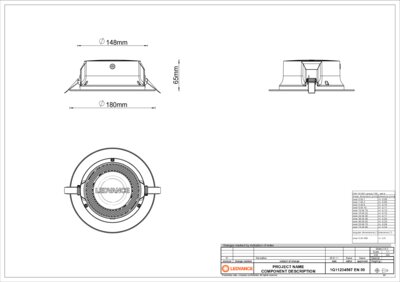

Product line drawing with numbers
LDSUP DL 150 PDF (159.49 KB)
IES file (IES)
LDSUP DL 150 12W 930 W V IES (10.08 KB)
