Professional
LUMILUX® T5 HO

LUMILUX T5 HO

Choose your product version

Phase out

24 W/827

Phase out

24 W/830

Phase out

24 W/840

Phase out

24 W/865

Phase out

39 W/830

39 W/840

Phase out

39 W/840

39 W/865

Phase out

39 W/865

Phase out

49 W/827

Phase out

49 W/830

Phase out

49 W/840

49 W/865

Phase out

49 W/865

Phase out

54 W/827

Phase out

54 W/830

Phase out

54 W/840

54 W/865

Phase out

54 W/865

80 W/827

Phase out

80 W/830

Phase out

80 W/840

80 W/865

Phase out

80 W/865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
HO 24 W/827 G5 24 W 77 V 24000 h 2000 lm Yes
HO 24 W/830 G5 24 W 77 V 24000 h 2000 lm Yes
HO 24 W/840 G5 24 W 77 V 24000 h 2000 lm Yes
HO 24 W/865 G5 24 W 77 V 24000 h 1900 lm Yes
HO 39 W/830 G5 39 W 118 V 24000 h 3400 lm Yes
HO 39 W/840 G5 39 W 118 V 24000 h 3100 lm Yes
HO 39 W/840 G5 39 W 118 V 24000 h 3400 lm Yes
HO 39 W/865 G5 39 W 118 V 24000 h 2850 lm Yes
HO 39 W/865 G5 39 W 118 V 24000 h 3200 lm Yes
HO 49 W/827 G5 49 W 195 V 24000 h 4800 lm Yes
HO 49 W/830 G5 49 W 195 V 24000 h 4800 lm Yes
HO 49 W/840 G5 49 W 195 V 24000 h 4800 lm Yes
HO 49 W/865 G5 49 W 195 V 24000 h 4100 lm Yes
HO 49 W/865 G5 49 W 195 V 24000 h 4500 lm Yes
HO 54 W/827 G5 54 W 120 V 24000 h 5000 lm Yes
HO 54 W/830 G5 54 W 120 V 24000 h 5000 lm Yes
HO 54 W/840 G5 54 W 120 V 24000 h 5000 lm Yes
HO 54 W/865 G5 54 W 120 V 24000 h 4100 lm Yes
HO 54 W/865 G5 54 W 120 V 24000 h 4750 lm Yes
HO 80 W/827 G5 80 W 152 V 24000 h 6150 lm Yes
HO 80 W/830 G5 80 W 152 V 24000 h 7000 lm Yes
HO 80 W/840 G5 80 W 152 V 24000 h 7000 lm Yes
HO 80 W/865 G5 80 W 152 V 24000 h 5700 lm Yes
HO 80 W/865 G5 80 W 152 V 24000 h 6650 lm Yes
Phase out


HO 24 W/827

Product benefits
  • Up to 20 % more economical than LUMILUX® T8
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 24 W
Construction wattage 22.40 W
Nominal voltage 77 V
Nominal current 0.3 A

Photometrical data

Luminous flux 2000 lm
Luminous efficacy 89 lm/W
Luminous flux at 25 °C Array
Luminous flux at 35 °C 2000 lm
Light color (designation) LUMILUX INTERNA
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Rated LLMF at 2,000 h 0.95
Rated LLMF at 4,000 h 0.93
Rated LLMF at 6,000 h 0.92
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.90
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.89

Dimensions & Weight

Overall length 563.20 mm
Length with base excl. base pins/connection 549,00 mm
Diameter 16,0 mm
Tube diameter 16 mm
Product weight 44.26 g

Lifespan

Service life 19000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.99
Rated lamp survival factor at 16,000 0.97
Rated lamp survival factor at 20,000 h 0.85
Lifespan B50 24000 h

1) With preheat ECG

Additional product data

Base (standard designation) G5
Mercury content 2.0 mg
Product remark Suitable for ECG operation only, Lamp designed for internal luminaire temperatures of 30…40 °C; optimum luminous flux achieved at 35 °C

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 24.00 kWh/1000h

Country-specific categorizations

ILCOS FDH-24/827-L/P/-G5-16/549
Order reference HO 24W/827

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LFL_T5_HO
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 563.20 mm
Height 16,0 mm
Width 16,0 mm
Chromaticity coordinate x 0,463
Chromaticity coordinate y 0,420
Beam angle correspondence SPHERE_360
EPREL ID 546277
Model number AC34041
Product benefits
  • Up to 20 % more economical than LUMILUX® T8
Areas of application
  • Industry
  • Public buildings
  • Offices
  • Tunnels, underpasses
  • Car parks
  • Outdoor applications only in suitable luminaires
Product features
  • Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
  • Good color rendering index
  • Dimmable
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300646077 Sleeve
1		 18 mm x 18 mm x 563 mm 67.50 g 0.18 dm³
4050300646084 Shipping box
20		 591 mm x 104 mm x 88 mm 1473.00 g 5.41 dm³
Declarations of conformity

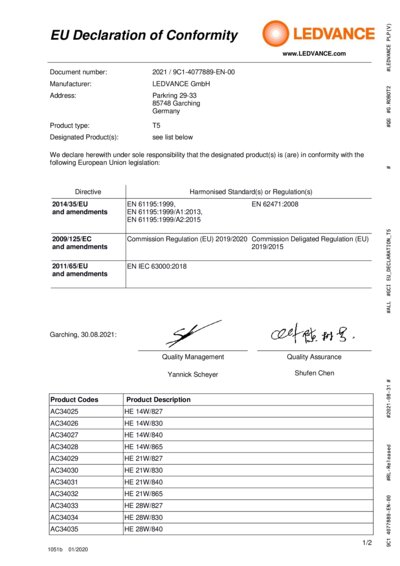

EC Declaration of Conf ormity - 2021 9C1-4077 889-EN-00 - T5 HE HO PDF (43.08 KB)
Certificates
EAC N RU D-DE.MU62.B.0 0801_20 02.03.2020-01. 03.2025 Prommash Test - FL PDF (1.2 MB)
Certificates

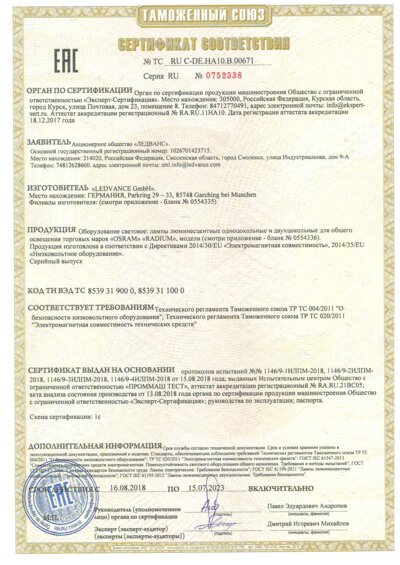

EAC RU C-DE HA10.B.006 71 16 08 2018 15 07 20 23 Expert Sertifikaciy a FL PDF (1.43 MB)

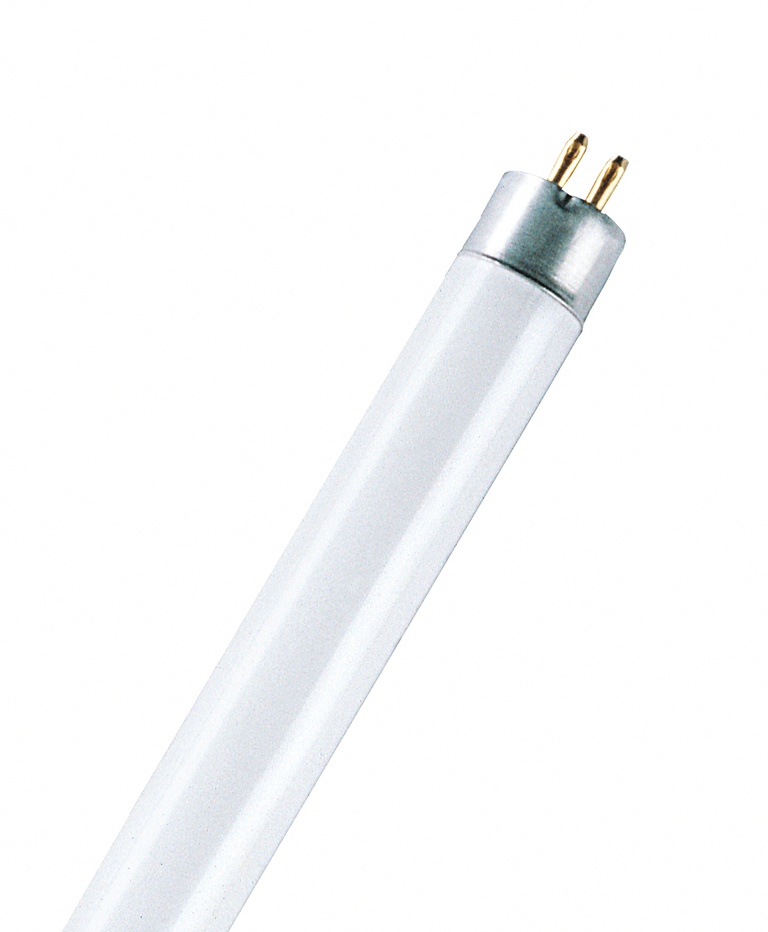

Product Image, Diagonal, White BG
323756_LUMILUX T5 HE / T5 HO / T5 HO CONSTAN T / DE LUXE T5 HO / L4 ... 13W TIF (7.72 MB)
Product line drawing with letters
2804_FLUORESCENT LAMP T5, G5 BASE Base: G5 SVG (6.15 KB)
Prod.line drw, front, no dimensions
325856_FLUORESCENT LAM P (BASIC T5/LUMILUX T5 ) G5 BASE SVG (2.79 KB)
Energy label
EL-4050300646077-AC340 41 PDF (21.6 KB)
Logos and Pictos
G left SVG (2.41 KB)
Logos and Pictos
G left BW SVG (1.07 KB)
Logos and Pictos
G right SVG (2.4 KB)
Logos and Pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349636_FL_827 PNG (92.23 KB)
EAN SEG number STK number EFO number ELDAS number
4050300646077 8328600 4930221 3860622 946143440
