Professional
LUMILUX® T8

LUMILUX T8

Choose your product version

Phase out

15 W/827

Phase out

15 W/830

Phase out

15 W/840

Phase out

15 W/840

Phase out

15 W/865

Phase out

16 W/827

18 W/

18 W/

18 W/

Phase out

18 W/827

18 W/2700 K

18 W/3000 K

Phase out

18 W/830

18 W/3000 K

Phase out

18 W/840

Phase out

18 W/840

18 W/4000 K

18 W/860

18 W/6500 K

Phase out

18 W/865

18 W/6500 K

Phase out

18 W/880

Phase out

23 W/840

30 W/

Phase out

30 W/827

Phase out

30 W/830

30 W/4000 K

Phase out

30 W/840

Phase out

30 W/840

30 W/6500 K

Phase out

30 W/865

Phase out

30 W/880

36 W/

Phase out

36 W/827

36 W/2700 K

36 W/3000 K

Phase out

36 W/830

36 W/830

36 W/3000 K

Phase out

36 W/840

Phase out

36 W/840

Phase out

36 W/840

36 W/4000 K

36 W/4000 K

36 W/5400 K

Phase out

36 W/865

36 W/6500 K

36 W/860

Phase out

36 W/880

Phase out

38 W/830

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
L 15 W/827 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/830 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/840 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/840 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/865 G13 15 W 55 V 20000 h 900 lm Yes
L 16 W/827 G13 16 W 90 V 20000 h 1250 lm Yes
L 18 W/ G13 18 W 220 V 20000 h Yes
L 18 W/ G13 18 W 220 V Yes
L 18 W/ G13 18 W 220 V 20000 h Yes
L 18 W/827 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/2700 K G13 18 W 57 V 20000 h 1350 lm Yes
L 18 W/3000 K G13 18 W 220 V Yes
L 18 W/830 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/3000 K G13 18 W 57 V 20000 h 1350 lm Yes
L 18 W/840 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/840 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/4000 K G13 18 W 57 V 20000 h 1350 lm Yes
L 18 W/860 G13 18 W 220 V Yes
L 18 W/6500 K G13 18 W 220 V Yes
L 18 W/865 G13 18 W 57 V 20000 h 1250 lm Yes
L 18 W/6500 K G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/880 G13 18 W 57 V 20000 h 1200 lm Yes
L 23 W/840 G13 23 W 94 V 20000 h 1900 lm Yes
L 30 W/ G13 30 W 220 V 5000 h Yes
L 30 W/827 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/830 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/4000 K G13 30 W 220 V 20000 h Yes
L 30 W/840 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/840 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/6500 K G13 30 W 220 V 20000 h Yes
L 30 W/865 G13 30 W 96 V 20000 h 2350 lm Yes
L 30 W/880 G13 30 W 96 V 20000 h 2350 lm Yes
L 36 W/ G13 36 W 220 V Yes
L 36 W/827 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/2700 K G13 36 W 220 V 20000 h 3350 lm Yes
L 36 W/3000 K G13 36 W 220 V Yes
L 36 W/830 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/830 G13 36 W 20000 h 3350 lm Yes
L 36 W/3000 K G13 36 W 103 V 20000 h 3350 lm Yes
L 36 W/840 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/840 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/840 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/4000 K G13 36 W 220 V 3350 lm Yes
L 36 W/4000 K G13 36 W 103 V 20000 h 3350 lm Yes
L 36 W/5400 K G13 36 W Yes
L 36 W/865 G13 36 W 103 V 20000 h 3150 lm Yes
L 36 W/6500 K G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/860 G13 36 W 220 V 3250 lm Yes
L 36 W/880 G13 36 W 103 V 20000 h 3000 lm Yes
L 38 W/830 G13 38 W 104 V 20000 h 3300 lm Yes
Phase out


L 15 W/827

Product benefits
  • Proven lamp technology
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15 W
Construction wattage 14.90 W
Nominal voltage 55 V
Nominal current 0.31 A

Photometrical data

Luminous flux 950 lm
Luminous efficacy 64 lm/W
Light color (designation) LUMILUX INTERNA
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Rated LLMF at 2,000 h 0.96
Rated LLMF at 4,000 h 0.94
Rated LLMF at 6,000 h 0.93
Rated LLMF at 8,000 h 0.91
Rated LLMF at 12,000 h 0.91
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.96

Dimensions & Weight

Overall length 451.60 mm
Length with base excl. base pins/connection 438,00 mm
Diameter 26,0 mm
Tube diameter 26 mm
Product weight 60.00 g

Lifespan

Service life 16000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.99
Rated lamp survival factor at 16,000 0.90
Rated lamp survival factor at 20,000 h 0.50
Lifespan B50 20000 h

1) With preheat ECG

Additional product data

Base (standard designation) G13
Mercury content 3.0 mg

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 15.00 kWh/1000h

Country-specific categorizations

ILCOS FD-15/827-E-G13-26/438
Order reference L 15W/827

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER_FL
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 451.60 mm
Height 26,0 mm
Width 26,0 mm
Chromaticity coordinate x 0,463
Chromaticity coordinate y 0,420
Beam angle correspondence SPHERE_360
EPREL ID 546355,1215991
Model number AC34142,AC42499

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Proven lamp technology
Areas of application
  • Public buildings
  • Office lighting
  • Industry
  • Shops
  • Supermarkets and department stores
  • Street lighting
  • Outdoor applications only in suitable luminaires
Product features
  • Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
  • Good color rendering index
  • Dimmable
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300446042 Sleeve
1		 27 mm x 28 mm x 453 mm 75.00 g 0.34 dm³
4050300446059 Shipping box
25		 474 mm x 150 mm x 155 mm 2034.00 g 11.02 dm³

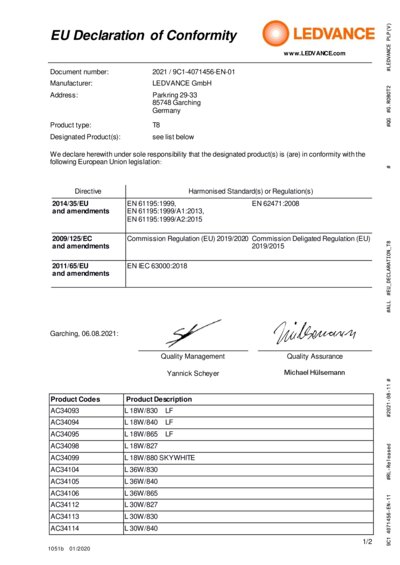

Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4071 456-EN-01 - T8 PDF (153.03 KB)

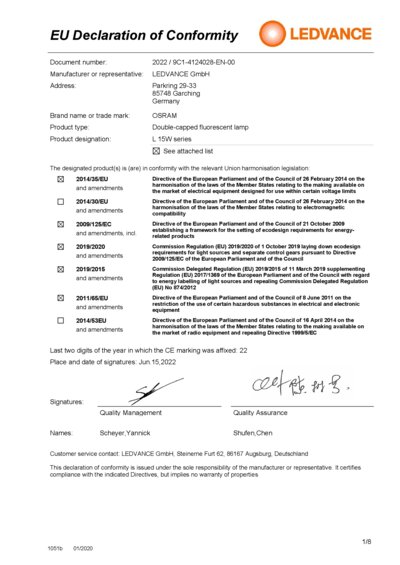

Declarations of conformity
L 15W T8 PDF (290.08 KB)

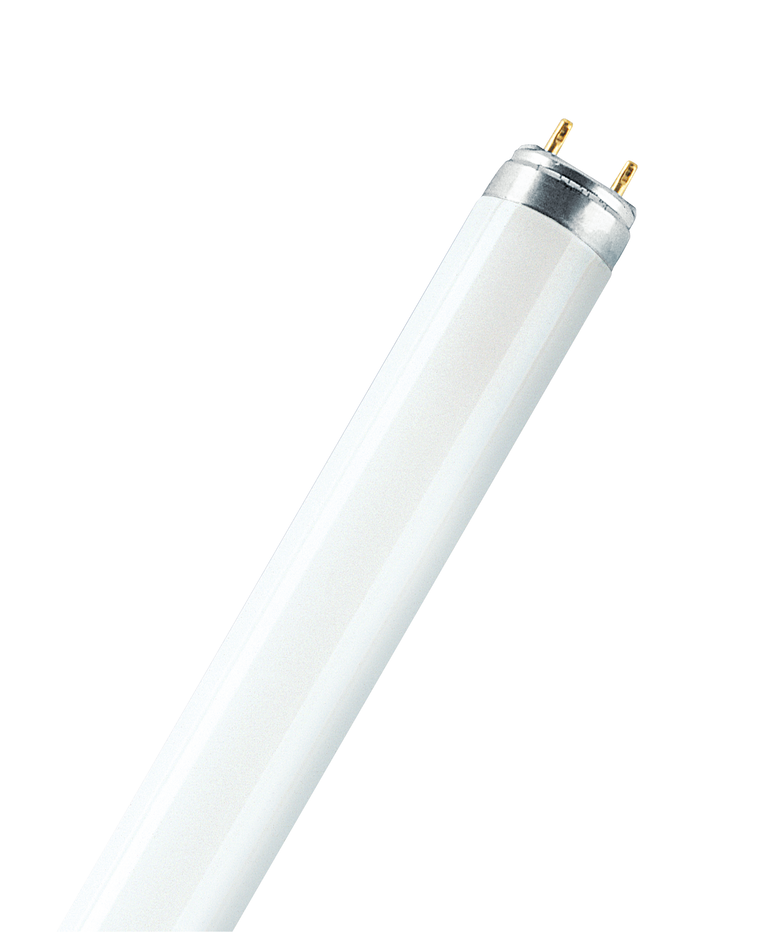

Product Image, Diagonal, White BG
313063_LUMILUX T8 XT / LUMILUX T8 XXT TIF (2.8 MB)
Product line drawing with letters
324360_FLUORESCENT LAM P (BASIC T8/LUMILUX T8 ) G13 BASE SVG (5.67 KB)
Energy label
EL-4050300446042-AC341 42 PDF (21.46 KB)
Energy label
EL-4050300446042-AC424 99 PDF (21.34 KB)
Logos and Pictos
G left SVG (2.41 KB)
Logos and Pictos
G left BW SVG (1.07 KB)
Logos and Pictos
G right SVG (2.4 KB)
Logos and Pictos
G right BW SVG (1.06 KB)

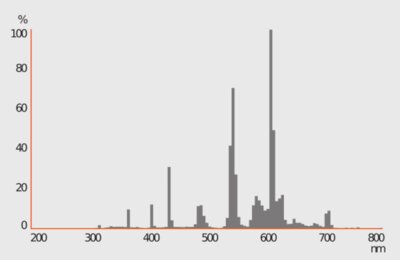

Spectral power distribution
349636_FL_827 PNG (92.23 KB)
Video
Lamp Ban 2023 Video In dustry 2022 05 EN MP4 (245.76 MB)
Video
Lamp Ban 2023 Video Of fice 2023 05 EN MP4 (211.38 MB)
EAN SEG number STK number EFO number ELDAS number
4050300446042 8329010 4932140 3820123 946010130
