Professional
Starters for series operation at 230 V AC ( ST 151, ST 172)

Starters for series operation at 230 V AC ( ST 151, ST 172)

Choose your product version

OVERVIEW

Product description Nominal wattage Nominal voltage Dimmable
ST 172 SAFETY DEOS 22.00 W 220…240 V No
ST 151 LONGLIFE 22.00 W 220…240 V No
Phase out

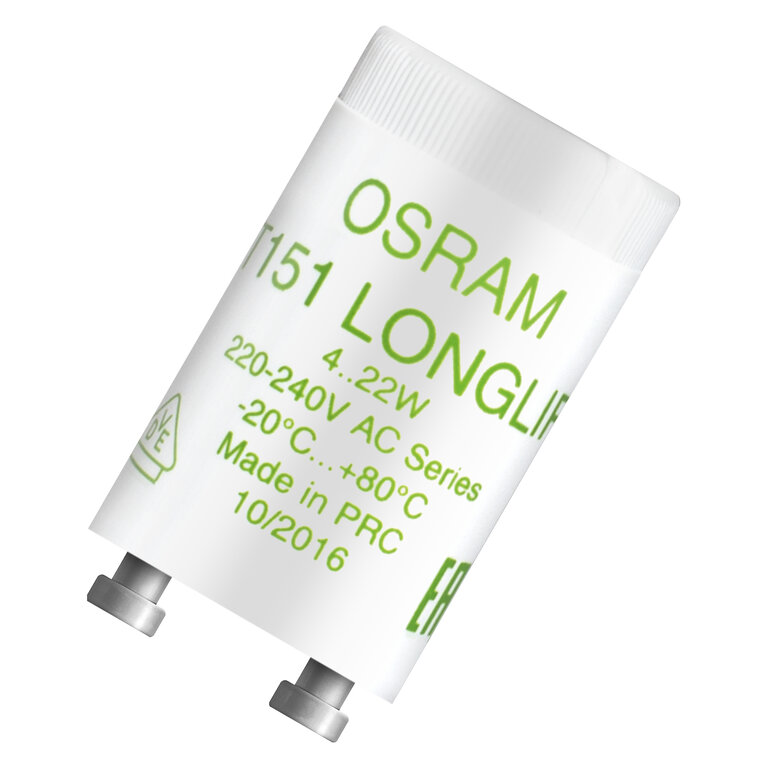

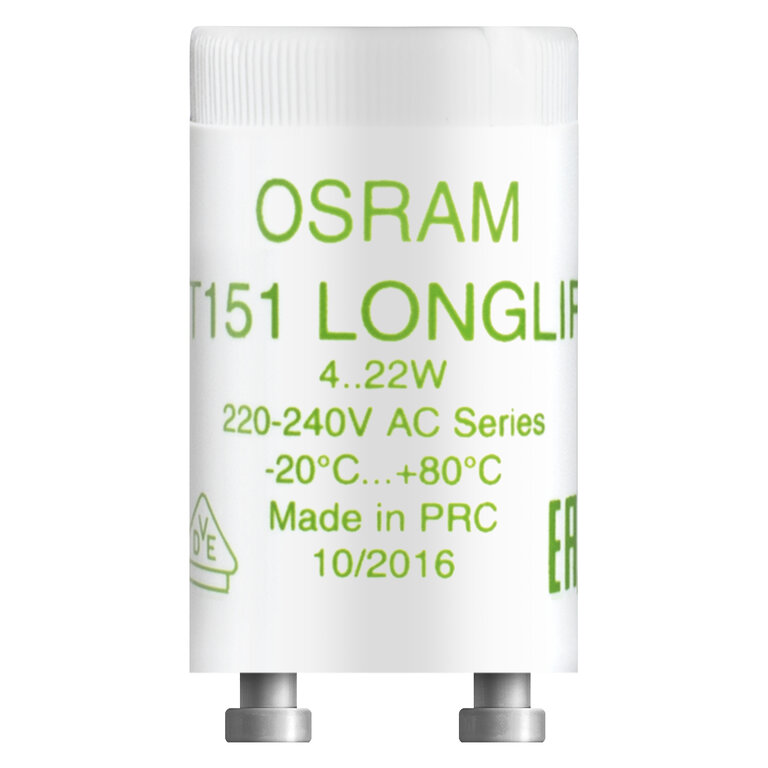

ST 151 LONGLIFE

Product benefits

PRODUCT DETAILS

Electrical data

Nominal wattage 22.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz

Dimensions & Weight

Diameter 21,5 mm
Product weight 6.43 g

Additional product data

Mercury content 0.0 mg
Product remark Starters are available in two different designs, with identical technical features

Capabilities

Dimmable No

Country-specific categorizations

Order reference ST 151 LONGLIFE

Energy labelling regulation data acc EU 2019/2015

Length 40.30 mm
Height 21,5 mm
Width 21.50 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product features
  • Temperature range for reliable cut-out: -20…+80 °C
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300092638 Blister
2
111 mm x 24 mm x 68 mm 26.10 g 0.18 dm³
4050300119595 Shipping box
20
165 mm x 154 mm x 133 mm 308.67 g 3.38 dm³
EAN EFO number
4050300092638 3843105
