Professional
Starters for single operation at 230 V AC ( ST 111, ST 171, ST 173)

Starters for single operation at 230 V AC ( ST 111, ST 171, ST 173)

Choose your product version

OVERVIEW

Product description Nominal wattage Nominal voltage Dimmable
ST 171 SAFETY DEOS 65.00 W 220…240 V No

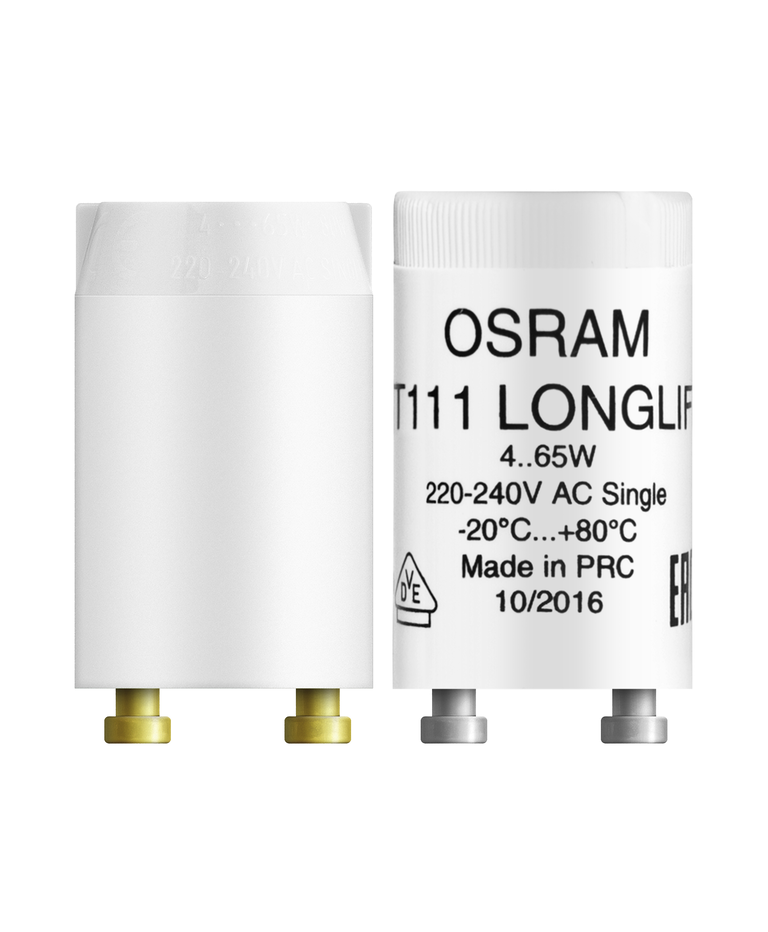

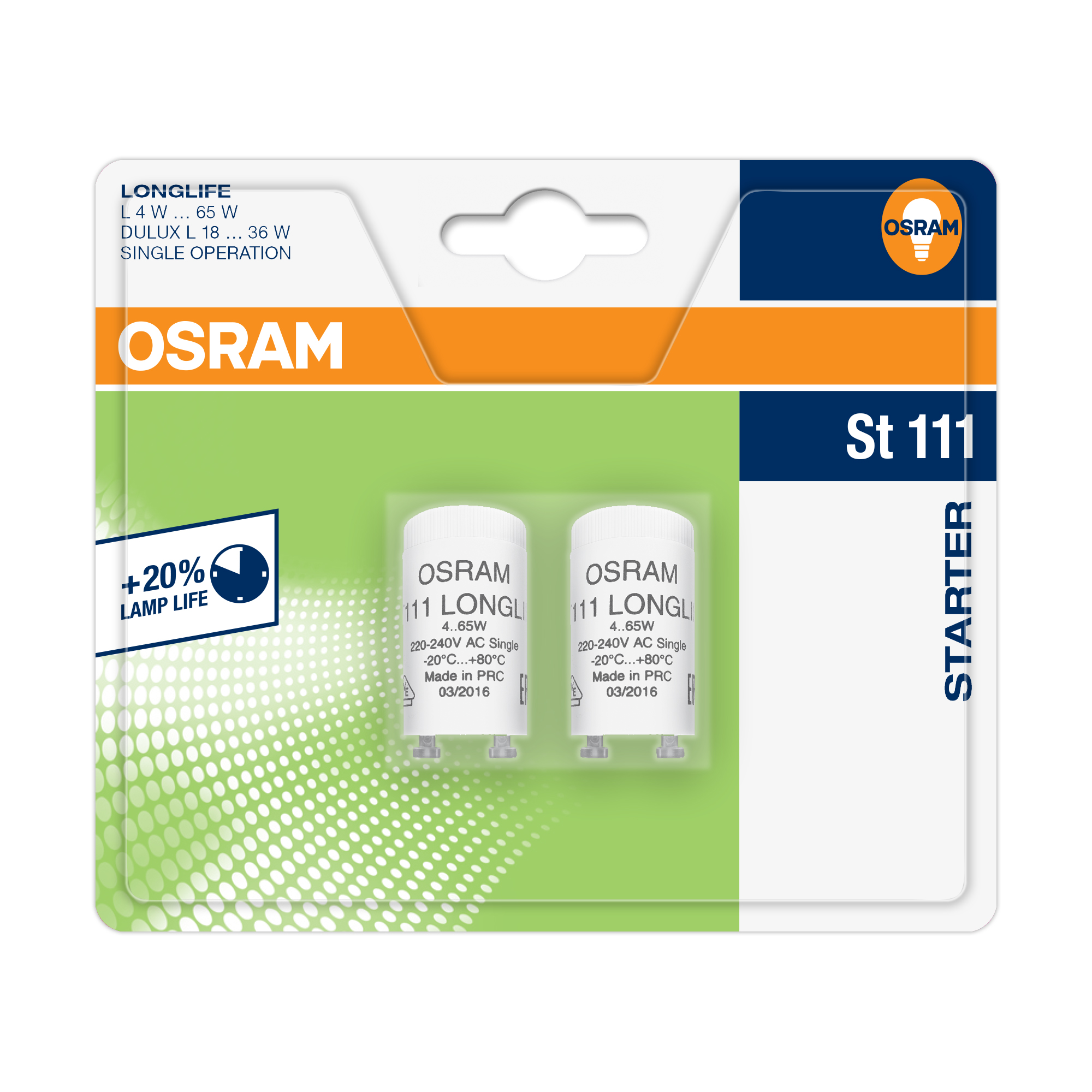

ST 111 LONGLIFE 65.00 W 220…240 V No
ST 171 SAFETY DEOS 65.00 W 220…240 V No
Phase out

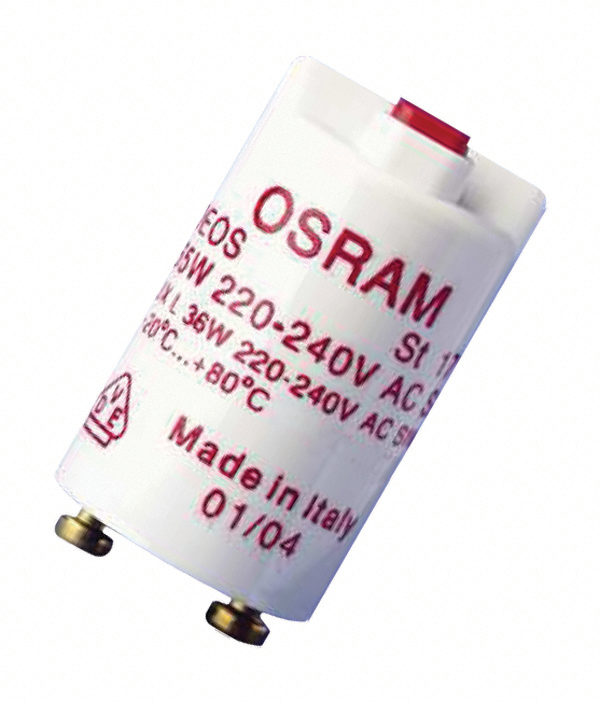

ST 171 SAFETY DEOS

Product benefits

PRODUCT DETAILS

Electrical data

Nominal wattage 65.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz

Dimensions & Weight

Diameter 21,5 mm
Product weight 8.64 g

Additional product data

Mercury content 0.0 mg
Product remark Temperature range for reliable switch-off: -20…+80 °C

Capabilities

Dimmable No

Country-specific categorizations

Order reference ST171SAFETY/220

Energy labelling regulation data acc EU 2019/2015

Length 40.30 mm
Height 21,5 mm
Width 21.50 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product features
  • Temperature range for reliable cut-out: -20…+80 °C
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300422855 Unpacked
1
35 mm x 18 mm x 20 mm 8.64 g 0.01 dm³
4050300854106 Unpacked
1
37 mm x 19 mm x 22 mm 9.80 g 0.02 dm³
4050300797823 Tray
25
111 mm x 43 mm x 113 mm 232.80 g 0.54 dm³
4050300797830 Shipping box
200
227 mm x 98 mm x 227 mm 2020.00 g 5.05 dm³
4050300422862 Shipping box
1,200
400 mm x 265 mm x 325 mm 11169.00 g 34.45 dm³
EAN STK number ELDAS number
4050300422855 4030316 919501920
