Professional
POWERSTAR HQI®-TS

POWERSTAR HQI-TS

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
HQI-TS 2000 W/N/L K12s-36 2000 W 200 V 8000 h 230000 lm No

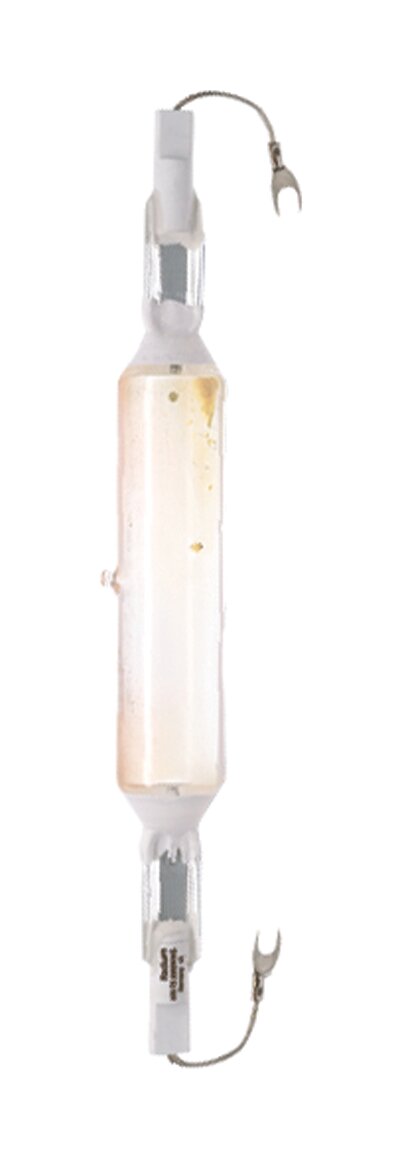

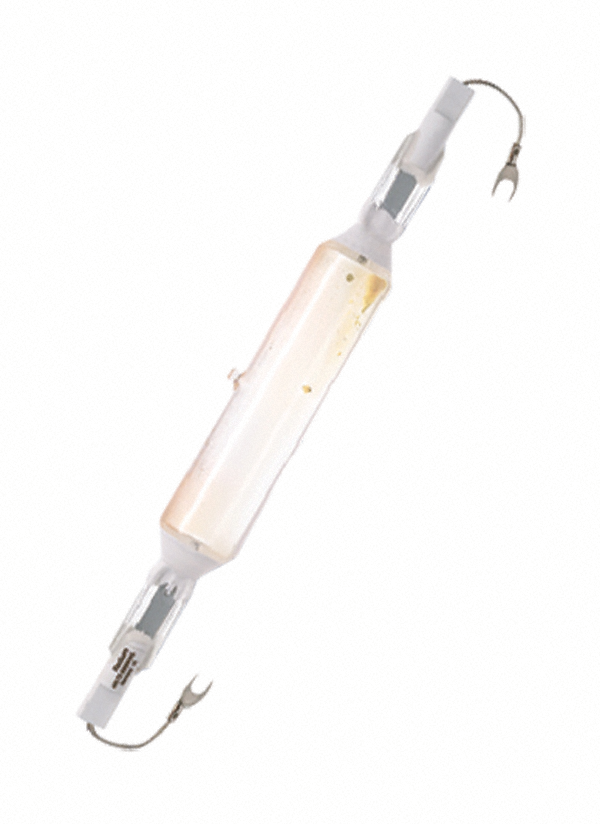

HQI-TS 2000 W/N/L

Product benefits
  • Very high efficiency
  • Very high luminous flux
  • Ideal for compact floodlights
  • Good positioning thanks to K12s base

PRODUCT DETAILS

Electrical data

Nominal wattage 2000 W
Nominal voltage 200 V
Ignition voltage 4.0/36 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 10.4 A
PFC capacitor at 50 Hz 60 µF

1) Minimum / Maximum

Photometrical data

Luminous flux 230000 lm
Luminous efficacy 107 lm/W
Color temperature 4100 K
Color rendering index Ra 65
Light color 641
Rated LLMF at 2,000 h 0.91
Rated LLMF at 4,000 h 0.85
Rated LLMF at 6,000 h 0.82
Rated LLMF at 8,000 h 0.80
Rated lamp efficacy (standard co.) 107 lm/W
UV protection No

Light technical data

Starting time 120 s

Dimensions & Weight

Overall length 274.00 mm
Length 274.00 mm
Light center length (LCL) 137,0 mm
Diameter 40 mm
Product weight 88.7 g

Temperatures & operating conditions

Maximum permitted outer bulb temperature 950 °C
Maximum permitted pinch temperature 390 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.95
Rated lamp survival factor at 4,000 h 0.83
Rated lamp survival factor at 6,000 h 0.67
Rated lamp survival factor at 8,000 h 0.50
Lifespan B50 8000 h

Additional product data

Base (standard designation) K12s-36
Mercury content 220.0 mg
Design / version Clear
Product remark Not for general lighting

Capabilities

Dimmable No
Burning position p15
Enclosed luminaire required Yes
Hot restart Yes

Certificates & Standards

Energy consumption 2365.00 kWh/1000h

Country-specific categorizations

ILCOS MN-2000/842-E/E/SL-K12s=36-40/274/H
Order reference HQI-TS 2000W/N/
Product benefits
  • Very high efficiency
  • Very high luminous flux
  • Ideal for compact floodlights
  • Good positioning thanks to K12s base
Areas of application
  • Sports stadiums and floodlight systems
  • Industrial installations
  • Airports
  • Docks and port facilities
  • Marshaling yards, container transshipment facilities
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321530660 Folding box
1
75 mm x 75 mm x 75 mm 178.51 g 0.42 dm³
4008321530677 Shipping box
10
391 mm x 336 mm x 164 mm 2100.36 g 21.55 dm³
EAN SEG number STK number EFO number ELDAS number AU model number
4008321530660 8333140 4834620 3861004 948813990 OSRHQI-TS2000W/N/L
