POWERSTAR HQI®-E coated 1000 W

POWERSTAR HQI-E coated 1000 W

Choose your product version

1000 W/N

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
HQI-E 1000 W/N E40 1000 W 125 V 9000 h 100000 lm No


HQI-E 1000 W/N

Product benefits
  • E40 screw base for simple lamp handling
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 1000 W
Nominal voltage 125 V
Ignition voltage 4.0/5.0 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 9.5 A
PFC capacitor at 50 Hz 85 µF

1) Minimum / Maximum

Photometrical data

Luminous flux 100000 lm
Luminous efficacy 94 lm/W
Color temperature 3700 K
Color rendering index Ra 62
Light color 637
Rated LLMF at 2,000 h 0.85
Rated LLMF at 4,000 h 0.74
Rated LLMF at 6,000 h 0.67
Rated LLMF at 8,000 h 0.63
Rated lamp efficacy (standard co.) 94 lm/W
UV protection Yes

Dimensions & Weight

Overall length 380.00 mm
Length 380.00 mm
Diameter 165 mm
Product weight 395.00 g

Temperatures & operating conditions

Maximum permitted outer bulb temperature 500 °C
Maximum permitted base edge temperature 250 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.92
Rated lamp survival factor at 8,000 h 0.77
Lifespan B50 9000 h

Additional product data

Base (standard designation) E40
Mercury content 105.0 mg
Design / version Coated
Product remark Not for general lighting

Capabilities

Dimmable No
Burning position h45
Enclosed luminaire required Yes
Hot restart No

Certificates & Standards

Energy consumption 1171.50 kWh/1000h

Country-specific categorizations

ILCOS ME/UB-1000/638-H/E/SL-E40-165/380/V
Order reference HQI-E 1000W/N C
Product benefits
  • E40 screw base for simple lamp handling
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
  • Factories and workshops
  • Exhibition halls and trade fairs
  • Sports halls and multi-purpose halls
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
  • Light colors: neutral white (NDL), daylight (D)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321528261 Round wrap
1		 750 mm x 400 mm 583.00 g
4008321528278 Shipping box
6		 545 mm x 365 mm x 435 mm 4619.00 g 86.53 dm³
User Instruction / Safety Instructions
High Intensity Dischar ge Lamp UI PDF (177.47 KB)
Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4082 707-EN-00 - HQI 1000W- 2000W PDF (156.59 KB)
Certificates
EAC RU C-DE.AYA46.B.16 087_20 13.10.2020-12.1 0.2025 Rostest-Moskva - MH single capped PDF (943.08 KB)
Certificates
EAC N RU D-DE.MU62.B.0 0932_20 06.03.2020-05. 03.2025 Prommash Test - MH PDF (1.15 MB)

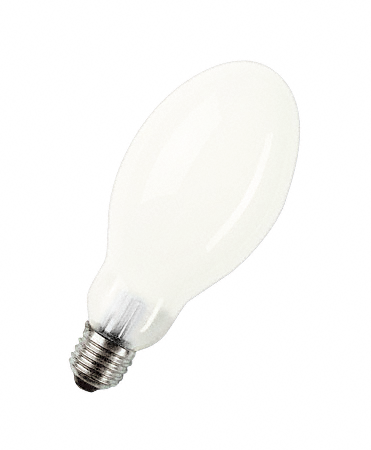

Product Image, Diagonal, White BG
324459_POWERSTAR HQI-E TIF (676.47 KB)
Product line drawing with letters
327965_POWERSTAR HQI-E COATED E40 SVG (11.68 KB)
Prod.line drw, front, no dimensions
327966_POWERSTAR HQI-E COATED E40 SVG (8.53 KB)

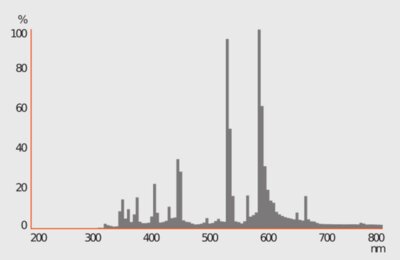

Spectral power distribution
384078_HQI_T_N_E40 PNG (92.86 KB)
EAN SEG number STK number EFO number ELDAS number
4008321528261 8333360 4834771 3810290 948801890
