Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Dimmable |
|---|---|---|---|---|---|

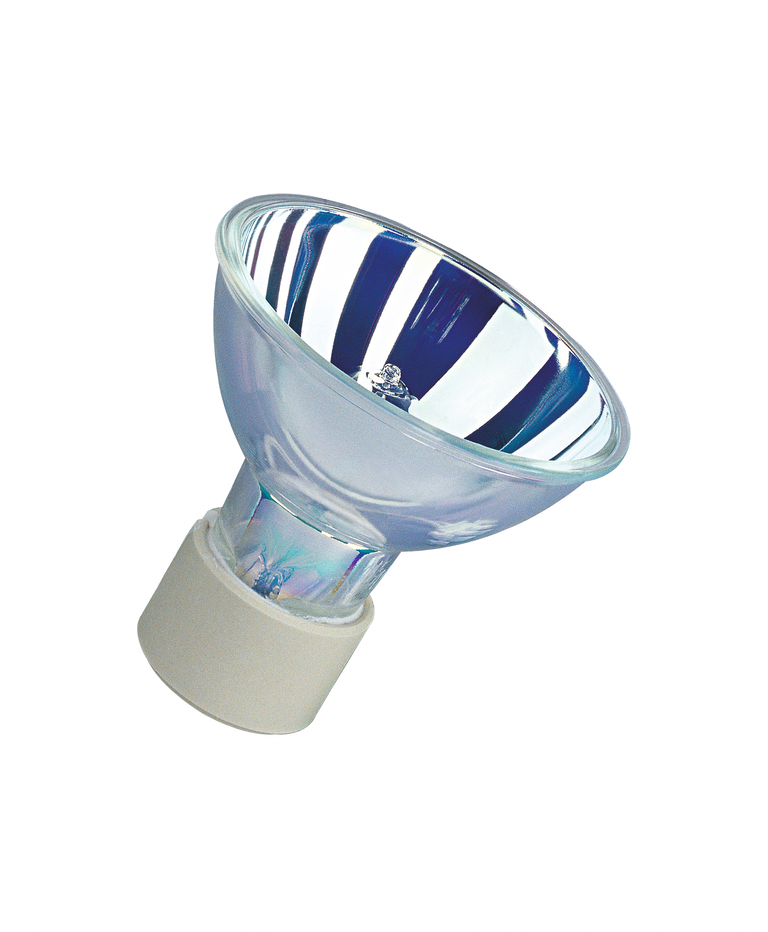

| HQI-R 150 W/NDL/FO | 2 pins | 150 W | 151.2 V | 9000 h | No |
| Nominal wattage | 150 W |
| Nominal voltage | 151.2 V |
| Ignition voltage | 3.6/5.0 kVp 1) |
| Operating mode | Conventional control gear (CCG) and ignitor |
| Nominal current | 1.8 A |
| PFC capacitor at 50 Hz | 20 µF |
1) Minimum / Maximum
| Luminous intensity | 11000 cd |
| Aperture luminous flux | 5200 lm, 1850 lm |
| Luminous efficacy | 78 lm/W |
| Color temperature | 4200 K |
| Color rendering index Ra | 85 |
| Light color | 842 |
| UV protection | Yes |
| Overall length | 93.00 mm |
| Length | 93.00 mm |
| Diameter | 96,0 mm |
| Product weight | 212.00 g |
| Rated lamp survival factor at 2,000 h | 0.92 |
| Rated lamp survival factor at 4,000 h | 0.90 |
| Rated lamp survival factor at 6,000 h | 0.80 |
| Rated lamp survival factor at 8,000 h | 0.55 |
| Lifespan B50 | 9000 h |
| Base (standard designation) | 2 pins |
| Mercury content | 30.0 mg |
| Product remark | Not for general lighting, For image and video projection applications only |
| Dimmable | No |
| Burning position | p15 |
| Enclosed luminaire required | No |
| Hot restart | No |
| Energy consumption | 152.00 kWh/1000h |
| ILCOS | MR-150/42/1B-H-STECKER-95/93/P15 |
| Order reference | HQI-R 150W/NDL |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321691262 | Folding box 1 |
144 mm x 130 mm x 129 mm | 358.50 g | 2.41 dm³ |
| 4008321691279 | Shipping box 12 |
595 mm x 405 mm x 145 mm | 4774.00 g | 34.94 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321691262 | 8333460 | 4834419 | 3861013 | 948299090 |
