Professional

LED PERFORMANCE FILAMENT DAYLIGHT SENSOR

Choose your product version

7 W 3000 K

7 W 3000 K

7 W 4000 K

7 W 4000 K

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
LPCLA60DS B22D 7 W 3000 K B22d 7 W 220…240 V 15000 h 806 lm No
LPCLA60DS E27 7 W 3000 K E27 7 W 220…240 V 15000 h 806 lm No
LPCLA60DS B22D 7 W 4000 K B22d 7 W 220…240 V 15000 h 806 lm No
LPCLA60DS E27 7 W 4000 K E27 7 W 220…240 V 15000 h 806 lm No


LPCLA60DS E27 7 W 3000 K

Product benefits
  • Short payback period thanks to low energy consumption and maintenance costs
  • Energy-saving lighting solutions thanks to automatic switch off at daylight (> 20 lux)
  • Safety through automatic switch-on at darkness (< 20 lux)
  • Lower energy consumption than incandescent or halogen lamps
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Nominal current 48 mA
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Luminous efficacy 115 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Light color 830

Light technical data

Starting time < 0.5 s

Dimensions & Weight

Overall length 106.00 mm
Diameter 60.00 mm
Product weight 32.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E

Country-specific categorizations

Order reference LPCLA60DS 7W/830

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) E27
Length 106.00 mm
Height 60.00 mm
Width 60.00 mm
Displacement factor >0.7

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Short payback period thanks to low energy consumption and maintenance costs
  • Energy-saving lighting solutions thanks to automatic switch off at daylight (> 20 lux)
  • Safety through automatic switch-on at darkness (< 20 lux)
  • Lower energy consumption than incandescent or halogen lamps
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
Areas of application
  • Wherever constant lighting is necessary at night
Product features
  • LED alternative to conventional lamps
  • High color consistency: ≤ 5 sdcm
  • Mercury-free lamps
  • The integrated light sensor detects daylight level every 10 minutes and turns on/off automatically
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854581373 Folding box
1		 61 mm x 61 mm x 112 mm 46.00 g 0.42 dm³
4099854581380 Shipping box
10		 315 mm x 136 mm x 126 mm 554.00 g 5.40 dm³

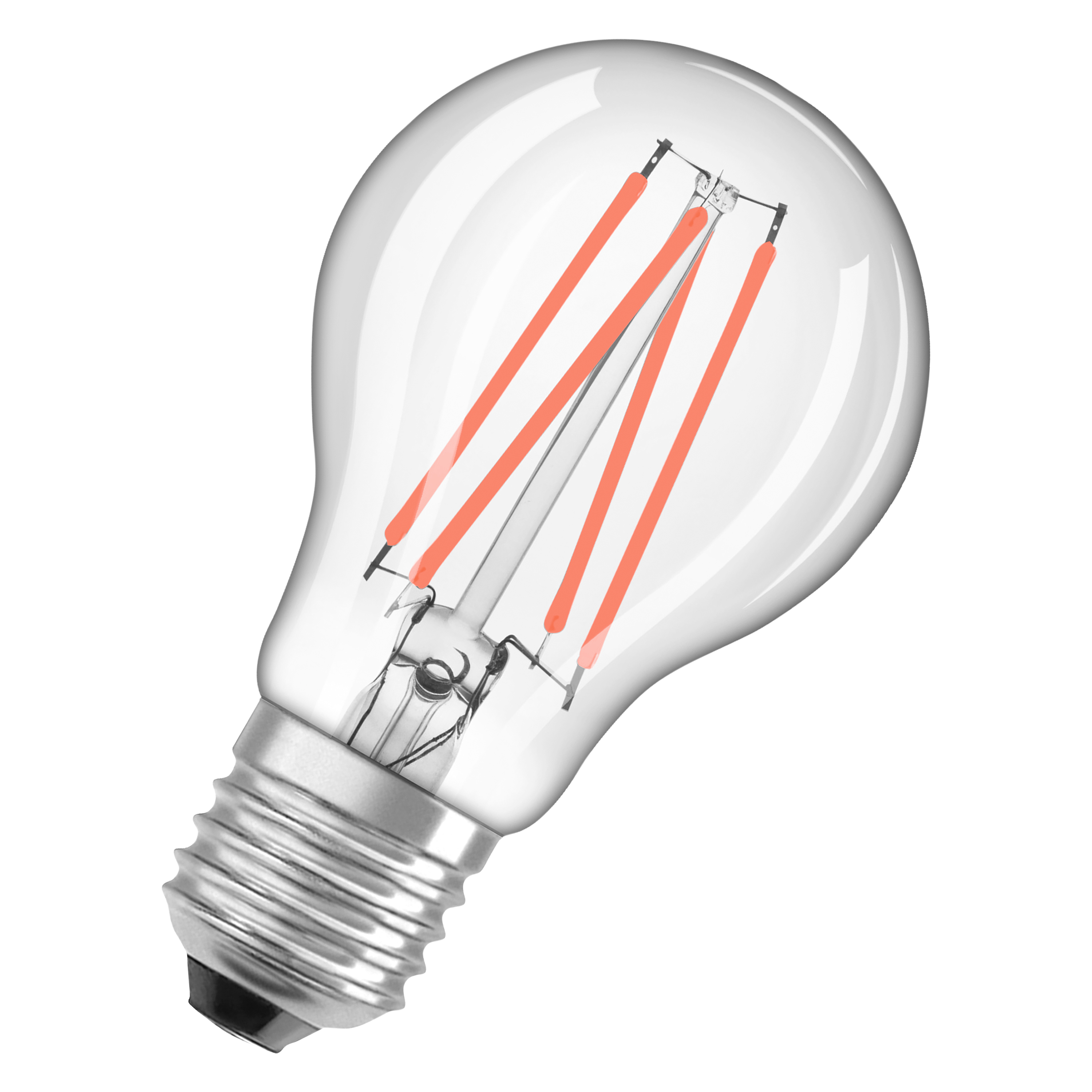

Product image: white background, diagonal
LPCLA60DS JPG (840.85 KB)

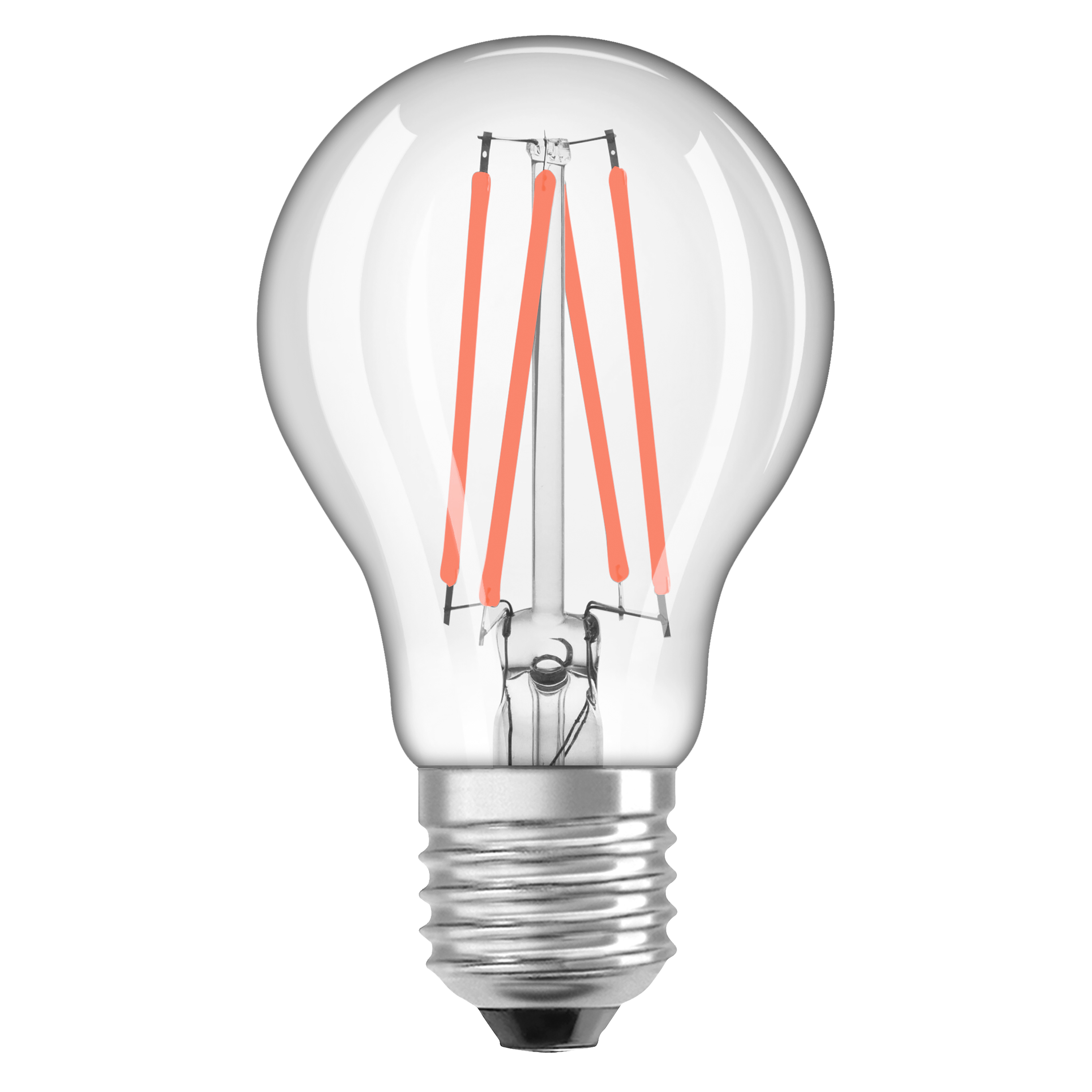

Product image: white background, upright
LPCLA60DS JPG (680.43 KB)
Product line drawing with numbers
LPCLA60DS SVG (10.49 KB)
